R-300 Series: High-Speed U-Shaped Filling and Capping Line for Household and Automotive Chemicals

Compact Powerhouse for High-Volume Chemical Packaging

In the fast-moving world of consumer and automotive chemicals, production efficiency is directly tied to market competitiveness. The R-300 High-Speed U-Shaped Line is engineered to be the backbone of this efficiency, delivering exceptional throughput within a remarkably compact footprint. This line masterfully combines advanced filling accuracy with robust, reliable automation, creating a continuous, high-paced packaging process for liquids of varying consistencies. By implementing a space-saving U-shaped configuration, it allows for logical product flow and easy operator access, making it an ideal solution for facilities looking to maximize output per square meter. For manufacturers of detergents, cleaning agents, car care products, and similar chemical goods, this line represents the perfect balance of precision, speed, and practical, durable design for 24/7 operational environments.

Technical Configuration & Process Flow

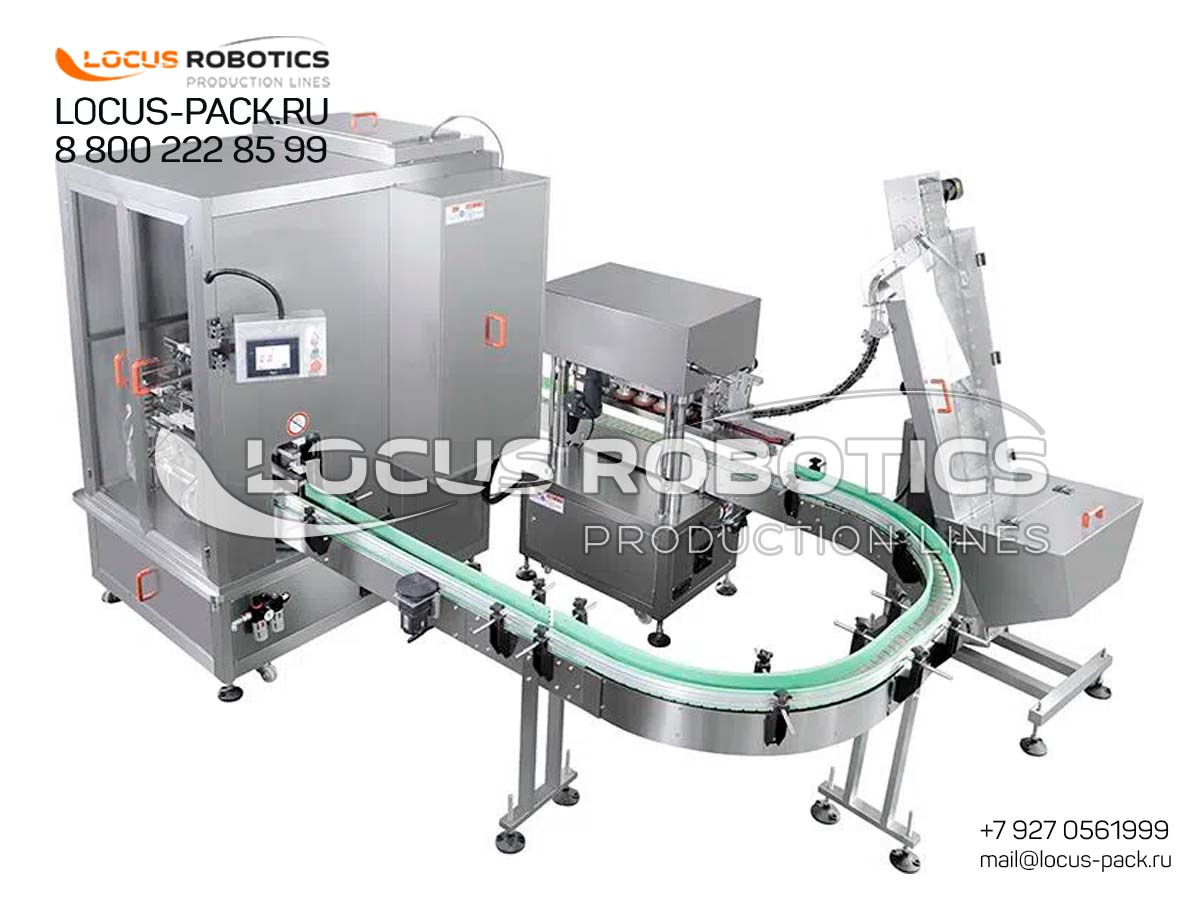

The line’s efficiency stems from its optimized U-shaped layout, which guides containers through a streamlined three-stage process: precision filling, cap preparation, and secure sealing.

• Precision Filling with Liquid Flow Meters

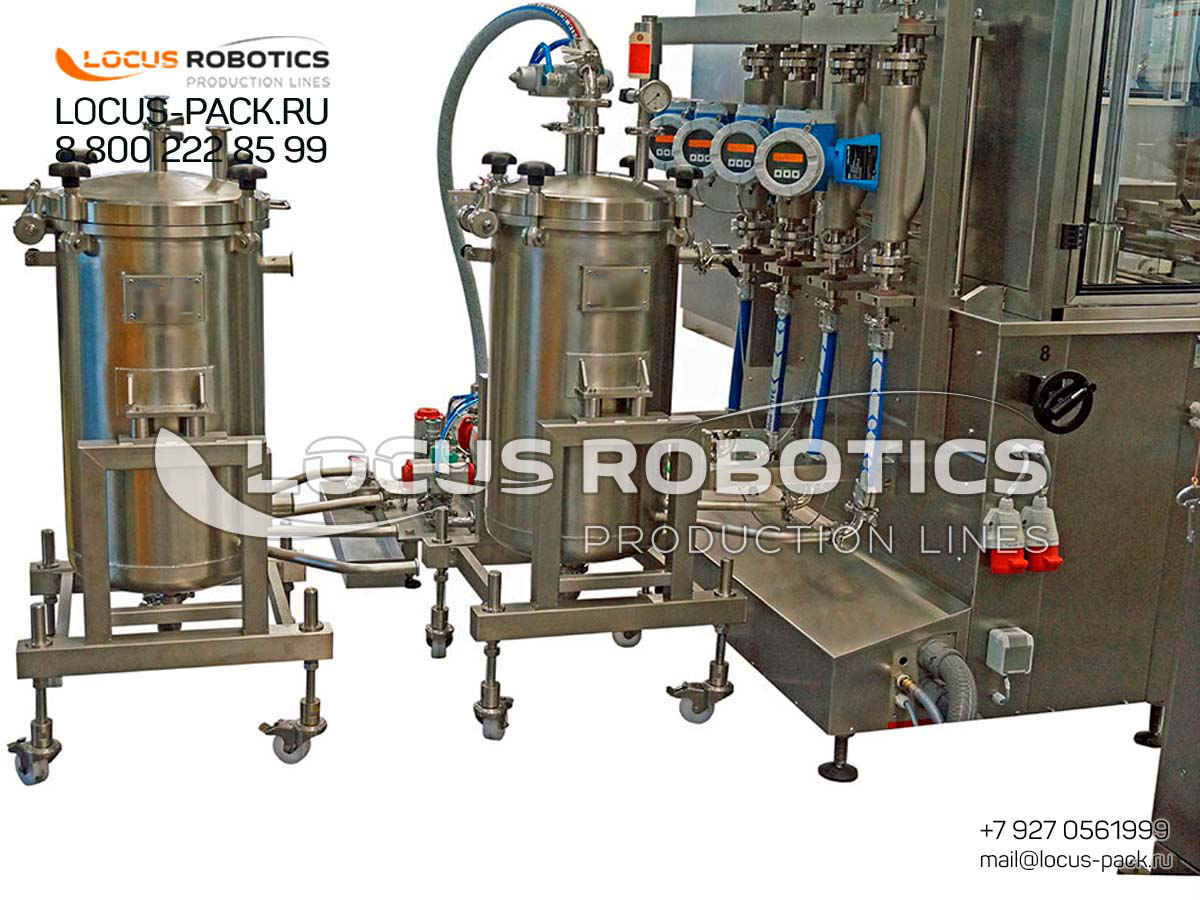

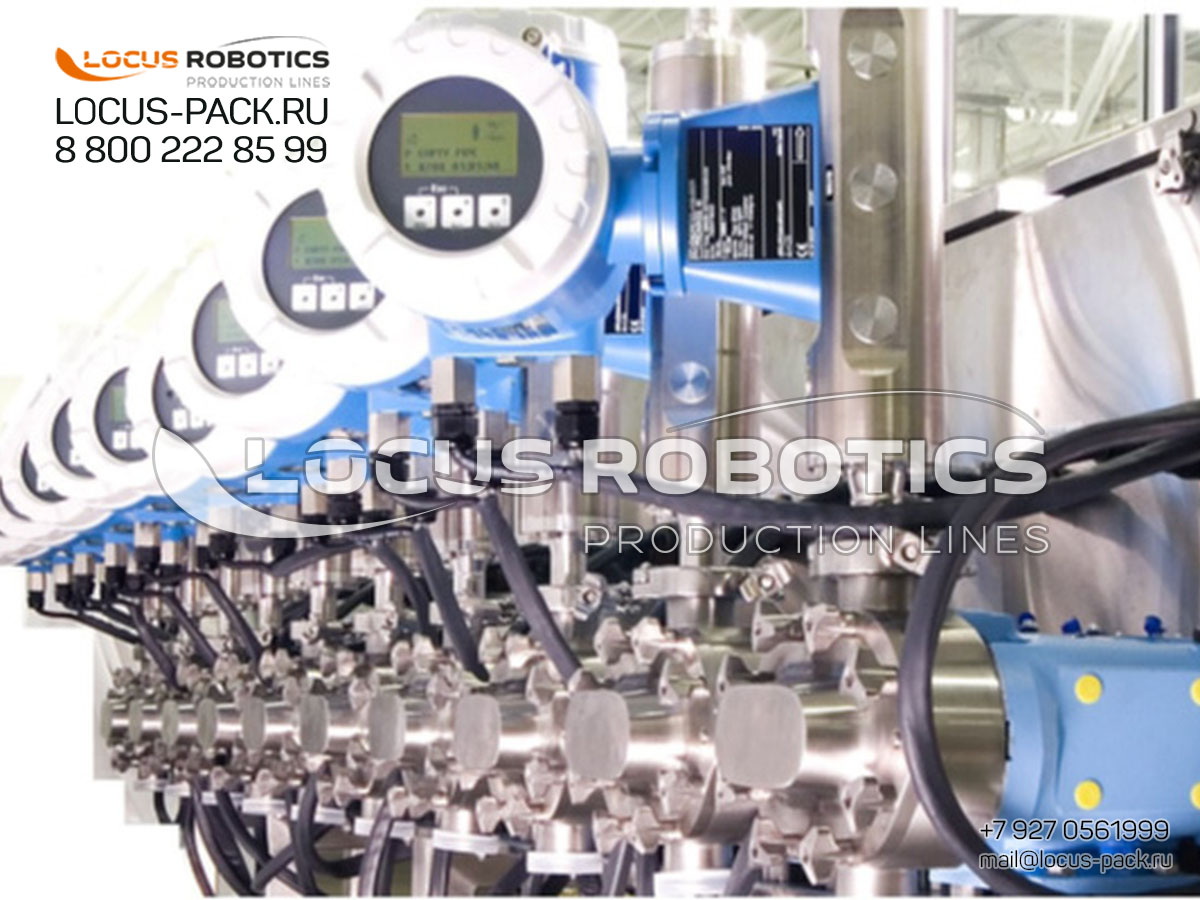

  Containers enter the line and are conveyed to the heart of the system: the liquid flow meter (Coriolis mass flow meter) filling block. This technology is critical for chemical applications, as it measures product by mass, making it immune to inaccuracies caused by temperature changes, viscosity variations, or product aeration. This guarantees that every bottle, from a 500ml cleaner to a 5-liter car shampoo container, is filled with exact, repeatable accuracy, minimizing giveaway and ensuring compliance with fill-weight regulations. The system allows for rapid, digital changeover between different fill volumes.

• Efficient Cap Handling & Linear Sealing
  After filling, containers proceed around the conveyor bend. Here, an elevator-type cap orienter gently lifts bulk caps from a hopper, correctly aligns them, and feeds them singularly to the sealing station. This gentle handling is ideal for a wide range of plastic screw caps commonly used in the industry. The caps are then applied by a linear through-type capping head, which screws them onto the containers with programmable, consistent torque. This «through-type» design ensures a positive, leak-proof seal that can withstand the pressures of distribution and storage, providing final product integrity.

Target Products & Versatile Industry Use

The R-300 line is exceptionally versatile, designed to package a broad array of liquid formulations:

• Household & Institutional Chemicals: Laundry detergents, dish soaps, floor cleaners, disinfectants, fabric softeners.

• Automotive Care Products: Car wash shampoos, wheel cleaners, traffic film removers, screen washes, liquid waxes, trim dressings.

• General Industrial Chemicals: Water-based degreasers, lubricants, maintenance sprays, and other chemical solutions.

Key Advantages for Demanding Production Environments

• Superior Space Utilization: The U-shaped design can reduce the required floor space by up to 35% compared to an equivalent linear layout, freeing up valuable production area.

• Uncompromising Filling Accuracy: Mass flow meter technology provides industry-leading accuracy, typically within ±0.25%, ensuring cost control and regulatory compliance for every product batch.

• High-Speed, Reliable Throughput: Engineered for continuous operation, the line supports high output speeds, making it capable of meeting the demands of large-scale contract packaging or dedicated brand production.

• Robust and Low-Maintenance Design: Built with industrial-duty components, sealed conveyors, and chemical-resistant materials, the line is designed for reliability and easy cleaning, ensuring maximum uptime.

• Operator-Friendly Workflow: The compact loop places the infeed, control panel, and discharge in close proximity, allowing for efficient monitoring and intervention by a single operator.

Technical Specifications

Frequently Asked Questions (FAQs)

• Q: What types of caps can this line handle?

  • A: The line is primarily designed for a wide range of standard plastic screw caps (28mm, 38mm, 45mm). The elevator orienter and linear capper can be configured for different cap diameters and styles. For non-screw closures (snap caps, pumps), a different capping module may be recommended.

• Q: How difficult is it to clean the line between different chemical products?

  • A: The line is designed for efficient cleaning. Product contact parts are easily accessible, and the conveyor design facilitates wash-down. For frequent changeovers between incompatible products, we recommend a CIP (Clean-in-Place) option for the filling system, which can be integrated to automate the cleaning process.

• Q: Can this line be integrated with a labeling machine?

  • A: Absolutely. While this core unit is a filler/capper, it is designed for seamless integration. A linear label applicator can be easily added to the discharge end of the U-shaped conveyor to create a complete filling, capping, and labeling line, providing a turnkey packaging solution.
