R-300 Series: Automatic Filling, Capping, and Labeling Line for Aggressive and Foaming Chemicals

Engineered for the Most Demanding Chemical Formulations

Packaging aggressive chemicals—from concentrated acids and caustic solvents to volatile foaming agents—requires an equipment philosophy centered on safety, integrity, and resilience. The R-300 Automatic Line is not an adaptation but a ground-up design for this critical task. This integrated complex goes beyond basic filling; it is a complete containment and packaging solution that manages the entire process from container infeed to pallet-ready labeled jerrycans. By incorporating specialized materials, advanced safety features, and automated handling, it drastically reduces operator exposure to hazardous materials, prevents product loss, and ensures batch-to-batch consistency. For producers of industrial cleaners, metal treatment fluids, specialty solvents, and high-performance oils targeting global supply chains, this line provides the technical assurance and regulatory compliance needed to operate with confidence and scale efficiently.

Technical Deep Dive: Configuration for Hazardous Liquids

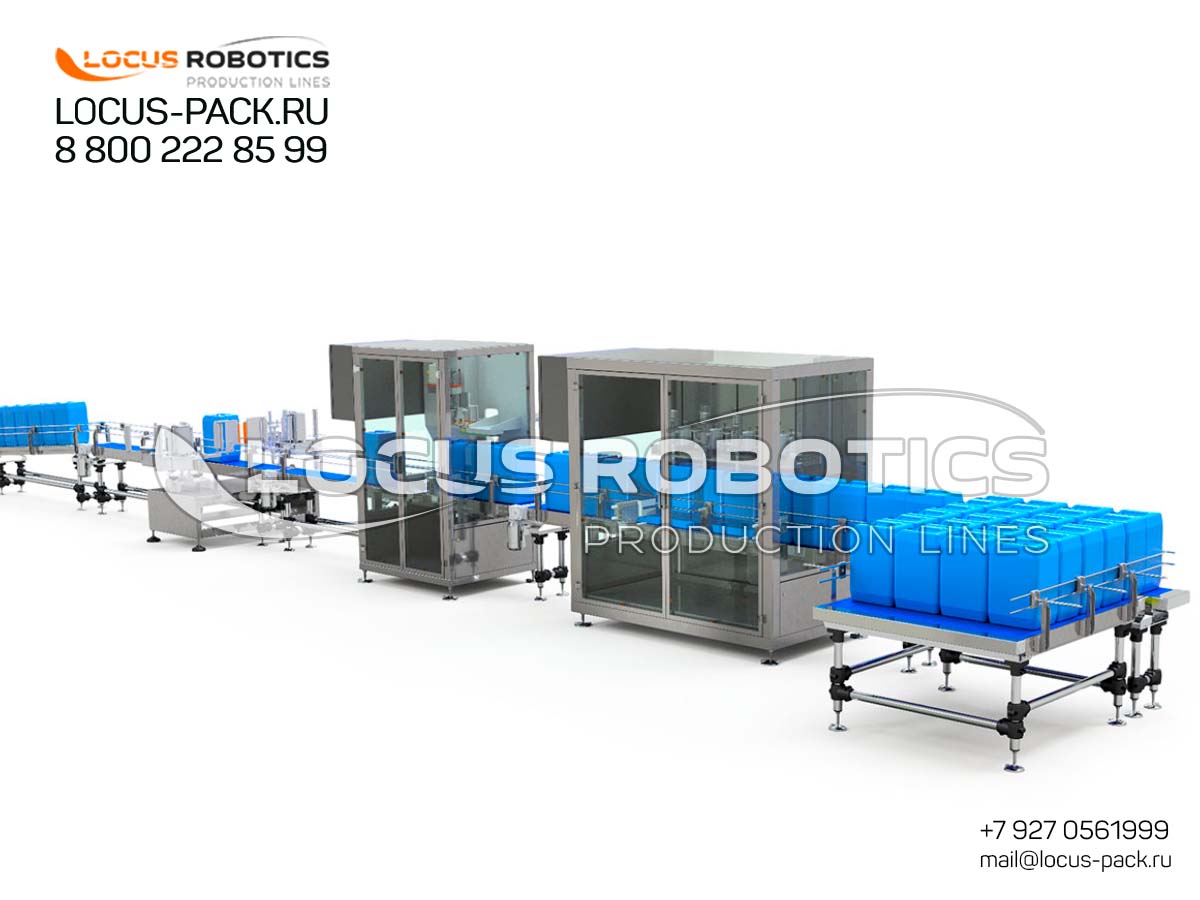

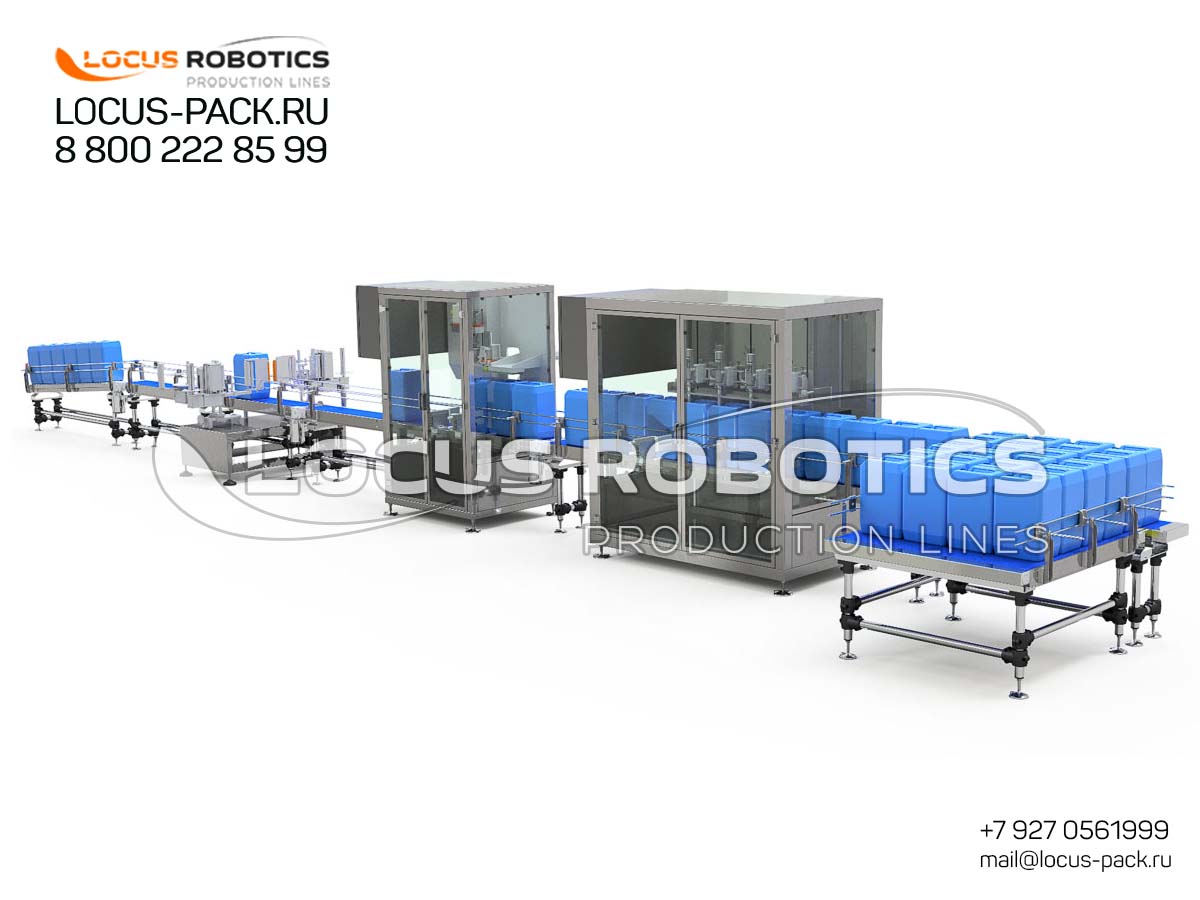

The R-300 line is configured as a sequential, automated complex, typically with a linear or L-shaped layout to optimize floor space and workflow for larger containers.

• Infeed & Precision Mass Flow Filling Station
  Empty jerrycans are fed via a distribution conveyor to the filling station. The heart of this station is the liquid flow meter (Coriolis mass flow meter) filling block. For aggressive chemicals, this technology is critical as it provides mass-based accuracy unaffected by the product’s temperature, viscosity, or tendency to foam or off-gas. The filling heads are designed for controlled, splash-free dispensing, often with bottom-up or submerged filling options to minimize aerosol generation. All product contact surfaces, including meters, valves, and piping, are constructed from AISI 316L stainless steel or higher-grade alloys to resist corrosion and ensure product purity.

• Robotic Capping and Automatic Labeling System
  After filling, containers proceed to a robotic capping module. A robotic arm picks up caps (often with liners resistant to chemical attack), places them accurately, and applies a precise, programmable torque to create a vapor-tight, leak-proof seal essential for hazardous goods transport. Finally, the line integrates a dedicated labeling system that automatically applies pre-printed front and back labels. This system can often be equipped with print-and-apply technology for adding variable batch data, expiry dates, and hazard symbols in compliance with GHS (Globally Harmonized System) labeling regulations.

Target Products & High-Risk Applications

This line is explicitly designed for challenging and often hazardous liquid products:

• Aggressive Acids & Alkalis: Hydrochloric, sulfuric, phosphoric acids; sodium hydroxide solutions.

• Industrial Solvents: Acetone, toluene, MEK, chlorinated solvents, paint thinners.

• Reactive & Foaming Chemicals: Hydrogen peroxide, certain surfactants, foaming cleaning agents.

• Technical Fluids: Industrial gear oils, cutting fluids, corrosion inhibitors, antifreeze concentrates.

Unmatched Safety, Compliance & Material Integrity

• GMP-Ready Hygienic Design: Engineered with Clean-in-Place (CIP) and Steam-in-Place (SIP) capabilities, allowing for thorough internal cleaning and sterilization without disassembly, which is vital for product changeover and preventing cross-contamination.

• Material Science for Durability: Standard construction uses AISI 316L stainless steel for exceptional corrosion resistance. Options for more exotic alloys (Hastelloy, Titanium), specialized coatings, or PTFE-lined components are available for extreme applications.

• Explosion Safety (ATEX Options): For environments with flammable solvents, the line can be configured with ATEX-certified components (motors, sensors, control cabinets) to meet strict zone safety requirements and prevent ignition risks.

• Compliance Roadmap: The line is designed and built to facilitate certification, including CE Marking (EU), EAC (Eurasian Customs Union), and ISO 9001 quality management standards, providing a clear path to market access in regulated regions.

Global Support & Service Infrastructure

We understand that a machine is only as good as the support behind it, especially in remote locations.

• Regional Service Hubs: Strategic technical support and spare parts inventories are maintained in key regions: Dubai (MENA), Hanoi (Southeast Asia), and Lagos (Africa) for rapid response.

• Rapid Deployment & Calibration: We offer on-site commissioning within 72 hours in key regions and on-site calibration services to ensure optimal performance from day one.

• Comprehensive Assurance Package: Support includes 24/7 multilingual remote monitoring (EN/RU/AR/ES), validation support (IQ/OQ/PQ protocols), and a 24-month performance guarantee. Region-specific spare parts kits are available for less than 24-hour delivery.

• Custom Engineering: We provide product-specific configuration and rapid customization within 1-2 weeks, including voltage customization (110V-480V) for any market.

Technical Specifications

Frequently Asked Questions (FAQs)

• Q: What exactly makes this line «corrosion-resistant» for aggressive chemicals?

  • A: The standard uses AISI 316L stainless steel, which has high molybdenum content for resistance to chlorides and acids. For the most extreme chemicals (hot hydrochloric acid), we engineer solutions using higher-grade metals like Hastelloy C-276 or PTFE-lined components, ensuring longevity and preventing metallic contamination of your product.

• Q: What is the value of CIP/SIP for a chemical line?

  • A: Clean-in-Place/Steam-in-Place allows for automated, validated cleaning and sterilization of the entire product path without manual disassembly. This is crucial for: 1) Operator Safety (minimizing exposure during cleaning), 2) Production Efficiency (faster changeovers between different or hazardous products), and 3) Quality Assurance (providing a documented, repeatable cleaning process).

• Q: How does your global support work for a technical line like this?

  • A: Our support is multi-layered: Level 1: 24/7 remote diagnostics and guidance in multiple languages. Level 2: On-site technicians dispatched from our regional hubs (Dubai, Hanoi, Lagos) for complex issues. Level 3: Engineering support from headquarters, including spare parts air-freighted from regional inventories. We also provide comprehensive IQ/OQ/PQ documentation to streamline your own validation processes.
