Description

Precision Sterile Packaging Solution for High-Value Pharmaceutical and Cosmetic Vials

Single-Head Peristaltic Dosing System for Absolute Product Isolation.

Dual-Spindle Rotary Capping Station for High-Speed, Secure Sealing.

Vertical Labeling Machine with Roller Conveyor for Precision Application.

In the highly regulated worlds of pharmaceuticals and advanced cosmeceuticals, packaging is a critical control point that directly impacts product safety, efficacy, and shelf life. The R-100 Automatic Rotary Line is engineered as a dedicated solution for these demanding sectors, focusing on the precise, aseptic handling of small-volume, high-value liquids. Its carousel (rotary) design provides a smooth, continuous motion that is inherently more efficient and gentle on containers than linear systems, making it ideal for fragile glass vials or delicate plastic bottles. The system’s overarching design principle is the prevention of contamination and mix-up—cornerstones of Good Manufacturing Practice (GMP). By integrating filling, capping, and labeling into one synchronized rotary platform, it minimizes manual intervention, reduces airborne particulate exposure, and ensures absolute traceability for each batch. For manufacturers supplying sterile injectables, ophthalmics, or potent topical formulations to markets in the EU, North America, or aspiring to meet those standards in Southeast Asia and the Middle East, the R-100 provides a technologically robust and auditable foundation for compliant, world-class production.

Technical Architecture: Carousel Design for Efficiency and Closed-System Safety

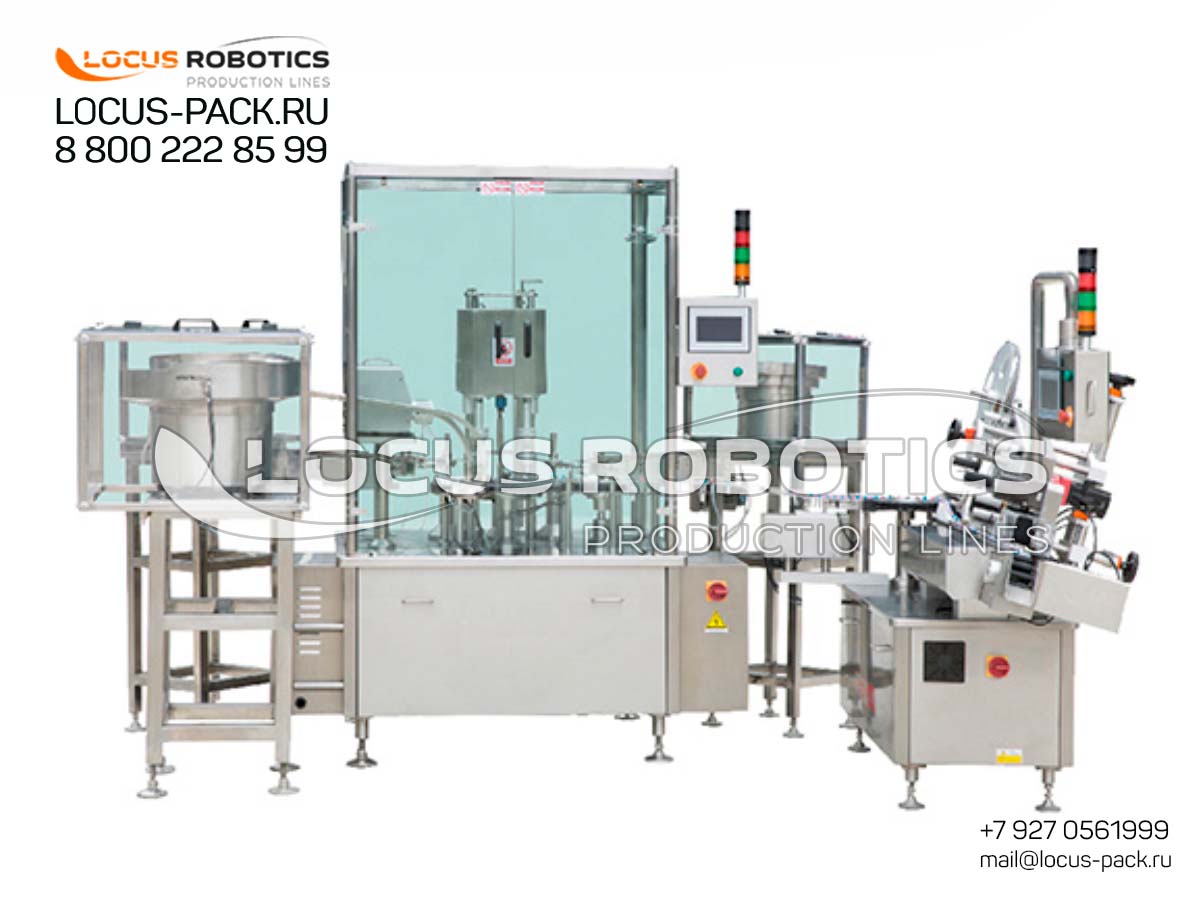

• Machine Type: Fully Automatic, Rotary (Carousel) Monobloc Filling, Capping, and Labeling Line.

• Primary Applications: Sterile Pharmaceutical Injectables (vials, ampoules), Ophthalmic/Ear Drops, Nasal Sprays, Vaccine Diluents, Non-Sterile Oral Solutions, Cosmetic Serums & Ampoules, Essential Oils, Premium Skincare Samples.

• Core Technology: Carousel-based rotary motion with integrated stations for dosing, capping, and labeling. This design offers superior space efficiency, higher potential speeds for small containers, and smooth container handling.

• Dosing Technology: Single-Head Peristaltic Pump Dosing System. This is the optimal choice for sterile and potent products. The fluid path is defined entirely by a disposable, sterile tubing set, which can be changed in minutes between batches or products with zero risk of cross-contamination or carryover. It offers gentle, low-shear action perfect for sensitive emulsions and proteins.

• Accuracy: Delivers high volumetric accuracy, typically ±0.5% or better, which is non-negotiable for pharmaceutical dosing where under- or over-filling can have clinical consequences.

• Construction & Hygiene: All structural and product contact parts are AISI 316L Stainless Steel, electropolished to a mirror finish for cleanability. The machine is designed with Clean-in-Place and Sterilize-in-Place (CIP/SIP) capabilities and can be configured with laminar flow hoods or integrated into an isolator for aseptic processing.

• Control System: Validatable PLC system with a multi-language HMI touchscreen. The system supports electronic batch recording, user access levels, and full alarm logging for regulatory audits.

In-Depth Component Analysis: Ensuring Aseptic Integrity from Fill to Finish

1. Single-Head Peristaltic Dosing System for Absolute Product Isolation: The heart of the system’s safety claim. A pharmaceutical-grade peristaltic pump head is mounted on the rotating carousel. Product is fed from a pressurized vessel via the disposable tubing. As the carousel indexes, the pump activates, drawing a precise volume and dispensing it into each vial. When the batch is complete or a product changeover is required, the entire fluid path—the tubing—is discarded and replaced, rendering the system clean and ready for the next product without any complex cleaning validation for internal pump parts.
2. Dual-Spindle Rotary Capping Station for High-Speed, Secure Sealing: Following filling, vials move to the capping station. Two independent capping spindles work in tandem to double the output. Caps are fed from a vibratory bowl or a sterile cap feeder. Each spindle picks up a cap and screws it onto the vial with programmable, consistent torque control. This ensures each closure, whether a rubber stopper/aluminum seal (for vials) or a screw cap, is applied with the exact force needed for a hermetic seal critical for sterility assurance (SAL) and product stability.

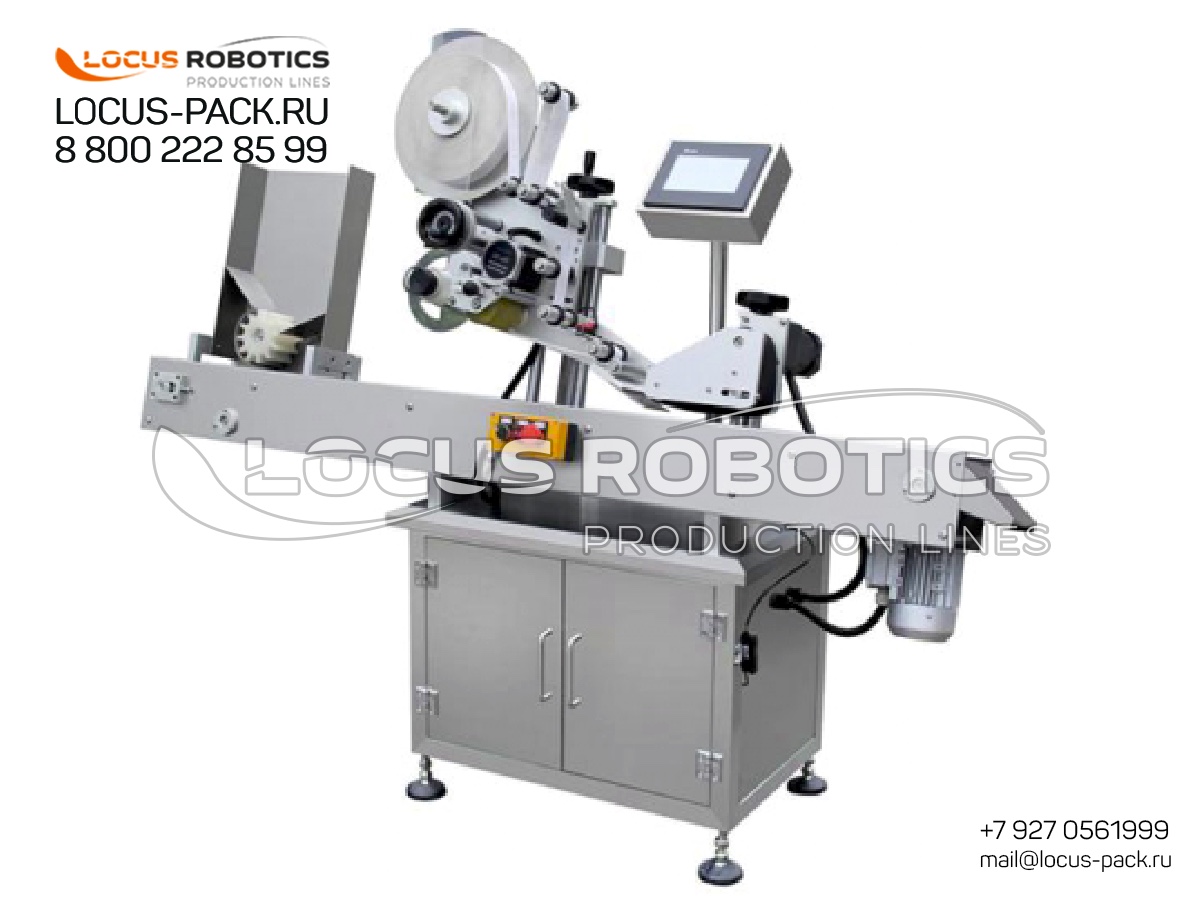

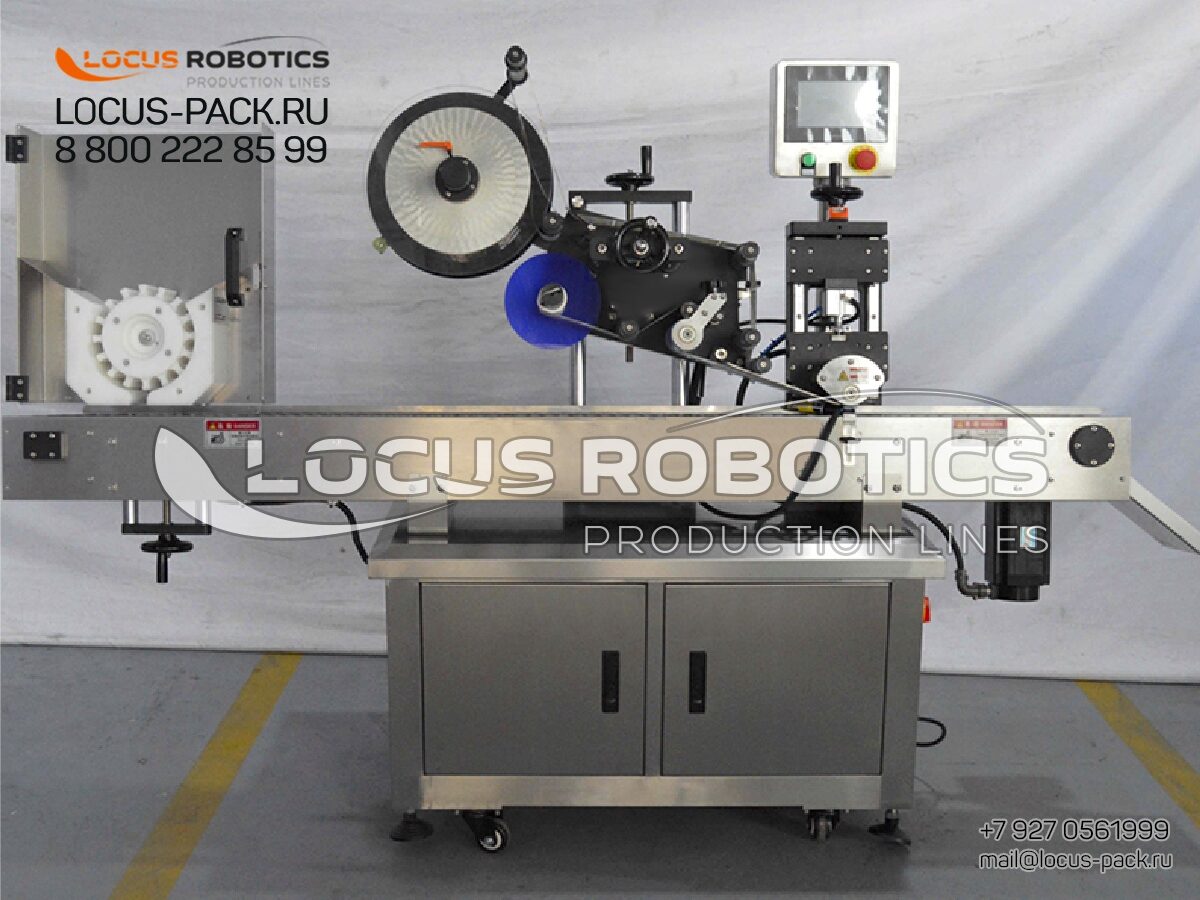

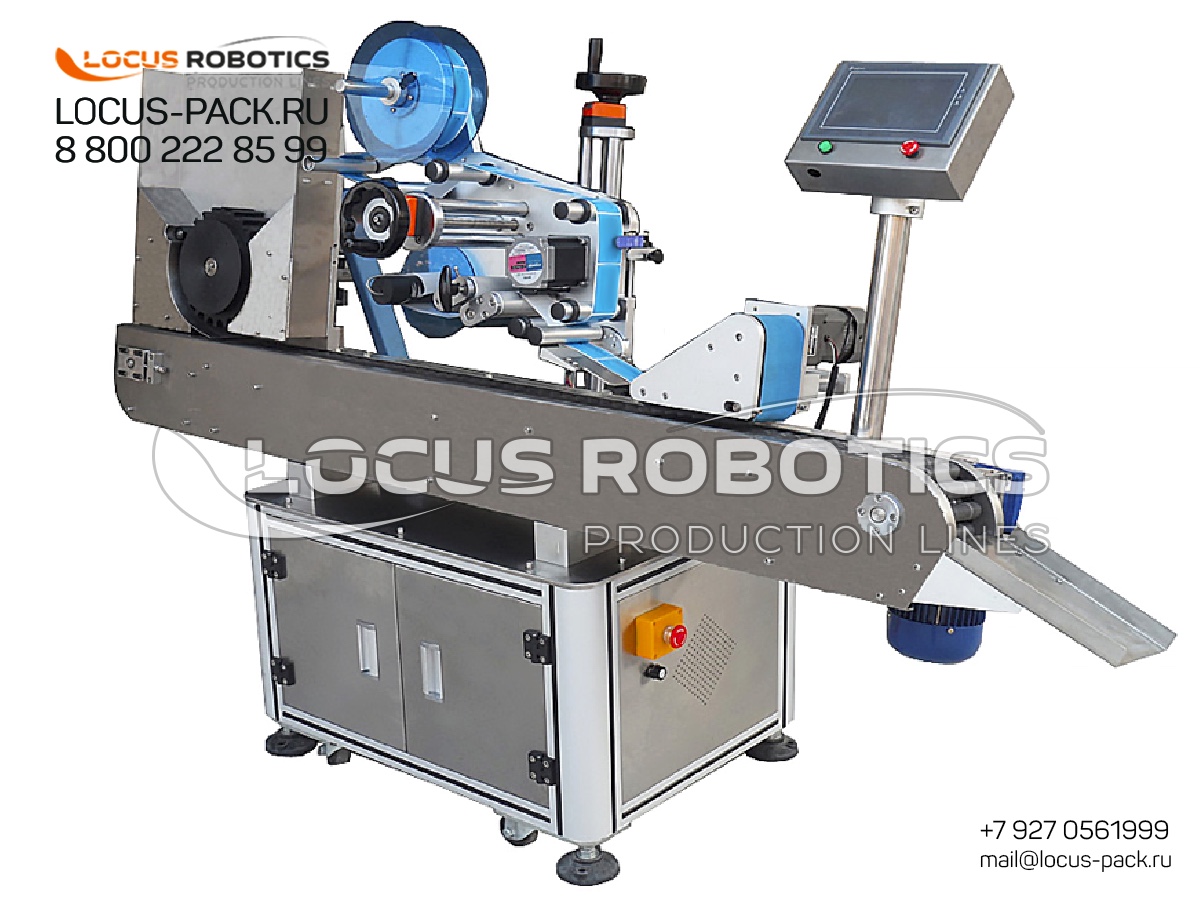

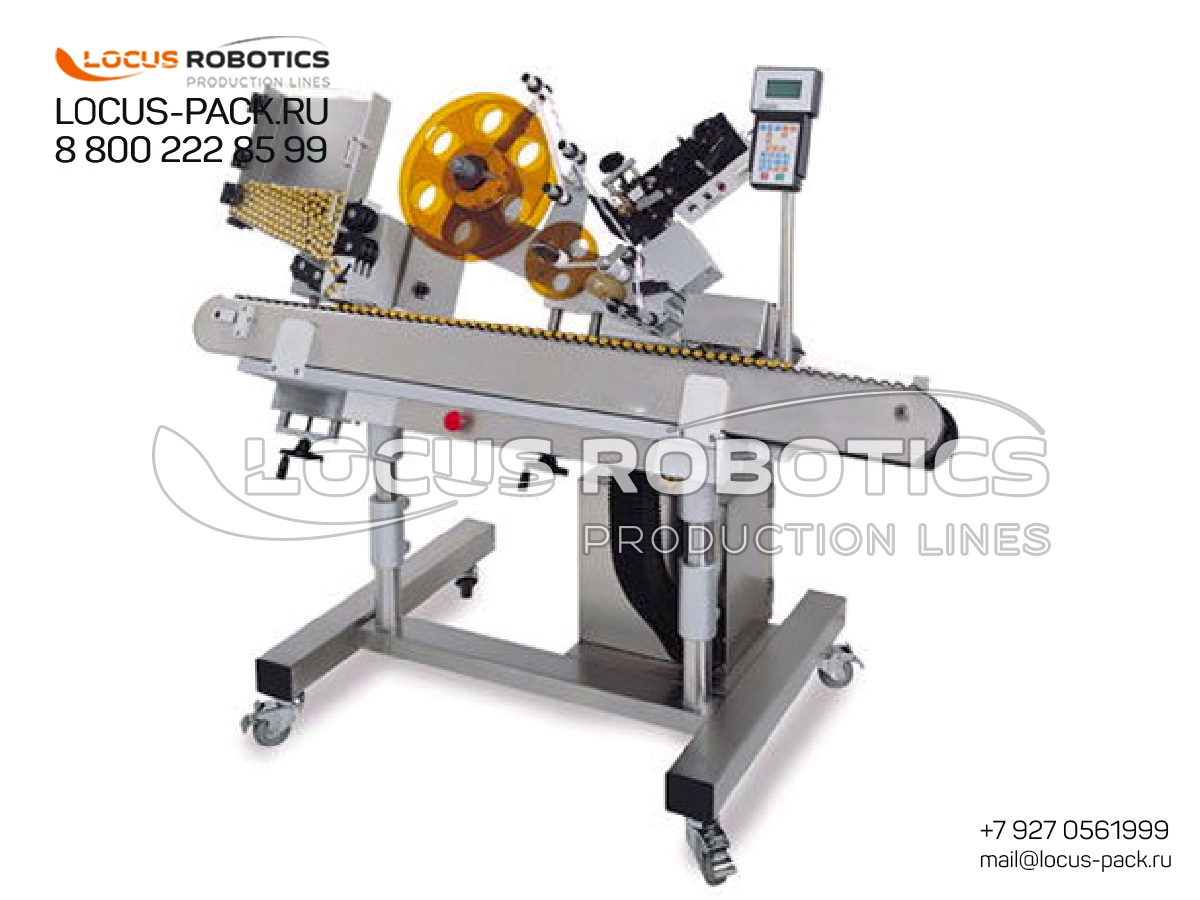

3. Vertical Labeling Machine with Roller Conveyor for Precision Application: After capping, containers are transferred via a dedicated roller conveyor to the vertical labeling station. This labeler is designed to apply labels to small cylindrical containers with exceptional precision. It handles front/back labels, wrap-around labels, or tamper-evident bands, ensuring all mandatory pharmaceutical information (product name, strength, batch number, expiry date) or cosmetic branding is applied clearly, legibly, and in perfect alignment—a key requirement for final visual inspection.

Target Applications: Meeting Stringent Requirements from Sterile Drugs to Premium Serums

This line is the definitive choice for producers operating at the intersection of high quality and strict regulation:

• Pharmaceutical Contract Development and Manufacturing Organizations (CDMOs): Handling small-batch clinical trial materials (CTM) or commercial batches of sterile and non-sterile liquids.

• Biotechnology Companies: Packaging diagnostic reagents, buffer solutions, and cell culture media.

• Compounding Pharmacies: Scaling up the production of ophthalmics, dermatologicals, or hormone therapies.

• Premium Cosmetic & Skincare Brands: Manufacturing anti-aging serums, ampoule treatments, and professional-grade products where purity, precision, and luxury presentation are paramount.
  For these users, the R-100 delivers uncompromising product protection, regulatory confidence through its validatable design, and operational efficiency by automating the most critical packaging steps with flawless repeatability.

Compliance by Design: A GMP-Ready Platform for Global Market Access

The R-100 is not just built to perform; it is built to pass rigorous audits. Its design incorporates the core principles of EU Annex 1 and FDA cGMP guidelines. We provide a complete validation documentation package (DQ, IQ, OQ, PQ) to accelerate your qualification process. Our global support model for this critical technology includes specialized validation support, 24/7 remote diagnostics, and spare parts kits for critical components stocked in our strategic hubs in Dubai, Hanoi, and Lagos. With features like multi-language HMIs, voltage customization, and rapid engineering for specific vial formats, the R-100 Peristaltic Line is more than machinery—it is a strategic partnership designed to provide pharmaceutical and cosmetic manufacturers with a reliable, compliant, and future-proof asset to navigate complex global supply chains and build a reputation for unwavering quality.
