Description

High-Throughput Packaging for Beverages & Distilled Spirits

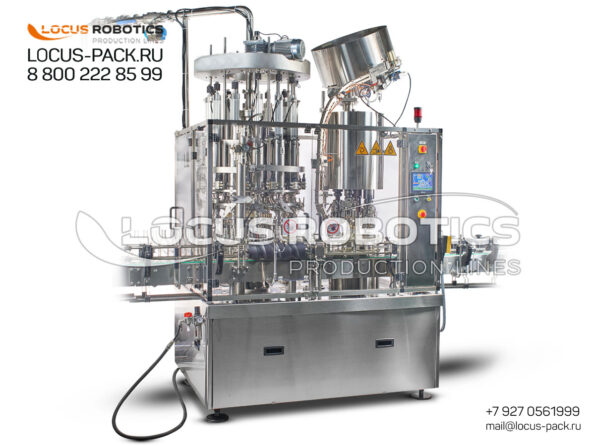

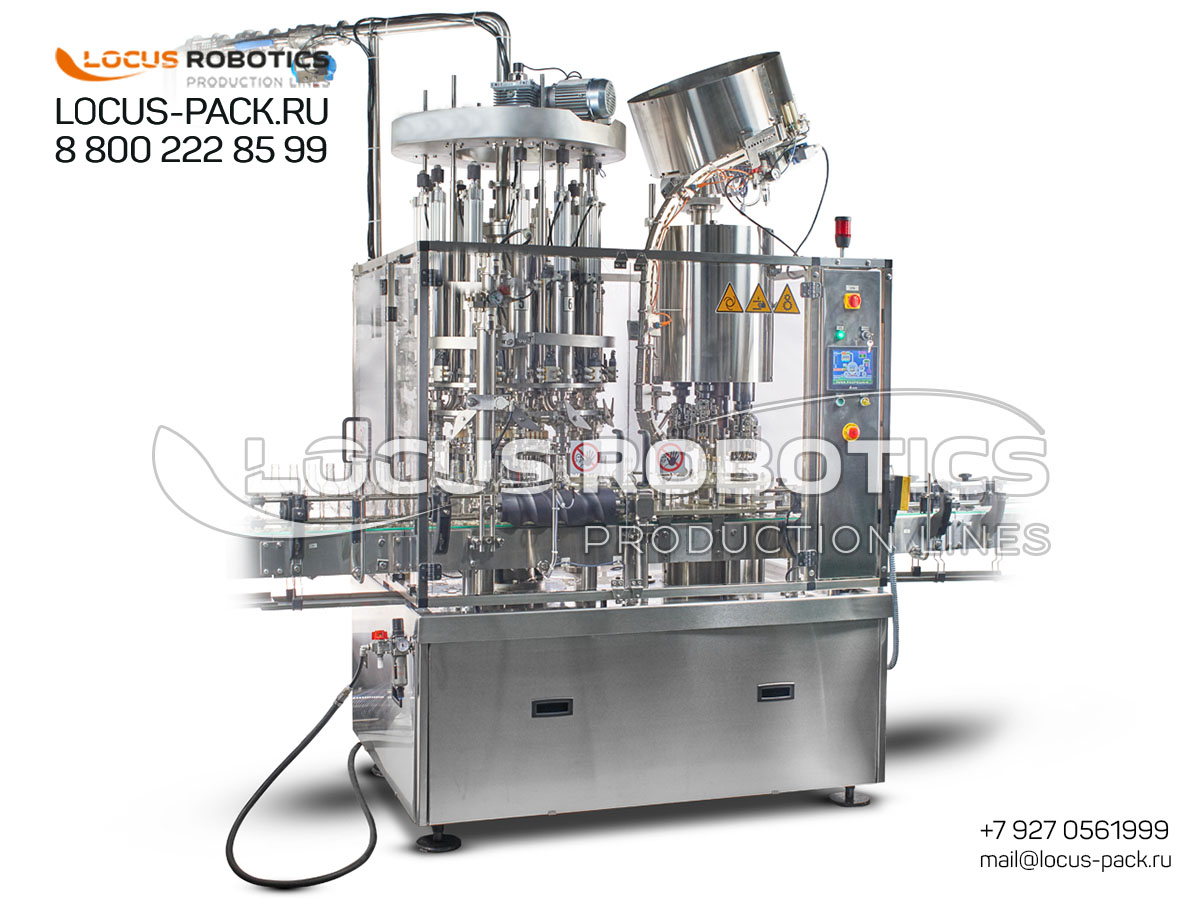

The LR-500 Rotary Monoblock for Beverages and Spirits is designed to be the productive heart of modern bottling lines for both alcoholic and non-alcoholic products. For manufacturers and distilleries in Southeast Asia, Africa, the Middle East, and Latin America, this machine offers the perfect balance of speed, precision, and robustness required to compete in fast-moving markets. Its continuous rotary motion ensures maximum line efficiency (OEE) and consistent packaging quality, which is essential for brand integrity whether you are bottling premium spirits or popular soft drinks.

Precision Rotary Filling & Orbital Cap Sealing

1. Automatic Bottle Handling & Filling: Glass bottles are automatically fed and indexed onto a continuously rotating platform. A rotary dosing system ensures accurate volumetric filling of free-flowing to medium-viscosity liquids. The system can be tailored to handle still products like vodka and water, as well as manage carbonation levels in soft drinks like lemonade if required.

2. Orbital Cap Orienting and Sealing: The machine is equipped with an efficient orbital (disc-type) cap orienter. This system reliably singulates, orients, and feeds aluminum screw caps to the capping station. The rotary capping head then applies each cap with consistent, programmable torque, ensuring a secure and leak-proof seal on the glass bottle threads.

Technical Specifications for Bottling Operations

• Machine Type: Fully Automatic Rotary Monoblock (Filling + Capping).

• Filling Technology: High-speed rotary volumetric dosing system.

• Capping Technology: Rotary capping head with integrated orbital disc-type cap orienter.

• Product Compatibility: Free-flowing to medium-viscosity liquids (water, spirits, carbonated soft drinks).
  (Note: For highly carbonated products, an isobaric filler variant is recommended)

• Container Compatibility: Glass bottles of various shapes and sizes (200ml, 500ml, 700ml, 1L).

• Closure: Aluminum screw caps (roll-on or pre-threaded).

• Output Speed: Designed for medium to high-volume production, with outputs scalable to meet line demands.

• Construction: Robust, industrial design with product contact parts in AISI 304 or 316L Stainless Steel for corrosion resistance and easy cleaning.

• Control System: User-friendly PLC with Multi-Language Touchscreen HMI for managing fill volume, speed, torque settings, and production data.

Target Products: Alcoholic & Non-Alcoholic Beverages

This versatile monoblock is engineered for a broad spectrum of the beverage industry:

• Distilled Spirits: Vodka, brandy, gin, liqueurs, schnapps.

• Non-Alcoholic Beverages: Mineral water, spring water, still drinking water.

• Carbonated Soft Drinks (CSD): Lemonade, soda, and other sweet carbonated beverages (with appropriate filler configuration).

• Other: Ready-to-drink (RTD) tea, juice drinks.

Built for Beverage Industry Efficiency & Global Support

• Maximized Line Output: The rotary monoblock design provides a significant productivity advantage over linear systems, enabling faster bottling speeds and a higher return on investment.

• Operational Reliability: Built with durable components for 24/7 operation, minimizing unplanned downtime in high-volume production environments.

• Hygiene & Compliance: The GMP-ready design with stainless steel construction and cleanability supports food-grade hygiene standards (HACCP). Available certifications (CE, EAC) facilitate market access.

• Global Beverage Support Network: We provide industry-focused support through our 24/7 multilingual technical helpdesk, regional service hubs (Dubai, Hanoi, Lagos), and rapid spare parts delivery. We also offer free line configuration analysis and on-site commissioning to ensure your bottling line starts strong and stays productive.
