Description

The High-Output Solution for Modern Canned Beverages

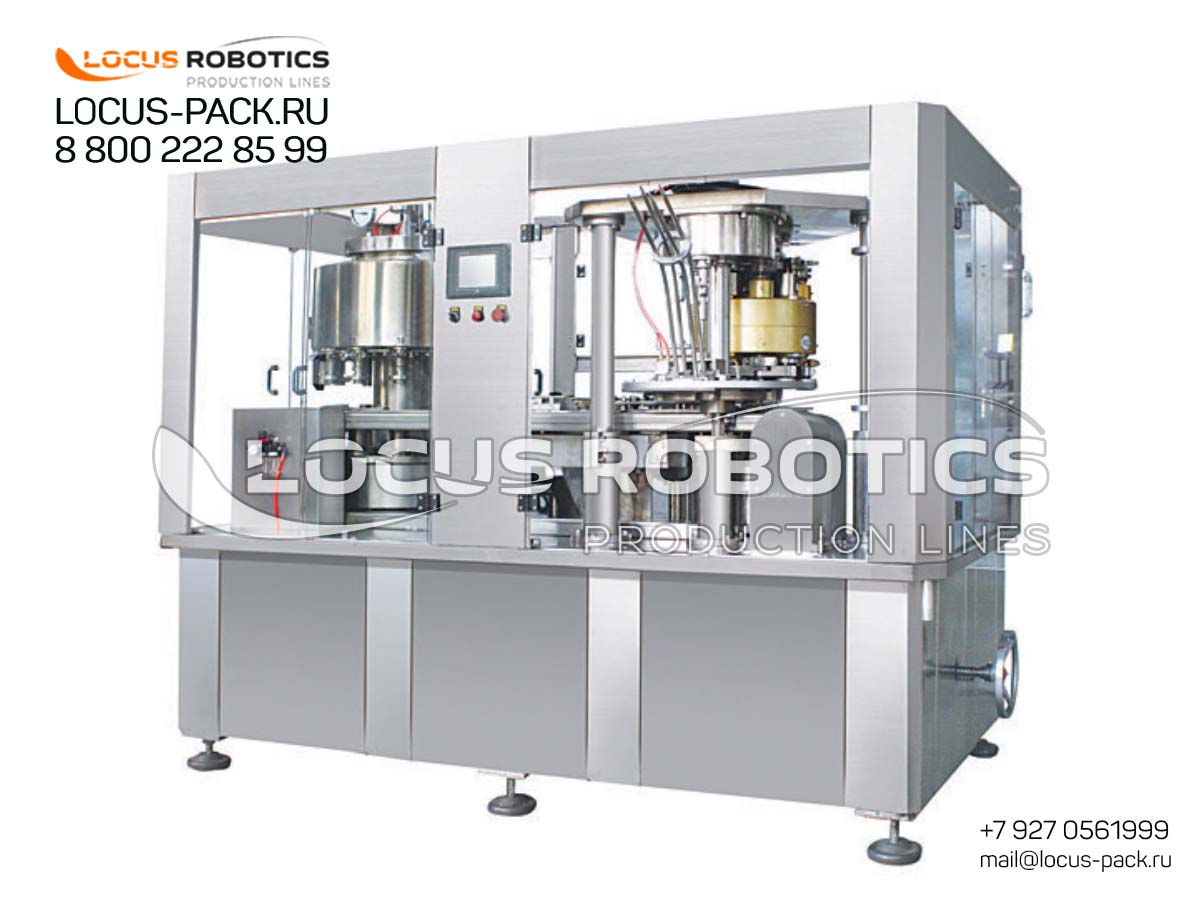

The LR-500 Rotary Can Filling and Seaming Machine addresses the booming global demand for canned beverages. For producers in Southeast Asia, Africa, the Middle East, and Latin America, where canned RTDs, beer, and innovative drinks are gaining significant market share, this machine provides a reliable, high-throughput packaging core. Its integrated rotary design combines filling and seaming in a synchronized process, minimizing transfer points and maximizing line efficiency (OEE) to meet the cost and volume demands of competitive markets.

Advanced Rotary Filling & Precision Seaming Technology

1. High-Speed Rotary Filling: Empty cans are automatically fed onto a continuously rotating platform. They pass under a bank of pressure-controlled filling valves. For carbonated products like beer and soda, these valves may use an isobaric (counter-pressure) or volumetric principle to fill without excessive foaming or product loss, ensuring precise fill levels and carbonation retention.

2. Automatic Lid Application & Seaming: Immediately after filling, lids (easy-open ends with stay-on tabs) are automatically fed from a magazine and placed onto the can mouths. The cans then enter the critical seaming station. Here, a precision seaming head (seamer) rolls the can flange and the lid’s curl together in a double-seaming process, creating a hermetic, airtight, and tamper-evident seal that is vital for product safety and longevity.

Technical Specifications for Can Packaging

• Machine Type: Fully Automatic, Rotary Can Filling and Seaming Monoblock.

• Operation: Continuous rotary motion for high-speed, uninterrupted production.

• Filling Technology: Rotary pressure filling valves (isobaric/volumetric) suitable for still and carbonated beverages.

• Seaming Technology: Integrated rotary seaming station (seamer) for easy-open (EO) can ends.

• Can Compatibility: Aluminum or steel cans, and PET cans. Standard diameters (202, 211) and common heights.

• Output Speed: Engineered for high-volume production, with outputs ranging from hundreds to several thousand cans per hour (CPH), depending on configuration.

• Construction: Robust, industrial-grade design. Product contact parts are AISI 304 Stainless Steel. Designed to handle the rigors of high-speed can handling.

• Control System: Central PLC with Color Touchscreen HMI for controlling fill time, seaming parameters, speed, and monitoring production counts and faults.

• Key Features: Synchronized filler-seamer interface, low-oxygen pickup filling (optional for sensitive products like beer), CIP capability for the filler, and quick changeover for different can sizes.

Target Products: Beer, RTDs, Energy Drinks & More

This versatile line is engineered for a wide range of liquid beverages:

• Alcoholic Beverages: Beer, ale, hard seltzer, canned cocktails (RTDs), cider.

• Non-Alcoholic Beverages: Energy drinks, carbonated soft drinks (CSD), sparkling water, ready-to-drink (RTD) tea and coffee, juice drinks.

• Other: Liquid broths, some edible oils in cans.

Engineered for Beverage Line Integration & Global Support

The LR-500 is designed to be the heart of a complete canning line. It integrates seamlessly upstream with can rinsers/air cleaners and downstream with pasteurizers (tunnel warmers), coders, labelers/sleevers, and packers.

• Maximized Productivity & Shelf-Life: The high-speed, hermetic seaming process is critical for achieving the long shelf-life expected of canned beverages, reducing spoilage and expanding distribution reach.

• Operational Efficiency: The integrated monoblock design reduces complexity, footprint, and labor compared to separate filler and seamer units.

• Global Canning Expertise: We provide specialized support for beverage canning applications, including 24/7 technical assistance, line integration engineering, and a global network for spare parts and service. Our regional hubs ensure rapid response to minimize costly downtime for high-speed production lines.
