Description

Eliminate Production Stoppages and Ensure Consistency in Hot-Fill Applications

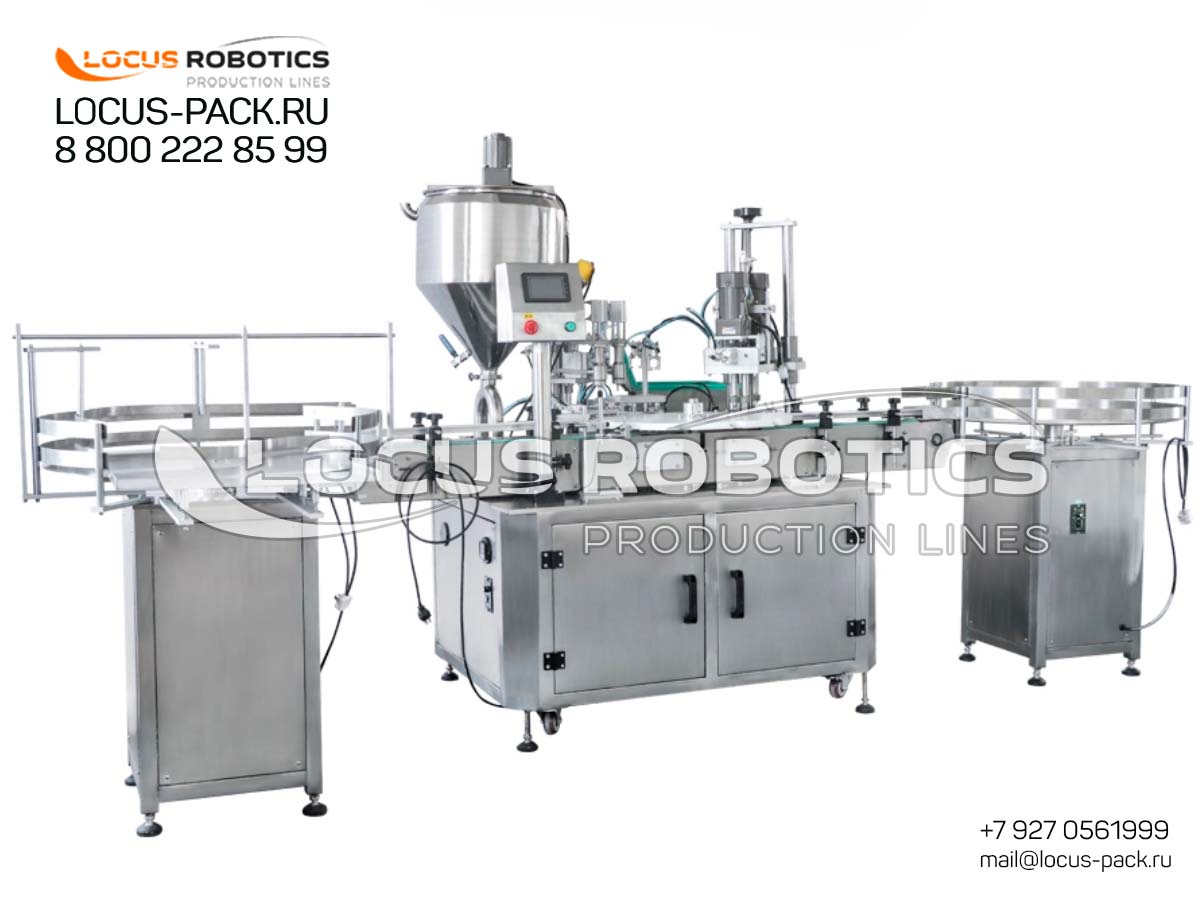

Packaging products that are hot, viscous, and prone to rapid viscosity change or solidification presents a unique set of challenges that standard filling equipment cannot solve. The LR-200 Hot-Fill Monoblock is engineered as a complete thermal management and process continuity system. It goes beyond simple filling to actively control the product’s state from the hopper to the point of dispense. The integrated heated jacket with PID temperature control maintains your product within a tight tolerance (±1-2°C), while the slow-speed agitator constantly stirs to ensure uniform density and temperature distribution, preventing separation or sedimentation. For manufacturers of lead-acid or lithium battery electrolytes, industrial sealants, polymer precursors, and hot-filled food products in growth regions, this machine is critical. It transforms a problematic, stop-start packaging operation into a smooth, reliable, and automated process, dramatically reducing waste, minimizing downtime for nozzle cleaning, and ensuring every container is filled with a product that meets precise specification.

Comprehensive Applications for Temperature-Dependent Products

This monoblock is essential for industries where product temperature is a critical process parameter (CPP):

• Energy & Battery Manufacturing: Lead-acid battery electrolyte (sulfuric acid), lithium-ion battery slurry and electrolytes, capacitor gel fill.

• Chemicals & Adhesives: Hot-melt adhesives (HMA), molten sulfur, two-part epoxy resins, thermoplastic sealants, viscous lubricants and greases.

• Food & Beverage: Hot oils and fats, chocolate and confectionery coatings, fruit paste fillings, processed cheese, hot sauces and condiments.

• Cosmetics & Pharmaceuticals: Hot-pour ointments, depilatory waxes, thick creams and balms that require maintained viscosity for accuracy.

• Construction & Automotive: Liquid gaskets, underbody coatings, viscous sound dampeners, and other hot-applied materials.

Technical Deep Dive: Features, Benefits, and Process Engineering

• Integrated Heating Jacket with Precision Temperature Control: The product hopper is surrounded by an electric or thermal fluid heating jacket connected to a digital PID temperature controller. This system allows operators to set and maintain an exact product temperature, which is crucial for maintaining correct viscosity for accurate dosing and ensuring the product flows smoothly without freezing in the nozzles or lines.

• Internal Hopper Agitator for Guaranteed Homogeneity: A centrally mounted, variable-speed agitator with specially designed blades operates within the heated hopper. This serves two vital functions: 1) It ensures uniform temperature throughout the product volume, eliminating hot or cold spots. 2) It prevents the settling of heavy fillers or particulates (common in battery slurries or sealants), ensuring every dose has the correct composition and preventing abrasive wear from settled solids.

• Dual Accumulation Table System for Uninterrupted Operation: This innovative material handling solution features two independent accumulation tables or conveyors at the discharge. While one table fills with finished, capped containers, the operator can safely unload the other. A simple switching mechanism then redirects the product flow, allowing production to continue without a single pause. This is invaluable for achieving true high-volume output and optimizing labor.

• High-Capacity 8-Piston Filling System for Demanding Throughput: Equipped with eight AISI 316L stainless steel piston cylinders, this filler is built for speed and accuracy even with challenging hot products. The pistons and valves are designed to handle the specific thermal expansion and potential abrasiveness of hot-filled materials.

• Robust Construction for Demanding Environments: Built to withstand the rigors of hot, often corrosive, and abrasive products. All wetted parts are AISI 316L stainless steel, with options for specialized coatings or materials like PTFE for highly aggressive chemicals. The design facilitates cleaning and purging between batches.

Detailed Technical Specifications Table

Strategic Value for Specialized and Scaling Manufacturers

• Solves Core Process Challenges, Not Just Packaging: This machine addresses the fundamental physics of your product (viscosity change, settling), making the packaging step reliable and repeatable. This process stability is often the key to scaling up from lab/pilot to full commercial production.

• Maximizes Yield and Minimizes Costly Waste: By preventing product solidification in the machine and ensuring accurate, homogeneous fills, you dramatically reduce product loss due to scrapped batches, off-spec containers, and lengthy clean-out procedures.

• Expert Support for Complex Applications: Hot-fill processes are specialized. Our global engineering team and regional hubs provide not just parts, but process expertise. We can advise on optimal temperature setpoints, agitator speed for your formula, and material compatibility to ensure long-term success.

Ready to Conquer the Challenges of Hot, Viscous, or Settling Products?

Move from a problematic manual process to a streamlined, automated solution.

• Request a Free Thermal Process & Product Compatibility Review: Share your product’s technical data sheet (TDS) or send a sample. Our engineers will analyze its thermal profile and behavior to recommend the optimal machine configuration.

• Schedule a Live Demo Focused on Thermal Control: Witness the precision of the temperature control system and the effectiveness of the agitator in a live video demonstration, configured for a product similar to yours.

• Download Our Technical Whitepaper: «Best Practices in Hot-Fill Packaging»: Gain insights into temperature setting, viscosity management, and line design for hot-fill applications across different industries.
