Space-Efficient, High-Velocity Packaging for Metal Containers

Engineered for markets where production speed and factory floor optimization are critical, the LBC-1000 U-Shape line represents a paradigm in compact, high-output packaging. The innovative U-shaped workflow—where cans are filled on one leg of the «U,» rotated 180 degrees via the turntable, and sealed on the opposite leg—dramatically reduces the line’s longitudinal footprint without compromising speed. This design is particularly advantageous for integrating into existing production halls or for businesses scaling up their packaging operations within confined spaces. The core of its speed is the six-station rotary filling carousel, which allows simultaneous filling of multiple containers, drastically cutting cycle times compared to linear in-line fillers. This line is the ultimate solution for manufacturers of quart, gallon, and 5-liter metal cans who need to meet high-volume orders with consistent quality and operational efficiency.

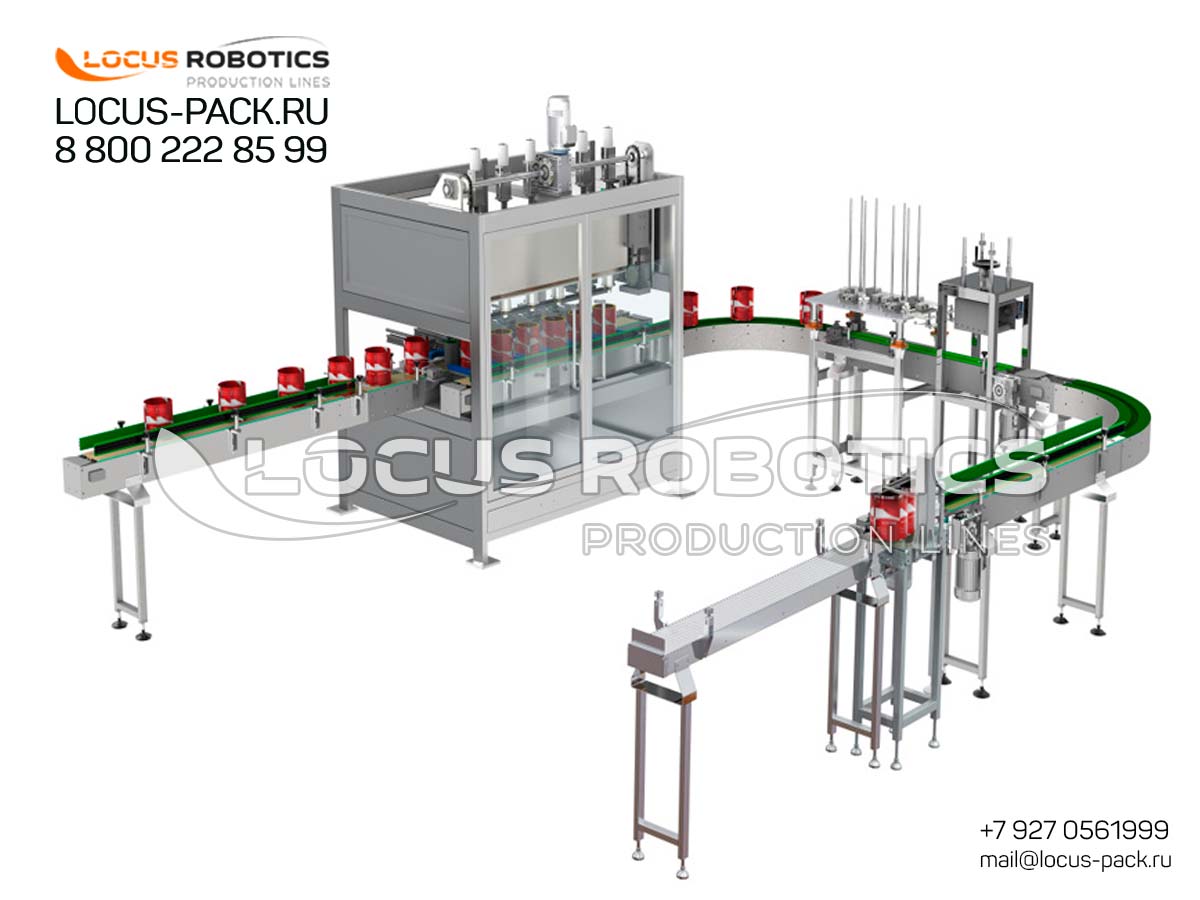

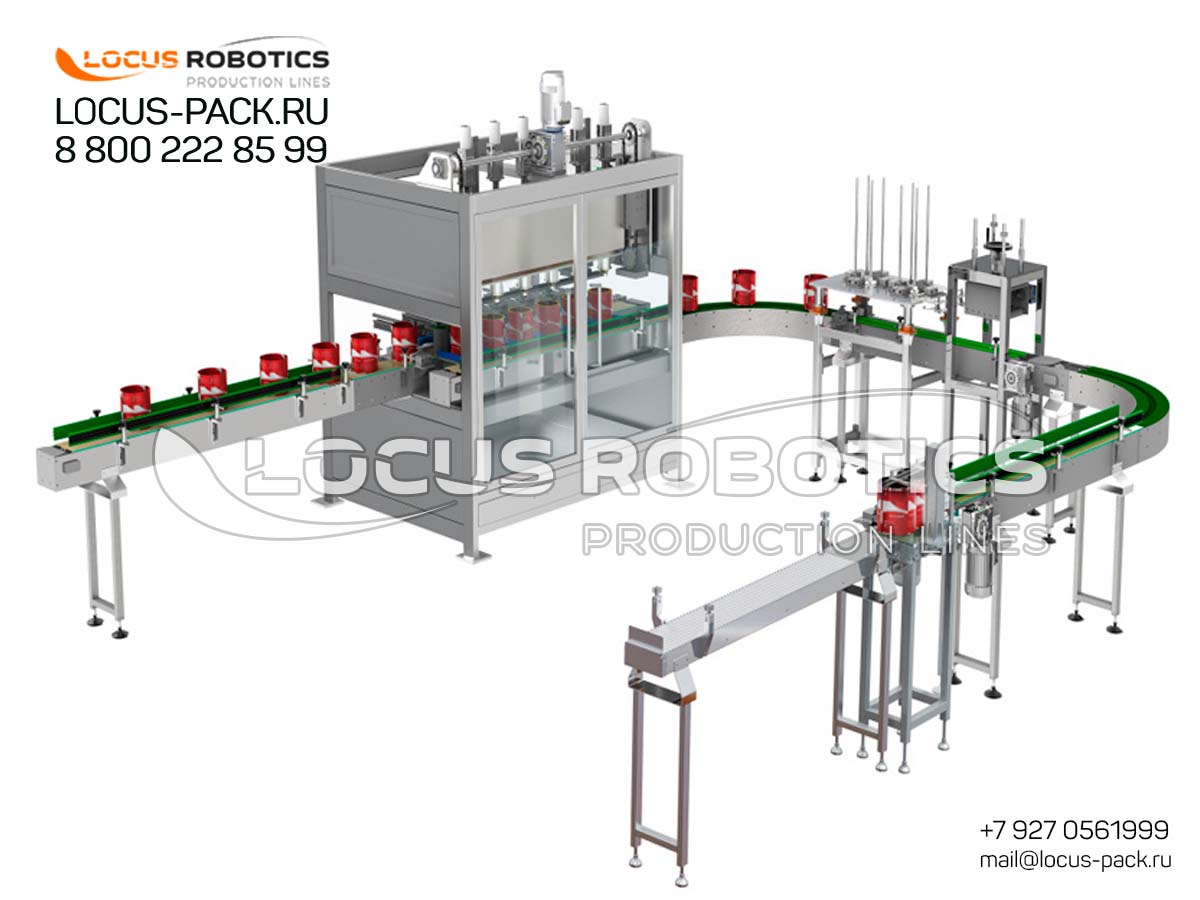

Core Line Components & Technical Process

1. Infeed Can Conveyor: A powered conveyor presents empty metal cans (tinplate or aluminum) in a single file, feeding them into the rotary filling block.

2. Six-Nozzle Rotary Volumetric Filling Block: The high-speed heart of the system. Cans are indexed into a rotating platform with six stations. As the platform turns, each can is positioned under a dedicated filling nozzle. Piston, gear pump, or vacuum filling technology can be employed based on product viscosity (from thin solvents to thick paints). This simultaneous multi-head filling enables very high throughput.

3. 180-Degree Turntable (Plate) Conveyor: After filling, cans are transferred onto a powered turntable conveyor. This module smoothly rotates the cans 180 degrees, redirecting them onto the parallel leg of the «U» towards the sealing station, optimizing floor space use.

4. Automatic Metal Lid Magazine & Feeder: A vibrating bowl feeder or stack magazine orients and feeds standard press-on (friction-fit) metal lids onto the path of the filled cans.

5. Angled Press-On Seaming (Crimping) Head: A robust seaming unit, mounted on an angled upper pressure roller (rolegang) system, forcefully presses the metal lid onto the can’s rim. This creates a secure, mechanically crimped seal that prevents leakage and contamination.

6. Discharge Conveyor: Transports the finished, sealed cans for downstream operations like labeling, coding, or case packing.

Detailed Technical Specifications & Build Quality

• Filling Technology: 6-head rotary filling block (piston, gear, or vacuum pump options).

• Filling Volume Range: Typically 100ml to 5 liters (approx. 0.1 to 1.3 US gallons).

• Filling Accuracy: Within ±0.5% to ±1.0% (dependent on product and fill volume).

• Operating Speed: High speed, potentially 30-60+ cans per minute (dependent on can size and fill volume).

• Container Type: Small, cylindrical metal cans (tinplate or aluminum) with a beaded rim for press-on lids.

• Lid Type: Standard friction-fit metal lids (press-on crowns).

• Sealing Technology: Mechanical press-on seaming/crimping.

• Line Layout: U-shaped (horseshoe) configuration with integrated 180-degree turntable conveyor.

• Construction: Heavy-duty frame; product-contact parts in stainless steel or coated carbon steel as required.

• Control System: PLC with Touchscreen HMI for speed control, fill volume adjustment, and diagnostics.

Target Applications & Industries

This line is specialized for the decorative and industrial coatings sector, as well as allied chemical industries:

• Paints & Coatings: Architectural paints (emulsion, enamel), automotive touch-up paints, industrial coatings, wood stains and varnishes, rust-inhibitive primers, and lacquers.

• Construction Chemicals: Tile adhesives, grouts, sealants (silicone, polyurethane), waterproofing compounds, and liquid masonry products.

• Adhesives & Lubricants: Industrial glues, contact cements, spray adhesives, and specialty lubricants and greases.

Key Market Advantages & Operational Benefits

1. Exceptional Space Utilization: The U-shaped layout with a central turntable can reduce the required floor space by up to 40% compared to a traditional linear line of equivalent capacity, offering a superior return on factory square footage.

2. Maximized Production Speed: The six-head rotary filling technology enables simultaneous filling, allowing this compact line to achieve output rates that rival much larger, straight-line systems, perfect for meeting peak demand.

3. Optimized Material Handling: The smooth, automated turntable ensures a gentle yet efficient transfer of containers between processes, reducing the risk of jams or spills and maintaining a consistent production rhythm.

4. Robust and Low-Maintenance Design: Built with industrial-duty components for the demanding chemical processing environment, ensuring high uptime and reliability with minimal servicing.

5. Rapid Changeover Flexibility: The tool-less adjustment of filling heads and quick-change parts allow for efficient switching between different can sizes and products, enhancing operational flexibility for manufacturers with diverse SKUs.
