Description

Engineered for Unmatched Flexibility and Precision in Demanding Production Environments

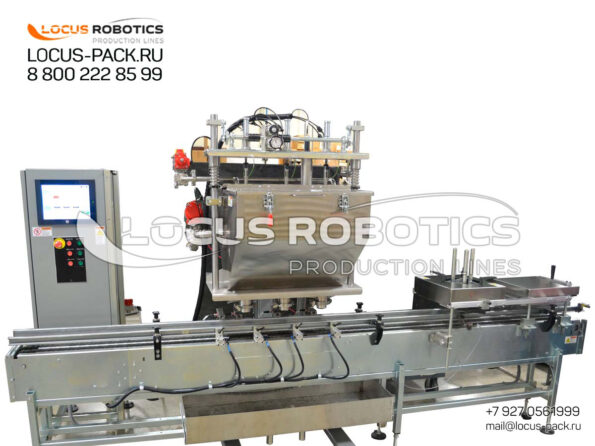

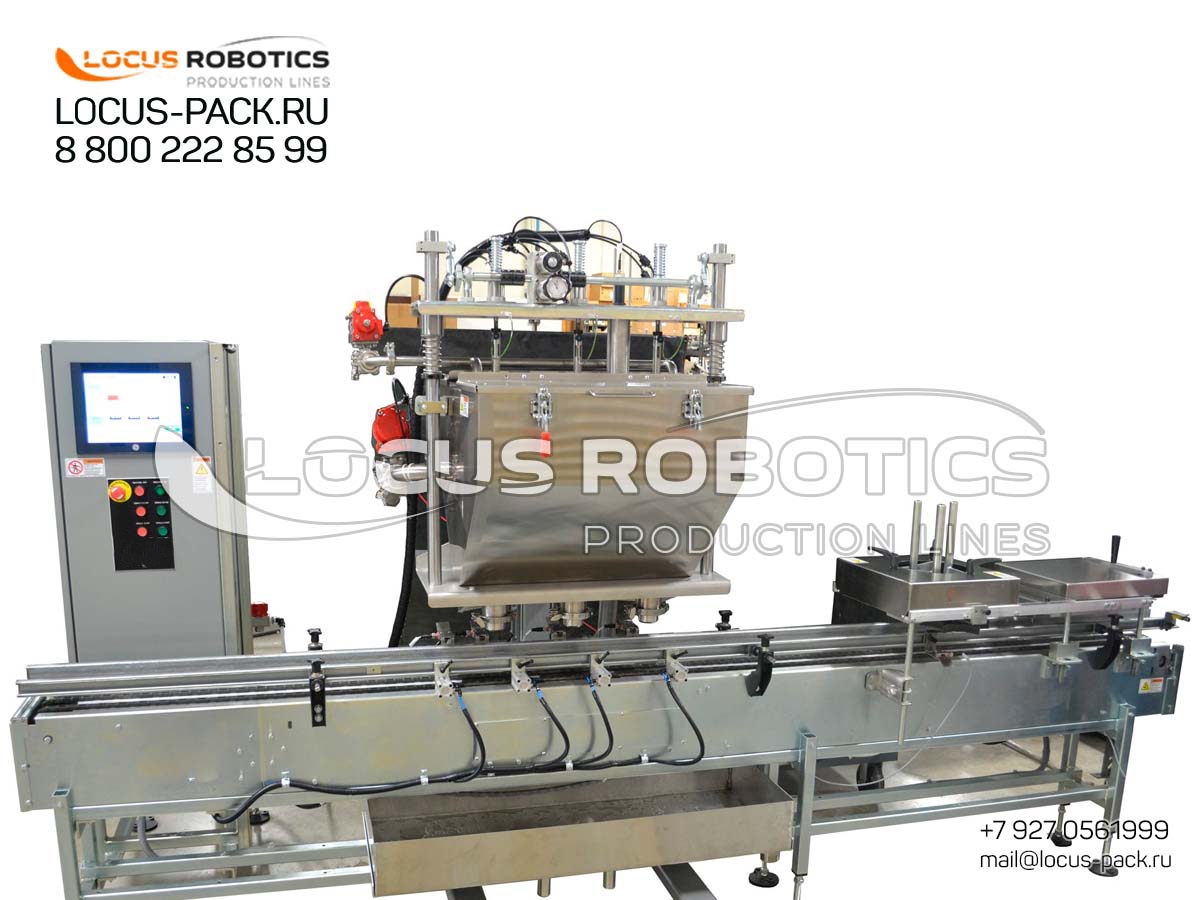

Navigating the complex packaging needs of modern manufacturing requires equipment that is both specialized and adaptable. The LBC-1000 Three-Nozzle line is meticulously designed to meet this challenge, serving as a multi-purpose workhorse that eliminates the need for multiple single-purpose machines. Its fundamental strength lies in a semi-automatic operational paradigm that strategically automates the most critical and error-prone tasks—precision volumetric dosing and consistent cap application—while retaining an operator for container handling and visual quality assurance. This approach significantly reduces capital expenditure and factory floor space requirements compared to fully automated lines, while still delivering substantial gains in output speed, fill accuracy, and packaging consistency. The machine’s architecture facilitates rapid changeover between different products and container sizes, making it exceptionally suitable for facilities that run short batches, private-label productions, or cater to seasonal market demands. By investing in this versatile system, manufacturers future-proof their operations, gaining the capability to seamlessly pivot between the construction chemical and food sectors as market opportunities evolve.

Comprehensive System Architecture, Component Breakdown, and Operational Sequence

1. Heavy-Duty Base Frame with Integrated Product Receiving Hopper: The system’s foundation is a welded, rigid steel frame with adjustable leveling feet, providing stability for high-cycle operation. It supports a generously sized stainless steel receiving hopper or supply tank, which acts as a constant-pressure buffer to ensure a steady product flow to the dosing pumps. This hopper can be outfitted with optional low-level sensors, mechanical agitators to prevent sedimentation of particulates, and heating/cooling jackets for temperature-sensitive products like chocolate, certain adhesives, or fats.

2. Advanced Three-Nozzle Volumetric Dosing and Filling Module: This is the technological heart of the LBC-1000. It employs three independently controlled, positive displacement piston pumps or rotary lobe pumps (selected based on the target product’s abrasiveness and viscosity). Each pump feeds a dedicated, self-draining nozzle with anti-drip valves. The three-nozzle configuration provides an optimal balance, offering faster fill times for larger pails (5-gallon, 20-liter) than a single-nozzle machine, while maintaining a more compact and cost-effective footprint than larger rotary systems. Fill volume is controlled via an adjustable piston stroke or servo motor, managed through the PLC with recipe storage.

3. Integrated Automatic Capping Head with Adjustable Torque Control: Positioned immediately downstream of the filling station, this robust capping head automatically accepts a lid—placed either by an optional automatic feeder or by the operator—and applies it to the container. It is equipped with a continuously adjustable clutch or servo-driven system to apply precise, repeatable torque. This ensures plastic screw caps are secured consistently to specification, preventing under-tightening (which leads to leaks) or over-tightening (which can damage containers or threads), a critical factor for customer satisfaction and logistics.

4. Ergonomic Operator Control Station and Centralized Management System: The workflow is designed around the operator. An ergonomic workstation includes a foot pedal or palm buttons to initiate the fill/cap cycle. The entire system is governed by a Programmable Logic Controller (PLC) interfaced with a high-resolution, color Touchscreen Human-Machine Interface (HMI). This panel allows for intuitive setup of fill volume, pump speed, capping torque, and production counters, and provides diagnostic alerts for maintenance.

Exhaustive Technical Specifications, Material Options, and Performance Data

• Automation Level & Operation: Semi-Automatic. Operator loads empty container and may place lid; machine performs automated, sequenced filling and capping.

• Filling Technology & Configuration: Three (3) independent positive displacement filling heads. Options include stainless steel piston pumps for high accuracy with viscous products, or sanitary rotary lobe pumps for gentle handling of particulates.

• Fill Volume Range & Accuracy: Extremely versatile range, typically from 500 milliliters (ml) up to 25 liters (L). Achievable accuracy is ±0.5% or better of set volume, ensuring compliance with weights and measures regulations and minimizing costly product giveaway.

• Container Compatibility & Specifications: Designed for standard round plastic pails and buckets made from HDPE (High-Density Polyethylene) or PP (Polypropylene). Can be tooled for specific diameters and heights. Also capable of handling smaller containers like plastic jars or cans when used with appropriate change parts.

• Capping Technology & Compatibility: Automatic screw-capping head with adjustable torque. Compatible with a wide variety of plastic screw caps (38mm to 120mm+) and press-fit lids. Can be customized for other closure types.

• Production Throughput Estimates: Speed is dependent on fill volume and operator pace. Realistic output ranges from 8 to 15 containers per minute for common industrial sizes (5-gallon pails).

• Construction & Hygienic Design: Main frame: powder-coated carbon steel. All product-wetted parts: AISI 304 or 316L Stainless Steel, polished to specified Ra (roughness) standards. Sanitary fittings and easy-clean surfaces support food-grade and chemical wash-down requirements.

• Control, Connectivity & Data: Central PLC control with 10-inch color Touchscreen HMI. Features recipe storage (50+ recipes), batch counting, and fault diagnostics. Optional connectivity for data logging to external systems.

• Utilities & Facility Requirements: Standard requirements include Clean, dry compressed air (6-8 bar) and Electrical power (220V/380V, 50/60Hz, configurable). Minimal plant utilities footprint.

Detailed Target Applications for Industrial Chemical and Food & Beverage Sectors

• Construction Chemicals & Industrial Products: Precision filling of polyurethane construction adhesives, silicone sealants and caulks, acrylic latex caulks, epoxy resins and hardeners, liquid roofing membranes, tile adhesives (thin-set mortar), grouts, concrete repair compounds, anti-corrosion coatings, industrial lubricants and greases, viscosified cleaning concentrates, and automotive care products.

• Food, Beverage & Culinary Products: Hygienic packaging of edible oils (sunflower, olive, coconut), cooking sauces (soy, teriyaki, barbecue), paste products (tomato paste, curry paste, fruit purees), liquid eggs, dairy-based sauces and dressings, beverage syrups and concentrates, soup bases and stocks, ready-to-use cake and batter mixes, and liquid sweeteners like honey and molasses.

• Paints, Coatings & Related Supplies: Handling of water-based paints, acrylic enamels, primers, stains, varnishes, and related paint sundries where smaller batch or specialty color production is needed.

In-Depth Analysis of Key Market Advantages, Operational Benefits, and Return on Investment (ROI)

1. Maximized Operational Flexibility and Reduced Capital Lock-In: This single machine platform effectively replaces the need for multiple dedicated fillers, allowing a production facility to dynamically switch between packaging construction chemicals and food-grade products (following proper cleaning protocols). This versatility protects your investment against market shifts and enables you to pursue contracts across different industries without major new equipment purchases.

2. Superior Fill Accuracy Drives Direct Cost Savings and Regulatory Compliance: The positive displacement three-nozzle system delivers exceptionally precise fills, virtually eliminating costly overfilling («giveaway») of expensive raw materials. Consistent accuracy ensures every container meets labeled volume declarations, which is critical for consumer trust and for passing official weights and measures inspections in export markets like the EU, GCC, and Southeast Asia.

3. Enhanced Production Efficiency and Worker Ergonomics: By automating the repetitive and physically demanding tasks of precise pouring and cap tightening, the line significantly increases output per operator while reducing fatigue, risk of repetitive strain injuries, and potential for spills. This leads to a more sustainable and productive workforce.

4. Robust, Low-Maintenance Design for Challenging Environments: Built with industrial-grade components and protected electrical systems, the LBC-1000 is engineered to perform reliably in environments with dust, humidity, and temperature variations common in emerging industrial zones. Its simple mechanical design ensures ease of maintenance, with locally sourced spare parts, minimizing costly downtime.

5. Rapid Payback Period and Strong Total Cost of Ownership (TCO): The combination of reduced product waste, lower labor costs per unit, decreased packaging errors, and the ability to generate revenue from multiple product lines typically results in a compelling return on investment (ROI), often within 12-24 months, making it a financially astute acquisition for growth-focused companies.
