Precision Engineering for the Critical Demands of Color Accuracy and Product Integrity

In the world of paints and coatings, color is everything. The packaging process for tinting products is not merely about filling containers; it is a critical step in preserving color integrity, ensuring dosage accuracy for in-store tinting machines, and maintaining the shelf stability of reactive components. The LBC-1000 is conceived to meet these exacting standards through a semi-automatic, operator-guided process that prioritizes precision over pure speed. The single-nozzle design is a strategic advantage for colorants and bases, as it allows for meticulous control over the fill cycle, eliminates potential cross-contamination between colors, and simplifies rapid cleaning during product changeovers—a frequent necessity in colorant production. The inclusion of an input accumulation table organizes workflow for the operator, while the inclined pressure capping system guarantees a uniform, secure seal on every container, protecting the sensitive chemical balance of the product within. This machine is the backbone for businesses where color fidelity and product quality are the ultimate drivers of customer trust and brand reputation in competitive regional markets.

Detailed System Architecture, Component Functionality, and Operational Process

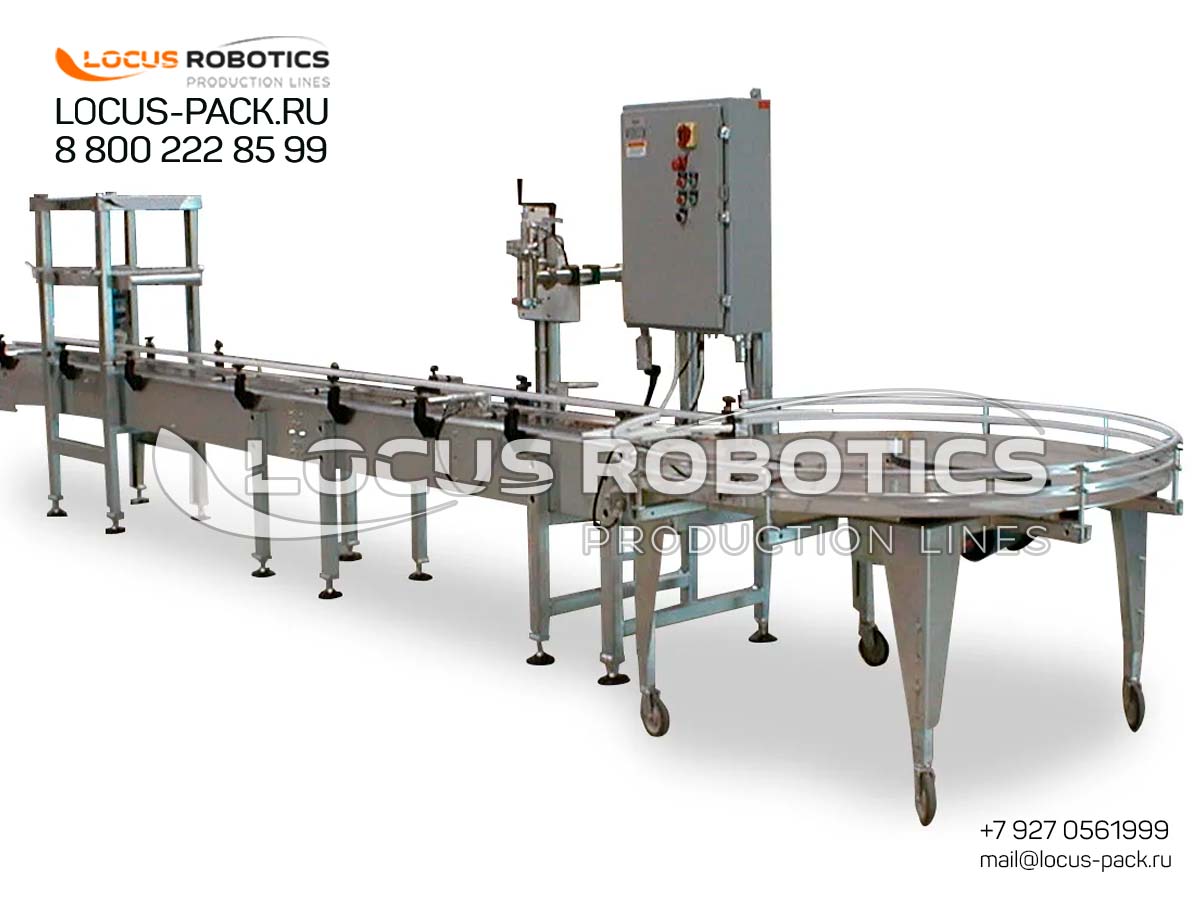

1. Input Accumulation and Organization Table: The process begins at a spacious, low-friction accumulation table. This allows the operator to stage a queue of empty plastic buckets or metal cans, organizing them for efficient, ergonomic loading onto the conveyor. This design element smooths production flow, reduces operator movement, and prevents bottlenecks.

2. Powered Indexing Conveyor System: Containers are transferred from the table onto a precisely controlled powered conveyor. This system indexes each container forward in a stop-start motion, accurately positioning it first beneath the filling nozzle and subsequently within the capping module. The conveyor’s speed and indexing timing are fully adjustable via the control system to match the fill and cap cycle.

3. High-Precision Single-Nozzle Volumetric Filling Station: The core of the system’s accuracy. This station utilizes a single, large-diameter positive displacement piston pump or a highly accurate gear pump specifically chosen for its ability to handle a wide range of viscosities, from fluid universal colorants to thicker paint bases. The nozzle is equipped with an anti-drip suck-back valve to ensure a clean cut-off and prevent any product from dripping onto the container’s sealing surface, which is crucial for achieving a perfect cap seal.

4. Inclined Pressure Conveyor Capping Module (Role Gang): This innovative capping solution consists of an inclined, motor-driven roller conveyor positioned above the container path. After a lid is placed on the filled container (manually or via an optional automatic feeder), the container passes under this inclined «role gang.» The angled rollers apply consistent, adjustable downward and rotational pressure, smoothly and reliably seating snap-on plastic lids or press-fit metal lids onto the bucket or can rim, creating a uniform, leak-proof closure.

5. Centralized Ergonomic Control Panel: The entire sequence is managed from a simple, intuitive control panel housing a Programmable Logic Controller (PLC). A user-friendly interface allows for easy setting of fill volume, conveyor index length, and cycle initiation (often via a foot pedal or palm button for operator convenience), placing precise control at the operator’s fingertips.

Exhaustive Technical Specifications, Performance Data, and Configuration Options

• Automation Level & Operation: Semi-Automatic. Operator loads containers onto the conveyor and may place lids; the machine performs automated, sequenced indexing, precision filling, and mechanical capping.

• Filling Technology & Configuration: Single (1) high-accuracy positive displacement filling head. Choice of piston pump for ultimate accuracy with viscous bases or gear pump for high-speed filling of thinner colorants.

• Fill Volume Range & Precision: Designed for typical tinting product sizes, ranging from 1 liter (for concentrated colorants) up to 20 liters (for paint bases). The system can achieve exceptional accuracy within ±0.25% to ±0.5% of set volume, which is paramount for color formula consistency.

• Container & Lid Compatibility: Versatile by design. Handles round plastic pails (HDPE/PP) and standard metal paint cans (tinplate). The capping module is adjustable for different container heights and lid diameters.

• Capping Technology: Inclined, motorized pressure roller conveyor (Role Gang). Provides a simple, reliable, and low-maintenance method for applying consistent capping force.

• Estimated Production Throughput: Optimized for precision and flexibility. Realistic output ranges from 4 to 10 containers per minute, depending heavily on fill volume and operator pace.

• Construction & Material Specifications: Robust powder-coated steel frame. All product-contact wetted parts are constructed from AISI 304 or 316L Stainless Steel to prevent corrosion from pigments and chemical agents, ensuring long-term hygiene and ease of cleaning.

• Control & Data Features: Industrial PLC with digital display interface. Provides control over all machine functions, basic production counting, and diagnostic feedback. Optional data logging capabilities are available.

• Utility Requirements: Requires a standard plant supply of Clean, dry compressed air (6-8 bar) for pneumatic controls (if applicable) and Standard single or three-phase electrical power (220V/380V, configurable).

Comprehensive Target Applications for the Paints, Coatings, and Chemical Industries

• Paint Tinting Systems: Precision filling of universal colorant pastes, glycol-based tinting colors, water-based architectural paint bases (deep, mid, and pastel bases), and machine-ready tinting system components for retail and wholesale distribution.

• Industrial Coatings & Inks: Packaging of concentrated pigment dispersions, solvent-based colorants for industrial coatings, ink bases, and specialized coating additives where accurate small-batch filling is required.

• Chemical & Building Products: Handling of liquid dyes, concrete colorants, wood stain concentrates, and other chemically aggressive liquid products that require precise dosing and secure containment.

In-Depth Analysis of Key Advantages for Paint and Colorant Manufacturers

1. Unrivaled Fill Accuracy for Guaranteed Color Consistency: The precision-engineered single-nozzle filling system is the cornerstone of color accuracy. By delivering fill volumes with tolerances as tight as ±0.25%, it ensures that every unit of colorant or base paint contains the exact specified amount, which is absolutely non-negotiable for maintaining correct color formulas in automated tinting machines and for batch reproducibility in manufacturing.

2. Optimized for Flexible, Small-Batch Production with Fast Changeover: The semi-automatic design and simple single-stream flow are ideally suited for the frequent color and product changes inherent in colorant production. The system is easy to clean and purge, minimizing downtime between runs and allowing manufacturers to efficiently handle a wide array of SKUs and custom orders without the complexity of a fully automated line.

3. Robust and Low-Maintenance Design for Industrial Longevity: Utilizing an inclined roller conveyor for capping is a masterstroke of simple, effective engineering. With fewer moving parts than a traditional rotary capper, this module offers exceptional reliability, reduced maintenance needs, and lower long-term ownership costs, which is a significant advantage for operations in regions where technical service may be less readily available.

4. Significant Reduction in Product Waste and Cost Savings: The combination of high fill accuracy and clean, drip-free nozzles directly minimizes the two largest sources of waste: overfill («giveaway») of expensive pigment-rich products and spillage that contaminates containers and requires rework. This precision directly translates to improved material yield and a stronger bottom line.

5. Enhanced Operator Safety and Ergonomic Workflow: The system design reduces physical strain. The accumulation table prevents awkward lifting and reaching, while the automated indexing and capping eliminate the repetitive motions of manual sealing. This creates a safer, more sustainable working environment and can lead to higher, more consistent operator productivity over full shifts.
