Description

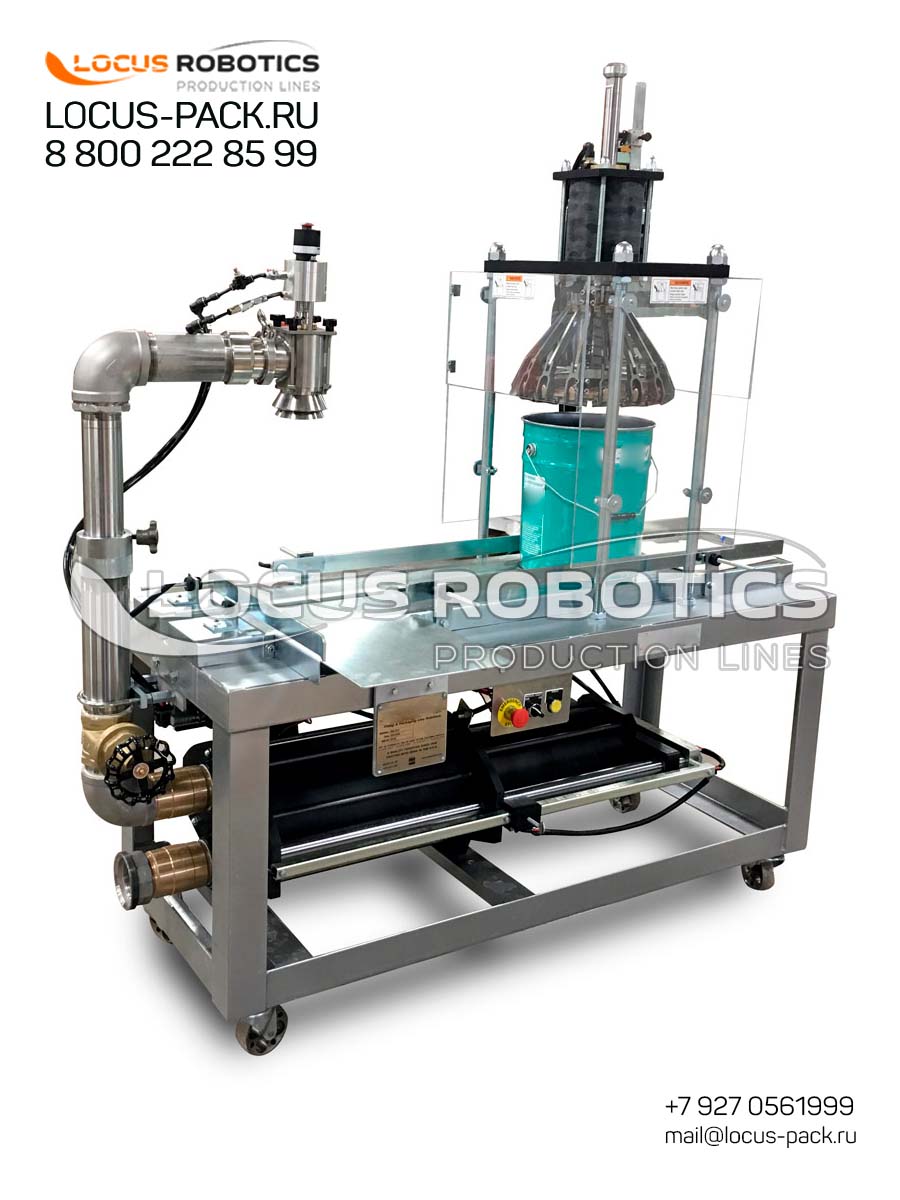

LBC-1000 Universal Compact Filling and Sealing Line for Construction Paints and Industrial Chemicals

Overview: Reliable, Compact Packaging for Industrial Chemicals

In the industrial paint, adhesive, and construction chemical sectors, packaging demands are defined by robustness, product compatibility, and operational simplicity. The LBC-1000 Universal Compact Filling and Sealing Line meets these demands head-on, providing a specialized, semi-automatic solution for transferring viscous liquids into large-volume containers. Designed as a space-saving, integrated unit, this line combines a powerful filling station with a precision crown cap crimper, eliminating the need for manual sealing and significantly improving production hygiene and consistency. It is the go-to machine for businesses that require a dependable, easy-to-operate workhorse for daily packaging tasks without the complexity and cost of a fully automated conveyor line. For markets where utility and durability are paramount, the LBC-1000 delivers proven performance in handling abrasive and aggressive chemical formulations.

Line Configuration & Technical Operation

The LBC-1000 is engineered around a sturdy steel frame that supports a logical, two-stage workflow: precise filling followed by hermetic sealing.

• Filling Station: Robust Pump System
  At the heart of the filling operation is a single, heavy-duty filling nozzle connected to a high-flow pumping system. This system is typically configured with a pneumatic or mechanical pump designed to handle high-viscosity products without clogging or excessive shear. The fill volume is controlled by a simple and reliable timer-based or volumetric system, allowing operators to set the exact amount for each bucket. The nozzle is often equipped with an automatic lift mechanism to follow the product level as the bucket fills, minimizing foam and splash.

• Sealing Station: Automatic Crown Cap Crimping
  Once filled, the bucket is manually or semi-automatically transferred to the sealing station. Here, an operator places a standard metal «crown» cap (similar to a large bottle cap) onto the bucket’s opening. The machine’s single crimping head then descends, applying uniform radial pressure to the cap’s skirt, crimping it securely under the bucket’s rim lip. This creates a strong, tamper-evident, and leak-resistant seal that is standard for industrial shipping containers. The crimping pressure is easily adjustable to accommodate slight variations in cap or bucket dimensions.

Target Products & Industry Applications

The LBC-1000 is purpose-built for a wide array of dense and viscous products common in industrial and construction settings:

• Paints & Coatings: Latex paints, acrylic paints, industrial enamels, primers, varnishes.

• Construction Chemicals: Tile adhesives, grouts, concrete sealants, liquid waterproofing membranes, plaster compounds.

• General Industrial Chemicals: Lubricating greases, thick oils, industrial adhesives, paste-based compounds.

Key Features & Benefits for Growing Markets

• Built for Viscous Products: The pumping and valve system is designed to handle thick, abrasive, and particle-filled materials that would challenge standard liquid fillers.

• Extreme Durability: Constructed with a heavy-gauge steel frame and components resistant to chemical exposure, ensuring a long service life in harsh plant environments.

• Simplified Operation & Maintenance: The semi-automatic, single-station design requires minimal operator training. With fewer moving parts than complex rotary lines, maintenance is straightforward and downtime is reduced.

• Cost-Effective Automation: Provides a significant upgrade from purely manual filling and capping, boosting output and consistency, at a fraction of the cost of a fully automatic line. Offers a fast return on investment (ROI).

• Compact Footprint: Its integrated design occupies minimal floor space, making it an excellent fit for smaller production rooms or workshops where space is at a premium.

Technical Data

Frequently Asked Questions (FAQs)

• Q: Is this machine suitable for filling very thin liquids like solvents?

  • A: While it can handle them, the LBC-1000 is optimized for medium to high-viscosity products. For very thin, free-flowing solvents, a different filling technology (like gravity or overflow) might be more accurate and faster. We can advise on the best solution for your specific product.

• Q: Can it handle different bucket sizes?

  • A: Yes. The machine’s filling nozzle height and the sealing head are typically adjustable. Changeover between different bucket heights and diameters usually involves simple mechanical adjustments, allowing for good production flexibility.

• Q: What is the expected output speed?

  • A: As a semi-automatic line, speed depends on the operator and fill volume. For a standard 20kg bucket, a typical cycle (positioning, filling, sealing) might take approximately 45 to 90 seconds. This is significantly faster and more consistent than fully manual operations.
