Description

A Precision Engineered Solution for the Demanding World of Building Finishes and Surface Treatments

The production and packaging of building finishing materials like putty and primer present unique industrial hurdles, primarily due to their dense, abrasive, and often thixotropic nature. Standard filling equipment often fails under the strain, leading to pump cavitation, inaccurate fills, and excessive maintenance. The LBC-1000 line is conceived from the ground up to conquer these specific challenges. Its core philosophy integrates semi-automatic operational efficiency with specialized component engineering to deliver a turnkey system that transforms a messy, variable manual process into a clean, repeatable, and high-output packaging operation. The strategic inclusion of an automatic lid magazine and feeder is a critical differentiator, removing a major manual bottleneck and potential contamination point, thereby accelerating the overall cycle time and improving hygiene. This line is not merely a filler; it is a comprehensive productivity tool for manufacturers aiming to supply the booming construction sectors in emerging economies, where consistent product quality and reliable packaging are fundamental to securing contracts with large distributors, construction firms, and retail chains.

Detailed System Breakdown, Component Engineering, and Sequential Operational Workflow

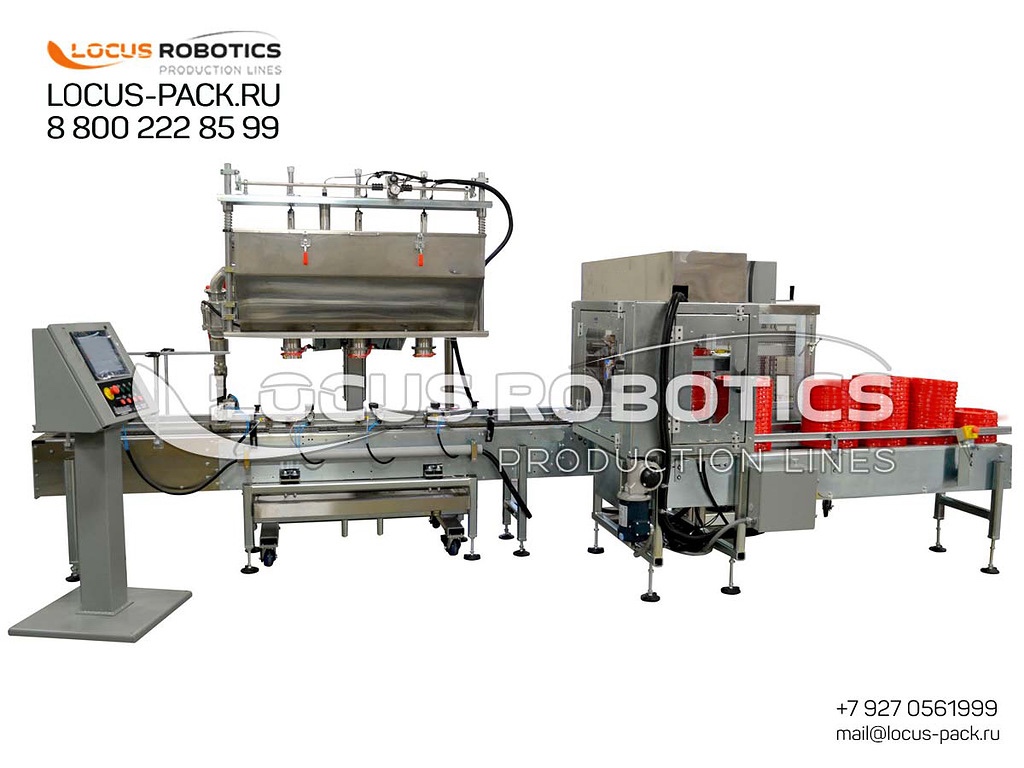

1. Heavy-Duty Structural Frame and Product Supply System: The machine is built upon a reinforced, powder-coated steel base designed to absorb the vibrations and stresses of handling dense materials. It integrates a large-capacity stainless steel or polypropylene supply hopper equipped with a high-torque, scraped-wall agitation system. This agitator is crucial for maintaining the homogeneous consistency of filled pastes and primers, preventing particle settlement and de-aeration, and ensuring a continuous, uniform product feed to the filling pumps under constant pressure.

2. High-Pressure Three-Nozzle Piston Filling Module with Specialized Valving: The heart of the system is a trio of large-diameter, hardened stainless steel piston cylinders. These are driven by a powerful central pneumatic or hydraulic system capable of generating the extreme pressure required to move thick putties and primers. Each piston is fitted with anti-clogging, wide-aperture filling nozzles and suck-back valves to ensure a clean cut-off, preventing tailing and drips that can contaminate the bucket rim and compromise the seal. The fill volume for each piston is independently adjustable via the control system, allowing for perfect calibration.

3. Automated Lid Handling System: Magazine, Orienter, and Feeder: This subsystem features a high-capacity vertical magazine that stacks hundreds of large, plastic snap-on or press-fit lids. A combination of mechanical escapements and sensors singulates and feeds one lid at a time onto a positioning track or directly onto the filled bucket’s rim. This eliminates the need for an operator to manually handle, align, and place lids, dramatically increasing speed and ensuring perfect, consistent placement for the capping head every single time.

4. Robust Press-On Capping Station with Guided Alignment: Following lid placement, the bucket is indexed into a capping station where a guided, vertically-actuated head applies controlled downward force. This action uniformly seats the lid’s sealing gasket onto the bucket’s bead, creating a tight, leak-proof, and tamper-evident closure that can withstand rough handling during transport and storage on construction sites.

5. Centralized Ergonomic Control Interface and Diagnostic Panel: Operation is managed from a user-friendly central station featuring a Programmable Logic Controller (PLC) and a color Touchscreen Human-Machine Interface (HMI). The interface allows operators to set fill volumes, control conveyor indexing speed, monitor lid feed status, and access production counters. It also provides clear diagnostic messaging for routine maintenance alerts, such as low lid supply or required greasing cycles.

Exhaustive Technical Specifications, Material Science, and Performance Metrics

• Automation Level & Process: Semi-Automatic. Operator is responsible for placing the empty bucket on the inlet conveyor; the system performs fully automated filling, lid feeding, and capping.

• Filling Technology & Configuration: Three (3) independent, large-bore positive displacement piston pumps. Designed for pressures exceeding 50 bar to handle viscosities over 500,000 cP.

• Fill Volume Range & Precision: Optimized for standard industrial container sizes, from 5 liters (approx. 1.3 gallons) up to 25 kilograms (in weight) or 30 liters. Achievable weight-based accuracy is ±0.5% to ±1.0%, critical for compliance and cost control.

• Container & Lid Compatibility: Engineered for standard round, open-head HDPE or PP plastic pails (5-gallon, 20-liter). The lid magazine is customizable for various large-diameter plastic lids (100mm to 300mm) with different lug or press-fit designs.

• Capping Technology: Electro-pneumatic press-on capping head with adjustable force and stroke, ensuring a consistent seal without damaging the container.

• Estimated Production Throughput: Designed for efficient medium-scale output. Realistic speeds range from 6 to 12 fully sealed buckets per minute, depending on fill volume and material flow characteristics.

• Construction & Durability Features: Main chassis: reinforced steel with epoxy coating. All product-contact wetted parts: hardened AISI 304 or wear-resistant 316L Stainless Steel. Pistons use high-grade polyurethane or PTFE seals designed for abrasive slurries. All bearings and guides are sealed for protection against dust.

• Control, Data & Connectivity: Industrial PLC with 10-inch HMI touch panel. Capable of storing numerous product recipes, tracking total production counts, and logging error histories. Optional RS-485 or Ethernet connectivity for factory network integration.

• Utility Requirements & Footprint: Requires a reliable supply of Clean, dry compressed air (minimum 7-10 bar, high flow rate) and Standard three-phase electrical power (380V/415V, 50Hz, or configurable). The system is designed with a compact footprint to fit into existing production lines.

Comprehensive Target Applications in the Construction, Manufacturing, and DIY Sectors

• Building Finishes & Surface Prep: Precision filling of acrylic interior wall putty, cement-based exterior wall putty, ready-mix joint compound, powder-based plaster mixes (when reconstituted), skim coating materials, ceiling texture sprays, and sanding fillers.

• Primers, Sealers & Undercoats: Packaging of PVA drywall primers, stain-blocking primers, masonry primers, concrete bonding agents, waterproofing sealants, and wood preservative undercoats.

• Adhesives & Heavy-Body Mastics: Handling of construction adhesives for panels and subfloors, ceramic tile mastics, waterproofing membranes in paste form, epoxy anchoring compounds, and duct sealants.

• Industrial Compounds & Maintenance Products: Suitable for industrial gap-filling compounds, automotive body fillers (Bondo-type), corrosion-resistant pastes, and heavy-duty industrial patching materials.

In-Depth Analysis of Strategic Advantages, Total Cost of Ownership, and Market Positioning

1. Revolutionized Productivity and Drastic Labor Savings: This system fundamentally changes the economics of packaging difficult materials. By automating filling and capping, it allows one operator to manage an output previously requiring 3-4 workers, directly slashing labor costs and reallocating human resources to value-added tasks like quality inspection and logistics, while simultaneously eliminating physical strain and variability from the process.

2. Unmatched Accuracy and Material Yield Optimization for High-Cost Inputs: The precision piston-dosing mechanism ensures that every bucket contains the exact, specified amount of material. This precision virtually eradicates costly overfill («giveaway») of expensive filled minerals and polymers, directly improving gross margin. Consistent fill weights also ensure compliance with trade description laws, building trust with professional contractors who rely on predictable coverage rates.

3. Enhanced Product Quality and Brand Integrity Through Perfect Sealing: The automated, force-controlled capping process guarantees a uniform, hermetic seal on every single container. This is paramount for preventing skinning, moisture ingress, solvent evaporation, and premature curing of sensitive products like acrylic putties and primers, ensuring the end-user receives a product in perfect, workable condition, which reinforces brand loyalty and reduces customer complaints.

4. Engineered Durability for Abrasive and Demanding Environments: Unlike standard fillers, this line incorporates components specifically selected for an abrasive service life. Hardened materials, abrasion-resistant seals, and protected moving parts result in significantly longer intervals between maintenance, reduced spare part consumption, and higher overall equipment effectiveness (OEE) in gritty plant environments, providing a lower total cost of ownership over a decade of service.

5. Scalability and Future-Proofing for Growing Enterprises: The LBC-1000 serves as an ideal production backbone for growing manufacturers. Its semi-automatic nature offers a manageable step into automation, while its robust output can support significant sales growth. The design allows for future integration with upstream mixers or downstream labeling/palletizing robots, ensuring the line remains a core asset as business operations expand in scale and sophistication.
