Description

Engineered for Continuous, High-Capacity Chemical Packaging

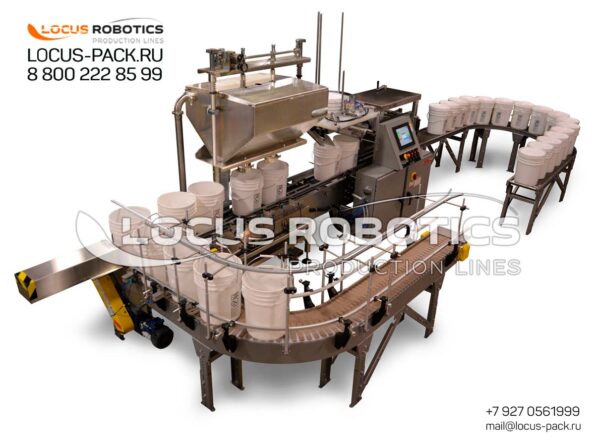

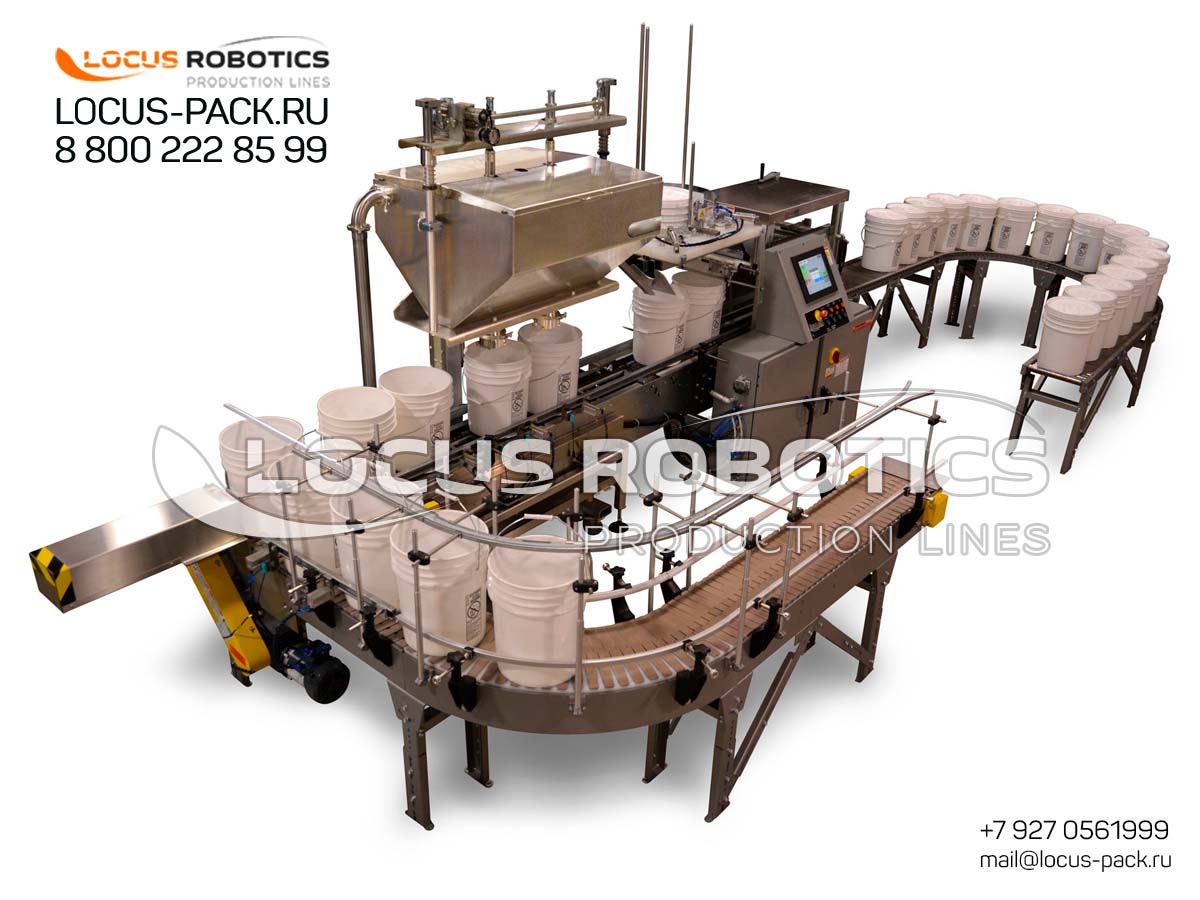

In markets driven by large-volume orders and just-in-time delivery, production uptime and efficient use of factory space are paramount. The LBC-1000 with a circular conveyor is designed to meet these exact demands. The ring-shaped conveyor layout creates a compact, self-contained production cell that minimizes the footprint while allowing for seamless integration of multiple operators for loading and offloading. This design facilitates a continuous operation where empty containers are loaded at one point and emerge as filled, sealed units after a complete loop, eliminating the start-stop cycles of linear lines. Specifically calibrated for medium to high-viscosity industrial fluids, this line ensures reliable handling of products that can be challenging to pump and meter, providing manufacturers of construction chemicals with a dependable backbone for their packaging operations.

Core System Components & Automated Process

1. Continuous Loop (Ring) Conveyor System: The foundation of the line, this powered conveyor carries pails through all stages in a continuous circular path. This layout is inherently space-efficient and supports a constant, uninterrupted production flow, ideal for high-volume runs.

2. Linear Volumetric Dosing Station with Two Nozzles: This station features a linear actuator that positions a dual-nozzle filling head over each pail. It draws product from a central receiving hopper or tank and uses positive displacement piston or gear pump technology to ensure accurate, repeatable fills for viscous chemicals like mastics, thick adhesives, and gel-type sealants.

3. Automatic Large Lid Magazine and Feeder: A dedicated system stores a bulk supply of large-diameter plastic snap-on or press-fit lids. It orients and feeds them one at a time onto the path of the filled pails as they travel on the circular conveyor.

4. Press-On Capping Module with Upper Pressure Roller: A critical station for securing the closure. A driven upper roller gang (role gang) applies controlled downward pressure to mechanically seat and secure the plastic lid onto the rim of the plastic pail, creating a uniform, leak-resistant seal that can withstand shipping and handling.

5. Integrated Control Hub: The entire sequence is managed from a central control panel, allowing for adjustment of fill volume, conveyor speed, and capping pressure.

Detailed Technical Specifications & Industrial Build

• Filling Technology: Linear-action, two-nozzle positive displacement doser (piston or gear pump).

• Filling Volume Range: Typically 5 liters to 25 liters, suitable for standard industrial-sized pails.

• Filling Accuracy: Within ±0.75% to ±1.5%, depending on product viscosity characteristics.

• Conveyor Layout: Continuous ring or circular configuration for optimized space and flow.

• Container Type: Large, round HDPE or PP plastic pails/buckets.

• Lid Type: Large plastic lids (snap-on or press-fit styles).

• Sealing Technology: Mechanical press-on capping with adjustable pressure.

• Line Speed: Configured for sustained medium-high output, suitable for long production batches.

• Construction: Heavy-duty, powder-coated frame with chemical-resistant finishes on product contact zones.

• Control System: Industrial PLC with an operator interface for system control and monitoring.

Target Industrial Applications & Product Range

This line is a versatile workhorse for the bulk packaging of non-food, viscous industrial materials:

• Sealants & Adhesives: Polyurethane and silicone-based sealants, construction adhesives, panel adhesives, and industrial bonding agents.

• Coatings & Paints: Liquid decorative paints, industrial protective coatings, primers, rust inhibitors, and varnishes.

• Construction Compounds: Acrylic and cement-based putties, spackling compounds, tile grouts, and waterproofing mastics.

• General Industrial Chemicals: Lubricating greases, drawing compounds, mold release agents, and viscous cleaning concentrates.

Operational Advantages for Chemical Producers

1. Superior Space Efficiency and Workflow: The circular conveyor design often requires less floor space than an equivalent-capacity linear line and creates a logical, continuous workflow that can boost overall operational efficiency.

2. Designed for Long Production Runs: The system’s robustness and continuous flow make it ideally suited for extended, high-volume packaging campaigns with minimal downtime for changeovers.

3. Reliable Handling of Difficult Products: The filling technology is selected to handle the pumping and metering challenges posed by thick, sticky, or abrasive industrial chemical formulations.

4. Consistent and Secure Closure: The mechanical press-on capping ensures every pail is sealed with uniform integrity, which is critical for preventing solvent loss, skinning, or contamination of sensitive chemical products.

5. Reduced Manual Labor: Automates the most labor-intensive parts of pail packaging—filling and lid application—freeing personnel for supervisory and quality control roles.
