Description

Precision Automation for the Paints and Coatings Industry

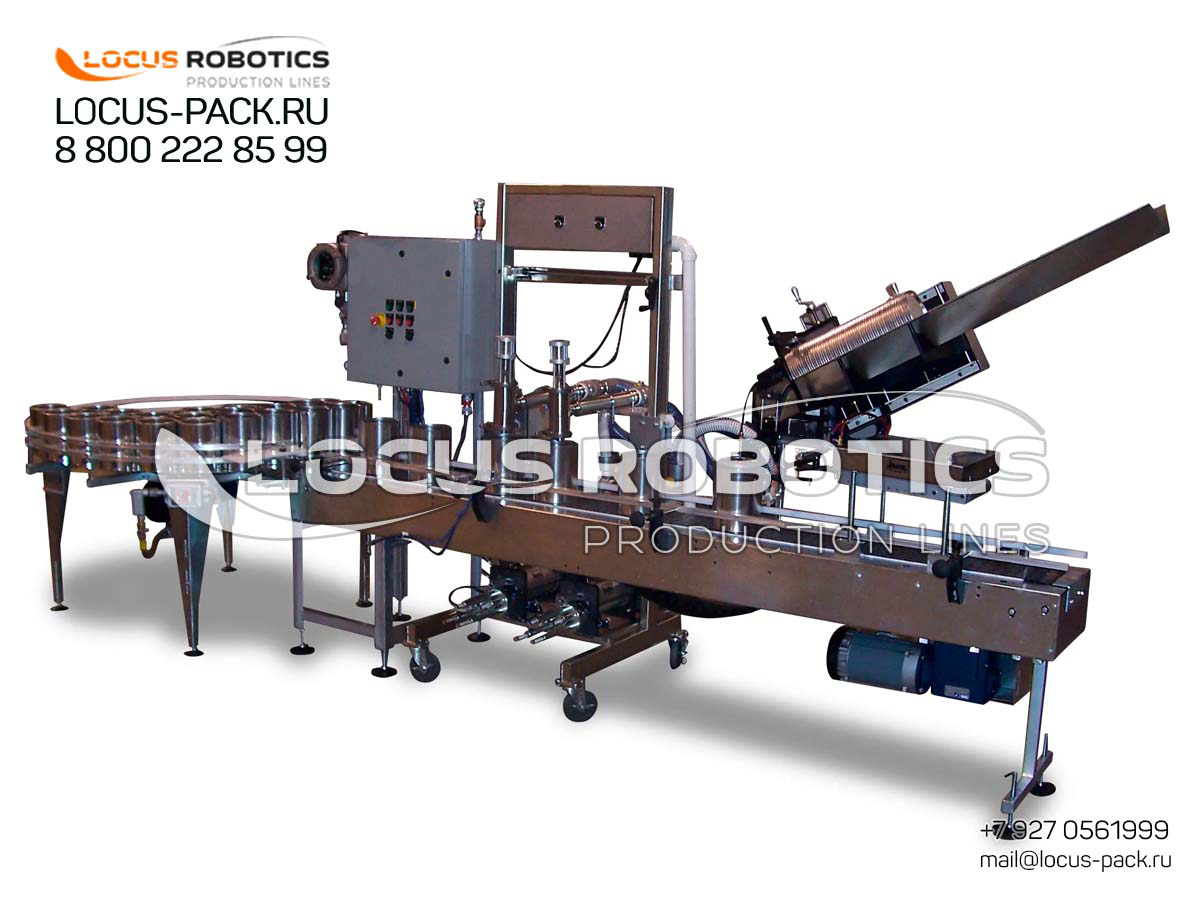

In the competitive paints and coatings sector, packaging efficiency and presentation are direct reflections of brand quality. The LBC-1000 line is engineered to meet the rigorous demands of this industry, transforming raw liquid product into securely sealed, shelf-ready containers with minimal operator intervention. The integration of an automatic metal lid orienter is a critical advancement, solving the common bottleneck of manual lid placement. This subsystem not only accelerates the line but also ensures every lid is perfectly positioned for the seaming head, resulting in a consistent, airtight seal that prevents skinning, solvent evaporation, and contamination. This line is designed for manufacturers who prioritize batch consistency, high daily output, and packaging that instills confidence in trade professionals and DIY consumers across global emerging markets.

Core Line Components & Automated Sequence

1. Infeed Can Conveyor & Positioning: A powered conveyor system receives and singulates empty tinplate or aluminum cans, precisely positioning them under the filling nozzles.

2. Multi-Nozzle Volumetric Filling Station: Utilizing servo-driven piston or gear pump technology, this station delivers highly accurate fills of products ranging from thin stains and solvents to viscous enamels and primers. The number of nozzles (4, 6, or 8) is configured to match target speed and can size.

3. Automatic Metal Lid Orienter and Feeder (Key Feature): This system consists of a bulk hopper, a vibrating or centrifugal bowl feeder that mechanically separates and correctly orients friction-fit metal lids (crowns), and a precision placement mechanism that deposits each lid onto the filled can’s rim.

4. High-Pressure Seaming/Crimping Head: Following lid placement, a heavy-duty seaming head engages, mechanically curling the lid’s flange under the can’s bead. This double-seam operation creates a robust, tamper-resistant, and hermetic seal essential for product longevity.

5. Discharge & Integration Conveyor: The sealed cans are discharged for downstream operations such as labeling, date coding, or automatic case packing.

Detailed Technical Specifications & Industrial Design

• Filling Technology: Multi-head (configurable) piston or gear pump filler.

• Filling Volume Range: 250 ml to 5 liters (standard paint can sizes).

• Filling Accuracy: ±0.5% or better, ensuring compliance and minimizing giveaway.

• Lid Handling: Fully automatic metal lid orientation and feeding.

• Sealing Technology: Mechanical double-seam (crimp) sealing.

• Line Speed: Engineered for high-speed production, capable of 30 to 80+ cans per minute based on configuration.

• Container Type: Standard cylindrical metal paint cans.

• Construction: Frame and guards in powder-coated steel; product-contact parts in stainless steel or specially coated materials for corrosion resistance.

• Control System: Advanced PLC with large-color HMI for intuitive control, recipe management (for different colors/products), and production data logging.

Target Products & Market Applications

This line is specifically designed for the decorative and industrial coatings supply chain:

• Architectural Paints: Interior/exterior latex paints, acrylic enamels, primers, and decorative finishes.

• Industrial & Protective Coatings: Anti-corrosion paints, epoxy coatings, machinery enamels, and heat-resistant finishes.

• Specialty Finishes: Wood stains, varnishes, lacquers, automotive touch-up paints, and aerosol base fills.

• Allied Chemicals: Paint thinners, brush cleaners, and related solvent-based products.

Operational Benefits for Coatings Manufacturers

1. Maximized Production Speed & Uptime: The automated lid handling eliminates a major manual bottleneck, allowing the line to operate at its full mechanical speed with consistent flow.

2. Guaranteed Seal Integrity and Product Quality: Automated, precise lid placement followed by mechanical seaming ensures every can is perfectly sealed, protecting product quality and vastly reducing customer complaints.

3. Significant Labor and Cost Reduction: Replaces multiple operators typically required for manual lid sorting and placement, leading to direct labor savings and reduced ergonomic strain.

4. Enhanced Operational Safety: Minimizes direct worker contact with metal lids and sealed containers, reducing risks associated with sharp edges and repetitive motion.

5. Superior ROI for High-Volume Producers: The combination of high speed, precision, and labor savings delivers a rapid return on investment for manufacturers servicing large, demanding markets.
