Description

Engineered for Food Safety and Extended Shelf Life

In the competitive food industry, packaging is a critical control point for quality and safety. The LBC-1000 line addresses this by automating the entire post-filling process, minimizing human contact and contamination risk. The core of its design is the induction foil sealing module, which provides a hermetic primary seal far superior to a lid alone. This seal is vital for products sensitive to oxidation, microbial growth, or moisture loss. By ensuring an airtight closure, the line helps manufacturers reduce food waste, guarantee consistent product quality upon delivery to industrial customers (B2B), and comply with international food safety protocols such as HACCP, GMP, and IFS/BRC standards. Its robust, sanitary construction is tailored for high-volume production environments where efficiency and hygiene are non-negotiable.

Sequential Operation & Core Components

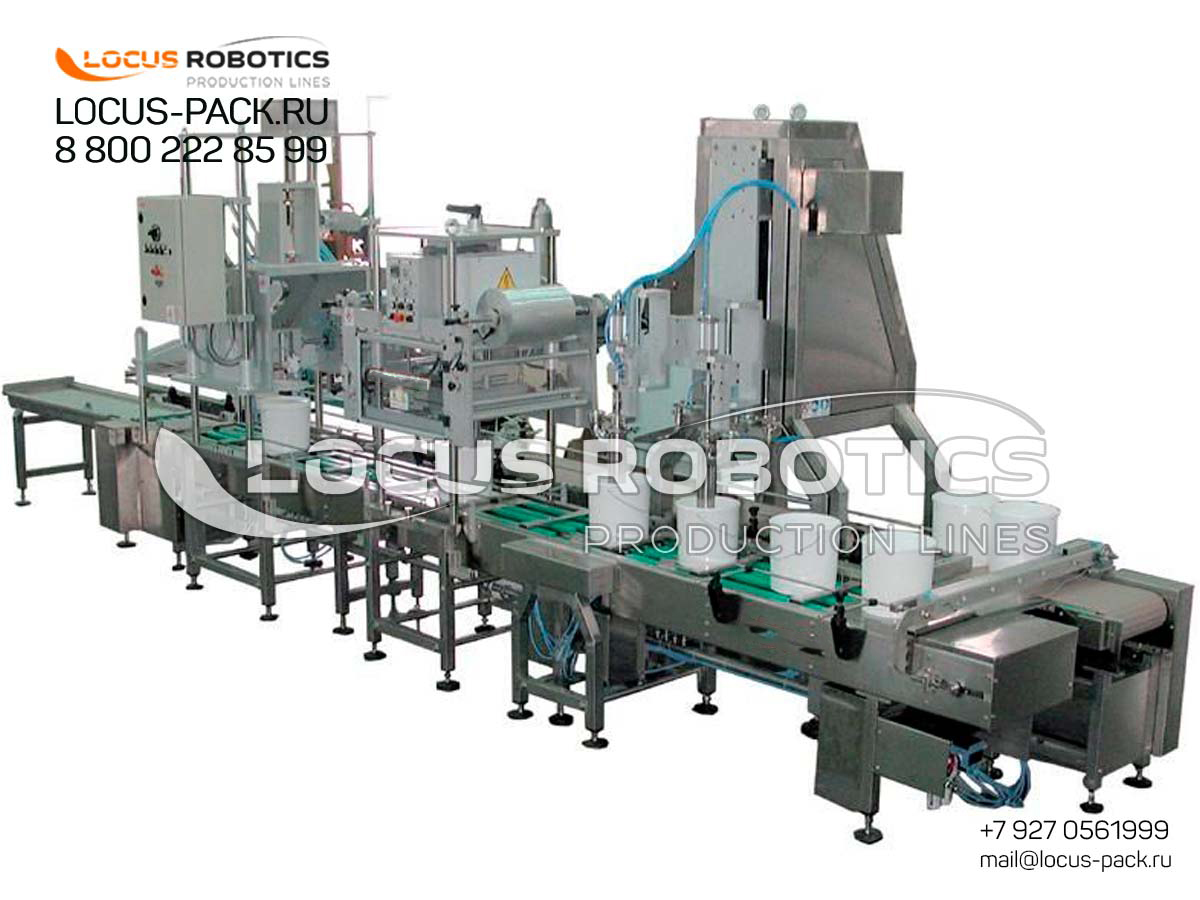

1. Automatic Pail Handling & Infeed: The line begins with an automatic bucket de-nester or orienter that places empty, food-grade HDPE or PET plastic pails (typically 2 to 20 liters) onto a sanitary conveyor. Sensors ensure correct positioning and spacing.

2. Sanitary Precision Filling Station: Utilizing a sanitary piston filler or positive displacement pump, this station delivers highly accurate volumetric fills (±0.5% or better) of even challenging, viscous products. The system features no-drip, retractable nozzles and is designed with Clean-in-Place (CIP) capabilities for fast, thorough cleaning and changeover between different food products.

3. Induction Foil Sealing Module (The Key Barrier): This automated station places a multi-layered foil seal (comprising a polymer, aluminum foil, and sealant layer) over the filled pail’s opening. A high-frequency electromagnetic induction head instantly heats the aluminum layer, causing the polymer coating to melt and bond permanently to the plastic pail’s rim. This creates a hermetic, tamper-evident, and leak-proof primary seal.

4. Automatic Lid Application (Secondary Seal & Protection): A lid dispenser orients and places a standard plastic snap-on lid over the induction foil. A press station then applies it securely, providing mechanical protection, a professional finish, and an additional barrier.

5. Outfeed & Integration: The sealed and capped pails are conveyed to the next stage, which can include labeling, inkjet coding, date stamping, or direct transfer to palletizing.

Detailed Technical Specifications & Hygienic Build

• Filling Technology: Sanitary piston filler or lobe pump (selected based on product viscosity).

• Filling Volume Range: 1 liter to 20 liters (standard range; customizable).

• Filling Accuracy: ≤ ±0.5% of set volume.

• Sealing Technology: Electromagnetic Induction Foil Sealing (IFS).

• Seal Type: Tamper-evident, hermetic foil laminate liners.

• Lid Type: HDPE or PP snap-on lids for plastic pails.

• Container Compatibility: Round, open-top plastic pails (HDPE/PET) with a flat, smooth sealing surface.

• Line Speed: Up to 10-14 pails per minute (dependent on fill volume).

• Construction Standards: Frame: powder-coated carbon steel. Product Contact Parts: AISI 304 or 316L Stainless Steel, polished finishes, FDA-compliant seals.

• Hygienic Design: CIP/SIP options available, sloped surfaces, quick-release clamps, minimized dead legs for optimal cleanability.

• Control System: User-friendly PLC with color Touchscreen HMI for recipe storage, production monitoring, and diagnostics.

Primary Target Applications in the Food Industry

This line is ideal for manufacturers supplying bulk ingredients to food service, catering, and other food processors:

• Sauces & Condiments: Industrial packaging of ketchup, mustard, mayonnaise, salad dressings, barbecue sauce, soy sauce, and cooking wine.

• Dairy & Egg Products: Liquid egg, yogurt bases, milk concentrates, cream, and cheese sauces.

• Fruit & Vegetable Products: Tomato paste, fruit purees and fillings, jams, and vegetable concentrates.

• Edible Oils & Liquids: Sunflower oil, olive oil, vinegar, and syrup.

• Ready-to-Use Preparations: Soup bases, gravy, batter mixes, and marinades.

Key Benefits for Food Manufacturers

1. Superior Product Preservation: The hermetic foil seal is the most effective barrier against oxygen and moisture, dramatically slowing degradation and extending the commercial shelf life of sensitive products.

2. Enhanced Food Safety & Compliance: The automated, closed process reduces contamination risk. The tamper-evident seal builds trust with business customers and supports certification audits (BRC, IFS, ISO 22000).

3. Operational Efficiency & Cost Savings: Replaces multiple manual stations, increasing throughput by over 300% while reducing labor costs and product giveaway through precise filling.

4. Logistical Security: The leak-proof seal ensures products survive long-distance transport and variable storage conditions without spoilage or damage, critical for export operations.

5. Market Flexibility: The ability to package products with superior integrity opens opportunities in higher-value export markets and with quality-conscious retailers.
