Description
A Durable and Flexible Backbone for Your Packaging Line

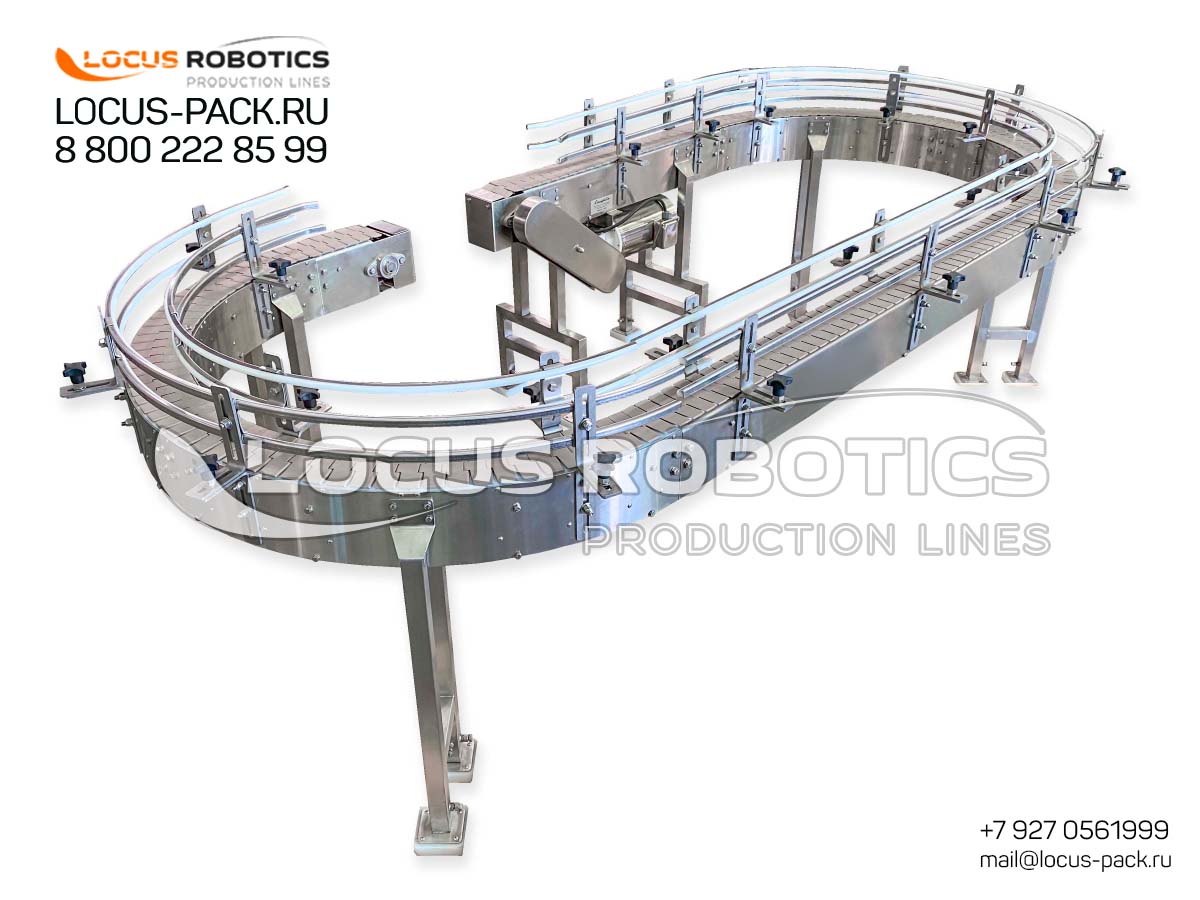

The K-10 Hinge Plate Conveyor, also known as a modular chain or slat chain conveyor, is engineered to solve material handling challenges in complex industrial environments. Its design is particularly suited for applications that require a stable, non-flexible conveying surface or involve high temperatures, heavy loads, and abrasive conditions. By providing a reliable transfer between different stages of production, such as filling, capping, labeling, and palletizing, the K-10 enhances overall line efficiency and minimizes downtime.
Key Features and Technical Advantages
-
Durable Hinge Plate Chain: The conveyor utilizes a chain made of interlocking steel plates, often with a stainless steel contact surface, offering excellent resistance to wear, impact, and corrosion .
-
Stable and Secure Transport: The solid surface prevents small items from falling through and provides stability for tall or irregularly shaped containers that might tip over on a belt conveyor.
-
Easy Maintenance and Cleaning: The robust design allows for easy access and cleaning. In models designed for food and pharmaceuticals, surfaces are finished to meet GMP and HACCP standards for hygiene .
-
Reliable Drive System: Powered by a dependable motor-reducer, the conveyor ensures consistent speed and smooth operation, integrating seamlessly with other packaging machinery.
Technical Specifications
| Parameter | Specification / Industry Example |
|---|---|
| Model | K-10 |
| Conveyor Type | Hinge Plate Conveyor |
| Chain Width | 82.5 mm, 114.3 mm, 190.5 mm, 304.8 mm |
| Load Capacity | Up to 65 kg per linear meter |
| Speed Range | 2.5 to 12 meters per minute, adjustable |
| Power Supply | 220V / 50Hz, 0.55 kW |
| Frame Material | Powder-coated carbon steel or Stainless Steel AISI 304/316L |
Industries and Applications
This hinge plate conveyor is essential for a wide range of material handling tasks:
-
Food & Beverage: Transporting bottles, jars, cans, and shrink-wrapped packs in processing and packaging plants .
-
Pharmaceutical & Cosmetic: Handling vials, tubes, and packaged products in compliance with hygienic standards .
-
Logistics & Warehousing: Moving cardboard boxes and plastic totes in distribution centers .
-
General Manufacturing: Conveying components and finished goods along assembly lines.
Engineered for Global Industrial Demands
Designed for the rigorous requirements of international markets, the K-10 conveyor focuses on durability and ease of integration. Its robust design ensures consistent performance, helping to streamline operations in production and logistics facilities worldwide, including those in Southeast Asia, Africa, the Middle East, Latin America, and Eastern Europe.
