Description

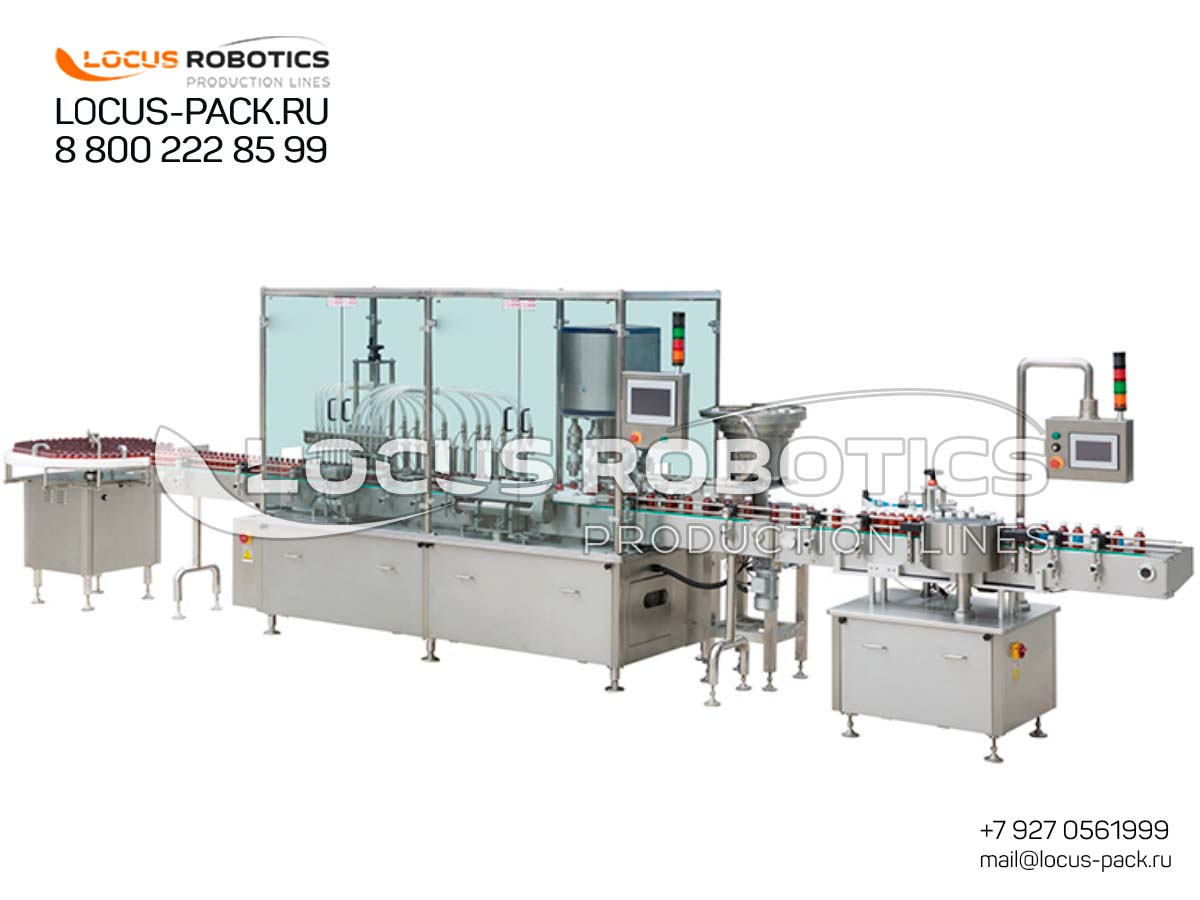

LR-200 monoblock with 4-head rotary station crimping aluminum caps

Unmatched Speed and Seal Integrity for Premium Liquid Packaging

The LR-200 with Rotary Crimping Station represents the convergence of high-volume production capability and premium packaging execution. This system is specifically engineered for businesses where brand image, product integrity, and operational efficiency are inextricably linked. The integration of a four-head rotary crimping station within a high-speed monoblock is a significant engineering advancement. Unlike standard single-head cappers, this rotary design processes multiple containers simultaneously within the machine’s cycle, dramatically increasing sealing throughput to match the exceptional output of the twelve-piston filler. This synchronized operation is critical for manufacturers of high-value pharmaceuticals like medicinal tinctures, over-the-counter herbal extracts, and cosmetic essentials such as toners, astringents, and anti-aging serums that require both high-speed production and a closure that communicates quality and security. The aluminum cap, once thread-rolled onto the vial, provides an superior barrier against oxygen ingress and evaporation, preserving the potency of volatile alcohols and the efficacy of sensitive active ingredients, ensuring every product reaches the consumer exactly as intended.

Detailed Technical Specifications & Advanced Configuration

• Machine Type & Layout: Fully Automated, Ultra-High-Speed Rotary (Carousel) Monoblock. Features an infeed accumulation table to ensure a consistent, buffer-fed supply of glass vials, optimizing line flow and preventing starved feeding to the high-speed filling and crimping stations.

• Core Filling Technology: Maximum-capacity volumetric dosing system driven by twelve (12) AISI 316L stainless steel piston cylinders with sanitary check valves. This configuration is designed for the highest possible output, providing fast, precise, and drip-free fills for liquids ranging from thin alcohol solutions to thicker lotions and syrups.

• High-Speed Closure System: Integrated rotary crimping module with four (4) synchronized thread-rolling heads (skiving rollers). This multi-head rotary station accepts smooth 28mm aluminum caps from a vibratory bowl orienting feeder and, in a continuous motion, rolls and forms perfect threads onto each cap, securing them to the vials with consistent, adjustable torque.

• Container Handling & Process: Precision-engineered for the stable, high-speed handling of glass vials and bottles with a standardized 28mm continuous thread (CT) neck finish. The system is designed to maintain perfect container orientation and alignment critical for the precise thread-rolling process.

• Construction & Hygiene Standards: All product-contact surfaces are food and pharmaceutical-grade AISI 316L / 1.4404 stainless steel. The GMP-ready design supports rigorous cleaning protocols and is built to withstand the demands of 24/7 operation in environments that may involve alcohol-based or cosmetic chemicals.

• Control & Synchronization: Advanced PLC-based control system with a multi-language HMI touchscreen. Allows for individual adjustment of each piston’s fill volume and provides precise control over the rotary crimping station’s speed and torque. The system enables recipe storage for quick changeovers between different products.

Ideal Product Applications & Packaging Formats

• Target Products: Excellently suited for a broad spectrum of premium liquids: pharmaceutical and herbal alcohol tinctures, rubbing alcohol preparations, cosmetic toners, micellar waters, body lotions, hand sanitizers, medicinal syrups, and gourmet food-grade syrups and toppings.

• Target Containers & Closures: Specifically configured for glass vials and bottles featuring a 28mm continuous thread (CT) neck finish. The machine is designed to apply and crimp smooth, unthreaded 28mm aluminum screw caps, creating a secure, tamper-evident, and high-end closure.

Strategic Business Advantages for High-Volume Producers

• Ultimate Production Throughput: The combination of a twelve-piston filler and a four-head rotary crimper delivers an unmatched output rate, allowing you to fulfill large orders, reduce lead times, and maximize production line utilization, providing a decisive competitive advantage in fast-moving markets.

• Superior Closure Quality and Consumer Trust: The thread-rolling process creates a custom metal-to-glass seal that is inherently more secure and tamper-evident than standard screw-on caps. This significantly enhances product safety, reduces leakage risks, and builds powerful consumer trust in your brand’s commitment to quality.

• Operational Efficiency and Lower Total Cost: The extreme automation and speed dramatically reduce labor costs per unit and increase overall equipment effectiveness (OEE). The high-speed, synchronized process minimizes bottlenecks, ensuring a smoother, more cost-effective production flow from start to finish.

• Premium Brand Positioning and Shelf Impact: The sleek, seamless appearance of a rolled-thread aluminum cap on a glass vial conveys sophistication, purity, and high value. This premium presentation allows your product to command a higher price point and stand out on crowded retail shelves in pharmacies, beauty stores, and specialty food markets globally.

• Globally Supported, Robust Platform: Built to international mechanical and safety standards (CE, ISO) with GMP-compliant design principles. Supported by our 24/7 global network with technical hubs in Dubai, Hanoi, and Lagos, ensuring you have access to expert support, fast spare parts delivery, and onsite service to maintain your high-speed production anywhere in the world.

Accelerate Your Premium Packaging Line

Ready to achieve new levels of speed and quality in your vial packaging operations? Contact our high-speed packaging automation specialists today for a detailed consultation and a free throughput simulation. We will analyze your specific products and containers to demonstrate how the LR-200 with Rotary Crimping Station can transform your productivity and brand presentation.
