Description

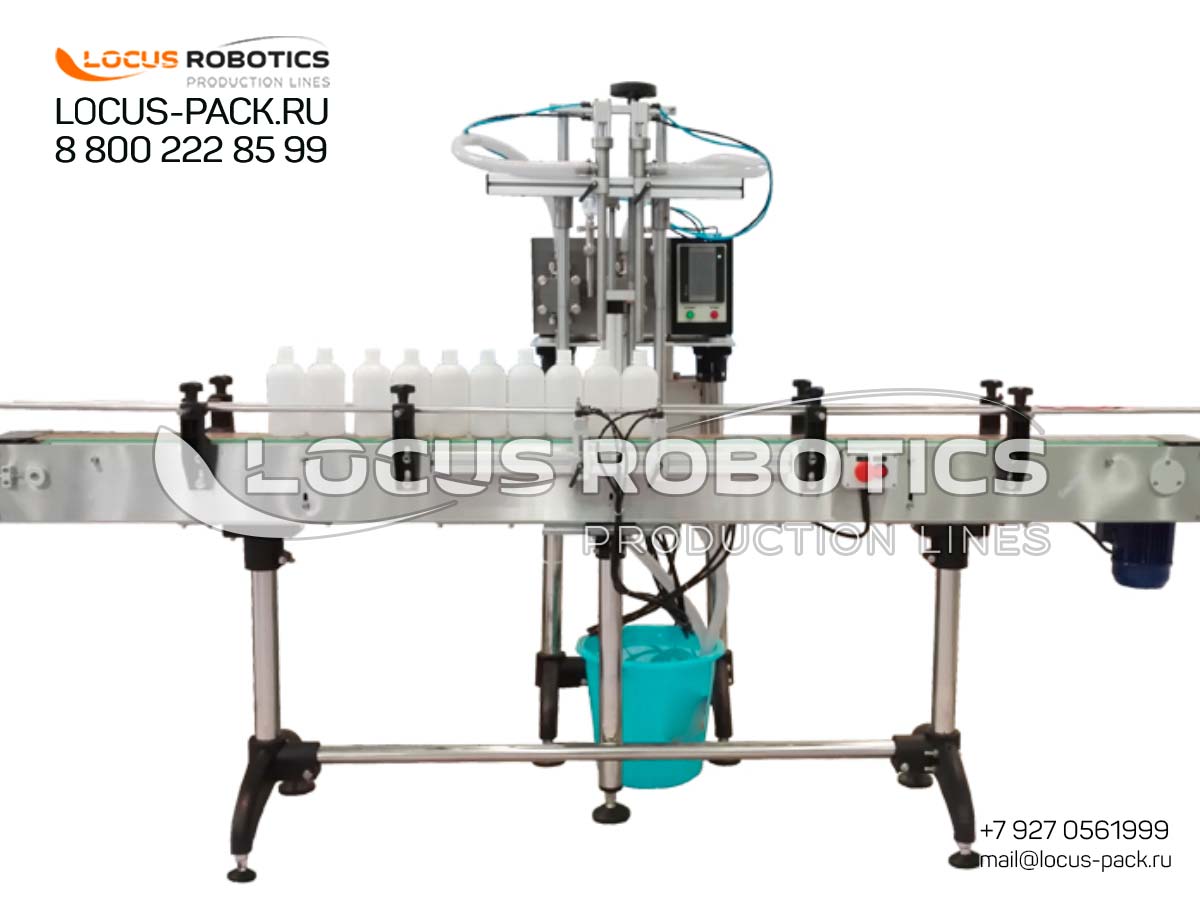

Automatic Linear Gear Dosator with Two Nozzles for Aggressive, Alkaline, and Chlorine-Containing Chemicals: LGD-100
Robust and Safe Dosing for Demanding Chemical Applications
The LGD-100 Automatic Linear Gear Dosator addresses the critical challenges of packaging corrosive and hazardous liquids. The gear pump technology is known for providing a pulse-free, consistent flow and is capable of handling a wide range of viscosities. The linear two-nozzle setup is configured for high-speed, sequential filling, effectively doubling the output compared to single-nozzle machines and making it perfect for medium-scale production runs. This machine is an indispensable asset for chemical manufacturers and contract packagers in your target global markets, where reliability, safety, and precision are non-negotiable.
Technical Specifications & Performance Data
| Specification Category | Details / Placeholders |
|---|---|
| Model | LGD-100 |
| Operation Type | Automatic, Linear |
| Number of Nozzles | 2 |
| Filling Technology | Gear Pump |
| Target Chemicals | Aggressive, Alkaline, and Chlorine-containing solutions |
| Production Speed | 500-1200 containers per hour |
| Filling Accuracy | High precision (±0.5%) |
| Construction Materials (Wetted Parts) | PTFE, PVDF, SS316 Stainless Steel, Hastelloy |
| Control System | PLC with Touchscreen HMI for recipe management |
Key Features & Operational Benefits
-
Corrosion-Resistant Construction: The use of advanced materials like PTFE, PVDF, and SS316 stainless steel on all product contact parts provides exceptional resistance to a wide array of aggressive chemicals, ensuring the machine’s longevity and preventing contamination.
-
Precision Gear Pump Technology: The gear dosator ensures highly accurate volumetric filling, which is critical for cost control and meeting stringent regulatory requirements for chemical packaging. It handles viscous products effectively without crushing or shearing.
-
Dual-Nozzle Efficiency: The two independent filling heads allow for rapid sequential filling, significantly boosting output and maximizing production line efficiency for medium to high-volume orders.
-
Hygienic & Safe Design: The construction likely allows for easy cleaning and maintenance. The robust design prioritizes sealing integrity to prevent leaks, ensuring operator safety and environmental protection.
Industries & Application Solutions
-
Industrial & Institutional Cleaning: Perfect for filling concentrated alkaline cleaners, degreasers, and chlorine-based disinfectants.
-
Water Treatment Chemicals: Ideal for packaging chlorine solutions, other oxidizing agents, and pH-adjusting chemicals used in water and wastewater treatment.
-
General Chemical Manufacturing: Suitable for a wide range of corrosive liquid chemicals where precise and safe packaging is required.
