Description

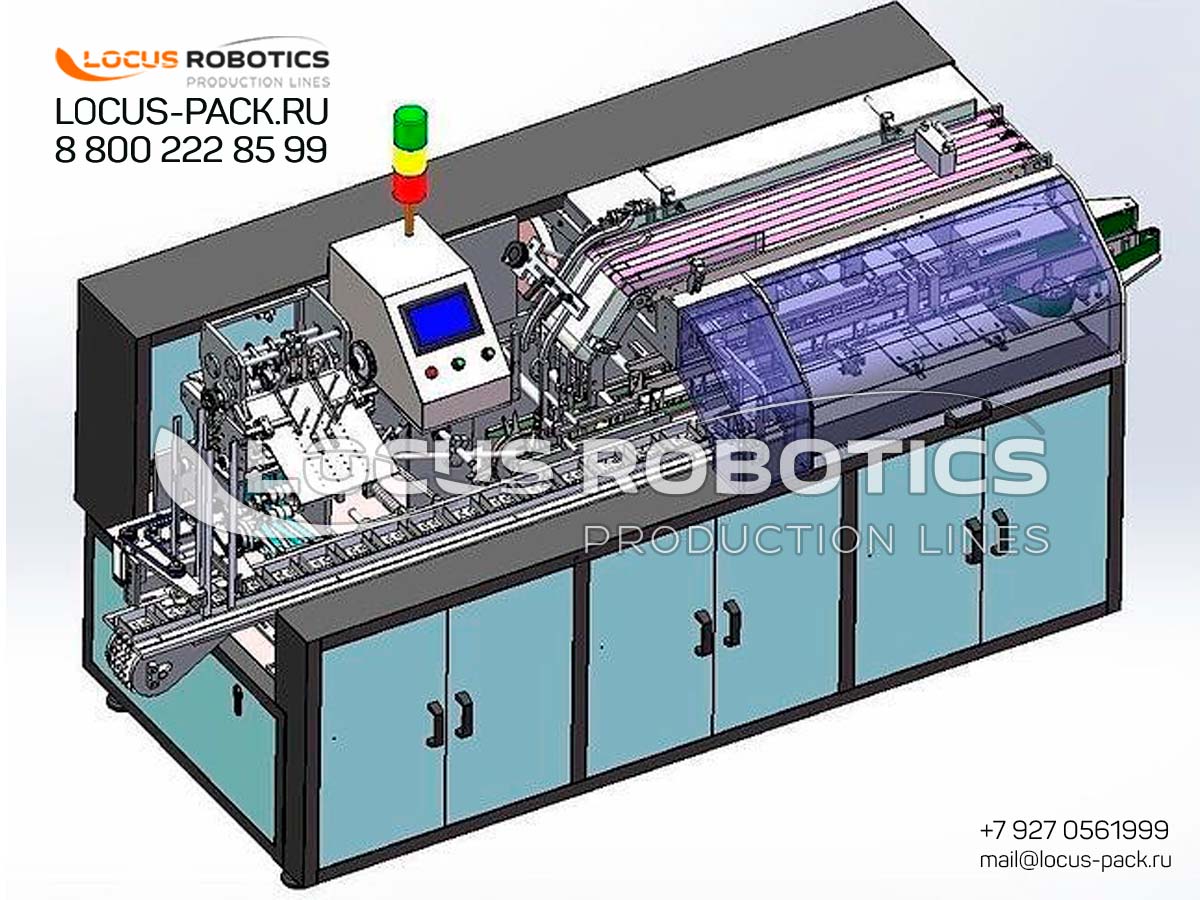

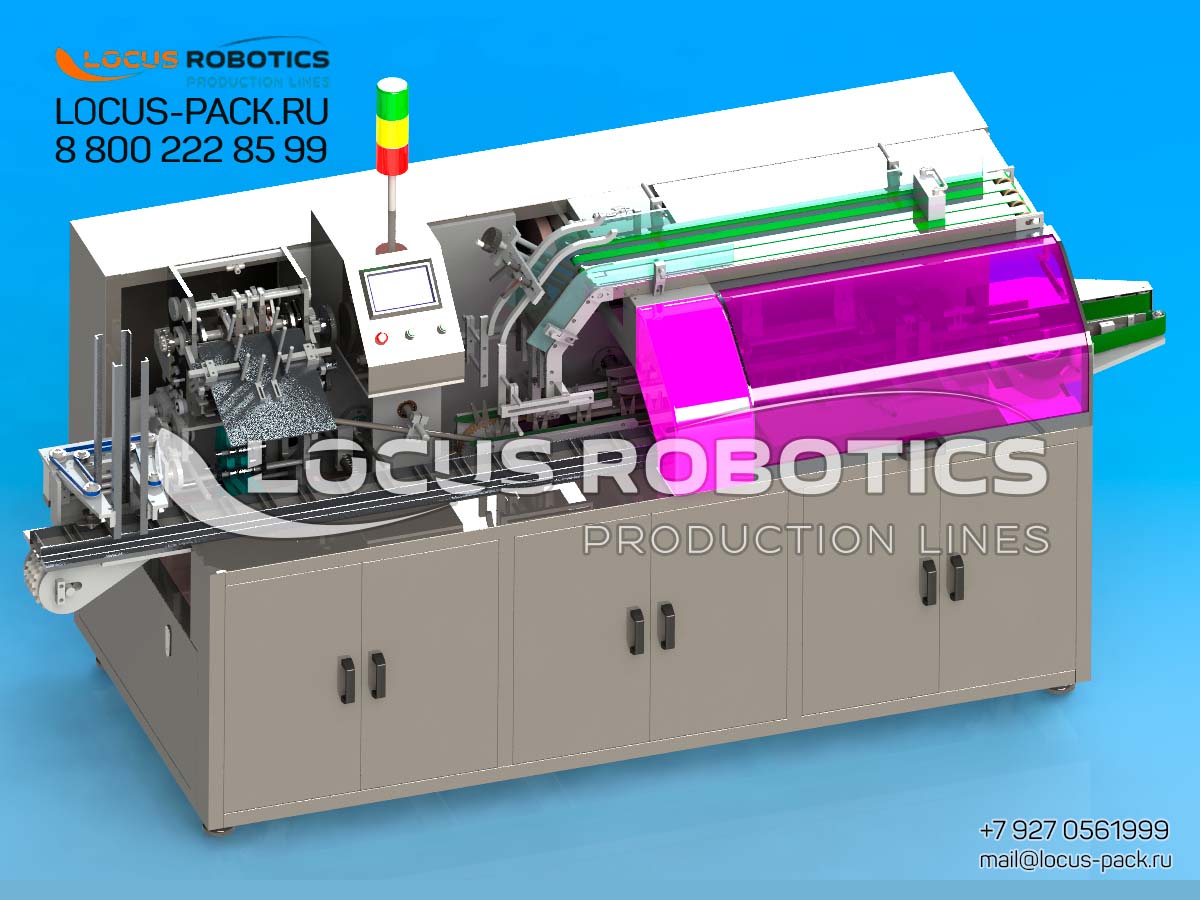

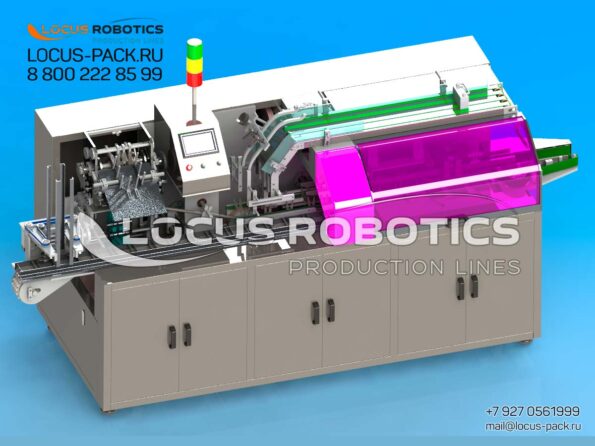

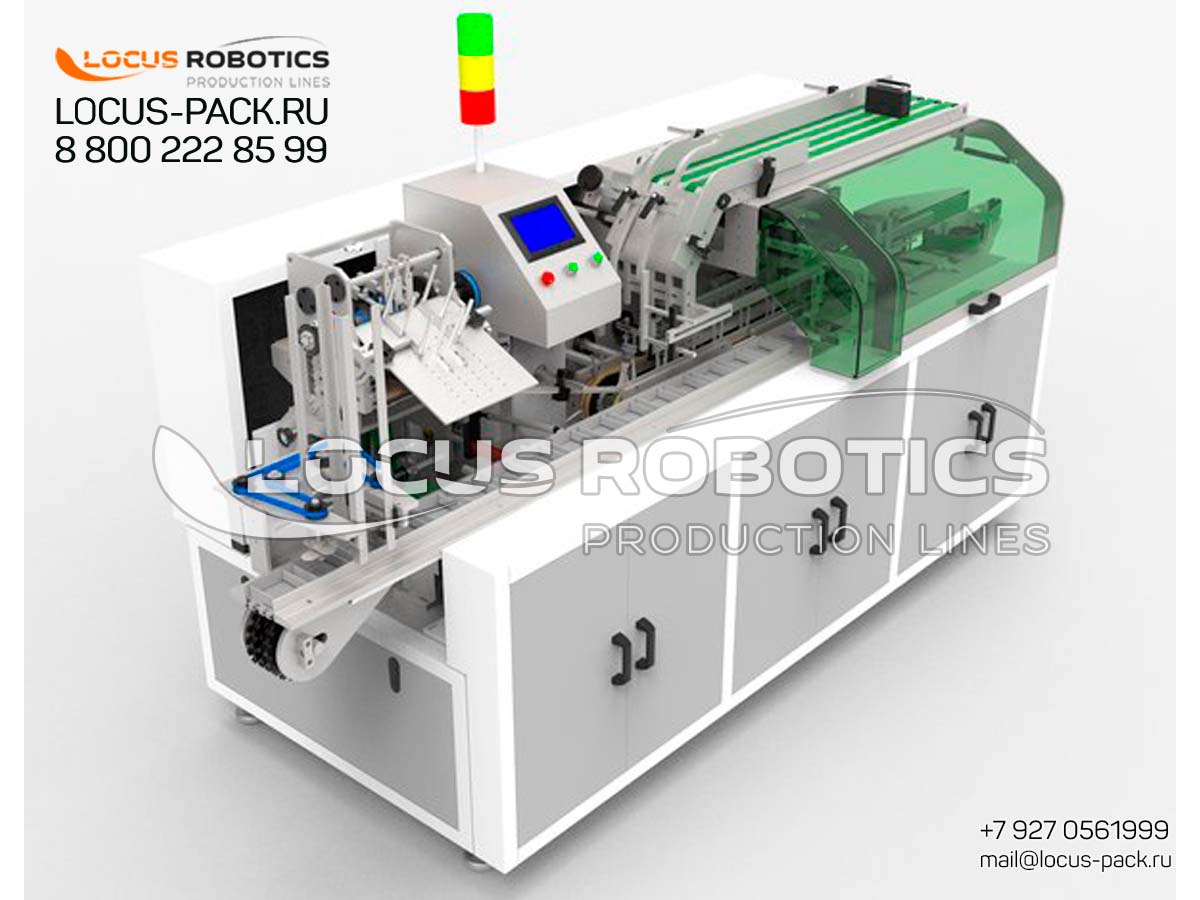

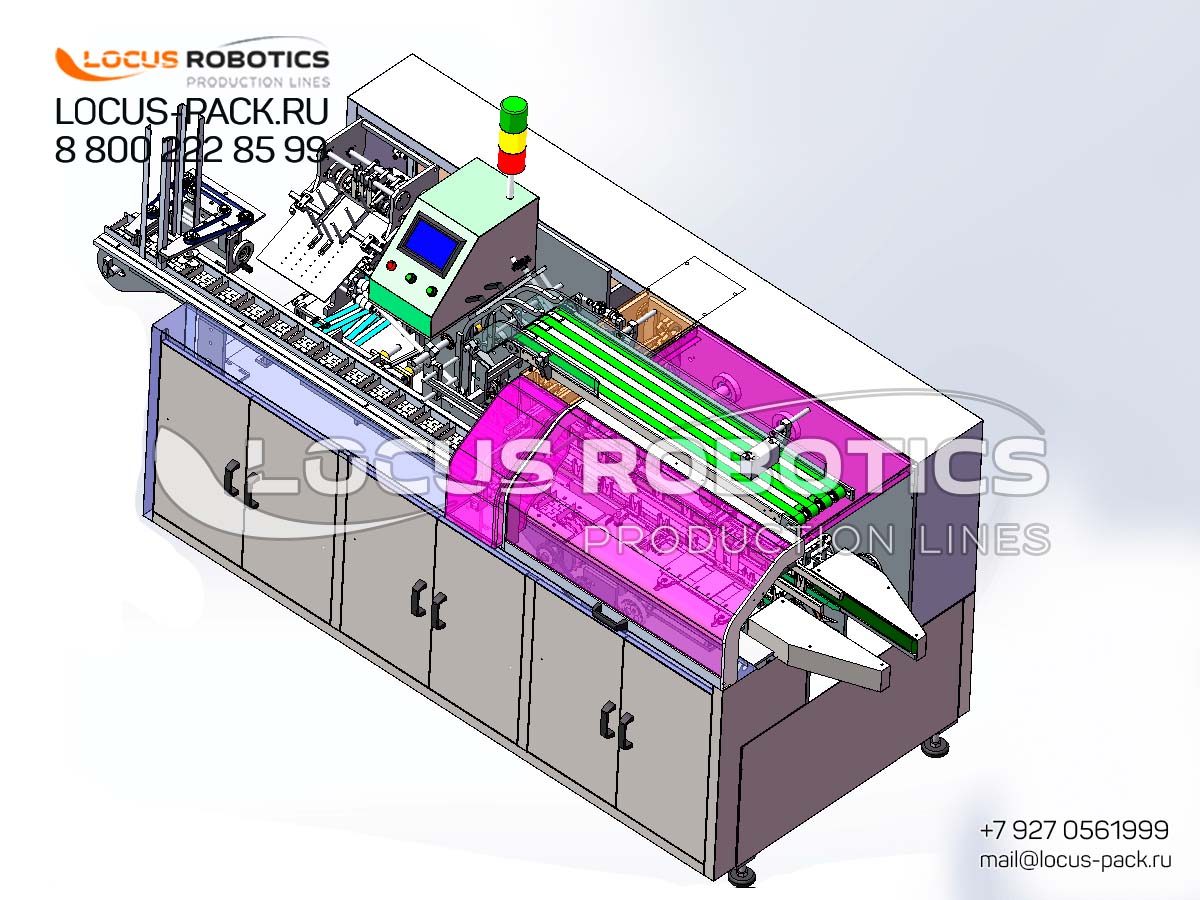

LRC-100 automatic linear cartoning machine large boxes
Our automatic linear cartoning machine seamlessly integrates with filling lines, capping monoblocks, or labeling systems. Designed for packaging vials and tubes into individual cartons, it performs carton erection, product loading, and closure with optional tape sealing. This versatile solution serves pharmaceutical, cosmetic, and fast-moving consumer goods industries with high precision and reliability.
Key Features:
-
Seamless Integration: Compatible with filling lines, monoblock fillers, and labeling systems
-
Versatile Packaging: Handles vials, tubes, and similar containers in individual cartons
-
Complete Automation: Performs carton erection, product loading, and box closing
-
Optional Tape Sealing: Available for secure carton closure
-
Quick Changeover: Tool-free adjustments for different carton sizes
-
GMP Compliance: Stainless steel construction for easy sanitation
-
High-Speed Operation: Up to 120 cartons/minute capacity
-
User-Friendly Interface: PLC control with touch-screen HMI
-
craper Conveyor System: Ensures efficient and smooth product handling, reducing jams and downtime.
-
Hot Melt Glue Station: Provides automatic, secure sealing of box flaps without staples.
-
High-Speed Performance: Achieves up to 100 cartons/minute (adjustable based on box size and product complexity).
-
Versatile Carton Sizing: Accommodates carton dimensions from
70–250 mm (L) × 50–130 mm (W) × 20–90 mm (H)and weights of250–450 g/m². -
Integration Capabilities: Compatible with blister machines, fillers, labelers, and case sealers for end-of-line solutions.
-
PLC Control System: Features a touch-screen HMI for easy operation, monitoring, and troubleshooting.
-
GMP Compliance: Constructed with SS304/SS316 stainless steel for hygienic and corrosive-resistant applications.
-
Quick Changeover: No tool-free adjustments for different carton sizes, reducing downtime.
The LRC-100 linear cartoning machine combines advanced automation with versatility for large-box packaging applications. Its scraper conveyor system ensures smooth product handling, while the built-in hot melt glue station securely seals box flaps without manual intervention. Designed for flexibility, the machine can function independently or be integrated downstream of automatic filling machines and horizontal wrappers. Key industries include pharmaceuticals (e.g., vial boxes, blister packs), food (e.g., bulk powders, snacks), cosmetics (e.g., cream jars, bottles), and industrial products (e.g., hardware, automotive parts). Constructed with GMP-compliant stainless steel (SS304/SS316), it supports quick changeovers and meets hygienic standards for global markets.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Machine Type | Linear Automatic Cartoner |
| Integration Options | Filling lines, monoblocks, labeling machines |
| Packaging Speed | Up to 120 cartons/minute |
| Carton Size Range | Customizable (typical: 50-200mm L × 30-100mm W × 15-60mm H) |
| Power Requirements | 380V/50Hz or 220V/60Hz |
| Air Pressure | 0.6-0.8 MPa |
| Control System | PLC with touch-screen interface |
| Construction Material | SS304/SS316 stainless steel |
This automatic linear cartoning machine is engineered for seamless integration into existing production lines, including liquid filling systems, filling-capping monoblocks, and labeling machinery. It efficiently packages vials or tubes into individual cartons through a fully automated process: carton picking and erection, precise product insertion, and secure carton closing. An optional tape sealing module is available for enhanced box security. Constructed with GMP-compliant materials (SS304/SS316 stainless steel), the machine ensures hygienic operation and easy cleaning. Its modular design allows quick changeovers between different product formats, making it ideal for pharmaceutical, cosmetic, and FMCG manufacturers requiring flexible, high-speed packaging solutions (up to 120 cartons/minute). The PLC-controlled system with touch-screen HMI enables easy operation and minimal downtime.
| Parameter | Specification |
|---|---|
| Model | LRC-100 |
| Cartoning Speed | 30–100 cartons/minute (adjustable) |
| Carton Size Range (L×W×H) | Min: 50×20×14 mm; Max: 250×150×80 mm |
| Power Supply | 380V/50Hz or 230V/60Hz (configurable) |
| Compressed Air Requirement | ≥0.6 MPa, consumption ≤0.3 m³/min |
| Machine Dimensions (L×W×H) | 3300×1550×1560 mm |
| Total Weight | ~1000 kg |
| Control System | PLC with touch-screen HMI |
Applications:
-
Pharmaceuticals: Vials, ampoules, injection bottles, blister packs, ointment tubes.
-
Cosmetics: Tubes, bottles, cosmetic containers, Creams, lipsticks, masks, toothpaste.
-
FMCG: Small containers, sample packaging
-
Healthcare: Medical device packaging
-
Food & Beverage: Coffee packets, spices, milk powder, ice cream.
-
Industrial: Hardware, automotive parts, electronics.
