Description

Engineered for Excellence in Gourmet Hot-Fill Packaging and Preservation

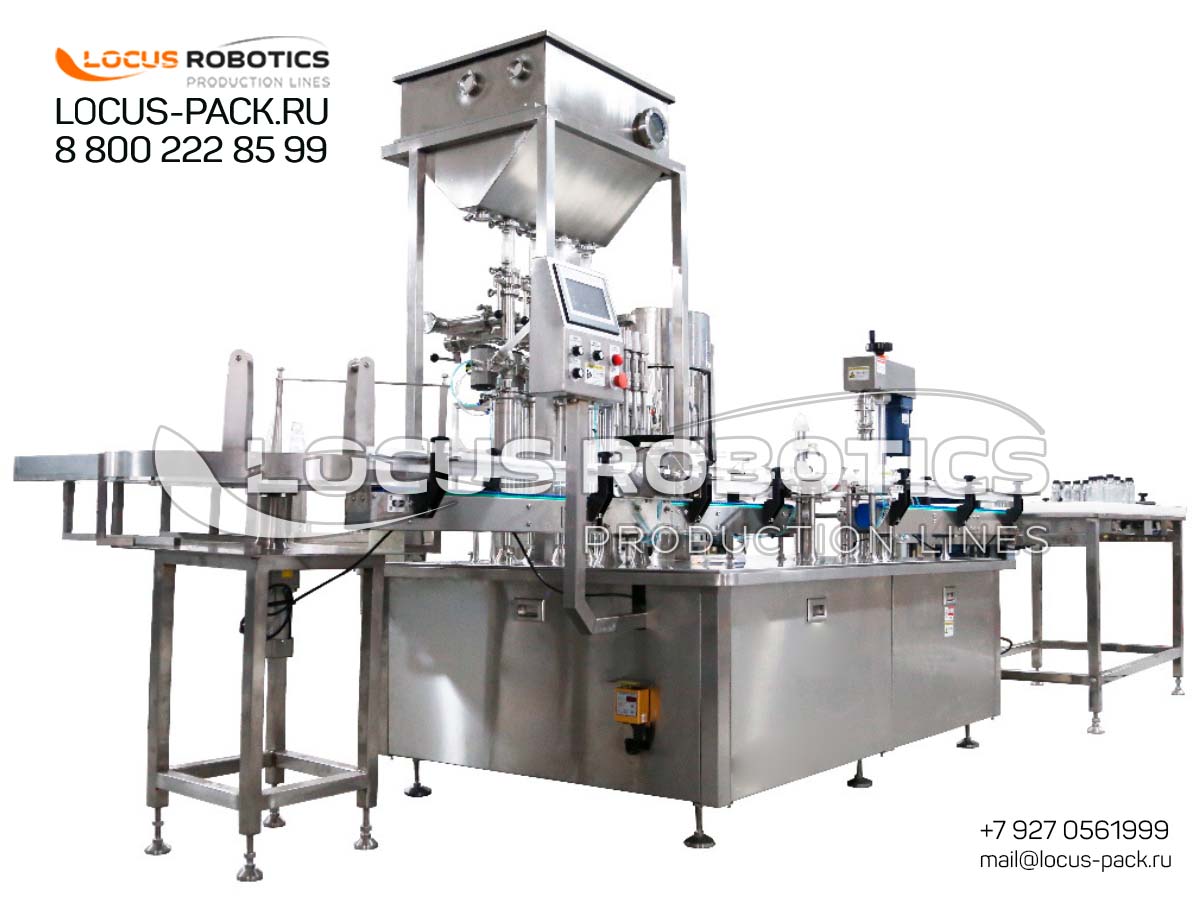

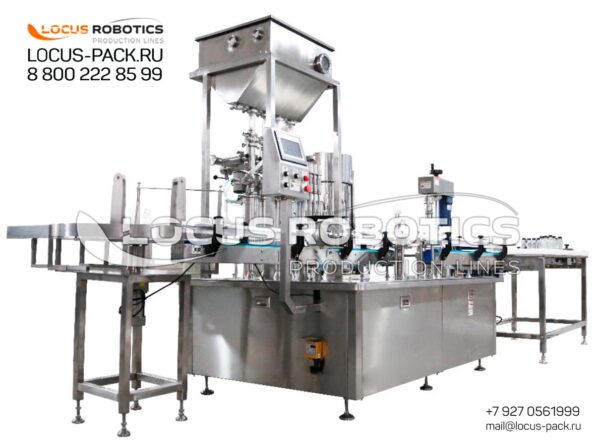

The LR-200 Hot-Fill Piston Monoblock is a technological cornerstone for food producers who prioritize natural preservation, product quality, and premium presentation. This machine is specifically designed to master the hot-fill-hold process, a critical technique where products are heated to a specific temperature to destroy spoilage microorganisms and then immediately filled into pre-sterilized, heat-resistant containers. As the product cools inside the sealed bottle, a natural vacuum is formed, significantly extending shelf life while preserving the authentic flavor, color, and nutritional profile of sensitive ingredients. This system is impeccably suited for a wide spectrum of value-added edible oils—including delicate extra virgin olive oil, nutty pumpkin seed oil, robust mustard oil, and health-focused hemp and rapeseed oils—as well as for thick pouring syrups, dessert toppings, and liquid sweeteners that benefit from this preservation method. By integrating the filling process with a sophisticated aluminum cap thread-rolling head, the machine not only seals the product but also adds a distinctive, professional finish that enhances brand perception and ensures an absolute barrier against oxygen and contaminants, protecting the product’s freshness and premium character from the factory to the final use.

Detailed Technical Specifications & Advanced Configuration

• Machine Type & Layout: Fully Automated, High-Capacity Rotary (Carousel) Monoblock. Features an infeed rotary table for smooth bottle presentation and an outfeed accumulation table for organized collection of finished, hot-filled bottles, allowing for controlled cooling periods.

• Core Filling Technology: High-output, temperature-capable volumetric dosing system powered by four (4) stainless steel piston cylinders with sanitary check valves. This robust system is designed to handle the specific flow characteristics of products at elevated temperatures (typically up to 85-95°C) with consistent accuracy, minimizing waste of valuable product.

• Unique Closure System: Integrated precision thread-rolling head (skiving roller head). This station accepts smooth, unthreaded 28mm aluminum caps from a vibratory cap orienter and, through a controlled mechanical process, rolls and forms a perfect continuous thread onto the cap, securing it to the threaded neck of the hot glass bottle to create an immediate hermetic seal.

• Container Handling & Process: Engineered for stable, reliable handling of 100ml to 1000ml glass bottles with a standardized 28mm screw neck finish, specifically identifying compatibility with Maraska, Doric, and Ariana bottle styles. The system accommodates the thermal expansion and careful handling required for hot-fill applications.

• Construction & Hygiene Standards: All product-contact surfaces, including the piston cylinders, product pathway, and filling nozzles, are constructed from food-grade, corrosion-resistant stainless steel (AISI 316L). The GMP-ready design supports rigorous hygienic cleaning protocols (CIP capable) essential for food production.

• Control & Thermal Management: Centralized PLC-based control system with an intuitive multi-language HMI touchscreen. Allows for precise management of fill volumes, machine indexing speed, and integration with upstream heating/cooling systems. Recipe storage enables fast changeovers between different oil or syrup products.

Ideal Product Applications & Packaging Formats

• Target Products: Perfectly suited for a vast range of hot-filled gourmet food products: all varieties of edible cooking and finishing oils (olive, hemp, pumpkin, rapeseed, mustard), pouring syrups (maple, agave, fruit, chocolate), dessert toppings (caramel, fudge, berry), liquid sweeteners, and premium condiments.

• Target Containers & Closures: Specifically configured for heat-treated glass bottles (100-1000ml) with a 28mm continuous thread (CT) neck finish, including the Maraska, Doric, and Ariana profiles. Applies and threads smooth, untapped 28mm aluminum screw caps to create a secure, tamper-evident, and premium closure.

Strategic Business Advantages for Premium Food Brands

• Natural Shelf-Life Extension & Clean-Label Appeal: The integrated hot-fill capability allows you to reduce or eliminate chemical preservatives, meeting the growing global consumer demand for clean-label, naturally preserved products while ensuring microbial safety and extended freshness.

• Superior Product Protection & Freshness Lock: The combination of hot-filling and an immediately applied, thread-rolled aluminum cap creates a powerful oxygen and moisture barrier. This dual-action preservation is critical for protecting the delicate flavors, aromas, and nutritional compounds in premium oils and natural syrups from oxidation and rancidity.

• Premium Brand Enhancement & Market Differentiation: The elegant presentation of a high-quality glass bottle sealed with a custom-threaded metal cap signifies craftsmanship, purity, and luxury. This directly elevates your brand positioning, allows for higher price points, and makes your product stand out in competitive retail environments, from local delicatessens to international gourmet markets.

• High-Speed Production for Scalable Artisanal Quality: The powerful four-piston filling system and automated threading capper enable significant production throughput. This allows artisanal and specialty brands to scale their operations efficiently, maintaining handcrafted quality while achieving the output needed for broader distribution and increased market share.

• Globally Compliant & Supported Food-Grade Design: Constructed with international food safety standards and GMP principles in mind, the machine supports compliance with major global markets. Backed by our 24/7 global support network with hubs in Dubai, Hanoi, and Lagos, we ensure you have access to technical assistance, rapid spare parts delivery, and onsite commissioning to keep your production line running smoothly anywhere in the world.

Preserve Quality and Elevate Your Gourmet Brand

Ready to harness the power of hot-fill technology to protect your premium food products and enhance your brand’s premium appeal? Contact our food and beverage packaging specialists today for a comprehensive consultation. We offer a free product compatibility review and throughput simulation to demonstrate how the LR-200 Hot-Fill Monoblock can optimize your production, safeguard your quality, and strengthen your market position.
