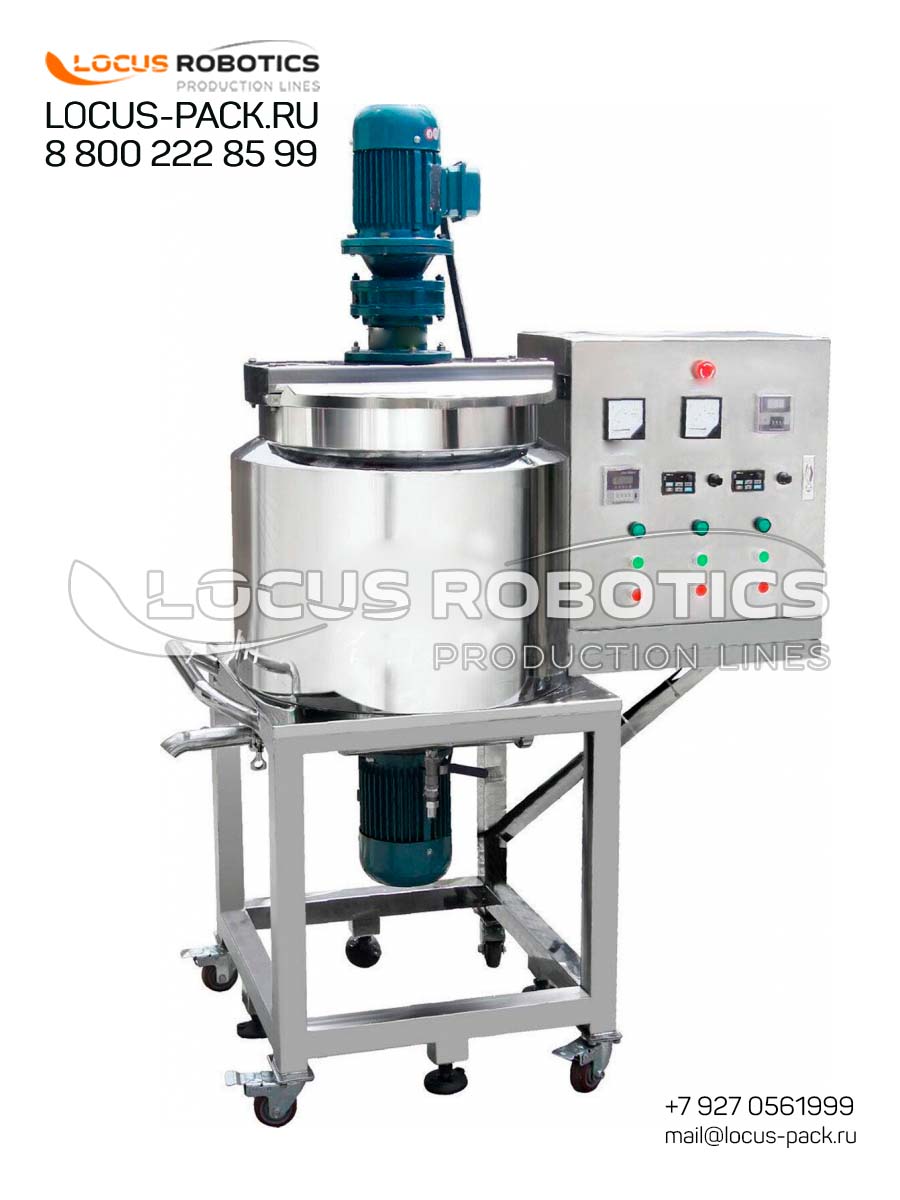

Precision Mixing and Homogenization in a Mobile, Compact Design

The 50L Compact Mobile Reactor is designed for applications where superior mixing quality and process flexibility are paramount. The integrated bottom homogenizer (often a high-shear rotor-stator type) creates extremely fine emulsions and dispersions, while the top-mounted agitator (such as a paddle or anchor type) ensures uniform temperature and composition throughout the vessel, preventing sedimentation.

Core System Components & Advantages

• Dual Mixing System: The bottom homogenizer provides intense, localized high-shear for breaking down agglomerates and creating stable emulsions. The top agitator provides bulk fluid movement, ensuring consistent temperature and composition throughout the vessel. This combination is ideal for products like creams, lotions, ointments, and adhesive formulations.

• Mobile and Compact Design: The reactor is mounted on a robust mobile platform with lockable castors, allowing for easy movement between processing, cleaning, and storage areas. This enhances operational flexibility and simplifies production line layout.

• Hygienic and Compliant Design: Can be constructed from high-quality materials like Stainless Steel (AISI 304 or 316L) with polished internal surfaces (e.g., Ra ≤ 0.8 µm) to support easy cleaning and comply with GMP standards.

• Temperature Control: The reactor includes a jacketed vessel for precise temperature control using circulating thermal fluids, which is critical for controlling reaction kinetics and product quality.

Built for Compliance and Global Market Excellence

The reactor’s design supports adherence to international regulatory standards. This is crucial for exporting your products to markets in Southeast Asia, Africa, the Middle East, and Latin America.

Technical Specifications
