Description
Precision Sterile Blending with Ergonomic Operation

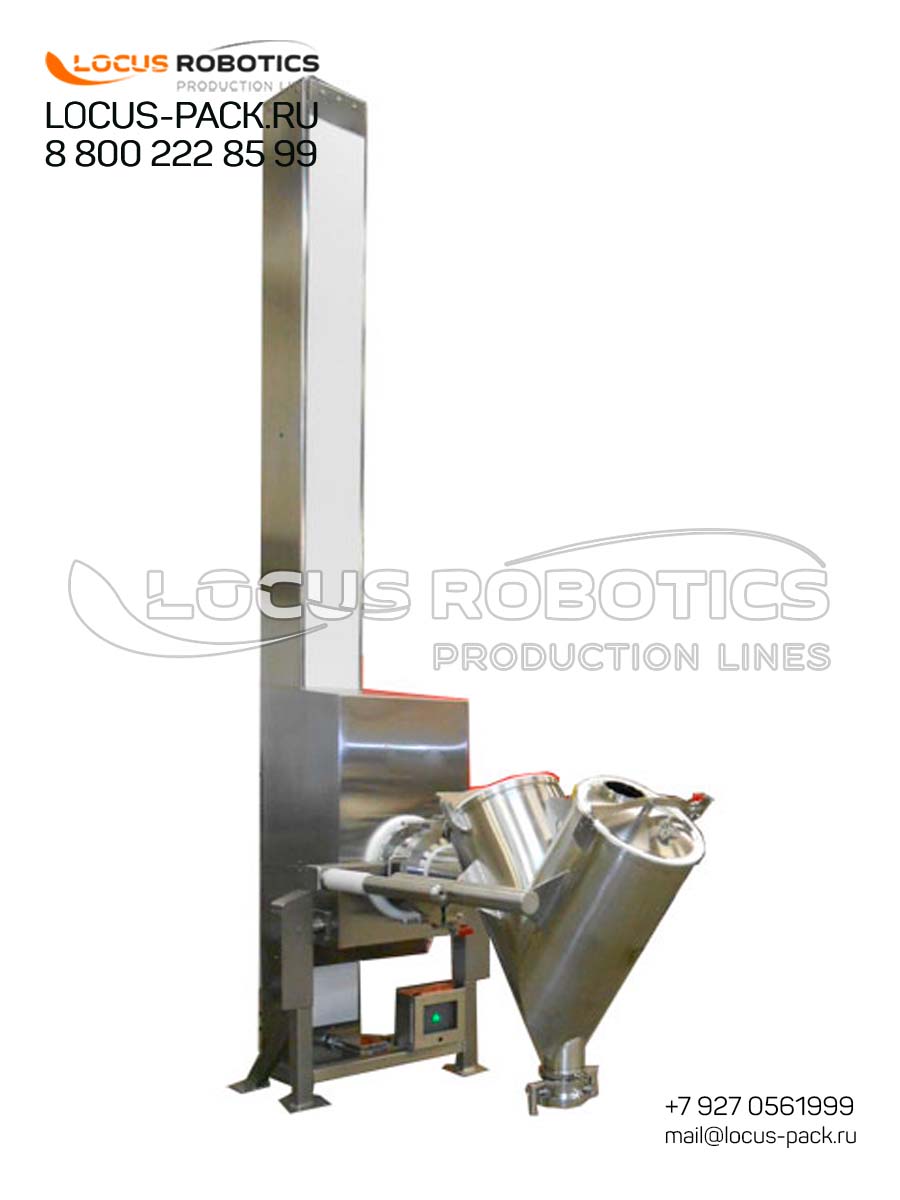

The V-20 Compact V-Shape Mixer combines gentle, efficient mixing with features designed for sterile manufacturing. The unique V-shaped vessel creates a tumbling and folding action, ensuring a perfect blend without damaging delicate product structures. The integrated lifting platform and fully enclosed «shtany» design are critical for maintaining sterility and operator safety, making it a cornerstone of any modern, compliant production line.
Key Technical Specifications & Operational Advantages
-
Sterile-Grade GMP Design: Constructed from high-quality stainless steel (SUS304/AISI 304) with a high-purity, polished finish on all product contact surfaces. The fully enclosed design prevents dust generation and supports easy, validated cleaning .
-

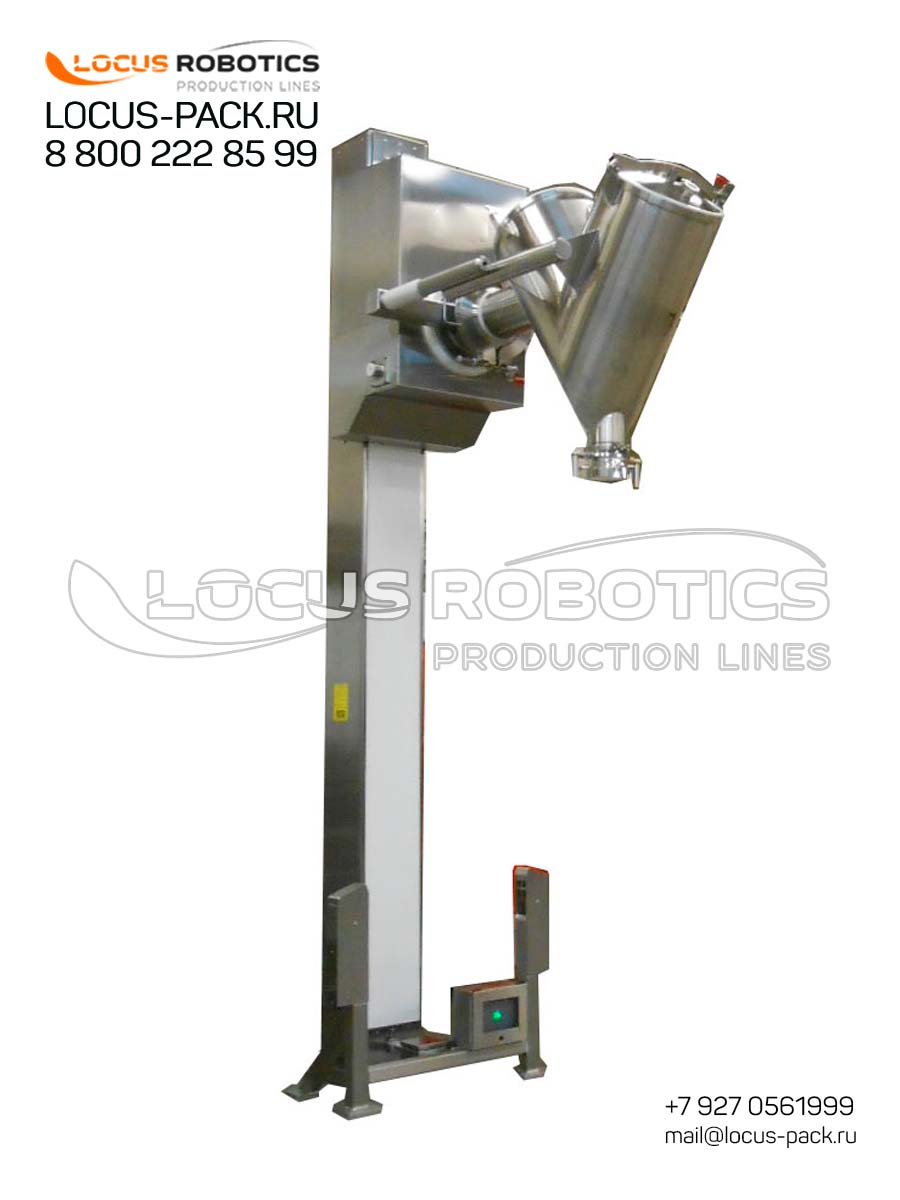

Integrated Lifting Platform: The ergonomic lifting mechanism allows for safe and effortless raising and lowering of the mixing vessel, facilitating easy connection to charging systems in sterile environments and minimizing contamination risk.
-
Efficient and Gentle Mixing: The V-shaped geometry ensures a three-dimensional mixing motion, achieving a blend homogeneity without creating heat or shear forces that could degrade sensitive materials .
-
Compact and Robust Performance: Designed with a small footprint for space-constrained cleanrooms, the mixer is built for reliable operation with a powerful motor and stable performance .
Built for Compliance and Global Market Excellence
The mixer’s design and cleanability support adherence to international regulatory standards, including GMP. This compliance is crucial for exporting your products to markets in Southeast Asia, Africa, the Middle East, and Latin America.
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Volume | 20 L |
| Working Capacity | ~8 L (approx. 40% of total volume) |
| Motor Power | 0.75 — 1 kW |
| Rotation Speed | 20 rpm |
| Material of Construction | Stainless Steel SUS304 / AISI 304 |
| Dimensions (L*W*H) | ~1050*400*800 mm (example) |
| Technical Parameter | V-20 |
|---|---|
| Lifting Platform Load Capacity & Travel (kg and mm) | Check the lifting mechanism specifications. |
| Material Grade & Surface Finish (e.g., AISI 316L, Ra 0.4 µm) | Check material certificates and polishing specs. |
| Control System Details (e.g., PLC, manual) | Review the control panel and user interface. |
| Detailed Dimensions and Weight | Directly measure the machine or refer to drawings. |
| Power Requirements (Voltage, Phase) | Check the machine’s power label or manual. |
📜 Schedule virtual airflow visualization test.
💡 Mention your: Target market (EU/US/Global South), Active ingredient, Required throughput.
🔬 Schedule virtual factory acceptance test with our engineers.
🏷️ Request Compliance Audit: Free gap analysis with throughput simulation.
🔍Ready to Eliminate Production Bottlenecks?
💎Need Industrial Production Automation?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
📈Start small, get a free production layout designed for your growth trajectory. Scale smarter with engineering support!
📥Free line configuration for your products, throughput validation testing!
🎓Contact Specialists for Packaging Equipment:
📄 On-Demand Engineering: Product-specific configurations in 1-2 weeks.
🔧 Spare Parts Kits: Region-specific inventory for <24hr delivery.
🧼Compliance Roadmap:
- CE, EAC, ISO 9001 certifications.
- GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
- ATEX options for chemical solvents.
