Description

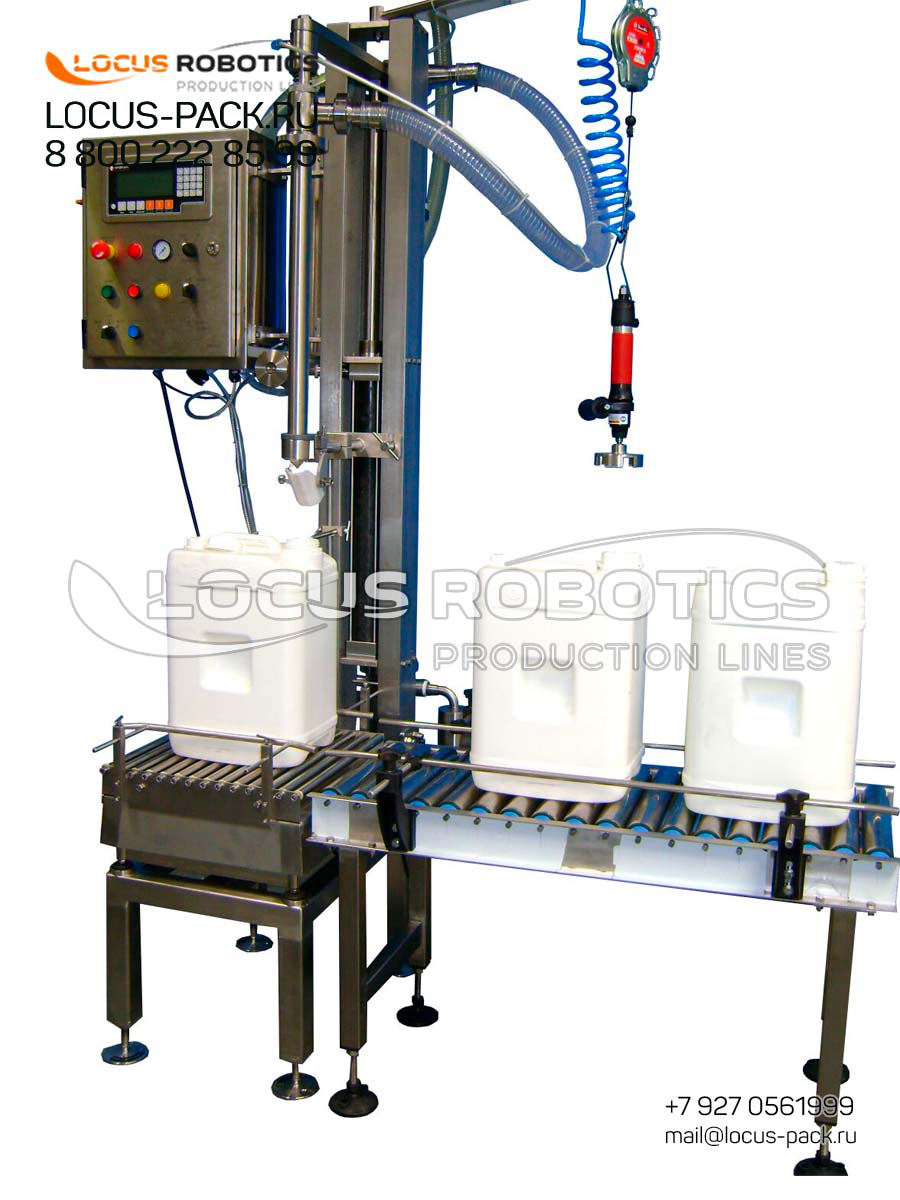

Gravimetric (Weighing-Type) Semi-Automatic Filling Station with a Separate, Suspended (Overhead) Capping Unit for Precision Filling of Industrial, Automotive, and Household Chemicals into Jerrycans, Pails, and Small-Sized Drums

LFSG-500 Modular Filling & Capping Station: Unmatched Versatility and Value for Diverse, Small-to-Medium Batch Chemical Production

In the dynamic world of chemical manufacturing, contract packing, and specialty fluid blending, production needs can vary dramatically from one day to the next. Investing in highly specialized, single-purpose automation can be economically prohibitive and operationally restrictive. The LFSG-500 Modular Weighing and Capping Station is engineered as the antidote to inflexibility, offering a foundational yet powerful packaging platform that can be easily adapted to a wide array of tasks. Its design philosophy prioritizes simplicity, accuracy, and operator-centric workflow. By separating the precision-filling function from the sealing function, this station provides unparalleled adaptability. The filling unit can be positioned for optimal material handling from bulk storage, while the overhead capper can be placed exactly where it best suits the operator’s workflow—whether capping immediately after filling or at a separate, dedicated sealing station. This system is the definitive choice for businesses seeking a reliable, «workhorse» machine capable of handling everything from drumming off batches of industrial detergent and filling jerrycans with motor oil for the aftermarket, to packaging specialty water-based chemicals and agricultural adjuvants, all with one straightforward, easy-to-maintain piece of equipment that delivers rapid return on investment and grows with your business.

Exhaustive Technical Specifications and Modular Design Philosophy

• Core System Architecture: The station is based on a modular, separated design. The filling unit and the capping unit are two distinct pieces of equipment that can be positioned independently within the workspace to create the most efficient workflow, connected only by a common power and control signal or operating completely independently.

• Weighing & Dosing Unit Specifications:

  • Technology: Pure gravimetric (load cell-based) filling.

  • Platform: A single, low-profile stainless steel weighing platform with a high-accuracy shear beam or S-type load cell.

  • Accuracy: Capable of ±0.1% of set point or ±10 grams (whichever is greater), ensuring precise fills even with variable-viscosity products.

  • Dispensing: Controlled by a positive displacement pump (rotary lobe, diaphragm) or a gravity-fed system with a pneumatic shut-off valve, selected based on product viscosity and flow characteristics.

  • Control: A standalone microprocessor-based weighing controller with a digital display, tare function, preset memory, and batch counter. It features simple start/stop controls.

• Overhead Capping Unit (Suspended Capper) Specifications:

  • Mounting: Designed for suspension from a free-standing floor column, an overhead gantry, or a articulated mounting arm. This allows the capper to be effortlessly positioned over the container.

  • Drive & Control: Typically features a pneumatic or electric motor drive with a adjustable torque clutch mechanism. Torque settings are easily changed to suit different cap sizes and materials.

  • Chuck System: Equipped with a quick-change chuck that can accommodate a range of cap diameters. Options include multi-leaf chucks, collet chucks, or roller chucks for non-marring sealing.

  • Operation: The operator manually places the cap on the container and then activates the capper (via foot pedal or palm button), which descends, engages the cap, applies the preset torque, and retracts.

• Container Handling: Containers are typically manually placed on and removed from the weighing platform. The station can be paired with a simple non-powered roller conveyor or a turntable to facilitate ergonomic handling of heavy jerrycans and drums.

• Materials of Construction: The filler frame and capper column are powder-coated carbon steel. All product contact parts on the filler (nozzle, pump, valves) are AISI 304 or 316L stainless steel. Capper chucks are made from hardened steel or engineered polymer.

• Utilities & Footprint: Requires standard plant compressed air (for pneumatic components) and single-phase or three-phase power. The entire system has a very compact footprint, freeing up valuable floor space.

Comprehensive Analysis of Strategic Advantages and Operational Flexibility

1. Ultimate Configuration Flexibility and Workspace Optimization: The separated, modular design is this system’s greatest asset. The filler and capper are not physically tied together. This allows you to configure your packaging line in the most logical way for your specific plant layout, material flow, and container handling patterns. The capper can even serve multiple filling points if needed.

2. Exceptional Value and Low Total Cost of Ownership (TCO): By focusing on core functionality without complex integration, the LFSG-500 offers a significantly lower entry price than fully integrated monobloc lines. Its mechanical simplicity also translates to easier maintenance, lower spare part costs, and less dependency on specialized service technicians, resulting in a superior TCO over its operational lifespan.

3. Simplified Operation and Rapid Changeover: The intuitive, semi-automatic operation requires minimal training. Changing from one product or container to another is straightforward: adjust the target weight on the filler controller, swap the filling nozzle if necessary, and adjust the capper chuck and torque setting. This makes it perfect for short production runs, contract packing of diverse products, and R&D scale-up batches.

4. Gravimetric Precision for Consistent Quality and Cost Control: Despite its simplicity, the system does not compromise on accuracy. The load-cell-based weighing ensures every container is filled to the exact target mass. This prevents giveaway of expensive products, ensures compliance with weights and measures regulations for consumer and trade sales, and guarantees consistent quality for the end-user.

5. Ergonomic and Safe Operation for Heavy Containers: The overhead capper design is particularly ergonomic for sealing heavy jerrycans and small drums. The operator does not need to lift or maneuver a heavy capping head. They simply guide the suspended unit onto the cap. This reduces physical strain, minimizes the risk of musculoskeletal disorders (MSDs), and enhances overall workplace safety.

Target Industries and Detailed Product Application Portfolio

• Industrial & Maintenance Chemicals: Parts cleaners and degreasers, metalworking fluids and coolants, rust inhibitors and preventatives, concrete release agents and curing compounds, industrial hand soaps and sanitizers, and boiler and cooling water treatment chemicals.

• Automotive & Transportation Fluids: Engine oils (synthetic, conventional), automatic transmission fluids (ATF), gear oils, antifreeze and engine coolant, brake fluid (DOT 3, 4, 5), power steering fluid, windshield washer fluid, and diesel exhaust fluid (DEF/AdBlue).

• Lubricants & Greases: Penetrating oils, chain lubes, general-purpose lubricating oils, food-grade lubricants (with compatible materials), and light to medium viscosity greases.

• Agriculture & Horticulture: Liquid fertilizers (N-P-K solutions), herbicides, pesticides, and insecticides, adjuvants and surfactants, plant growth regulators, and greenhouse nutrients.

• Household & Institutional (H&I): Floor cleaners and strippers, carpet shampoos, disinfectants and sanitizers, laundry detergents and fabric softeners, dishwashing liquids, and general-purpose cleaners.

Comparative Table: LFSG-500 Modular Station vs. Integrated Monobloc Filling Line
