Right-Hand Configuration Semi-Automatic Gravimetric Filling and Heavy-Duty Pneumatic Capping Station for High-Viscosity, Non-Flowable Pastes, Greases, Adhesives, and Construction Chemicals in Large Plastic Buckets and Pails

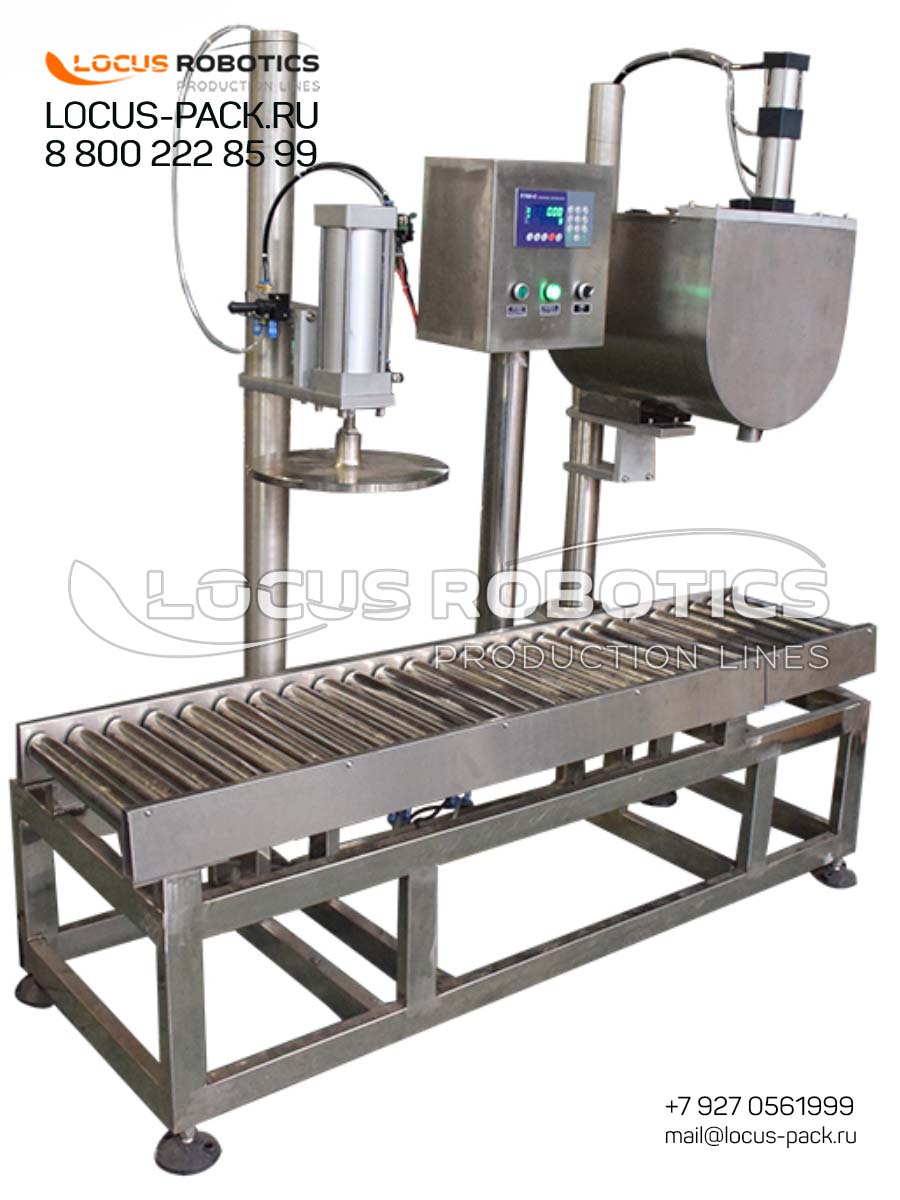

LFSG-500 Heavy-Viscosity Station: The Industrial-Grade Workhorse for Precision Packaging of Paste-Phase Products

The transition from production to packaging represents a critical juncture for manufacturers of high-viscosity materials, where inefficiency and inaccuracy can rapidly erode profitability and damage brand reputation through leaking containers or inconsistent fill levels. Standard liquid filling technology fails when confronted with non-Newtonian fluids, thixotropic pastes, and abrasives compounds that will not freely flow. The LFSG-500 Semi-Automatic Weighing and Capping Station is conceived from the ground up to conquer these specific challenges, serving as an indispensable, standalone workhorse on the factory floor. Its right-hand design philosophy optimizes the workflow for a single operator, guiding containers logically from the filling zone to the powerful sealing point. By combining mass-based precision with a heavy-duty sealing mechanism, this station does more than just package—it ensures that every bucket of expensive sealant, adhesive, or compound leaves your facility perfectly filled, securely sealed, and ready to withstand the rigors of the global supply chain, thereby enhancing your operational reliability and professional credibility in competitive markets from Southeast Asia to the Middle East and beyond.

Exhaustive Technical Specifications and Heavy-Duty Construction Analysis

• Operational Design & Layout: Engineered in a pragmatic right-hand execution configuration, this design streamlines the operator’s movement, placing the control interface and primary action zones within optimal reach. The station is a compact, integrated unit that consolidates all packaging steps—filling, conveyance, and capping—into a minimal footprint, making it ideal for facilities where space is at a premium without sacrificing any capability.

• Feeding & Supply System: The system is fed by a generous receiving tank or hopper, which can be configured with agitators or slow-speed stirring mechanisms to maintain product homogeneity and prevent separation or settling of dense fillers and pigments commonly found in construction chemicals and adhesives.

• Core Weighing & Dosing Technology: The heart of the station is a single, high-capacity gravimetric weighing platform built around a ruggedized stainless steel load cell. This system is calibrated to deliver exceptional accuracy, typically within ±10-20 grams, even under the dynamic loads of pouring viscous material. The controller utilizes advanced algorithms to anticipate flow cutoff for slow-moving pastes, ensuring the target weight is hit without drip or smear.

• Dispensing System for Viscous Media: Material is transferred from the hopper to the bucket via a positive displacement pump—such as a progressive cavity, piston, or heavy-duty diaphragm pump—selected based on the specific abrasiveness, viscosity, and shear-sensitivity of the product. The dispensing is controlled by a large-bore, drip-free shut-off nozzle designed to handle particulates and prevent clogging.

• Container Handling System: Containers are moved through the station on a sturdy powered roller conveyor with a variable speed drive. This conveyor is built to support the significant weight of large buckets (20 kg+ when full) and provides smooth, indexed movement from the filling point to the capping position.

• Capping & Sealing Mechanism: The defining feature is a high-force pneumatic capping head (lid press or «lid hammer»). This unit uses regulated compressed air to drive a pressing plate or forming die onto the bucket lid with consistent, programmable force. This action securely seats press-fit lids, creates a uniform seal around the entire rim, and can often form a tamper-evident bead, which is a critical requirement for many industrial and construction products.

• Control System & Interface: Operation is governed by a user-friendly Programmable Logic Controller (PLC) with a color Touch Screen Human-Machine Interface (HMI). The system allows for storage of multiple product recipes (target weight, pump speed, capping pressure) and provides real-time data on production counts, fill weights, and system diagnostics. Multi-language support is standard.

• Materials of Construction & Durability: The chassis and frame are fabricated from heavy-gauge, powder-coated carbon steel. All product contact surfaces, including the hopper, pump, valves, and nozzle, are constructed from AISI 304 or 316L stainless steel or specialized coated steels to resist corrosion, abrasion, and chemical attack from aggressive compounds, ensuring long service life with minimal maintenance.

Comprehensive Analysis of Strategic Advantages for High-Viscosity Applications

1. Unrivaled Accuracy for Costly, Non-Flowable Materials: The gravimetric weighing principle is the only reliable method for accurately dosing thick pastes, sealants, and filled compounds. Unlike volumetric systems (piston, time-pressure) whose accuracy is destroyed by air pockets, viscosity changes, and ingredient settling, the load cell measures mass directly. This guarantees every bucket contains the exact paid-for amount, protecting your profit margin on expensive raw materials and ensuring regulatory compliance for weight-based sales, which is paramount in global trade.

2. Engineered for Extreme Mechanical Demands: Every component, from the heavy-duty pump capable of moving toothpaste-like consistency materials to the reinforced conveyor and the high-tonnage pneumatic capper, is selected for exceptional mechanical strength and endurance. This station is built to operate day-in and day-out with abrasive, punishing products that would quickly wear out equipment designed for free-flowing liquids, resulting in superior uptime and a lower total cost of ownership.

3. Guaranteed Seal Integrity for Hazardous or Sensitive Products: A leaking bucket of chemical adhesive or solvent-based sealant is a major safety, environmental, and financial liability. The pneumatic capping head applies a consistent, high downward force that mechanically deforms the lid skirt to form a perfect, gasket-compressing seal on the bucket rim. This virtually eliminates the risk of leaks during palletization, warehouse stacking, long-distance transport, and storage, providing peace of mind for both manufacturer and end-user.

4. Optimized Operational Simplicity and Ergonomic Workflow: The right-hand configuration and semi-automatic cycle create an intuitive, efficient workflow for a single operator. The machine handles the precise and physically demanding tasks (pumping, weighing, high-force capping), while the operator manages the simpler tasks of bucket placement and lid positioning. This reduces operator fatigue, minimizes training time, and maximizes overall line efficiency in small to medium-batch production scenarios.

5. Unmatched Versatility Across Paste-Phase Product Categories: This single station platform is incredibly adaptable. By simply adjusting the recipe in the PLC and performing a standard clean-out (facilitated by the stainless steel contact parts), the same machine can seamlessly switch from filling silicone sealants one day to epoxy grouts the next, followed by polyurethane adhesives or lithium-based greases. This flexibility makes it an invaluable asset for contract manufacturers, R&D pilot plants, and companies with diverse product portfolios.

Target Industries and Exhaustive Product Application Portfolio

• Construction Chemicals & Sealants: Silicone construction and glazing sealants, polyurethane foam and sealants, hybrid polymer sealants, acrylic latex caulks, butyl rubber tapes and mastics, liquid-applied waterproofing membranes, cementitious repair mortars and grouts, tile adhesives (thin-set and thick-bed mastics), concrete curing compounds, and epoxy injection resins.

• Industrial Adhesives, Coatings, and Compounds: Industrial-grade epoxy adhesives and encapsulants, polyurethane and cyanoacrylate adhesives, anaerobic threadlockers and retaining compounds, neoprene and contact adhesives, anti-corrosion and protective coatings (high-build), sound damping compounds, abrasion-resistant liner pastes, and thermal insulating compounds.

• Lubricants, Greases, and Automotive Products: Lithium complex and calcium sulfonate greases, gear oils and extreme pressure (EP) pastes, anti-seize compounds, wheel bearing greases, marine lubricants, heavy-duty chassis greases, and viscous brake assembly lubricants.

• Food and Pharmaceutical (with GMP compliance): Dense food pastes (tomato paste, doughs), food-grade lubricants, confectionery fillings, viscous pharmaceutical ointments and creams, and petroleum jelly products (subject to specific sanitary design and certification requirements).

Comparative Table: LFSG-500 Heavy-Viscosity Station vs. Standard Liquid Filling Technology
