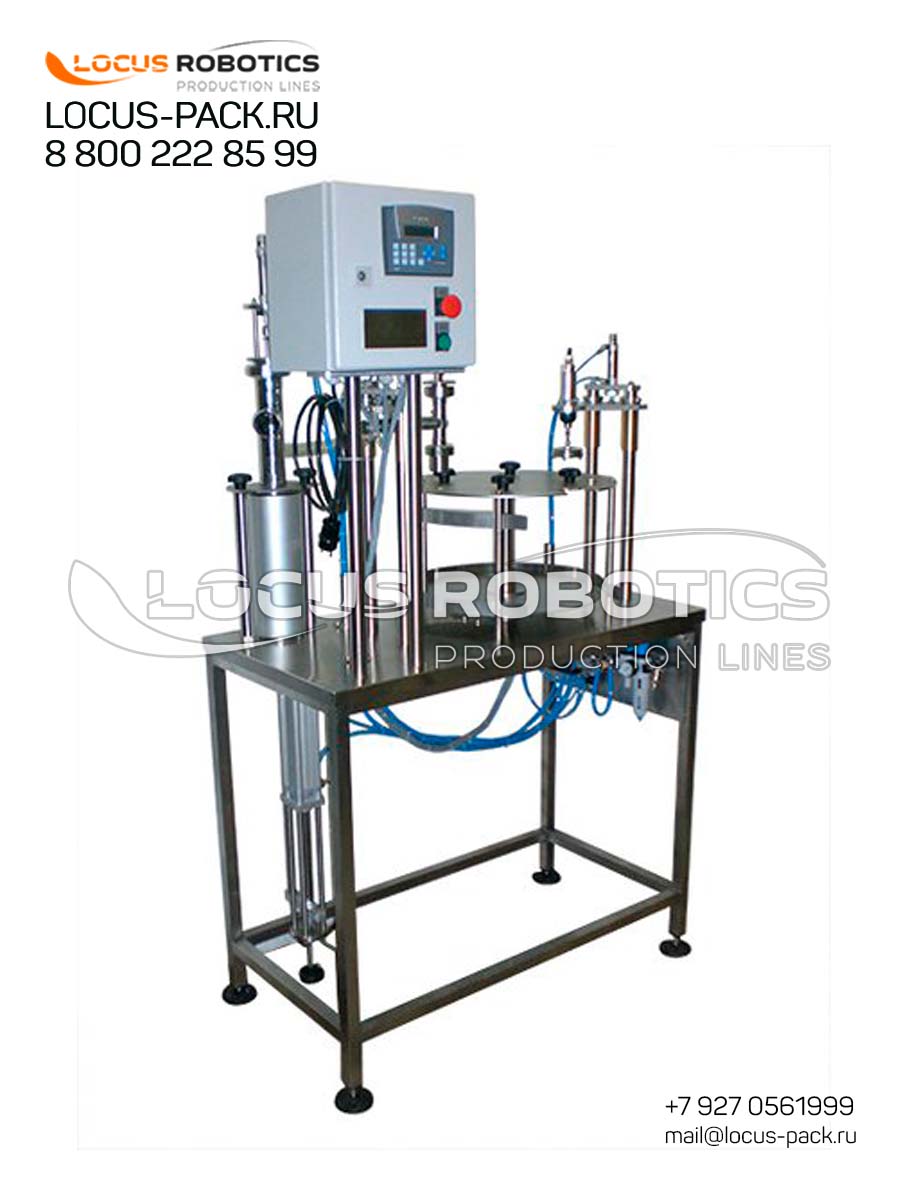

Precision for the Paint Industry: Accurate and Clean Filling of High-Viscosity Fluid

The paint and coatings industry requires equipment that can handle abrasive pigments, variable viscosities, and aggressive solvents while maintaining precise volume control. The R-500 Semi-Automatic Piston Filling Line is engineered to meet these specific challenges, providing a controlled environment between the mixing tank and the final retail or industrial container. Its design centers on the positive displacement piston pump, renowned for its ability to deliver consistent, repeatable fills regardless of changes in the product’s density or flow characteristics—common when dealing with different colors and paint formulations. This system replaces messy, inaccurate, and labor-intensive manual scooping or pouring, dramatically increasing daily output, minimizing costly product «giveaway,» and ensuring a clean, professional fill point. It is the ideal balance for paint companies that need higher throughput and accuracy than manual methods offer but require the flexibility for frequent batch and color changes that fully automated lines often lack.

Technical Design: Piston Dosing, Robust Construction, and Safe Operation

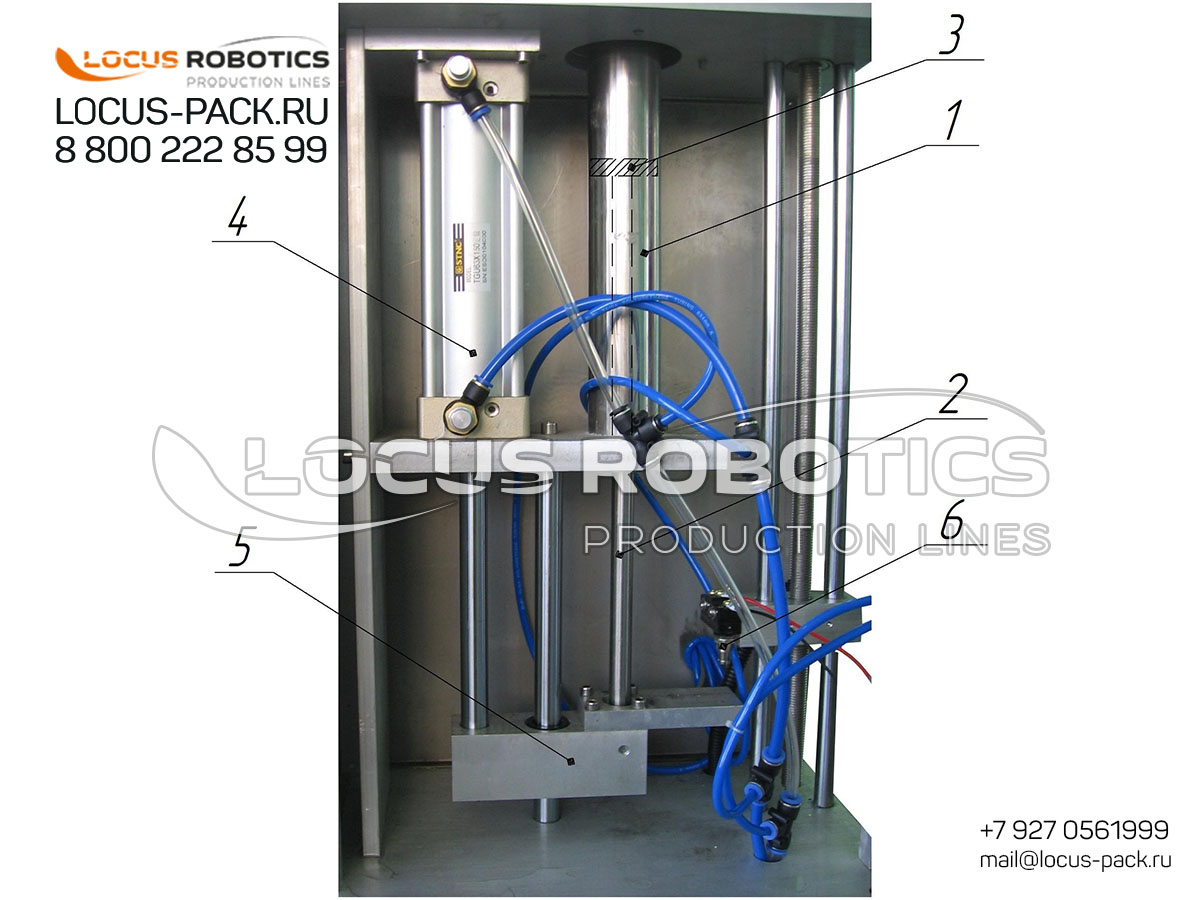

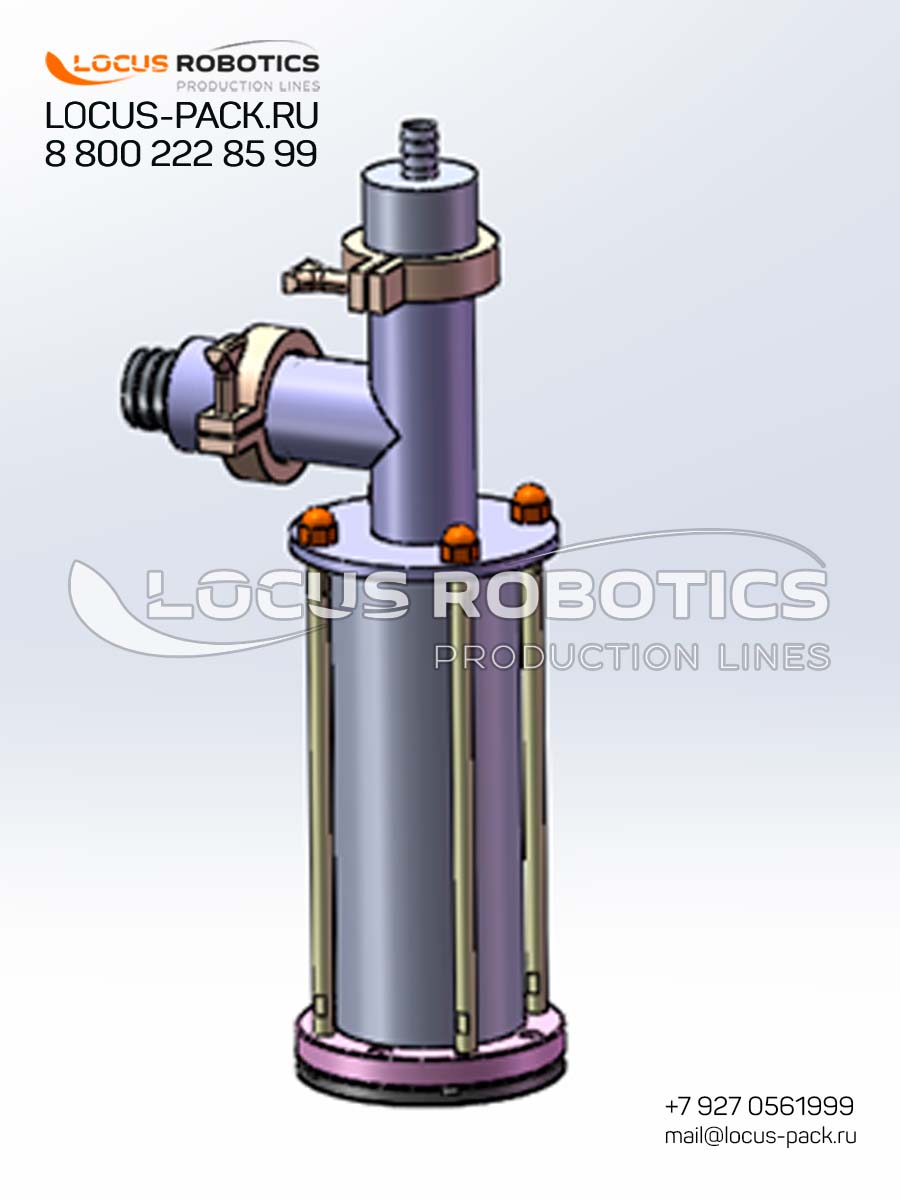

• Heavy-Duty Piston Dosing System: The core component is a piston filler designed for demanding fluids. The piston draws a precise slug of product and injects it into the container with minimal shear, which is important for maintaining the integrity of some coatings. This method provides excellent volumetric accuracy (typically ±0.5% to 1.5%) and is effective for products ranging from solvent-based paints and varnishes to water-based emulsions and thick mastics.

• Durable and Chemical-Resistant Construction: The line is built to withstand harsh industrial environments. Wetted parts are constructed from materials compatible with solvents and chemicals, such as stainless steel with specialized seals (Viton), PTFE, or ceramic. The frame is sturdy, often with a chemical-resistant powder coat or epoxy paint, and designed for easy cleanup of spills.

• Operator-Friendly, Semi-Automatic Workflow: Operation is simple and efficient. An operator places an empty container, initiates the fill cycle via a foot pedal or push-button control, and then removes the filled container for sealing. This allows for quick adaptation to different can sizes, from 0.5-liter tins to 20-liter pails.

• Typical Specifications & Options:

  • Filling Range: Adjustable, suitable for volumes from 100ml to 25 liters.

  • Product Compatibility: Paints, stains, varnishes, primers, resins, sealants.

  • Options: Agitation systems for filled containers to prevent settling, bottom-up filling nozzles, explosion-proof (ATEX) components for solvent-based products, load cells for weight-based filling.

Target Products and Industries: Serving Paint, Resin, and Chemical Blenders

This line is purpose-built for sectors involved in liquid coatings and related compounds:

• Architectural & Decorative Paints: Interior and exterior wall paints, primers, undercoats, wood stains, and varnishes.

• Industrial & Automotive Coatings: Protective paints, metal primers, automotive refinish products, and anti-corrosion coatings.

• Specialty Coatings & Resins: Epoxy resins, polyurethane coatings, floor paints, and textured finishes.

• Adhesives & Sealants: Construction adhesives, gap fillers, and caulking compounds.

• Typical Containers: Metal paint cans, plastic pails, composite containers, and large drums.

Operational Advantages for Paint Manufacturers in Growth Regions

For paint producers in emerging markets, the R-500 delivers tangible benefits that align with local industry needs:

• Control Costs and Maximize Margins: Precision filling significantly reduces product overfill, directly saving money on raw materials—especially important for paints with expensive pigments or additives.

• Improve Quality and Brand Reputation: Delivers clean, consistent, and professional packaging with accurate fill levels. This enhances brand perception, reduces customer complaints, and meets market expectations for quality.

• Increase Production Capacity Efficiently: Boosts daily output manifold compared to purely manual methods, providing an excellent return on investment and enabling businesses to scale without the high capital cost of full automation.

• Adapt to Market Demands: The semi-automatic, flexible design is perfect for small to medium batch production, custom color mixing, and private label manufacturing, allowing producers to serve diverse market segments.

Engineered for Durability and Backed by Global Support

This industrial line is supported by a framework built for reliable, long-term operation:

• Robust Design for Long Service Life: Constructed with heavy-duty components and wear-resistant materials chosen for paint and solvent service, ensuring longevity even in demanding production schedules.

• Expert Support for Chemical Applications: Our team can advise on material compatibility for your specific paint or solvent formulation to optimize performance and equipment life.

• Global Service Network: Supported by the same 24/7 multilingual technical assistance, regional spare parts hubs, and fast commissioning services to minimize costly production downtime.

• Performance Assurance: Backed by a strong warranty and performance guarantee, providing confidence in your investment for critical production packaging.
