Description

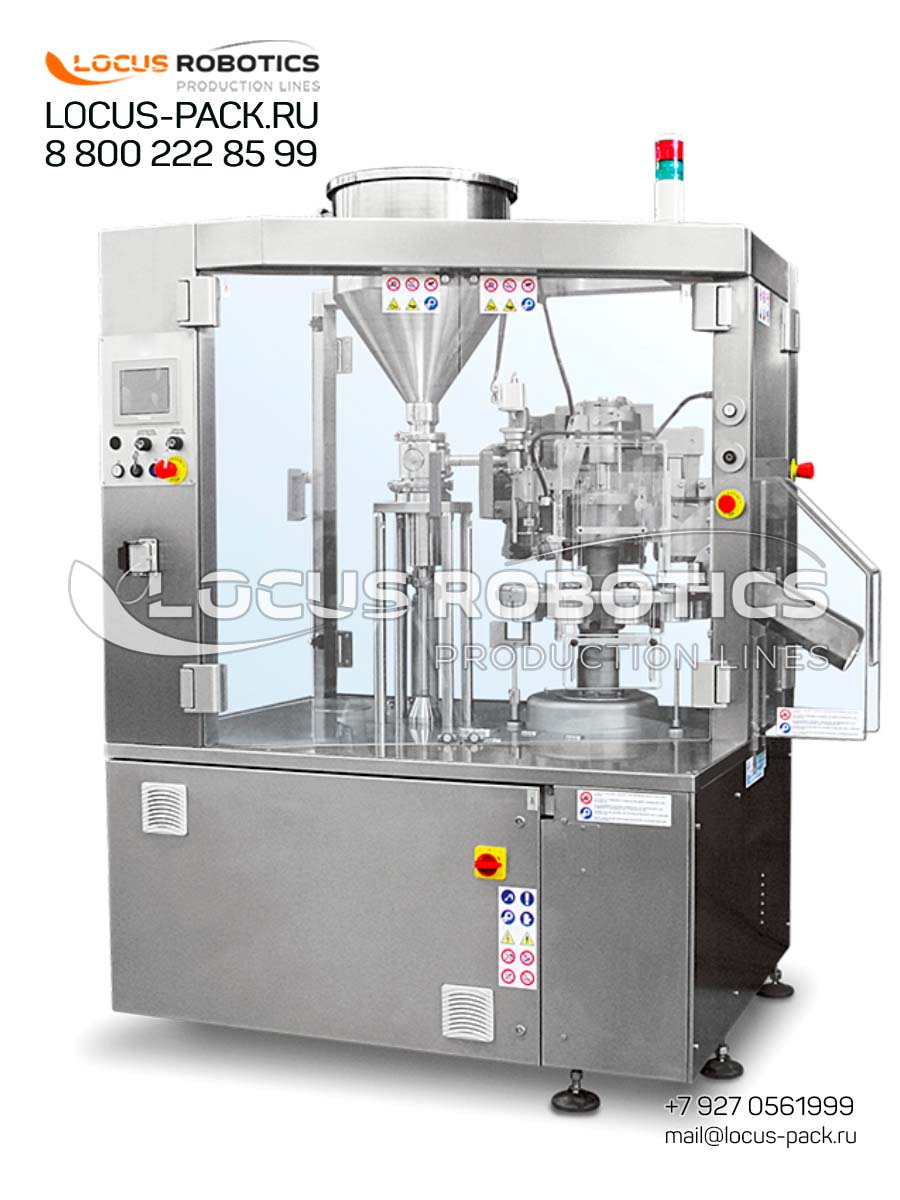

TBM-20 Semi-Automatic Tube Filling and Crimping Monoblock

Semi-Auto Monobloc for Filling and Crimping Aluminum Tubes.

Precision Filling and Secure Sealing for Your Products
The TBM-20 semi-automatic tube filling and crimping machine combines robust construction with operational simplicity. It is engineered to handle a wide range of viscous products—including creams, ointments, gels, pastes, adhesives, and lubricants—with exceptional accuracy and reliability, minimizing product waste and maximizing your output.

Engineered for Diverse Industries and Applications
Built to meet the stringent requirements of various sectors, the TBM-20 is your trusted partner for packaging:
• Cosmetics & Personal Care: Toothpaste, facial creams, hair gels, lotions.
• Pharmaceuticals & Veterinary: Medicated ointments, topical creams, veterinary products.
• Food Industry: Condiments, food pastes, edible oils.
• Chemicals: Industrial adhesives, lubricants, sealants, automotive chemicals.
The machine’s versatile design ensures quick changeover between different tube diameters and products, making it perfect for batch production.

Robust Design and User-Centric Operation
Crafted from high-quality stainless steel (SS304/316), the TBM-20 ensures durability, corrosion resistance, and compliance with hygiene standards essential for food, pharma, and cosmetic applications. Its semi-automatic operation is designed for ease of use:
• An operator places an empty aluminum tube onto the filling nozzle.
• The foot pedal initiates the precise volumetric filling cycle.
• The filled tube is then transferred to the crimping station for a secure, hermetic double-seam seal.
This streamlined process reduces operator fatigue and requires minimal training.

Key Features:

• Integrated Process: Combines filling and crimping in one compact unit.
• Superior Accuracy: Piston filler system ensures precise dosing with minimal product waste.
• Secure Sealing: Robust crimping module creates a hermetic, tamper-evident seal.
• Date & Batch Coding: Integrated embossing unit marks each tube with production data.
• Hygienic Design: Constructed with SS304/316 stainless steel contact parts for easy cleaning and compliance.

Precision and Reliability for Demanding Applications

The TBM-20 semi-automatic monoblock streamlines your packaging process by integrating filling and crimping operations into a single, efficient workstation. Designed for operator-friendly performance, this machine delivers consistent, high-quality results for a diverse array of products, ensuring your brand’s integrity and shelf life.

Engineered for Your Industry and Products

This versatile monobloc is the perfect packaging solution for multiple sectors:

• Pharmaceutical & Veterinary: Medicated ointments, topical creams, gels, and veterinary products.
• Cosmetics & Personal Care: Facial creams, hair gels, toothpaste, and lotions.
• Chemical & Industrial: Adhesives, sealants, lubricants, dyes, paints, and specialty chemicals.

Whether you’re packaging a sensitive pharmaceutical cream or a high-viscosity industrial adhesive, the TBM-20 handles it with precision and reliability.

Advanced Features for Enhanced Performance

• Rotary Indexing Table: Ensures smooth and precise positioning of tubes for each operation cycle.
• Photoelectric Sensor: Guarantees accurate tube placement and activation, preventing errors and waste.
• Piston Filler System: Provides exceptional volumetric accuracy (±0.5%) for both thick and thin products, eliminating giveaway.
• Automatic Crimping Jaw: Creates a consistent, secure, and leak-proof double-seam crimp on aluminum tubes.
• Embossing Unit: Equipped with rotary type dies to permanently mark each tube’s crimp with crucial batch numbers and expiration dates for full traceability.
• Stainless Steel Construction: All product-contact parts are made from corrosion-resistant SS304 or SS316, meeting hygiene standards for easy cleaning and maintenance.

Technical Specifications

Why Choose the TBM-20 Monoblock?

• Cost-Effective Automation: Perfect entry-level solution for companies automating their tube packaging without the cost of a full automatic line.
• Easy to Use & Maintain: Simple controls and robust design minimize training and downtime.
• Quick Changeover: Adaptable to different tube diameters and lengths with change parts.
• Global Compliance: Built to perform reliably in diverse operating environments across Southeast Asia, the Middle East, Africa, and Latin America.
• Durable Investment: Engineered for long-term performance in demanding production settings.

Built to perform reliably in diverse climatic conditions, from the humidity of Southeast Asia to the dust-prone environments of the Middle East.
