Taming Difficult Liquids: Precision Filling for Viscous and Foam-Prone Products

Many modern liquid products, from luxury hair care to industrial cleaners, present unique packaging challenges due to their high viscosity or tendency to foam. Standard filling systems can struggle, causing inaccuracies, product degradation, and messy overflow. The R-500 line is engineered specifically to conquer these challenges. Its core design centers on gentle, precise product handling to maintain the integrity of viscous formulations and minimize air entrainment in foaming products. This semi-automatic system replaces inefficient and inconsistent manual filling, dramatically improving throughput, reducing costly product waste, and ensuring every jerrycan is filled to the exact same level. It represents the optimal balance for businesses that need higher quality and output than manual methods provide but are not yet ready for the high cost and inflexibility of a fully automated monobloc.

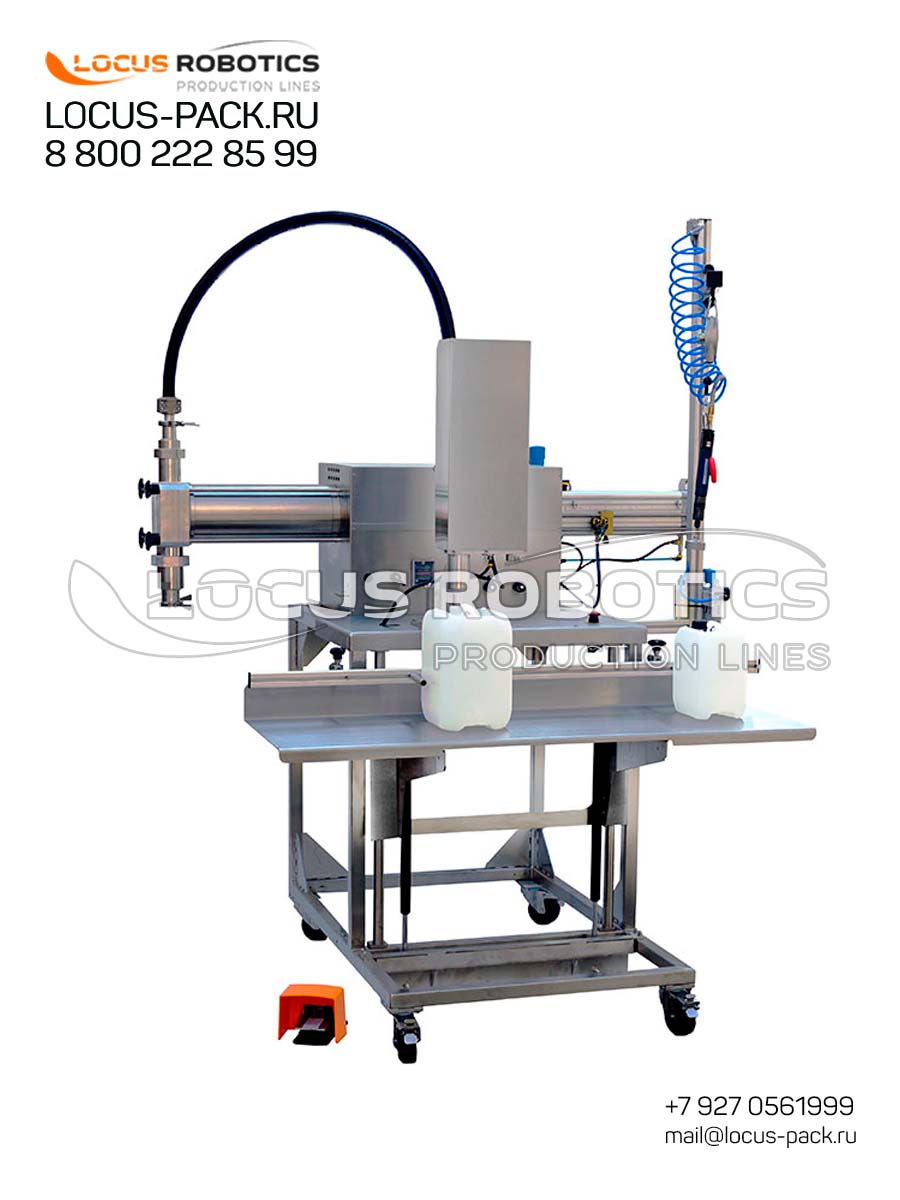

Technical Architecture: Piston Dosing and Overhead Capping for Jerrycans

• Semi-Automatic Piston Dosing System: This is the critical component for handling difficult products. A positive displacement piston filler draws a precise volume of product from the supply tank and cleanly injects it into the container. This method is ideal because it is gentle on the product (low shear), prevents aeration, and delivers highly accurate volumetric fills (±0.5% — 1%) regardless of changes in product viscosity or temperature. The system is designed to handle products from thick hand soaps and lotions to foamy dishwashing liquids and shampoos.

• Overhead (Suspended) Capping Station: After filling, the jerrycan moves to the capping module. An overhead capping head descends onto the container to pick up and apply a screw cap. This design is stable and provides excellent alignment for applying a wide range of cap sizes and types commonly used on chemical jerrycans. Adjustable torque control ensures a consistent, secure seal that is leak-proof but won’t damage the container threads.

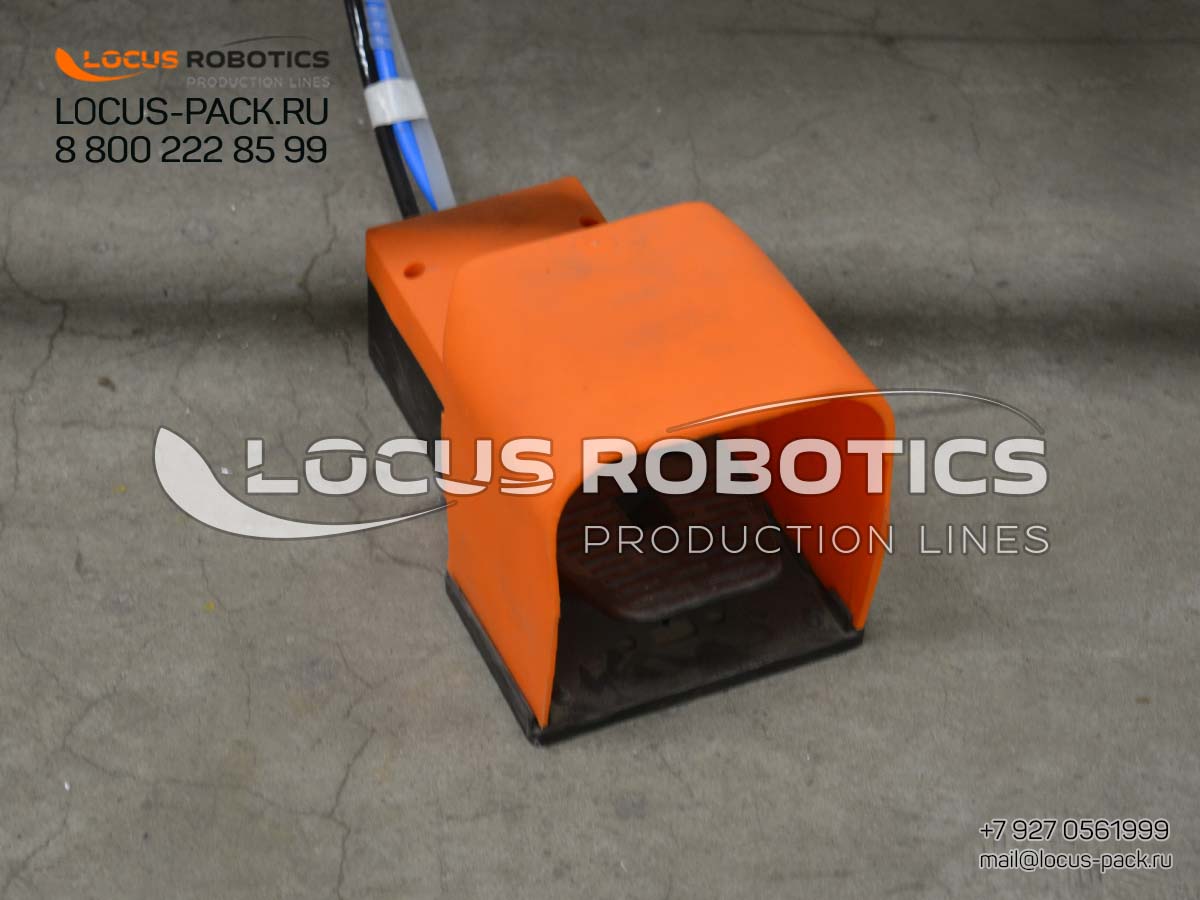

• Construction & Operation: Built with a sturdy steel frame to support the workflow. Product contact parts are typically 304 or 316L stainless steel for corrosion resistance and easy cleaning. The semi-automatic operation is controlled via a foot pedal or push-button, allowing a single operator to manage the filling and capping sequence efficiently.

• Typical Specifications & Options:

  • Container Focus: Plastic jerrycans (5L to 25L), often with handles.

  • Product Type: Viscous liquids, gels, creams, and foaming products.

  • Options: Multiple piston sizes for different fill volumes, nozzle designs to minimize foam (bottom-up filling), CIP (Clean-in-Place) capabilities, and integration with a simple conveyor.

Target Industries and Products: From Household Chemicals to Industrial Cleaners

The R-500 line is perfectly suited for industries where product consistency is thick or prone to foaming:

• Household & Industrial Chemical Manufacturing: Liquid laundry detergents, dish soaps, all-purpose cleaners, floor cleaners, car wash shampoos, and degreasers.

• Cosmetics & Personal Care: Shampoos, conditioners, shower gels, hand soaps, liquid lotions, and hair styling gels.

• Automotive & Industrial: Engine degreasers, tire cleaners, antifreeze solutions, and water-based lubricants.

• Typical Containers: HDPE plastic jerrycans with screw caps, often featuring integrated handles for easy transport.

The Practical Advantage: Efficiency and Reliability for Emerging Market Producers

For manufacturers in growth regions, the R-500 delivers tangible benefits that align with local market needs:

• Solve Specific Product Challenges: Provides a targeted technical solution for filling high-value or difficult products that are common in the household and chemical sectors, enabling local production of quality goods.

• Improve Quality and Brand Reputation: Delivers consistent, professional packaging quality with precise fills and secure seals, which enhances brand perception and reduces customer complaints.

• Increase Output with Moderate Investment: Significantly boosts daily production capacity compared to manual methods, offering an excellent return on investment without the high capital outlay of full automation.

• Simple and Robust Design: Engineered for easy operation and maintenance in diverse industrial environments, ensuring reliability and minimizing downtime.

Built on Global Support and Quality Assurance

This line is backed by the proven global service framework essential for international clients:

• Localized Technical Support: Access to 24/7 multilingual support and regional service hubs for rapid troubleshooting.

• Quick Deployment: Benefit from streamlined commissioning and available spare parts kits.

• Compliance Ready: Manufactured with a compliance roadmap (CE, ISO) and can be built with GMP-ready materials.

• Performance Guarantee: Supported by a strong warranty and performance guarantee, ensuring long-term reliability.
