Description

Engineered for Hazardous Duty: Safe and Reliable Packaging of Corrosive Automotive Fluids

The automotive aftermarket and manufacturing sectors rely on powerful, alkaline-based chemicals for cleaning and maintenance. Packaging these aggressive fluids requires equipment that prioritizes operator safety, long-term durability, and containment integrity. The R-500 line is purpose-built to meet this demanding industrial niche. Its design philosophy centers on preventing chemical exposure and equipment degradation by utilizing materials and components specifically selected for compatibility with high-pH formulations. This semi-automatic system replaces risky manual transfer methods, significantly reducing the potential for spills, splashes, and operator contact with hazardous materials. It provides automotive chemical companies with a controlled, repeatable, and safe process for portioning bulk product into saleable containers, ensuring both workforce protection and product quality.

Technical Breakdown: Corrosion-Resistant Components and Safe Operation

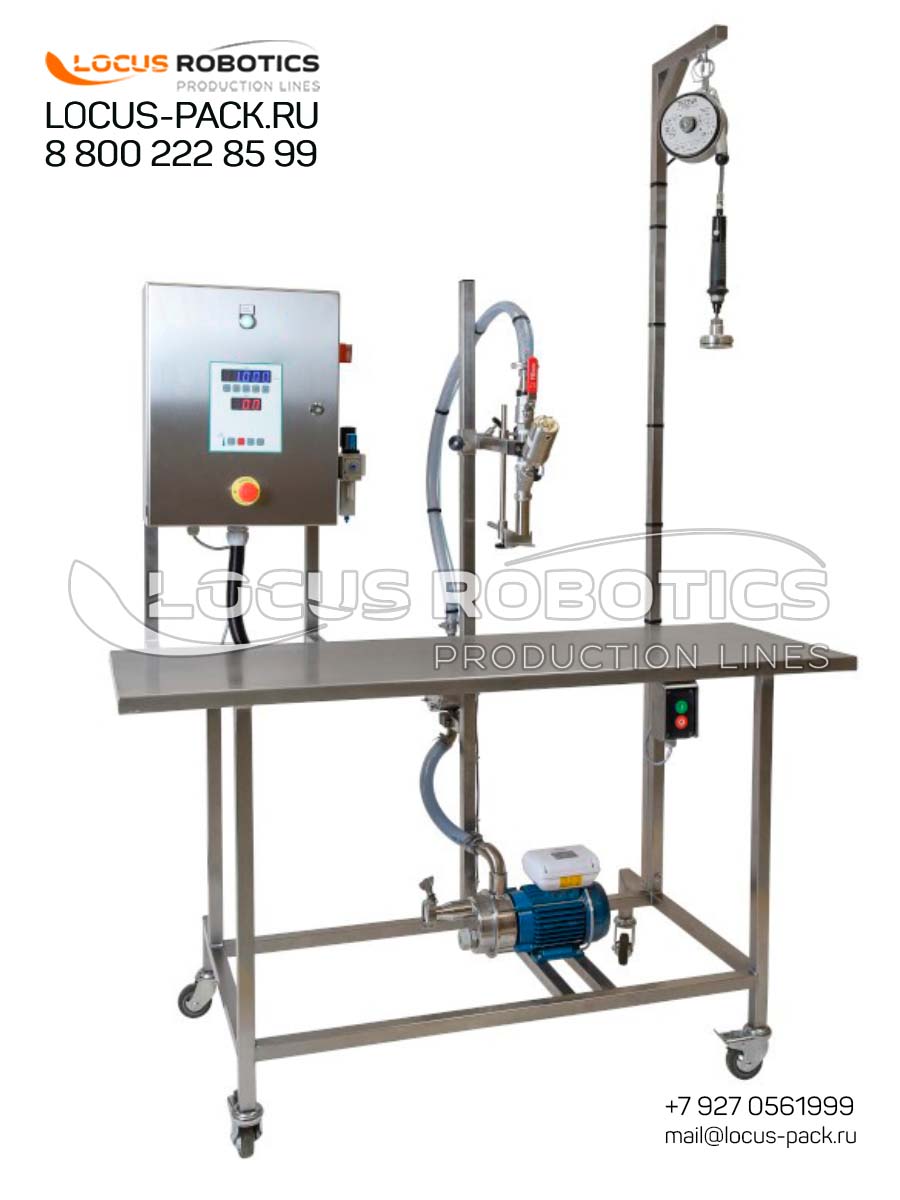

• Chemical-Resistant Pumping & Dosing System: The core of the R-500 is a pumping system designed for chemical service. This may involve diaphragm pumps, specialized lobe pumps, or piston pumps constructed with wetted parts made from 316 stainless steel, PTFE (Teflon), PVDF, or polypropylene. These materials offer excellent resistance to a wide range of alkaline solutions. The system provides accurate volumetric or gravimetric dosing to control costs and ensure consistent container fills.

• Overhead (Suspended) Capping Station: For secure closure of large, heavy containers, the line features an overhead capping head. This station reliably applies large-diameter screw caps, bungs, or plug lids to drums and pails. Adjustable torque control is critical to achieve a vapor-tight, leak-proof seal that is robust enough for safe transport and storage of hazardous materials.

• Safety-Centric Construction & Design: The frame is robust and often coated with chemical-resistant epoxy paint. Key safety features include drip trays, containment basins, and easily accessible emergency stop controls. Hose and connection points are designed for secure, leak-free operation. The semi-automatic workflow, controlled via pendant or foot pedal, keeps the operator at a safe distance during the filling cycle.

• Typical Specifications & Options:

  • Container Focus: Steel or plastic drums (20L to 60L), large pails (10L to 25L), IBC totes.

  • Chemical Compatibility: Built for alkaline (high pH) solutions, coolants, cleaners.

  • Options: Explosion-proof (ATEX) components for volatile solvents, load cells for net weighing, fume extraction ports, CIP (Clean-in-Place) systems.

Target Applications: Specialized Packaging for the Automotive Chemical Industry

This line serves the specific and growing need for safe packaging of professional and industrial automotive fluids:

• Automotive Cleaning & Maintenance Products: Alkaline engine degreasers, concentrated wheel and tire cleaners, radiator flushes, parts washer solutions, brake cleaners, and undercarriage washes.

• Coolants & Functional Fluids: Engine coolant concentrates, antifreeze solutions, and windshield washer fluids.

• Additives & Specialty Chemicals: Fuel system cleaners, oil additives, and other chemical blends for the automotive trade.

• Typical Containers: Open-head steel drums with bolt-ring closures, tight-head plastic drums with bungs, rectangular HDPE jerrycans, and large composite pails.

Strategic Value for Automotive Blenders and Distributors in Growth Regions

For automotive chemical producers in emerging markets, the R-500 delivers critical operational and competitive advantages:

• Enable Local Production of Advanced Products: Allows regional manufacturers to safely produce and package high-value, technically demanding automotive chemicals locally, reducing import dependence and seizing market opportunity.

• Ensure Regulatory & Safety Compliance: Provides a controlled, enclosed system that helps manufacturers meet increasingly stringent workplace safety (OHSA) and hazardous material handling regulations.

• Protect Capital Investment with Durability: Constructed with premium, chemical-resistant materials to withstand corrosive environments, ensuring a long service life and protecting your investment from premature failure.

• Build Brand Trust Through Quality: Delivers professional, consistent, and leak-free packaging that builds trust with professional workshops, retailers, and distributors.

Partnership Built on Safety, Support, and Global Compliance

This specialized line is supported by a partnership framework that understands the critical nature of your production:

• Expert Chemical Compatibility Consultation: Our engineering team can advise on material selection for your specific chemical formulation to ensure optimal line performance and longevity.

• Safety-First Training and Commissioning: We provide comprehensive on-site operator training focused on safe handling procedures, emergency protocols, and proper maintenance of chemical-handling equipment.

• Dedicated Critical Spare Parts: Access to a global inventory of chemical-resistant seals, gaskets, and pump parts for rapid maintenance and minimized downtime.

• Compliance Documentation: The line is supplied with relevant certifications (CE, EAC) and can be documented to support your own safety and quality management systems.
