Description

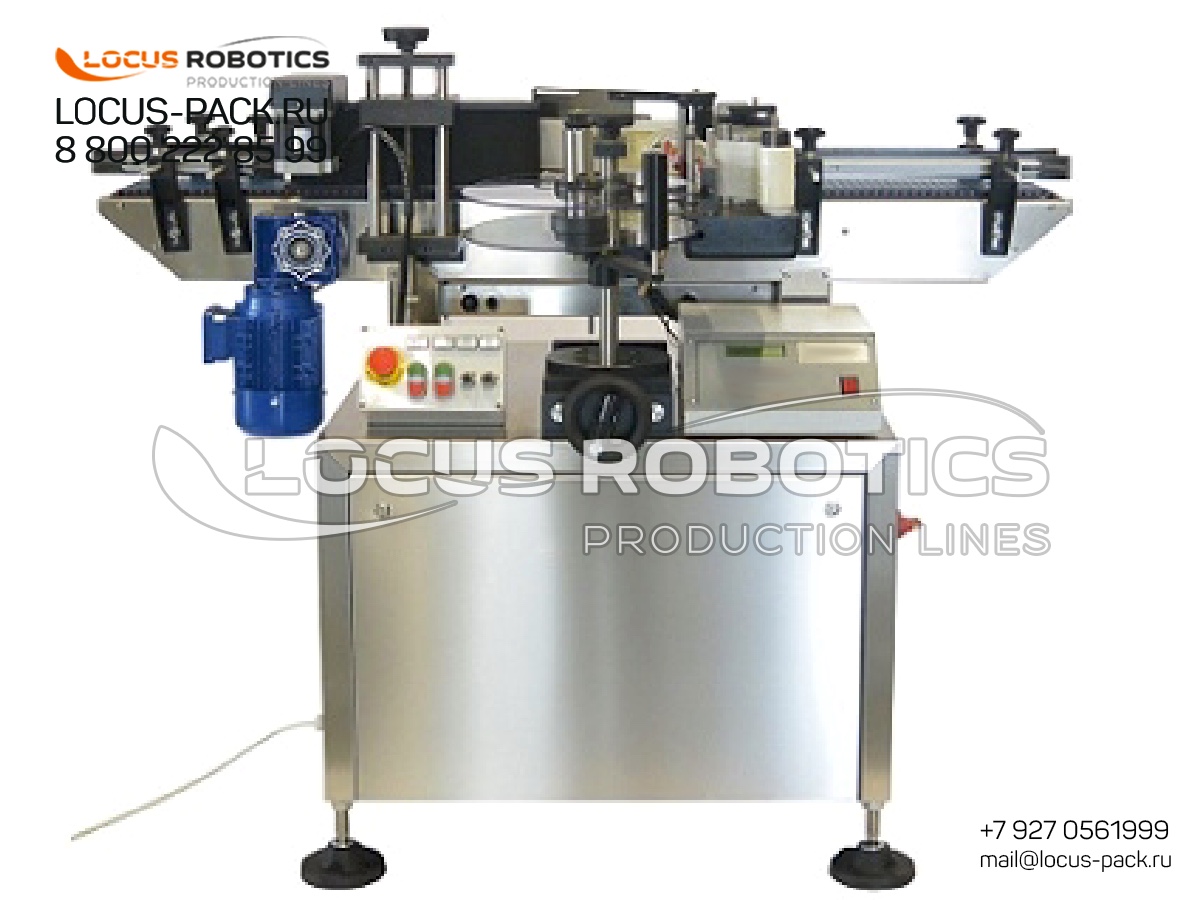

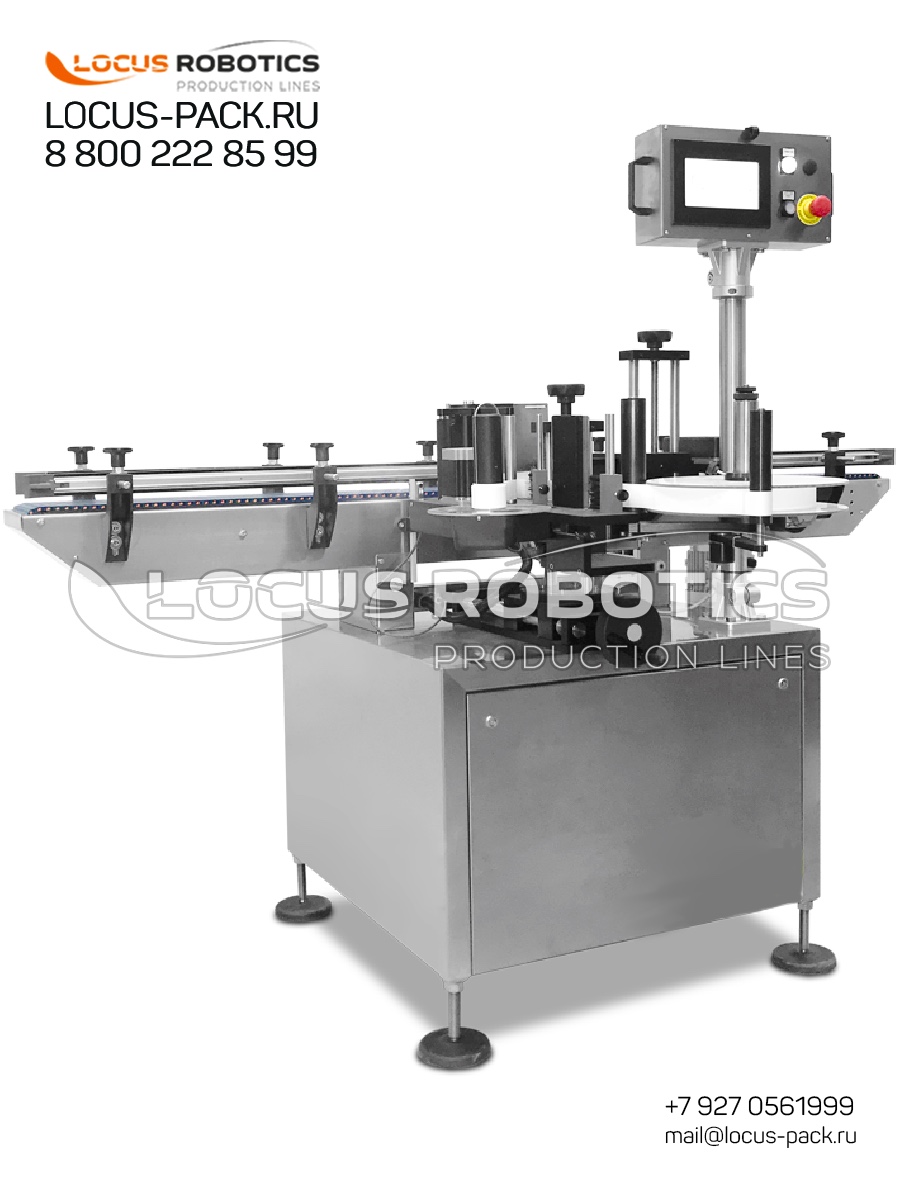

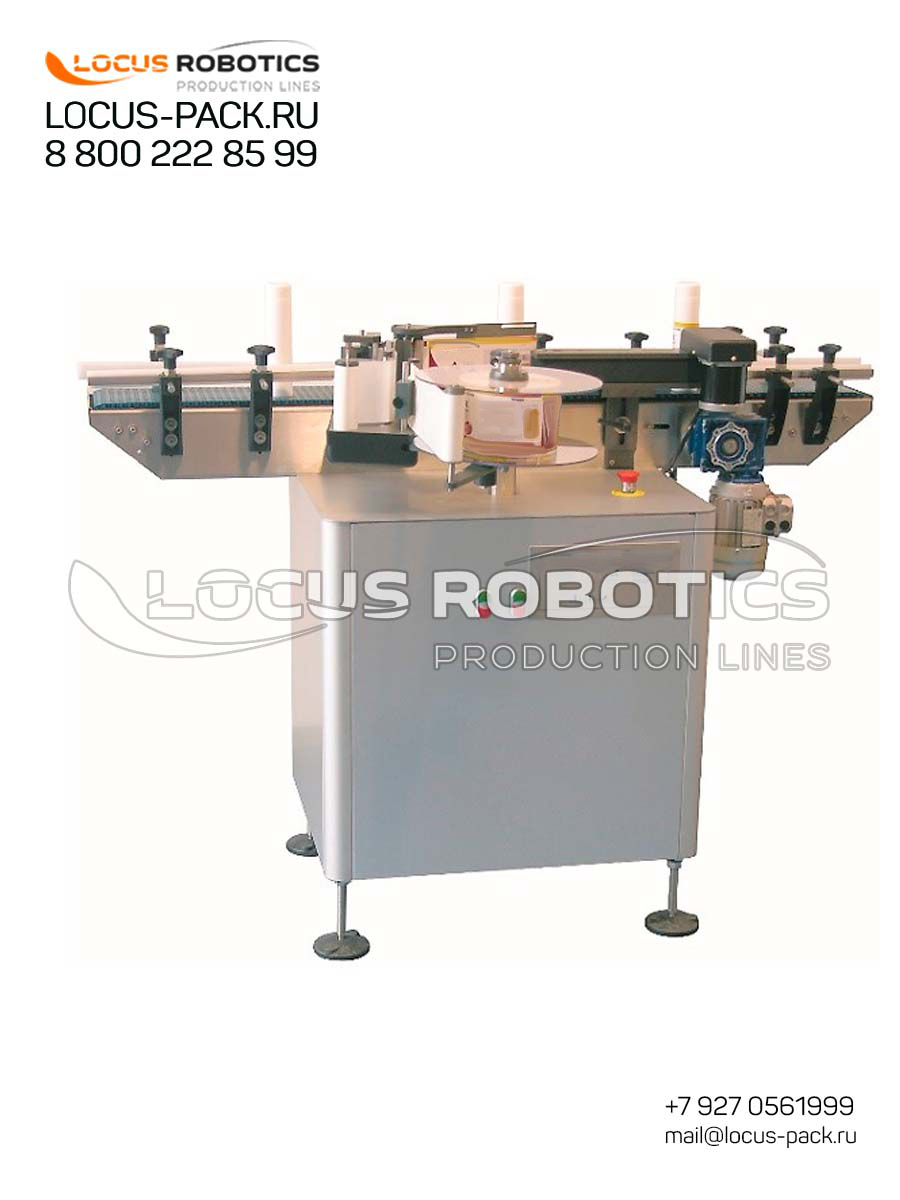

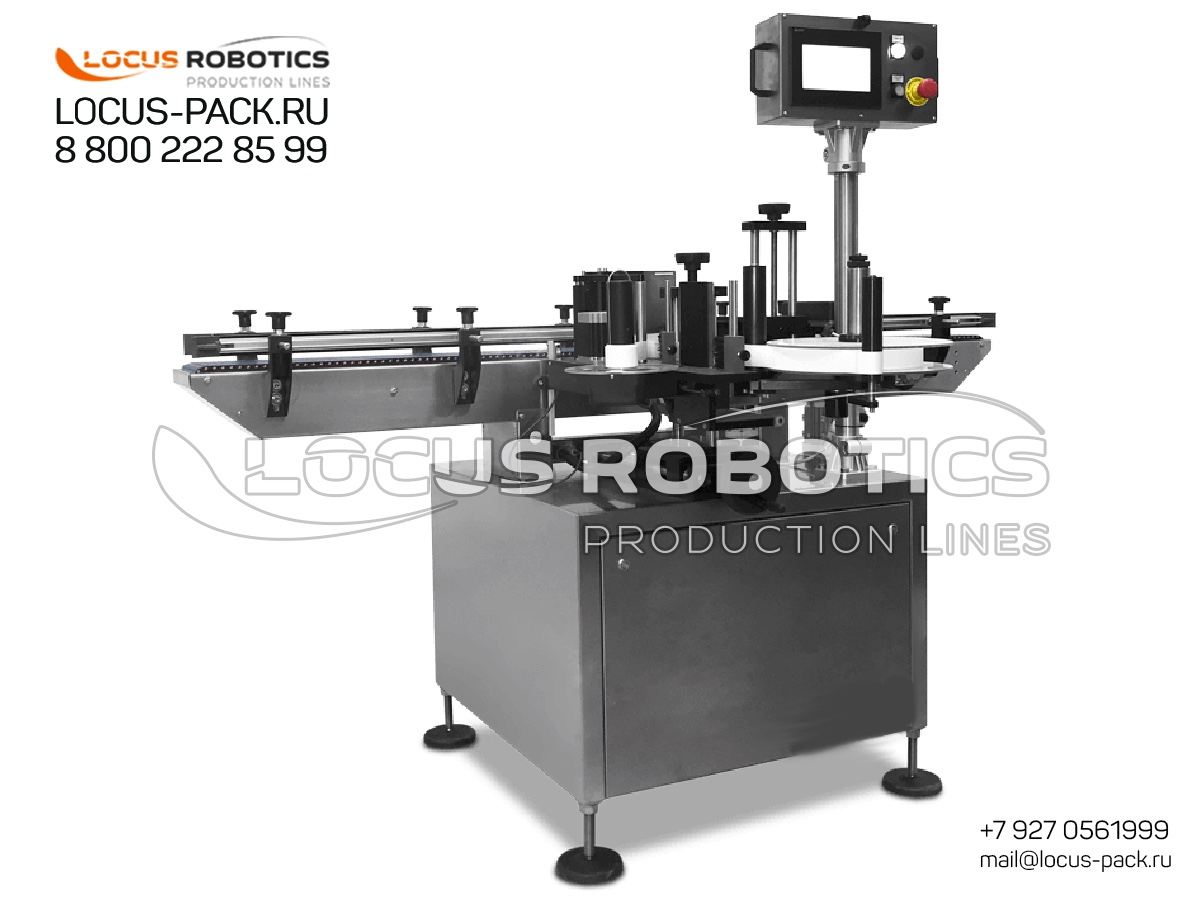

High-Precision Labeling for Round Bottles and Vials of All Sizes

Advanced Endless Belt Smoothing with Adjustable Speed & Position.

Universal Application in Pharma, Cosmetics, Food & Chemical Industries.

This line provides a reliable and adaptable solution for one of the most common labeling tasks in packaging: applying labels to round containers. It handles a wide range of sizes, from small vials to larger bottles, ensuring consistent placement and professional finish critical for brand image and compliance.

Advanced Endless Belt Smoothing with Adjustable Speed & Position

The LL-50’s performance hinges on its sophisticated smoothing system:

• Endless Belt Smoother: A superior design that provides continuous, even pressure across the label, eliminating air bubbles and wrinkles more effectively than traditional roller systems.

• Precision Adjustment: The smoother’s speed is regulated by a frequency converter, and its position can be fine-tuned to match the exact diameter and height of the specific bottle being labeled.

• Enhanced Sensing Options: Equipped with a standard optical sensor. An optional ultrasonic sensor can be added for reliable application of clear or metallized labels.

• Alternative Smoother: A three-roller label smoother is available as an optional alternative to the endless belt system.

Universal Applications:

Pharmaceutical, Cosmetics, Food & Chemical Industries

Pharmaceuticals and Nutraceuticals: Labeling of vials containing syrups, drops, and liquid supplements.

Cosmetics and personal care products: Labeling bottles of shampoos, lotions, toners, and creams.

Food industry: Labeling bottles of sauces, oils, and beverages.

Chemical industry: Labeling containers of household chemicals, automotive chemicals, and solvents.

Simple, Reliable Automated Workflow.

A Modular Building Block for Complete Packaging Lines.

Simple, Reliable Automated Workflow

Operation is designed for ease of use and consistency:

1. Loading: The operator places empty or capped bottles onto the conveyor.

2. Transport & Detection: The conveyor moves the bottle. An optical sensor detects its presence.

3. Application & Smoothing: The sensor triggers the applicator to apply the label. The bottle then passes through the endless belt smoother, which perfectly adheres the label to the cylindrical surface.

4. Discharge: The labeled container exits, ready for packing or the next production step.

A Modular Building Block for Complete Packaging Lines

The LL-50 is designed as a core module within a larger ecosystem. It can be seamlessly combined with:

• Filling Machines: Linear automatic dispensers (gear pump, peristaltic, piston types).

• Capping Machines: Linear or rotary automatic cappers.

• Complete Systems: To form a filling-capping-labeling monobloc or even a rinse-fill-cap tribloc, dramatically streamlining your packaging process.

Built for Global Compliance and Supported Locally

Engineered for international deployment with a focus on your operational success:

• Certifications & Standards: CE, EAC, ISO 9001. GMP-ready design with 316L SS contact parts and cleanability.

• Global Support Network: 24/7 multilingual support (EN/RU/AR/ES). Rapid on-site commissioning (<72 hours) and spare parts delivery from hubs in Dubai (MENA), Hanoi (SE Asia), and Lagos (Africa).

• Customization & Validation: Free product compatibility testing and line configuration analysis. Voltage customization (110V-480V) is standard, backed by a 24-month performance guarantee.
