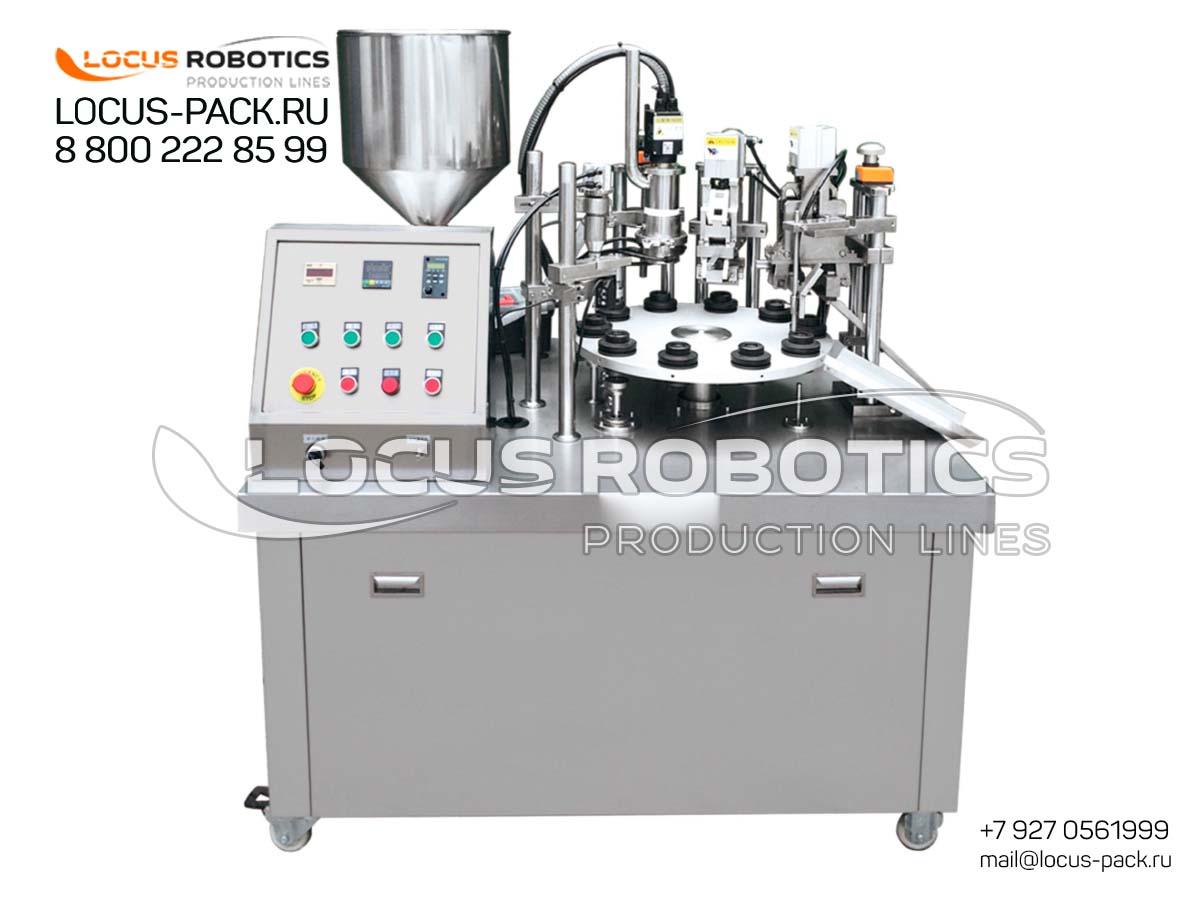

TBM-20 Rotary-Type Tube Filling and Sealing Monoblock with Euro-Punch Module

Compact tube packaging monoblock for pharmaceutical products.

The TBM-20 is a compact floor-mounted semi-automatic monoblock designed for precision filling and thermal sealing of both extrusion and poly-laminate tubes. This advanced system features a piston filling mechanism, thermal sealing unit, and integrated Euro-slot punching module that creates hanging slots in tube seams post-sealing. Ideal for cosmetic, pharmaceutical, and food industries, it offers production speeds up to 20 tubes per minute with ±1% accuracy and features SS304/316 construction for easy cleaning and maintenance.

Key Features:

• ✅ Rotary Indexing Table: Enables continuous high-speed operation with multiple stations.

• ✅ Ultrasonic Sealing: Ensures strong, hermetic seals for poly-laminate tubes without adhesives.

• ✅ Euro-Punch Module: Integrates a punching mechanism for creating hanging holes (Euro-holes) for retail display.

• ✅ High Accuracy: Piston filler system minimizes product waste (±1% accuracy).

• ✅ Hygienic Design: Easy-to-clean SS304/316 construction, compliant with GMP standards.

High-Speed Precision for Poly-Laminate Tube Packaging
The TBM-20 rotary-type monoblock combines filling, sealing, and Euro-punching into a single, efficient system. Designed for cosmetic, pharmaceutical, and food products, it handles poly-laminate tubes with ease, ensuring consistent results for viscous formulations like creams, pastes, gels, and ointments. The integrated Euro-punch module adds value by enabling easy retail display, making it ideal for brands targeting competitive markets.

Advanced Features for Enhanced Performance

• Rotary Indexing Table: Allows simultaneous operations (filling, sealing, punching) for high throughput.

• Ultrasonic Sealing Technology: Creates contamination-free seals without external heat, preserving product integrity.

• Euro-Punch Module: Precision punching of hanging holes (Euro-holes) for easy shelf display and enhanced product visibility.

• Piston Filler System: Provides volumetric accuracy (±1%) for products of varying viscosities.

• Photoelectric Sensor: Ensures accurate tube positioning and operation synchronization.

• Stainless Steel Construction: SS304/316 contact parts resist corrosion and meet hygiene standards.

Technical Specifications

Key Features:

• Thermal sealing for extrusion & poly-laminate tubes

• Integrated Euro-slot punching for retail display

• Piston dosing system with ±1% accuracy

• Handles viscosities from 500 to 50,000 cP

• SS304/316 stainless steel construction

• Photoelectric sensor for precise positioning

• Compact, floor-mounted design

• Easy changeover between tube sizes

Advanced Tube Packaging Solution with Retail-Ready Features
Our semi-automatic monoblock combines precision filling with thermal sealing and integrated Euro-slot punching technology. The machine’s unique punching module creates standardized hanging slots in tube seams after sealing, making products immediately ready for retail display without additional processing.

Technical Specifications

Key Features & Benefits

• Retail-Ready Packaging: Integrated Euro-slot punching creates instant hanging capability

• Precision Filling: Piston dosing system ensures accurate fill volumes

• Versatile Sealing: Thermal technology handles both extrusion and poly-laminate tubes

• Space-Efficient: Compact floor design optimizes production space

• Easy Operation: Semi-automatic design requires minimal training

• Quick Changeover: Adaptable to different tube sizes and materials

• Hygienic Design: Stainless steel construction meets sanitary standards

Industries Served

• Cosmetics: Toothpaste, creams, lotions, gels

• Pharmaceuticals: Ointments, topical medications

• Food Industry: Pastes, condiments, food supplements

• Chemical Products: Adhesives, sealants, specialty chemicals

Why Choose the TBM-20 Rotary Monoblock?

• High Efficiency: Rotary design enables continuous operation, reducing downtime and maximizing output.

• Retail-Ready Packaging: Euro-punch module adds value by facilitating easy shelf display.

• Versatility: Suitable for poly-laminate tubes in cosmetics, pharmaceuticals, and food industries.

• Easy Maintenance: Designed for quick cleaning and minimal downtime.

• Global Compliance: Built for reliability in diverse climates and markets.

TBM-20 Rotary Tube Filling and Sealing Machine with Euro-Punch Module.
