Description

High-Speed Rotary Bottling Line with Vacuum Sealing Technology

Vacuum Sealing Technology for Product Preservation & Extended Shelf Life.

Applications & Food Industry Solutions.

Hygienic Design & Food Safety Compliance.

Precision Filling with Volumetric Accuracy.

The RC-100 rotary bottling triblock represents an advanced packaging solution specifically engineered for food-grade products requiring sealing preservation. This integrated system combines high-speed rotary filling with vacuum capping technology to create hermetic seals that significantly extend product shelf life. The system’s design emphasizes hygienic operation, production efficiency, and versatile application across various food industry segments, making it an ideal solution for producers seeking to enhance their packaging capabilities while maintaining product quality and freshness.

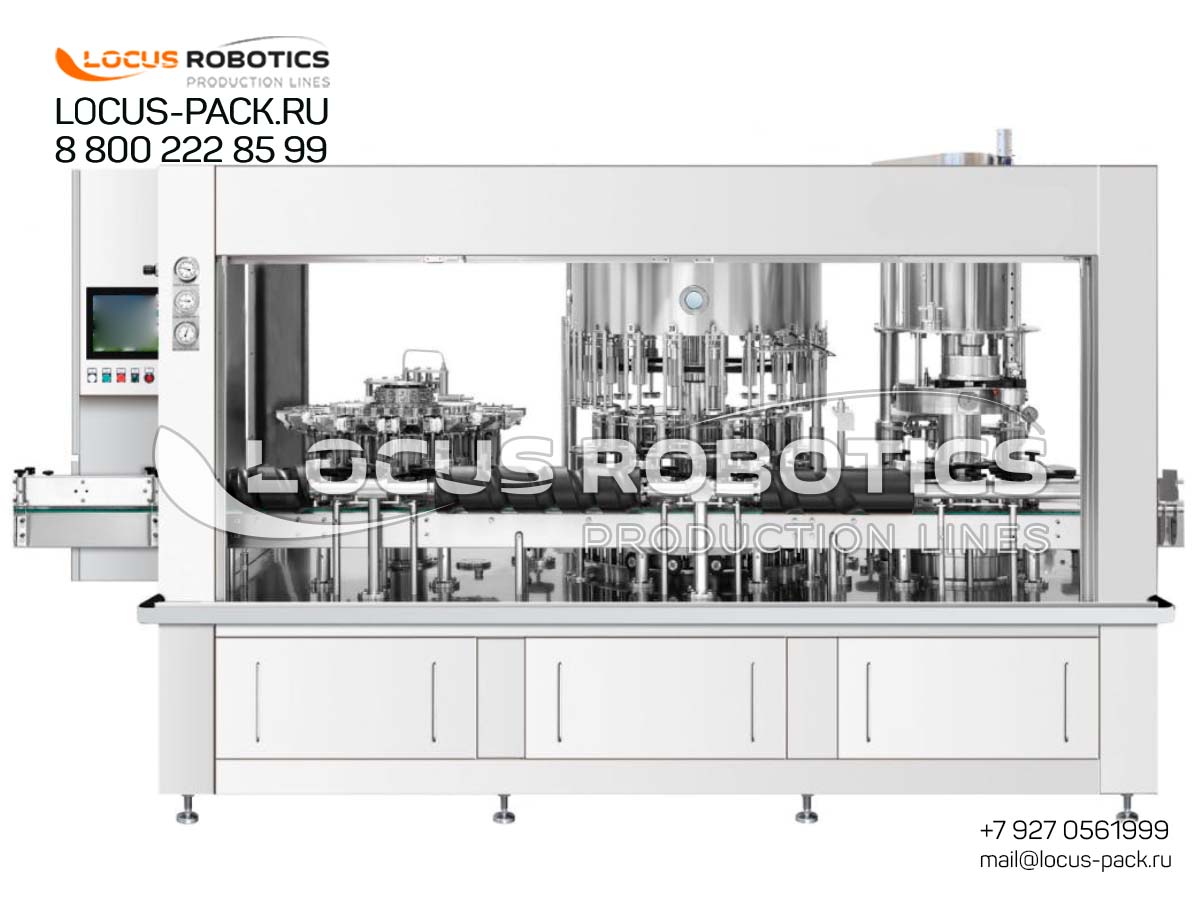

The RC-100 represents a fully integrated rotary bottling system designed specifically for food products that benefit from vacuum sealing technology. This three-in-one triblock configuration combines bottle rinsing, precision filling, and vacuum capping operations in a single automated platform, eliminating the need for multiple standalone machines and reducing production floor space requirements. The system employs rotary motion technology to maintain continuous operation, achieving production outputs exceeding 5,000 containers per hour while ensuring consistent seal integrity and filling accuracy. Constructed with food-grade stainless steel (AISI 304/316L), the RC-100 meets international hygiene standards and complies with FDA and EU food contact regulations, making it suitable for global deployment across various food processing environments.

Comprehensive Technical Specifications for RC-100 Bottling Line

Core Features & Technological Advantages

Integrated Vacuum Capping System

The RC-100’s distinguishing technological feature is its integrated vacuum capping system, which removes oxygen from containers before sealing to significantly extend product shelf life. This system employs high-efficiency vacuum pumps specifically designed for food industry applications, capable of achieving vacuum levels up to 710 mmHg depending on container type and product characteristics. The monoblock design of the vacuum pump ensures compact installation, reduced noise and vibration, and lower energy consumption compared to traditional separate motor and pump configurations. The vacuum system operates with minimal maintenance requirements due to fewer moving parts and balanced alignment within the housing, resulting in reduced operational costs over time.

Precision Filling Technology

The rotary filling system incorporates precision dosing technology with accuracy within ±0.5% of set volume, maintaining consistency across various product viscosities from thin liquids to semi-solid food products. The system features quick-change parts that allow rapid format adjustments between different container sizes and product types, minimizing downtime during production changeovers. Constructed with food-grade materials throughout product contact surfaces, the filling system supports CIP (Clean-in-Place) procedures for efficient cleaning between production runs without disassembly. The anti-drip nozzles prevent product waste and maintain hygiene standards during operation, while the nitrogen inertization option provides an oxygen barrier for products particularly sensitive to oxidation.

Hygienic Design & Construction

The RC-100 embodies modern hygienic design principles with fully stainless steel construction, slanted surfaces to prevent material accumulation, and easily accessible components for cleaning and maintenance. All product contact surfaces utilize AISI 304 or 316L stainless steel with appropriate surface finishes to meet international food safety standards and resist corrosion from acidic food products and cleaning chemicals. The machine’s design incorporates CIP compatibility allowing for automated cleaning procedures without disassembly, reducing downtime between production batches and ensuring consistent hygiene standards. The modular design enables quick access to all components for maintenance and inspection, with special emphasis on preventing bacterial harborage points through continuous welding and radius corners throughout the construction.

Applications & Industry Solutions

Food Product Compatibility

The RC-100 rotary bottling line is engineered to handle a diverse range of food products across multiple industry segments, with particular emphasis on products that benefit from vacuum sealing preservation technology. The system’s versatile design accommodates various product viscosities and container types, making it suitable for both liquid and semi-solid food products. Specific application areas include:

• Oils & Vinegars: Olive oil, specialty oils, flavored oils, and vinegar products.

• Sauces & Condiments: Ketchup, mayonnaise, mustard, salad dressings, and cooking sauces.

• Dairy Products: Yogurt, cream, sour cream, and dairy-based spreads.

• Processed Foods: Jams, preserves, honey, syrups, and dessert toppings.

• Specialty Products: Baby food, nutritional supplements, and functional food products.

Container Compatibility

The RC-100 system demonstrates exceptional versatility in container handling, accommodating various glass and plastic containers with different closure systems. The machine can handle:

• Glass Containers: Various shapes and sizes including industry-standard designs.

• Plastic Containers: PET, HDPE, and PP containers with wide mouth or standard openings.

• Closure Systems: Screw caps, press-on caps, and specialty closures with vacuum compatibility.

• Size Range: From small portion-control containers to large family-size packages.

The quick-change part system allows for rapid format adjustments between different container types and sizes, minimizing downtime during production changeovers and enhancing overall operational efficiency. This flexibility makes the RC-100 particularly valuable for producers with diverse product portfolios or contract packaging operations serving multiple clients.

Technical Configuration

• Rotary Bottle Rinsing Station: Automatic cleaning and sterilization of containers.

• Precision Filling System: Volumetric dosing for liquid, viscous, and paste-type products.

• Vacuum Capping Module: Carousel-type sealing station with vacuum Twist-Off cap application.

Key Specifications

Premium Features

• Vacuum Sealing Technology: Extends product shelf life by removing oxygen.

• Inclusion Compatibility: Handles products with particulates without clogging.

• Gentle Product Handling: Specialized filling system preserves product integrity.

• Quick-Change Parts: Rapid format adjustments between container sizes.

• CIP Capability: Clean-in-Place system for different product varieties.

Quality Assurance

• Hermetic Seal Verification: Ensures perfect vacuum preservation.

• Torque Control: Precise capping torque consistency.

• Vision Inspection: Optional cap alignment and seal verification.

• Food-Grade Certification: Complies with international food safety standards.

The RC-100 rotary bottling line with integrated vacuum capping represents a technologically advanced solution for food producers seeking to enhance their packaging capabilities while extending product shelf life through oxygen reduction. The system’s robust construction, hygienic design, and production efficiency make it particularly suitable for international markets where food preservation and quality maintenance are critical concerns.

High-Speed Rotary Bottling System with Vacuum Sealing.

RC-100 Rotary Bottling Line with Vacuum Capping System.

High-Speed Rotary Bottling Machine with Vacuum Sealing — Food Packaging Line.
