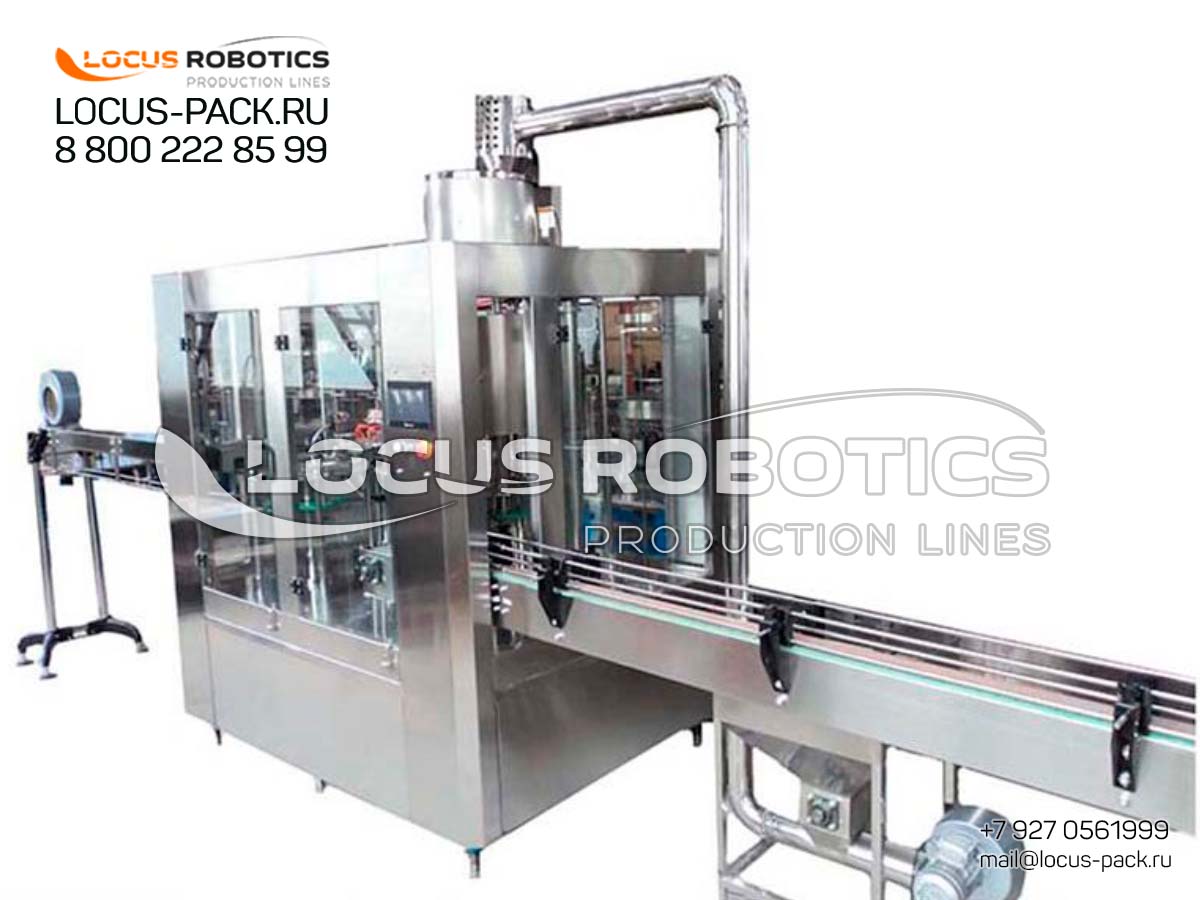

High-Speed Rotary Monoblock for Beverage Packaging — Carbonated Drink Filling Machine with Air Conveyor

This advanced rotary monoblock features an integrated carousel bottle rinsing system, precision rotary dosing, automatic cap orientation, and rotary capping mechanisms, all combined with a gentle air conveyor system. Specifically designed for carbonated beverage production, it handles liquid, thick, viscous, and foaming products in PET bottles from 0.33L to 2.0L. Ideal for mineral water and soft drink packaging, this equipment maintains carbonation levels while ensuring high-speed operation and perfect seal integrity.

Technical Specifications:

• Production Capacity: 6,000+ bottles/hour.

• Bottle Sizes: 0.33L, 0.5L, 1.0L, 1.5L, 2.0L PET bottles.

• Product Compatibility:

  • Carbonated beverages (mineral water, soft drinks)

  • Liquid and viscous food products

  • Foaming beverages and concentrates

• Filling Technology: Isobaric counter-pressure filling.

• CO2 Preservation: <0.1g CO2 loss per liter.

• Filling Accuracy: ±1.5mm level accuracy.

• Conveyor System: Air conveyor for gentle bottle handling.

• Construction: 304 stainless steel, food-grade materials.

• Container Types: Glass and plastic bottles (50ml to 5L).

• Filling Technology: Volumetric piston or gravity filling.

• Filling Accuracy: ±0.5% volume precision.

• Cap Handling: Orbital cap orienter with elevator feed for screw caps (e.g., 28/18mm aluminum caps).

• Conveyor System: Air conveyor for gentle, contact-free container transport.

• Power Supply: 380V/50Hz/3Ph (configurable to regional standards).

• Construction Materials: 304/316L stainless steel (food-grade and corrosion-resistant).

• Control System: PLC with touchscreen HMI for recipe storage and real-time monitoring.

Technical Advantages:

• Carbonation Preservation: Isobaric filling maintains CO2 levels with <0.1g/L loss.

• Gentle Handling: Air conveyor prevents bottle damage and reduces noise.

• Precision Filling: ±1.5mm fill height accuracy.

• Quick Changeover: Rapid adjustment between bottle sizes.

• Quality Control: Integrated inspection systems.

• Gentle Air Conveyor: Reduces container damage and noise by using air cushions for transport, ideal for glass and lightweight plastic bottles.

• Precision Cap Orienter: Orbital disc-type orienter ensures correct cap alignment and continuous supply, minimizing jams and downtime.

• High-Speed Operation: Rotary design achieves outputs up to 6,000 bottles/hour with consistent accuracy.

• Hygienic Design: CIP (Clean-in-Place) and SIP (Sterilize-in-Place) capabilities meet FDA and EHEDG standards.

• Versatile Filling: Handles diverse viscosities—from thin liquids to thick pastes—with minimal changeover time.

• User-Friendly Controls: Touchscreen PLC allows easy parameter adjustments, recipe storage, and diagnostics.

• Gentle Air Conveyor: Reduces container damage and noise by using air cushions for transport, ideal for glass and lightweight plastic bottles.

Special Features:

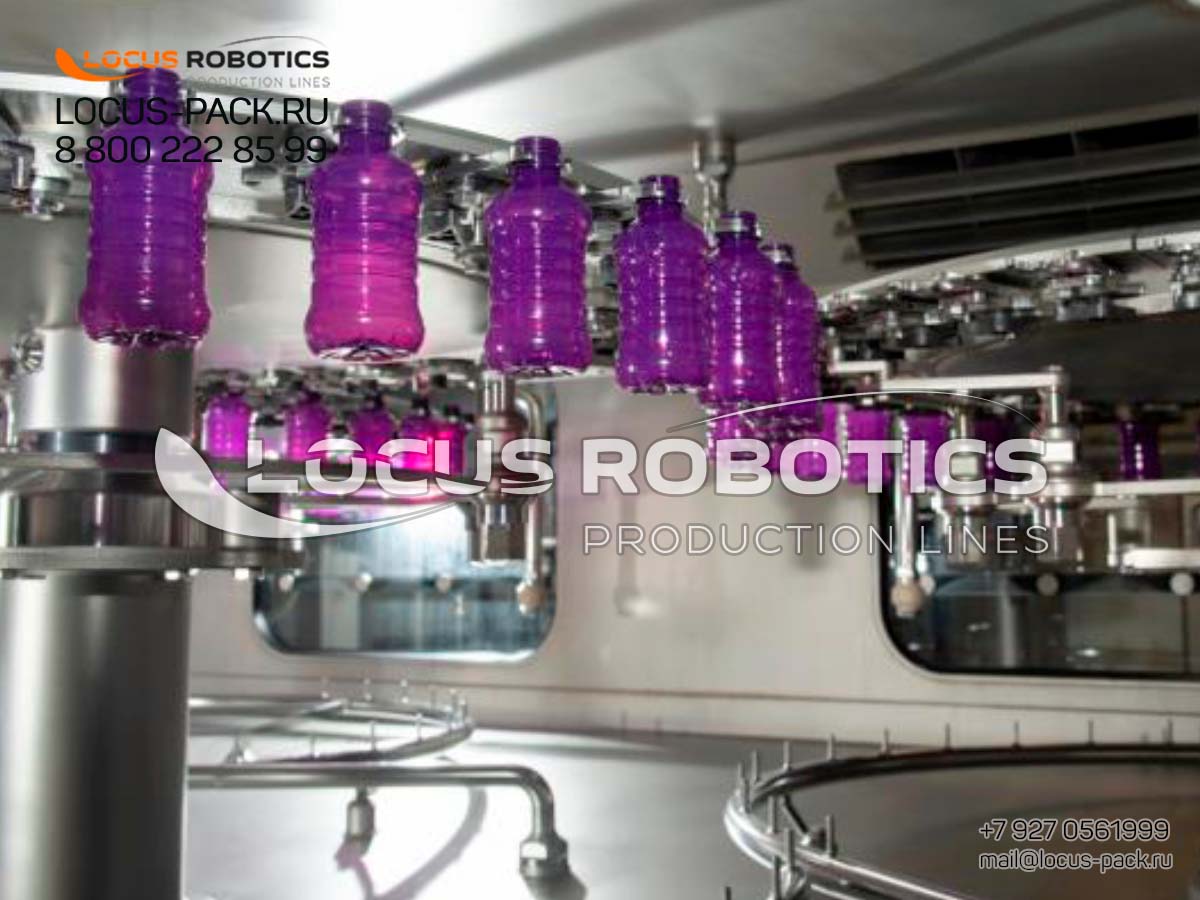

• Carousel Rinsing: Efficient internal bottle cleaning

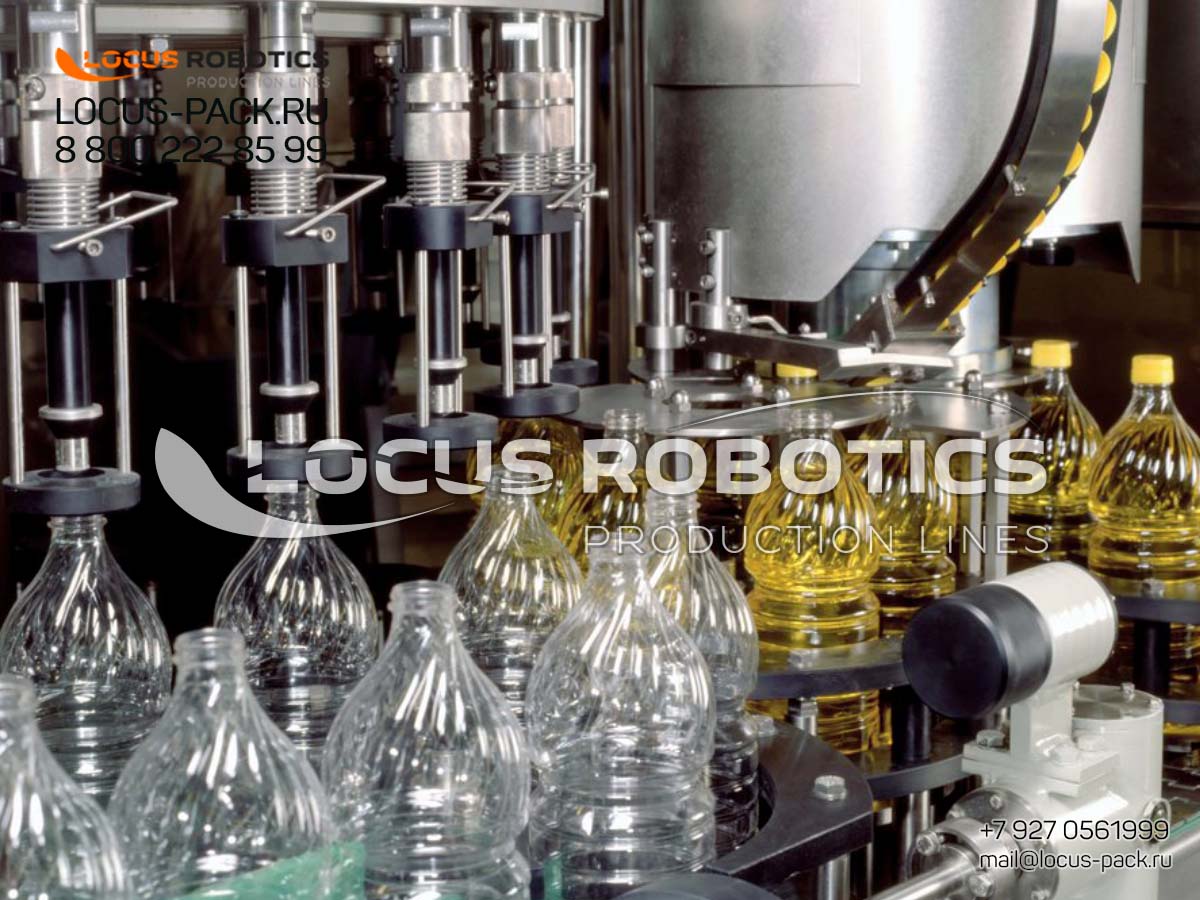

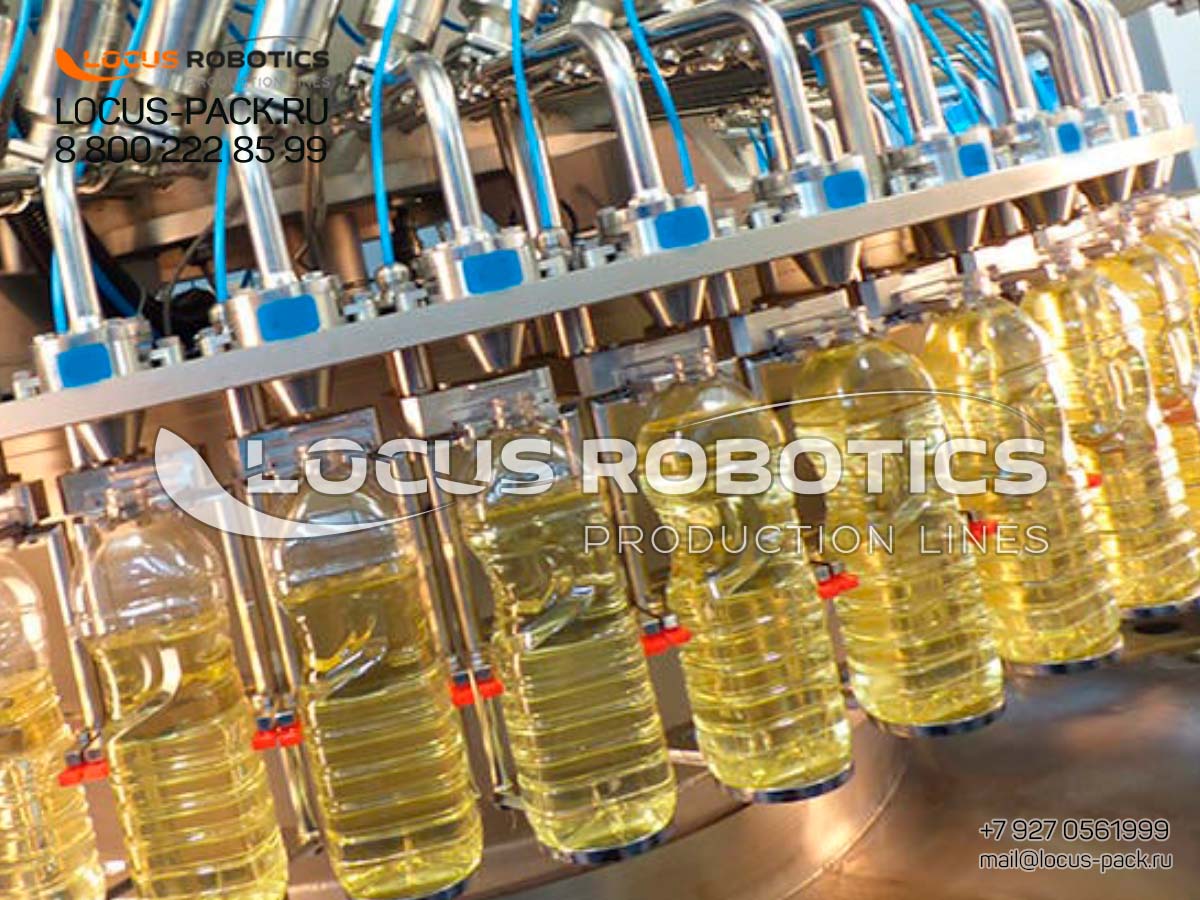

• Rotary Dosing System: Precise volumetric filling

• Cap Orientation: Automatic cap sorting and alignment

• Air Conveyor: Contact-free bottle transportation

• Counter-Pressure Filling: Prevents foaming and preserves carbonation

• PLC Control: Touchscreen interface with recipe storage

Applications:

• Mineral Water: Still and sparkling water production

• Soft Drinks: Carbonated beverages and sodas

• Carbonated Juices: Sparkling fruit beverages

• Energy Drinks: Carbonated energy beverages

• Mixers: Tonic water, soda water, cocktail mixers

Quality Assurance:

• Carbonation Consistency: Maintains uniform CO2 levels

• Fill Accuracy: Precise volume control for compliance

• Seal Integrity: Secure cap application for carbonation retention

• Contamination Prevention: Closed-system operation

• Production Tracking: Batch and quality monitoring

• Regulatory Compliance: Meets food safety standards

Operation Benefits:

• Maximum Efficiency: 6,000+ bottles per hour output

• Product Quality: Perfect carbonation preservation

• Cost Savings: Reduced product and CO2 waste

• Flexibility: Handles multiple bottle sizes (0.33L-2.0L)

• Reliability: Minimal downtime and maintenance

• Automation: Reduced labor requirements

• Sustainability: Optimized resource consumption

Technical Details:

• Power Requirements: 380V/50Hz/3Ph

• Air Consumption: 0.6-0.8 MPa

• Machine Dimensions: Customizable based on configuration

• Control System: PLC with touchscreen interface

• Safety Features: Emergency stops, protective guarding

🧼 Applications:

• Food Industry: Dairy products (yogurt, milk), sauces, beverages, and juices.

• Chemical Products: Cleaning agents, solvents, lubricants, and aggressive liquids.

• Cosmetics: Lotions, creams, gels, and shampoos.

• Pharmaceuticals: Liquid medications and disinfectants (with GMP-compliant options).

🛡️ Safety and Compliance:

• Protective Guarding: Full enclosures and emergency stop systems ensure operator safety.

• Explosion-Proof Options: ATEX-certified components available for flammable products.

• Material Compliance: All product-contact parts use AISI 304/316L stainless steel and food-grade plastics.

• Certifications: Meets CE, ISO 9001, and industry-specific standards (e.g., 3-A for food).

💡 Operational Benefits:

• Reduced Downtime: Integrated design minimizes transfer points and contamination risks, while quick-change parts facilitate easy maintenance.

• Cost Efficiency: High accuracy cuts product giveaway, and automation lowers labor costs.

• Space Optimization: Compact footprint saves floor space compared to separate machines.

• Scalability: Adaptable to various production volumes and container sizes.

🔧 Optional Features:

• Nitrogen Flushing: Inert gas injection for oxidation-sensitive products.

• UV Cap Sterilization: Ensures cap hygiene before application.

• Advanced Sensors: Vision systems for cap orientation verification and fill level checks.

• Labeling Integration: Compatible with inline labelers for end-to-end packaging.

🌍 Global Support:

• Customization: Tailored to regional regulations and customer-specific needs (e.g., voltage, safety standards).

• Technical Services: Worldwide support for installation, training, and spare parts.

💎 Conclusion:

The RC-100 monoblock with air conveyor and cap orienter is a versatile, high-efficiency solution for modern packaging lines. Its combination of gentle handling, precision, and compliance makes it suitable for diverse industries seeking to enhance productivity and product integrity.
