Description

A Versatile, Compact Solution for Cosmetic, Chemical, and Food Liquid Packaging

In today’s fast-moving consumer goods market, the ability to quickly adapt packaging operations to different products, bottle sizes, and market demands is a critical competitive advantage. The R-200 Series Filling Line is designed with this core principle of operational versatility and space efficiency. Its compact footprint belies its powerful capability, making it suitable for facilities where floor space is at a premium without compromising on industrial-grade performance. Whether you are a contract manufacturer packaging dozens of different shampoo brands, a chemical company filling automotive shampoos and cleaning gels, or a food producer handling sauces and edible oils, this line provides a single, reliable platform to streamline your operations, reduce labor costs, and ensure consistent, high-quality packaging output that enhances your brand reputation.

Mastering Product Challenges: From Water-Thin Liquids to Dense Gels and Foaming Formulas

The true engineering prowess of the R-200 line lies in its adept handling of complex fluid dynamics. Unlike simple gravity fillers that struggle with viscosity changes, the positive displacement piston system guarantees accurate fills for products ranging from water-like liquids (toners, screen wash) to high-viscosity pastes (hair masks, thick creams). Most notably, it is specifically configured to manage foaming products (foaming soaps, shampoos, dish detergents). The filling technology minimizes shear forces and turbulence during the transfer, which are primary causes of excessive foam generation. This results in precise fills without overflowing foam, preventing product waste, messy cleanups, and potential underweight containers—a common and costly problem in foaming product packaging solved by this intelligent design.

Detailed Technical Specifications and System Configuration

For production managers and plant engineers, integration is key. Below is a complete breakdown of the R-200 line’s capabilities to facilitate seamless planning.

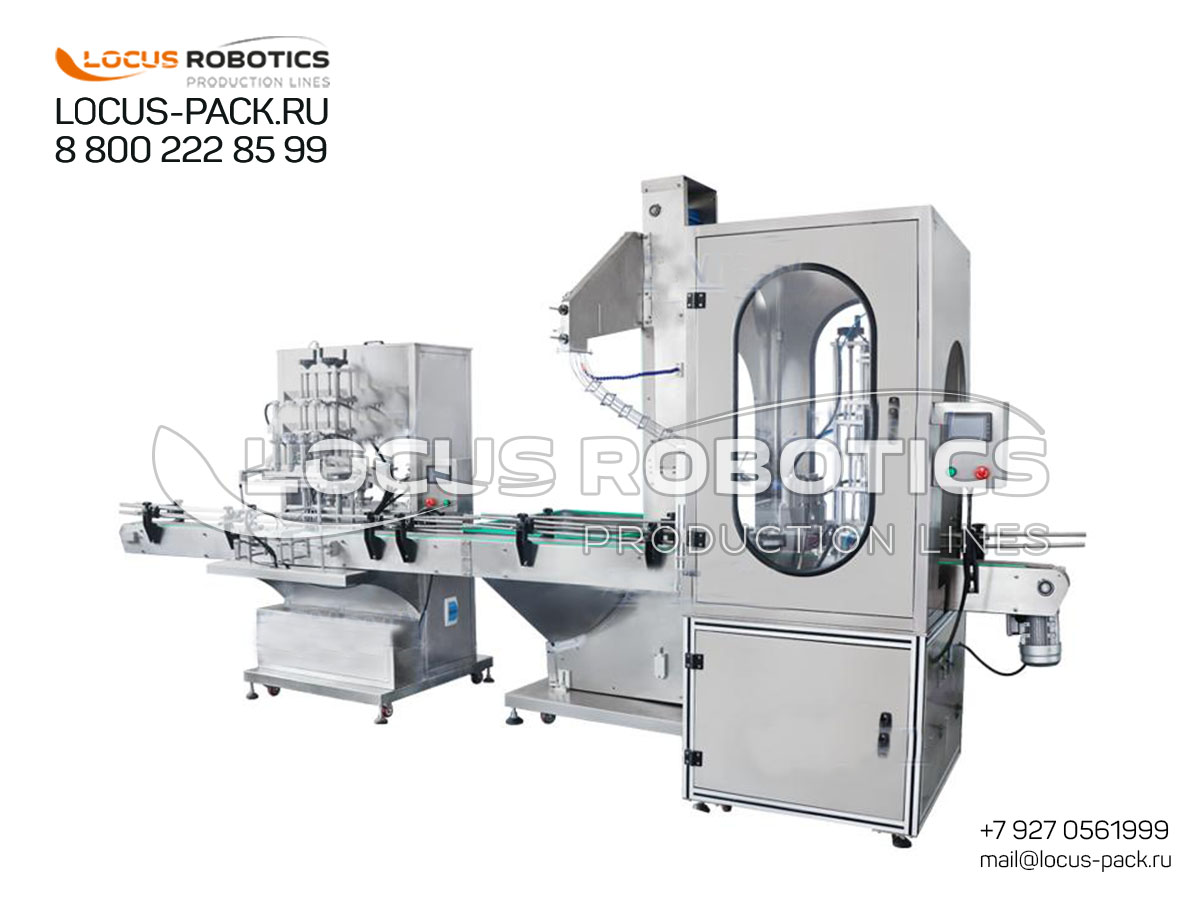

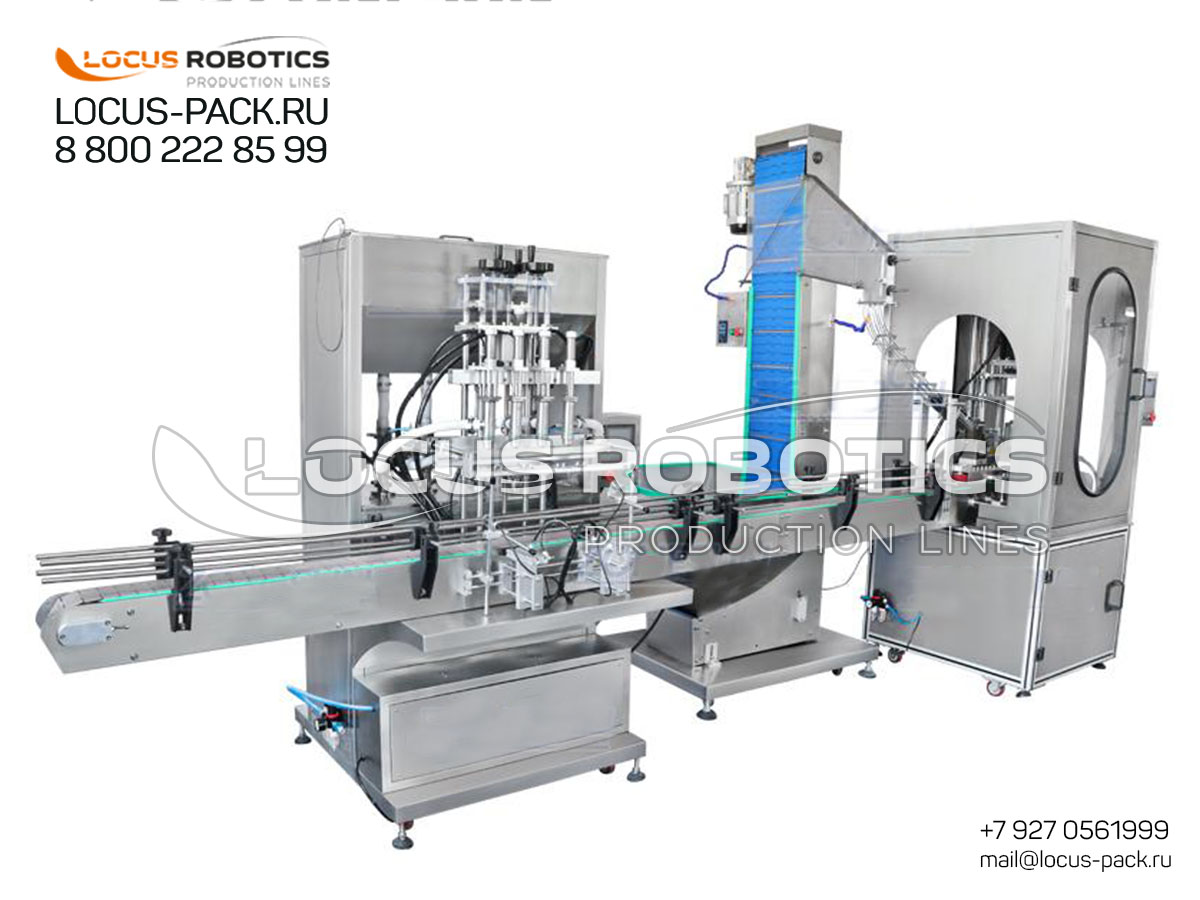

Core Component Analysis: Precision Piston Filler, Automated Capper, and Reliable Conveyance

4-Nozzle Linear Piston Filling System: Accuracy for Diverse Viscosities
The linear piston filler is the cornerstone of this line’s versatility. Each filling nozzle operates with an independent, mechanically driven piston and cylinder set. This positive displacement action draws an exact volume of product from the supply hopper and injects it cleanly into the container. This method is fundamentally superior for varied products because its accuracy is independent of product viscosity, temperature, or foaming propensity. Changeover between different fill volumes or products is straightforward, often involving simple mechanical adjustments or cylinder changes, enabling you to respond quickly to production schedule demands.

Automatic Screw Capping Machine with Cap Orientation
Ensuring a secure, leak-proof, and tamper-evident seal is paramount. The integrated automatic capper receives containers from the filler, picks up correctly oriented caps from the elevator and vibratory bowl system, and screws them onto the containers with a pre-set, adjustable torque. This consistent application prevents under-tightening (which leads to leaks) and over-tightening (which can damage containers or caps), guaranteeing customer satisfaction and reducing returns. The system is designed for quick changeover between different cap sizes and styles.

Stainless Steel Conveyor System and Machine Framework
Durability and hygiene are built into the line’s structure. The slat conveyor provides a stable, positively-driven transport system for containers through all stages of the process, from infeed to filling, capping, and discharge. The use of stainless steel in critical areas ensures longevity, resistance to corrosion from spills or cleaning chemicals, and compliance with hygiene-sensitive industries. The robust framework minimizes vibration, contributing to the overall accuracy and reliability of the filling and capping processes.

Engineered for Efficiency and Easy Integration in Growing Facilities
This line is designed for producers who are scaling up. Its plug-and-play philosophy means it arrives pre-assembled and tested, requiring minimal installation time and infrastructure. The intuitive PLC control system allows operators to be trained quickly, with recipe storage reducing setup errors. For businesses in regions with unstable grid power, the customizable voltage option is a critical feature, eliminating the need for expensive external transformers. Furthermore, its modular nature means it can serve as a perfect standalone unit today and can be easily integrated with upstream equipment (like bottle unscramblers) or downstream equipment (like labelers and case packers) in the future as your production needs expand.

Compliance and Safety for Global Market Access
To sell your products, your equipment must meet market standards. The R-200 line is designed with GMP (Good Manufacturing Practice) guidelines in mind, featuring cleanable surfaces and enclosed mechanisms where necessary. It carries the CE Mark, indicating conformity with health, safety, and environmental protection standards for the European Economic Area. We understand the certification landscape in emerging markets and can advise on or configure the machine to help meet specific local regulatory requirements, facilitating a smoother import and commissioning process for our clients in Africa, Asia, and the Middle East.

FAQs: Implementing a Compact Filling Line for Diverse Products

• Q: What is the main advantage of a piston filler over a gravity or pump filler for my products?

  • A: Piston fillers provide volumetric accuracy independent of product properties. Gravity fillers rely on product flow, which changes with viscosity. Pump fillers can struggle with viscosity and are prone to shear, which creates foam. A piston filler gently and precisely displaces a fixed volume, making it the most reliable choice for a wide and changing product mix, especially with viscous or foaming liquids.

• Q: How do you prevent foam creation when filling foaming shampoos?

  • A: The combination of the piston filling technology (low-shear transfer) and specially designed «bottom-up» or «diverter» filling nozzles is key. These nozzles place the product at the bottom of the container and fill it from below the surface, minimizing agitation and air entrapment that cause foam. This is a standard or optional configuration for handling such products.

• Q: Can this line handle different bottle shapes and sizes?

  • A: Yes, within its designed range. The conveyor guides are adjustable, and the filling nozzles and capping head use quick-change parts. Changing over to a different container typically involves adjusting mechanical guides, changing the filling cylinder size for a major volume shift, and swapping the cap chuck in the capper. This process is designed to be completed efficiently to maximize production uptime.

• Q: What kind of after-sales support is available for my region?

  • A: We provide comprehensive support tailored for global clients. This includes detailed English documentation, remote video support, and a network of technical partners or our own service hubs in key regions to ensure availability of spare parts kits and on-site assistance. We focus on enabling your team for long-term success through proper training and reliable support channels.
