Complete Turnkey Solution for Advanced Agrochemical Liquid Packaging

Container Handling and Washing Station.

Precision Filling and Secure Capping Module.

Dual-Purpose Labeling System for Any Container Shape.

Secondary Packaging and Sealing Unit.

In the highly regulated and competitive agrochemical sector, packaging is not the final step—it is a critical component of product efficacy, safety, and market acceptance. The R-400 Universal Line is engineered with this principle at its core, offering a seamlessly integrated «plant-in-a-line» that eliminates manual handling, cross-contamination risks, and logistical bottlenecks. From the moment containers enter on the rotary accumulation table to the point where sealed cases exit on the roller conveyor, every operation is precisely controlled and documented. This holistic approach is vital for handling sensitive formulations where purity is paramount and for meeting the traceability demands of modern agriculture. For producers serving the vast agricultural markets of the Global South, this line provides the technological backbone to produce professional, reliable, and compliant packaging that builds trust with farmers, distributors, and regulatory bodies alike, enabling market expansion and long-term brand leadership.

Detailed Line Configuration and Sequential Process Flow

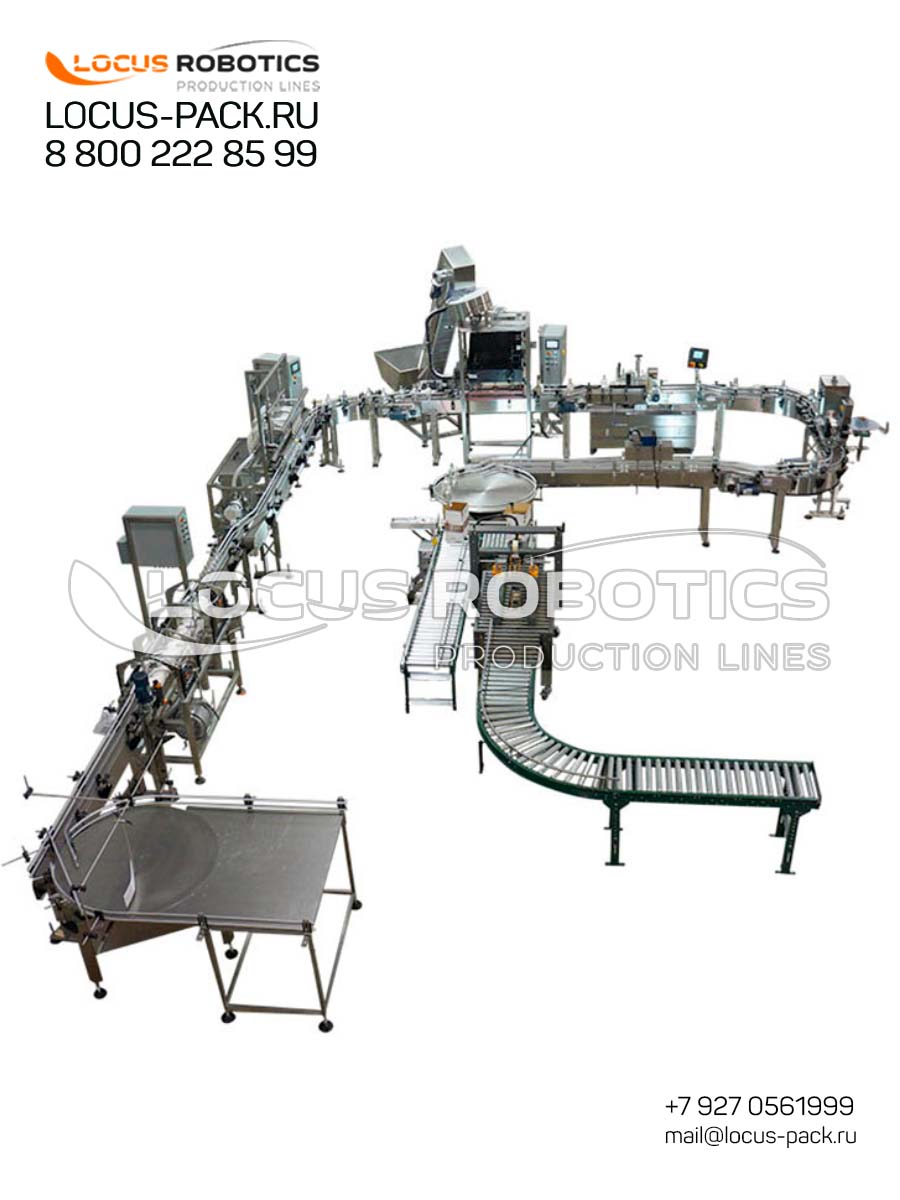

The R-400 is architected as a sequential, modular system where each station performs a dedicated function, controlled by a central PLC for optimal coordination:

1. Container Infeed & Buffering: Input rotary accumulation table.

2. Internal Cleaning: Bottle rinsing/washing module.

3. Product Dosing: Linear volumetric-gravity filler.

4. Closure Application: Automatic capping machine with orbital (disc-type) cap sorter/orienter.

5. Tamper-Evident Sealing: Induction sealing station (applies foil inner seal).

6. Product Identification: Dual labeling lines—one for cylindrical containers, one for flat-sided containers.

7. Accumulation & Transfer: Lifting elevator and output rotary disc table.

8. Secondary Packaging: Automatic box sealer/taper with exit roller conveyor.
   This logical flow ensures maximum efficiency, minimal space requirements, and a smooth, continuous production rhythm that can be easily monitored and adjusted via the multi-language HMI touchscreen interface.

In-Depth Technical Breakdown of Core and Support Modules

Container Handling and Washing Station: The process initiates with gentle container handling. The input rotary accumulation table provides a buffer to ensure a consistent feed to the line, preventing jams. Containers then proceed to the rinsing module, which uses jets of filtered air, water, or a suitable sanitizing solution to remove any particulate dust or contaminants from the interior, guaranteeing a clean vessel for the valuable agrochemical formulation and preventing nozzle clogging at the filler.
Precision Filling and Secure Capping Module: This is the heart of dosage accuracy. The linear volumetric-gravity filler is exceptionally versatile, gently handling everything from free-flowing solutions to viscous suspensions and foaming products without shear or aeration, ensuring each container receives the exact, legally mandated volume. Immediately after filling, the orbital cap sorter orientates and feeds closures to the automatic capping machine, which applies them with consistent, calibrated torque to achieve a leak-proof primary seal. The integrated induction sealer then electromagnetically bonds a foil laminate to the bottle mouth, creating an essential secondary barrier against moisture, oxygen, and tampering, drastically extending shelf life.
Dual-Purpose Labeling System for Any Container Shape: Agrochemical products come in diverse containers. The R-400 solves this with two dedicated labelers: a wrap-around labeler for cylindrical bottles and a front/back labeler for flat, rectangular, or square containers (cans, jerry cans). This ensures perfect, wrinkle-free application of pressure-sensitive labels containing crucial information: product name, active ingredient, hazard pictograms, usage instructions, and batch codes, which are critical for safety and regulatory compliance in every target market.
Secondary Packaging and Sealing Unit: After labeling, bottles are lifted via an elevator to the output rotary table, which feeds them into the automatic case sealer. This unit collates the correct number of bottles, erects or positions a corrugated case around them, and applies tape or glue to securely seal the box. The finished cases exit on a roller conveyor, ready for palletization and shipment. This automation eliminates slow, error-prone manual packing, dramatically increasing throughput and reducing labor costs.

Target Formulations, Compliance, and Operational Excellence

This line is engineered for the specific challenges of the agrochemical industry:

• Target Formulations: Liquid fertilizers (NPK, micronutrients), emulsifiable concentrates (EC), suspension concentrates (SC), soluble liquids (SL), and adjuvant products.

• Key Challenges Addressed: Corrosion resistance for acidic/alkaline products, precision dosing for high-value actives, safe handling of foaming surfactants, and robust labeling for compliance.
  The line delivers operational excellence through: Maximized Product Integrity via clean containers, accurate fills, and hermetic seals. Unmatched Regulatory Readiness with a GMP-ready design, 316L stainless steel, and CIP/SIP systems forming the foundation for certifications like CE, EAC, and ISO 9001. Superior Efficiency and ROI by consolidating seven manual or semi-automated processes into one automated line, slashing labor, reducing waste, and accelerating time-to-market.

Global Support and Strategic Value for Agrochemical Producers

Investing in the R-400 is a partnership for growth. We complement this advanced machinery with a support framework designed for your success in emerging markets. This includes a 24-month comprehensive performance guarantee and 24/7 multilingual remote monitoring (IQ/OQ/PQ support). Our regional hubs in Dubai (MENA), Hanoi (SEA), and Lagos (Africa) enable on-site commissioning in under 72 hours and provide region-specific spare parts kits for under 24-hour delivery. Services like free agrochemical compatibility testing, voltage customization (110V-480V), and rapid 1-2 week engineering for your specific container and product ensure a perfect fit. For agrochemical producers, this translates into a de-risked investment, a resilient production asset, and a powerful tool to achieve quality leadership and supply chain dominance in the vital agriculture sectors of your region.
