Description

Precision Engineered for Delicate Foaming Cosmetic and Personal Care Formulations

Volumetric-Gravity Dosing System with Four Descending Nozzles.

Stable Plate Conveyor for Consistent Container Handling.

Automatic Trigger-Type Capper with Polyurethane Rollers.

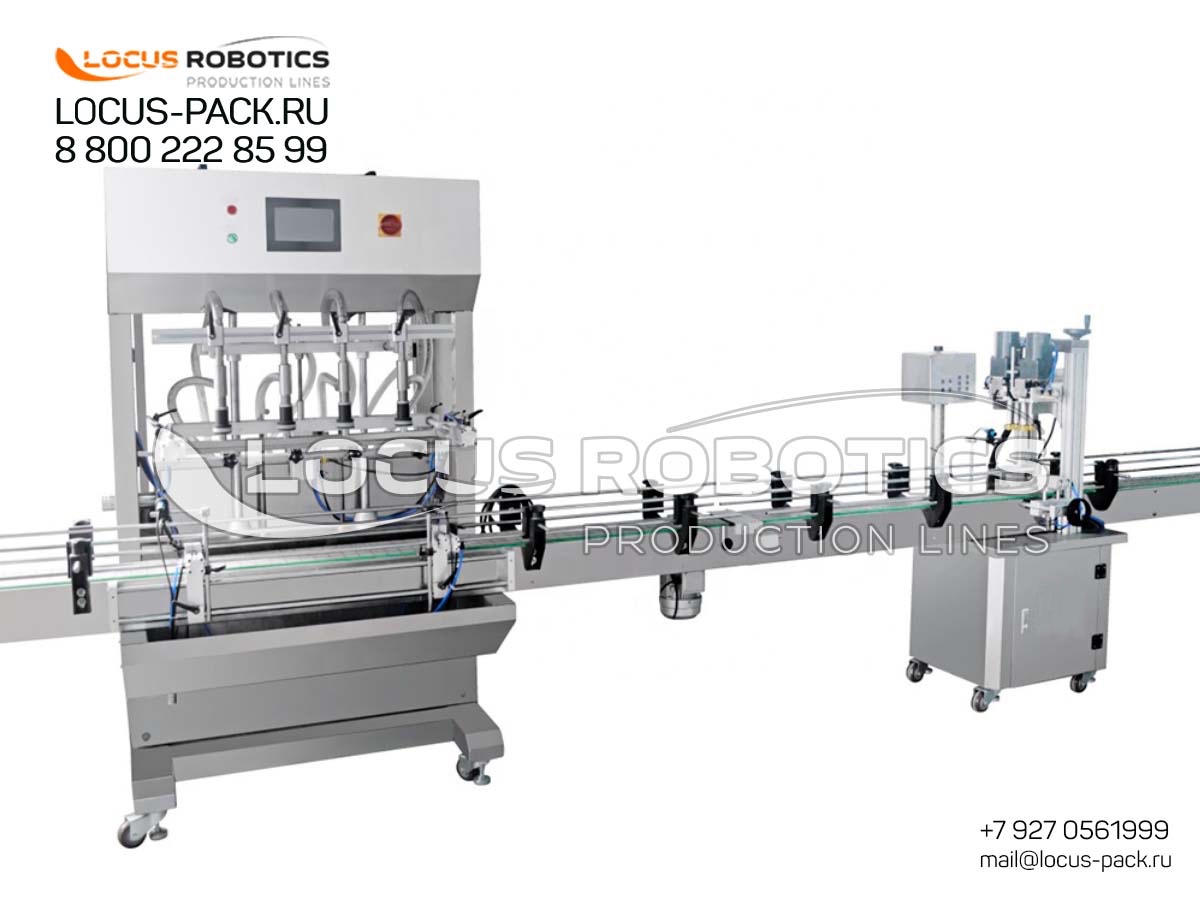

The R-400 Semi-Automatic Line addresses a core challenge in cosmetic manufacturing: packaging surfactant-based products that are prone to aerating, foaming, and separating. This machine is not a generic filler; it is a tuned system where every component is selected to handle the unique rheology of lotions, gels, and foams. The semi-automatic operation provides the perfect balance for small and medium batch production, giving operators direct control over the filling process while automating the most critical and repetitive tasks for consistency. Its design prioritizes product preservation—gentle handling prevents shear stress that can break down emulsions or create unwanted microfoam. For cosmetic brands focused on natural, organic, or premium formulations where visual appeal and texture are paramount, the R-400 ensures that the high quality achieved in the lab is perfectly transferred into the final consumer package, supporting brand integrity in competitive regional and global markets.

Detailed Technical Specifications and Machine Configuration

• Machine Type: Semi-Automatic, Linear (In-Line) Filling and Capping System.

• Primary Applications: Shampoo, Conditioner, Shower Gel, Body Wash, Liquid Hand Soap, Facial Cleansers, Shaving Cream, Foaming Bath Products, and Medium-Viscosity Lotions.

• Filling Technology: Volumetric-Gravity Dosing System. This method uses a product reservoir and precisely timed valves, allowing liquid to flow gently into containers by gravity. It is ideal for products where mechanical pumps can cause shear, aeration, or damage to delicate suspended particles.

• Filling Head Configuration: Equipped with four (4) independent auto-descending nozzles. These nozzles lower into the container and fill from the bottom up, virtually eliminating splash, foam generation, and oxygen inclusion, which can degrade sensitive cosmetic ingredients.

• Container Range: Expertly handles a wide size spectrum from 50 milliliters (ml) to 2,000 ml (2 liters), covering sample sizes, travel bottles, and standard retail formats.

• Capping System: Automatic trigger-type capper featuring four polyurethane rollers. These soft, durable rollers apply consistent downward pressure and torque to securely screw on a variety of closures—including pump dispensers, flip-top caps, and standard screw caps—without marring or scratching delicate plastic or coated glass bottles.

• Conveyance System: Stainless steel plate conveyor ensures smooth, vibration-free transport, preventing containers from tipping during the filling and capping process.

• Viscosity Handling: Specifically designed for liquid to medium-viscosity and foaming products.

• Control System: Simple, intuitive push-button or pedal control with adjustable timers for fill volume. Can be integrated with a basic PLC for recipe storage.

• Construction & Hygiene: Product contact parts constructed from AISI 316L Stainless Steel. The design is GMP-ready and supports easy cleaning and drainage. Clean-in-Place (CIP) capabilities are available for rigorous hygiene protocols required in cosmetic manufacturing.

In-Depth Component Analysis: Gentle Filling and Secure Sealing

1. Volumetric-Gravity Dosing System with Four Descending Nozzles: This is the cornerstone of gentle product handling. The product is fed into an overhead dosing tank. Each of the four filling stations is controlled by a separate valve. When activated, the nozzle smoothly descends into the container, the valve opens for a pre-set time, and the product flows out calmly. This bottom-up filling method is the industry’s preferred technique for foaming products because it prevents the liquid stream from «whipping» air into the product, which would cause excessive foam, inaccurate fills, and an unprofessional appearance in the final bottle.
2. Stable Plate Conveyor for Consistent Container Handling: Accuracy in semi-automatic filling relies on stable container presentation. The plate conveyor provides a solid, unwavering bed for bottles to sit on. Unlike roller or belt conveyors that can cause lightweight or narrow bottles to wobble, the plate ensures the filling nozzle centers perfectly every time. This stability is crucial for preventing spills, ensuring consistent fill height, and maintaining a clean production area—a key factor in maintaining GMP-level cleanliness.
3. Automatic Trigger-Type Capper with Polyurethane Rollers: After filling, containers move to the capping station. The trigger capper is a versatile and reliable mechanism. Caps are fed via a chute or sorting bowl. The capping head, equipped with soft yet grippy polyurethane rollers, descends onto the cap. The rollers spin, applying the cap with consistent, adjustable torque. The use of polyurethane is critical for cosmetics; it provides enough friction to tighten caps securely but is soft enough not to scratch, scuff, or leave marks on high-gloss plastic or decorative glass bottles, preserving the premium look of the packaged product.

Target Applications in Cosmetic Manufacturing and Key Operational Benefits

This line is the strategic choice for a wide range of businesses in the beauty and personal care sector:

• Start-Up & Emerging Cosmetic Brands: Entrepreneurs launching their own shampoo, soap, or skincare lines who need professional, reliable packaging without the capital investment of a fully automated line.

• Small-to-Medium Cosmetic Contract Manufacturers (CMOs): Facilities producing for multiple brands that require flexible, easy-to-clean equipment for short runs of different products and formulas.

• Specialty Soap and Cosmetic Makers: Artisanal producers scaling up from manual filling to achieve higher output while maintaining control over the process.
  The operational benefits are significant: Superior Product Quality is maintained through foam-minimizing, shear-free filling. Excellent Return on Investment (ROI) comes from low initial cost, minimal maintenance, and reduced product waste due to high accuracy. Great Flexibility allows for quick changeovers between different bottle sizes and product types, supporting a diverse product portfolio. GMP Compliance Readiness ensures the line meets the hygiene standards required by retailers and can support brand expansion into regulated markets.

Compliance, Global Support, and Strategic Value for Growing Brands

The R-400 is built to support the ambitious growth trajectory of modern cosmetic brands. Its design aligns with a clear compliance roadmap, facilitating CE and EAC certifications and is GMP-ready with 316L stainless steel and CIP/SIP capabilities. For brands aiming for international distribution, this foundational compliance is essential. Beyond the hardware, our global partnership model delivers unparalleled security: a 24-month performance guarantee, 24/7 multilingual remote support, and on-site commissioning in under 72 hours from our regional hubs in Dubai, Hanoi, and Lagos. We provide free line configuration, voltage customization (110V-480V) for any market, and rapid 1-2 week engineering for custom adaptations. This comprehensive package transforms the R-400 from a simple machine into a strategic growth enabler, empowering cosmetic manufacturers in Africa, Southeast Asia, and the MENA region to build resilient, scalable, and quality-focused production with confidence.
