Description

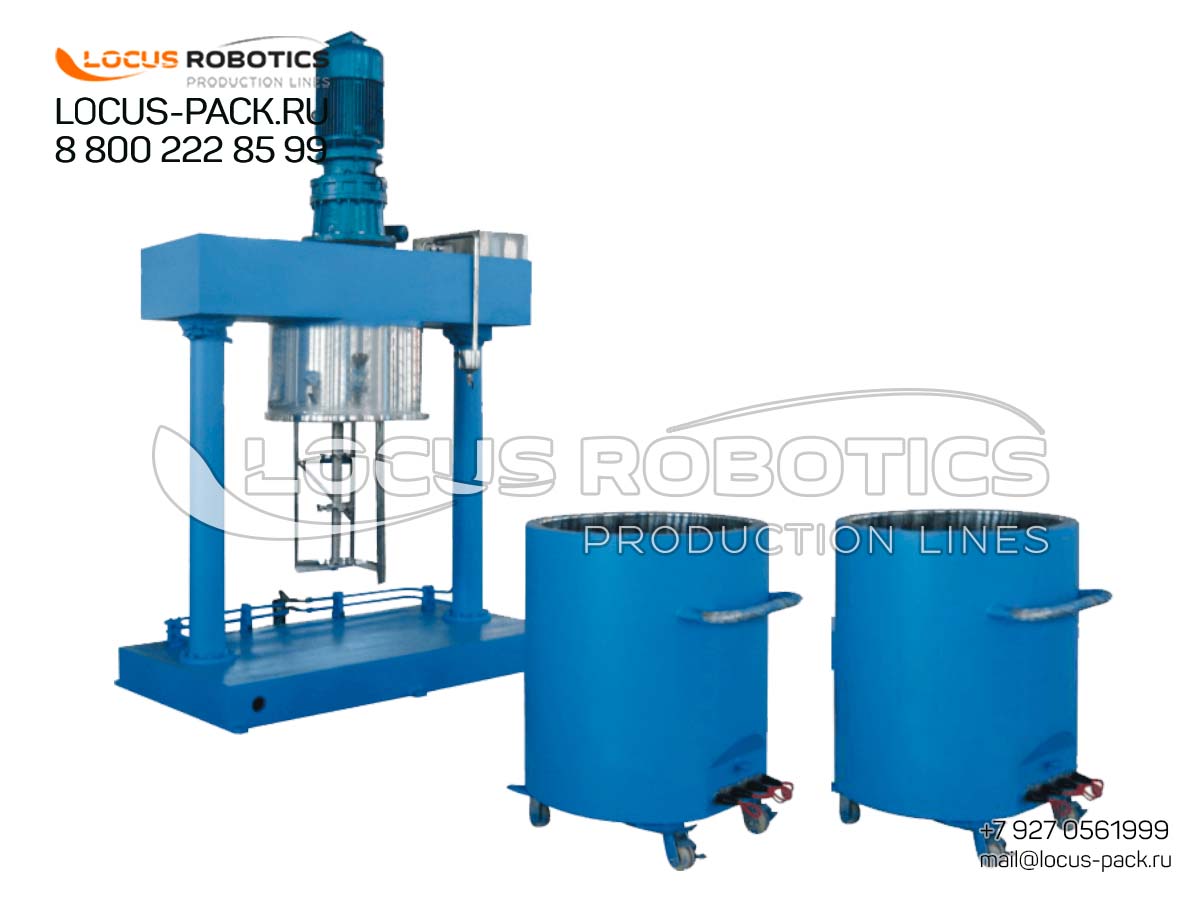

M-50 mixing construction adhesive in 200L drum
Sawtooth disc impeller dispersing cement additives.
Engineered for Extreme Viscosity
-
Planetary Gear Drive: Delivers 1,500-5,000 N·m torque – crushes aggregates and disperses fillers in heavy sealants/epoxies .
-
Corrosion Defense: AISI 304 standard (316L optional) with HVOF-coated shafts for abrasive slurries (e.g., cement additives) .
-
Shear Control: Interchangeable impellers (double helix → sawtooth) handle 100-500,000 cP range .
-
Explosion Safety: ATEX Zone 1 / Class I Div 1 motors (Ex d IIC T4) for solvent-based coatings .
Technical Specifications
| Parameter | Value |
|---|---|
| Drum Capacity | 200L (55 gal) |
| Max Viscosity | 500,000 cP |
| Torque Output | 1,500-5,000 N·m |
| Speed Range | 5-80 RPM (VFD controlled) |
| Power Options | 5.5-18.5 kW (220V/380V/480V) |
| Impeller Options | Double Helix, Anchor, Sawtooth Disc |
| Material Contact | AISI 304 (std), 316L (opt), HVOF coating |
Industry-Specific Applications
-
Paints & Coatings: Disperses TiO₂, SiO₂ fillers; eliminates «hard pan» in primers .
-
Construction Chemicals: Homogenizes cementitious additives, tile adhesives, and PU foams .
-
Resins & Adhesives: Mixes epoxy thickeners; prevents silica settling in MS polymers .
-
Sealants: Shears silicone pastes with 400,000 cP viscosity .
Performance Advantages
| Feature | Benefit |
|---|---|
| Zero Settling | Reverse-rotation pulses resuspend solids every 15 mins |
| Abrasion Resistance | Tungsten-carbide HVOF coating extends shaft life 5x |
| Quick Clamping | Pneumatic drum lock secures in 8 sec – no bolts |
| Energy Recovery | Regenerative VFD cuts power use 30% during ramp-down |

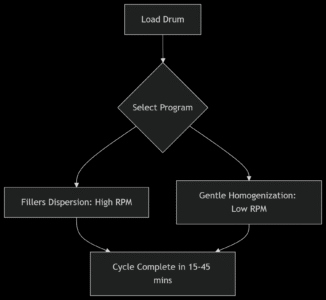

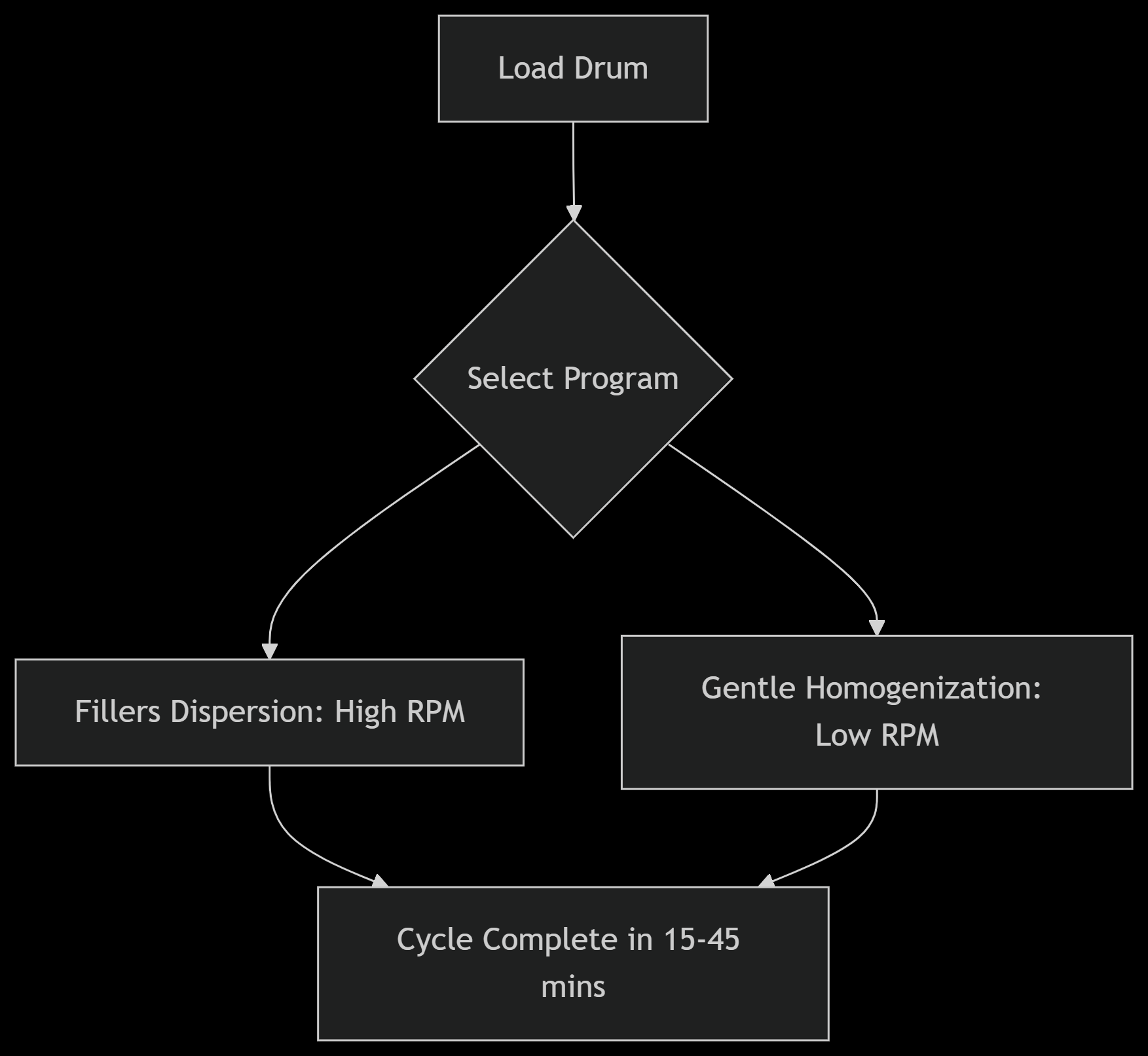

Workflow Integration
Maintenance: Quarterly gear oil change | Seal life: 16,000 hours.
Regional Adaptation
-
Tropical Sites: 50°C-rated motors; condensation-resistant control panel .
-
Corrosive Environments: Extra passivation for coastal chloride exposure .
-
Voltage Flexibility: 220V/380V/415V/480V with GOST-R, CCC, INMETRO certs .
Compliance & Certifications
-
Safety: CE, ISO 13849 PLd.
-
Explosive Areas: ATEX II 2G Ex db IIC T4 / IECEx.
-
Materials: REACH, RoHS, FDA 21 CFR 175.300 (indirect food contact).
Technical Support
-
Viscosity Kits: Pre-configured impeller bundles for common materials.
-
IoT Monitoring: LocusConnect tracks torque/temperature trends.
-
On-Site Training: Mixing optimization for specific chemistries.
