Description
M-30 Portable Agitator for Cisterns and Mobile Tanks
M-30 mounted on chemical transport cistern during transit.
Flange clamp mechanism for DN250 tank connection.
Handheld VFD remote with preset mixing programs.
Critical Innovations
-
Rapid Deployment: Clamp-on flange mount (DN150-DN300) installs in <10 mins – no tank modification .
-
Corrosion Defense: AISI 316L shaft/impeller with HVOF coating option for abrasive slurries (e.g., lime suspensions) .
-
High Torque in Compact Form: 2.2 kW motor delivers 850 N·m torque – mixes viscous fluids (up to 50,000 cP) .
-
Explosion Safety: ATEX Zone 1 / Class I Div 1 option for solvent transport .
Technical Specifications
| Parameter | Value |
|---|---|
| Tank Capacity | 1,000L-10,000L |
| Viscosity Range | 1-50,000 cP |
| Torque Output | 850 N·m |
| Speed Range | 30-500 RPM (VFD remote) |
| Mounting | Flange clamp (DN150-DN300) or manhole adapter |
| Weight | 42 kg (portable via lift rings) |
Industry Applications
-
Chemical Transport: Prevents settling of pigments/slurries during truck/rail transit.
-
Food Logistics: Homogenizes syrups, dairy, oils in ISO tank containers (3-A compliant).
-
Pharma Intermediate: Mixes buffer solutions in mobile vessels (GMP design).
-
Wastewater: Suspends solids in effluent cisterns; IP68 submersible option.
Operation Advantages
| Feature | Benefit |
|---|---|
| No Infrastructure | Battery operation (6h runtime) or 220V/380V power |
| All-Position Mixing | Works in horizontal/vertical tanks during movement |
| Rugged Portability | Shock-resistant casing withstands 5G vibration (MIL-STD-810G) |
| Quick Clean | Tri-clamp impeller removal for CIP in <5 mins |

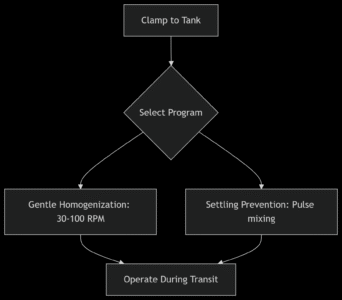

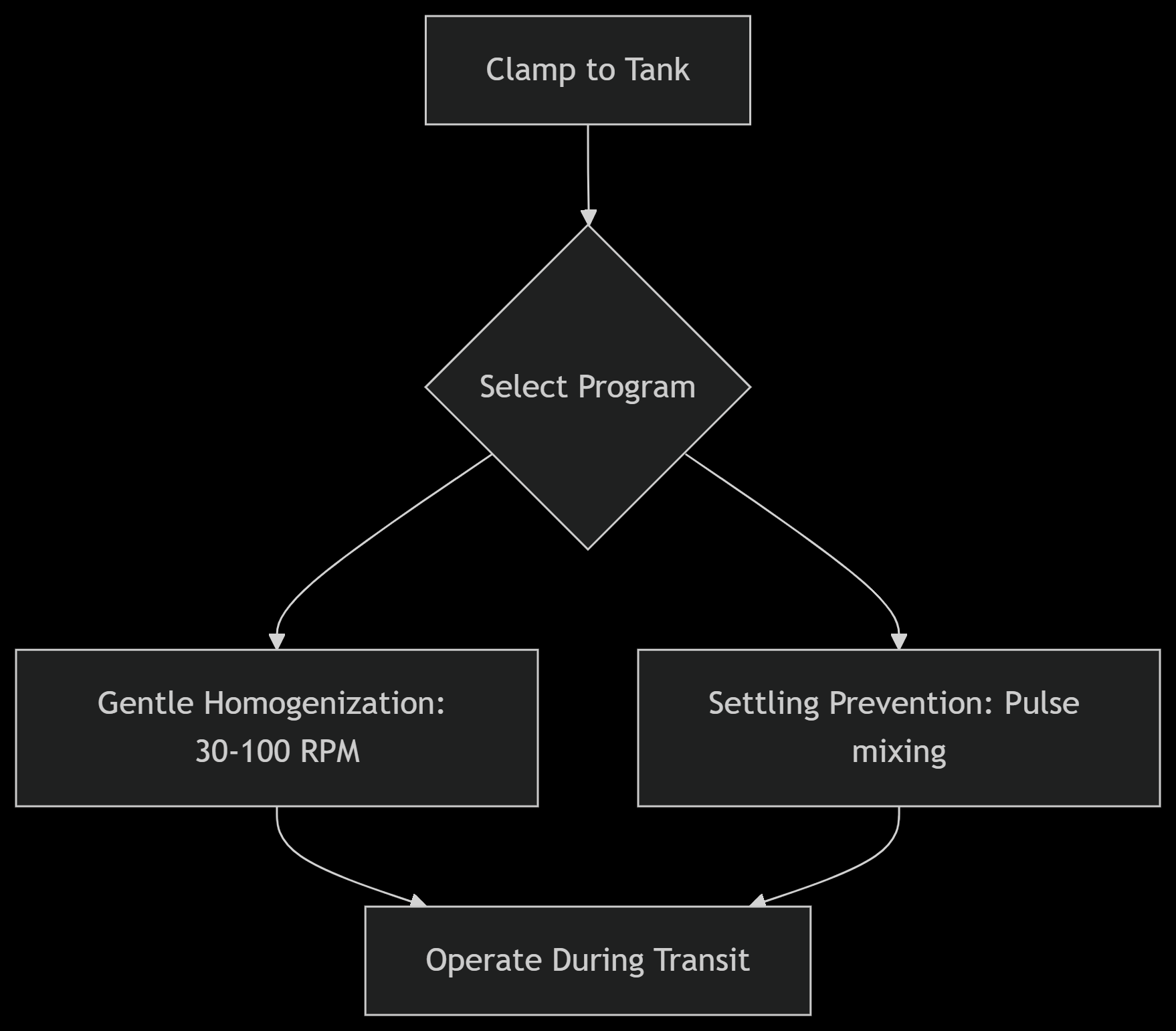

Workflow Integration
*Battery: 6h continuous | 220V/380V models available*
Regional Adaptation
-
Desert/Rural Sites: Dust-proof (IP66) and 50°C heat-resistant design.
-
Coastal Logistics: Salt-air resistant components; extra passivation layer.
-
Voltage Flexibility: 24V DC / 220V AC / 380V AC with GOST, CCC, INMETRO certs.
Compliance & Certifications
-
Safety: CE, ISO 13849 PLc.
-
Explosive Areas: ATEX II 2G Ex db IIC T4 / IECEx.
-
Food Contact: FDA 21 CFR 177.2600, 3-A 63-07 (optional).
-
Transport: ADR/RID compliant for hazardous goods.
Technical Support
-
Global Hotspots: Consumables stocked near major ports (Singapore, Rotterdam, Dubai).
-
Augmented Reality: Scan QR code for installation holograms.
-
Battery Leasing: Exchange program for logistics fleets.
📜 Schedule virtual airflow visualization test.
💡 Mention your: Target market (EU/US/Global South), Active ingredient, Required throughput.
🔬 Schedule virtual factory acceptance test with our engineers.
🏷️ Request Compliance Audit: Free gap analysis with throughput simulation.
Ready to Eliminate Production Bottlenecks?
Need Industrial Production Automation?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Start small, get a free production layout designed for your growth trajectory. Scale smarter with engineering support!
📥Free line configuration for your products, throughput validation testing!
🎓Contact Specialists for Packaging Equipment:
📄 On-Demand Engineering: Product-specific configurations in 1-2 weeks.
🔧 Spare Parts Kits: Region-specific inventory for <24hr delivery.
🌡️ For a free product compatibility test using your materials.
Compliance Roadmap:
- CE, EAC, ISO 9001 certifications.
- GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
- ATEX options for chemical solvents.
