Description
M-10 Mobile Drum Agitator for 200L Containers
M-10 mixing paint in 200L drum on factory floor.
AISI 316L turbine impeller for high-shear applications.
Clamp-on mechanism securing to steel drum.
Core Innovations
-
Heavy-Duty Mobility: Locking casters + 80kg frame moves drums in situ – no forklift needed.
-
Corrosion-Resistant Build: AISI 316L shaft/seals (EN 1.4404) withstand acids, solvents, and chlorides.
-
Variable Torque Drive: 0.37-1.5 kW motor handles 1-50,000 cP (adjustable shear via impeller change).
-
Explosion Safety: Optional ATEX Zone 1 / Class I Div 1 motor (for solvent-based mixing).
Technical Specifications
| Parameter | Value |
|---|---|
| Drum Capacity | 200L (55 gal) |
| Speed Range | 0-300 RPM (VFD controlled) |
| Max Viscosity | 50,000 cP |
| Power Options | 0.37 kW / 0.5 kW / 1.5 kW (220V or 380V) |
| Impeller Options | Propeller, Turbine, Anchor |
| Material Contact | AISI 316L (shaft, impeller, seals) |
Industry Applications
-
Paints & Coatings: Homogenizes pigments/fillers; eliminates «hard pan» settling .
-
Chemical Processing: Mixes solvents, acids (H₂SO₄, HCl), and adhesives .
-
Cosmetics: Shears emulsions; hygienic design for creams/lotions .
-
Food Processing: 3-A compliant option for syrups/sauces .
Operation Advantages
| Feature | Benefit |
|---|---|
| Clamp-On Design | Mounts in 20 sec – no drum modification |
| Sealed Drive | IP66 rating; withstands washdowns |
| Tropical Resilience | 60°C ambient operation; humidity-resistant electronics |
| Low Maintenance | Seal replacement in <15 mins (video-guided) |

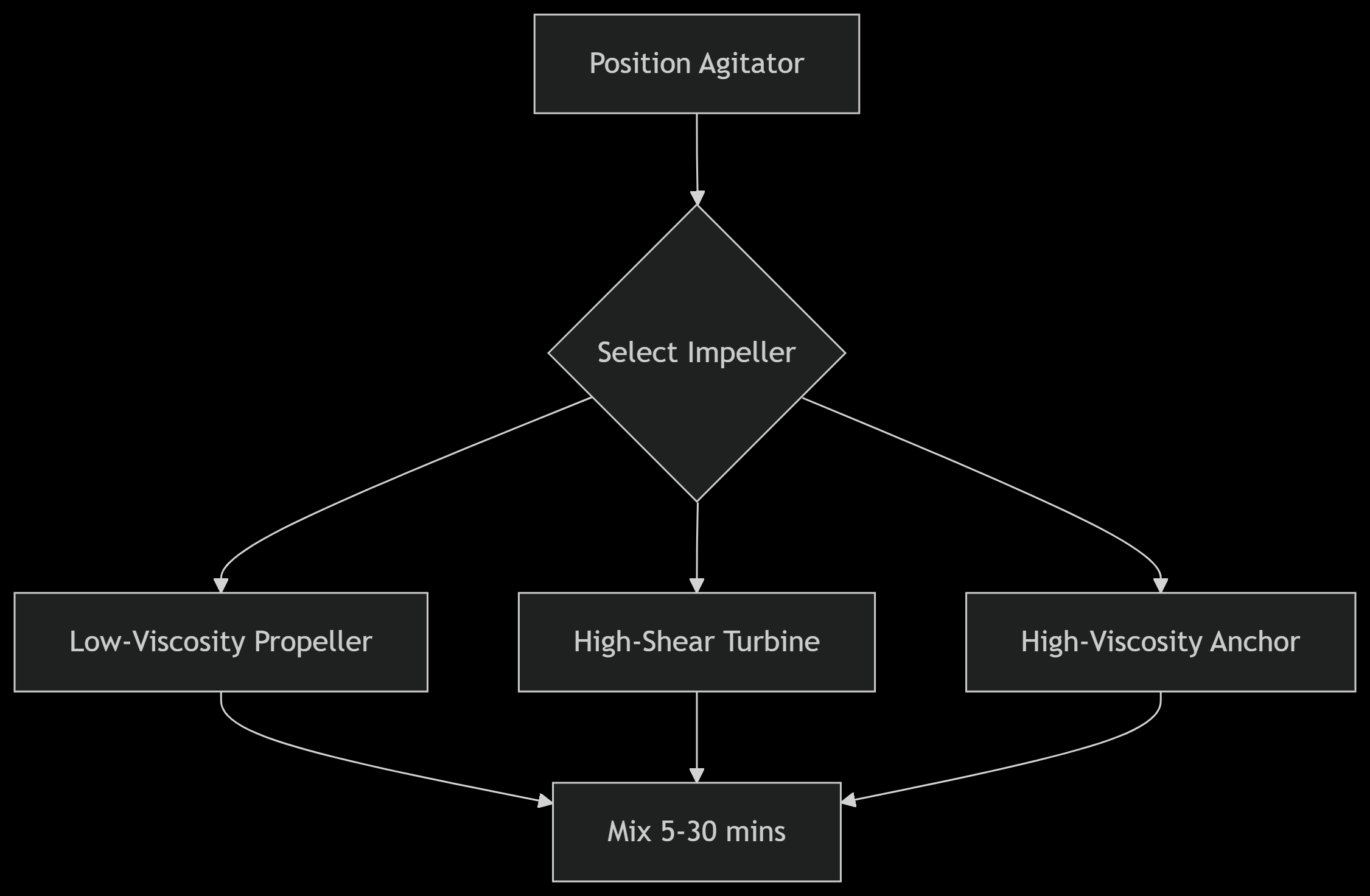

Workflow Integration
Battery option: 2h runtime | 220V/380V models available.
Regional Adaptation
-
Tropical Zones: Salt-air resistant components; 100% RH tolerance .
-
Corrosive Environments: Extra passivation (HNO₃/HF) for chloride resistance .
-
Voltage Flexibility: 220V/380V/480V with GOST, CCC, INMETRO certifications .
Compliance & Certifications
-
Materials: FDA 21 CFR 177.2600 (food), REACH, EU 10/2011
-
Safety: CE, ISO 13849 PLc
-
Explosive Areas: ATEX II 2G Ex db IIC T4 / IECEx
Technical Support
-
Global Kits: Impeller/spare part bundles for 55+ countries
-
AR Manuals: Scan QR code for holographic repair guides
-
Reaction Simulations: Free CFD reports for viscosity/torque optimization
📜 Schedule virtual airflow visualization test.
💡 Mention your: Target market (EU/US/Global South), Active ingredient, Required throughput.
🔬 Schedule virtual factory acceptance test with our engineers.
🏷️ Request Compliance Audit: Free gap analysis with throughput simulation.
Ready to Eliminate Production Bottlenecks?
Need Industrial Production Automation?
✅ GMP Compliance Guarantee
✅ 24/7 Multilingual Support
✅ 24-month performance guarantee
✅ Local technicians in 18 countries
Start small, get a free production layout designed for your growth trajectory. Scale smarter with engineering support!
📥Free line configuration for your products, throughput validation testing!
🎓Contact Specialists for Packaging Equipment:
📄 On-Demand Engineering: Product-specific configurations in 1-2 weeks.
🔧 Spare Parts Kits: Region-specific inventory for <24hr delivery.
🌡️ For a free product compatibility test using your materials.
Compliance Roadmap:
- CE, EAC, ISO 9001 certifications.
- GMP-ready: 316L SS contact parts, CIP/SIP capabilities.
- ATEX options for chemical solvents.
