LRCP-100 Automatic Robotic Case Packer for Glass Jar Packaging and Cardboard Tray Forming

Glass Jar Packaging Applications and Advantages.

Cardboard Tray Forming Technology and Benefits.

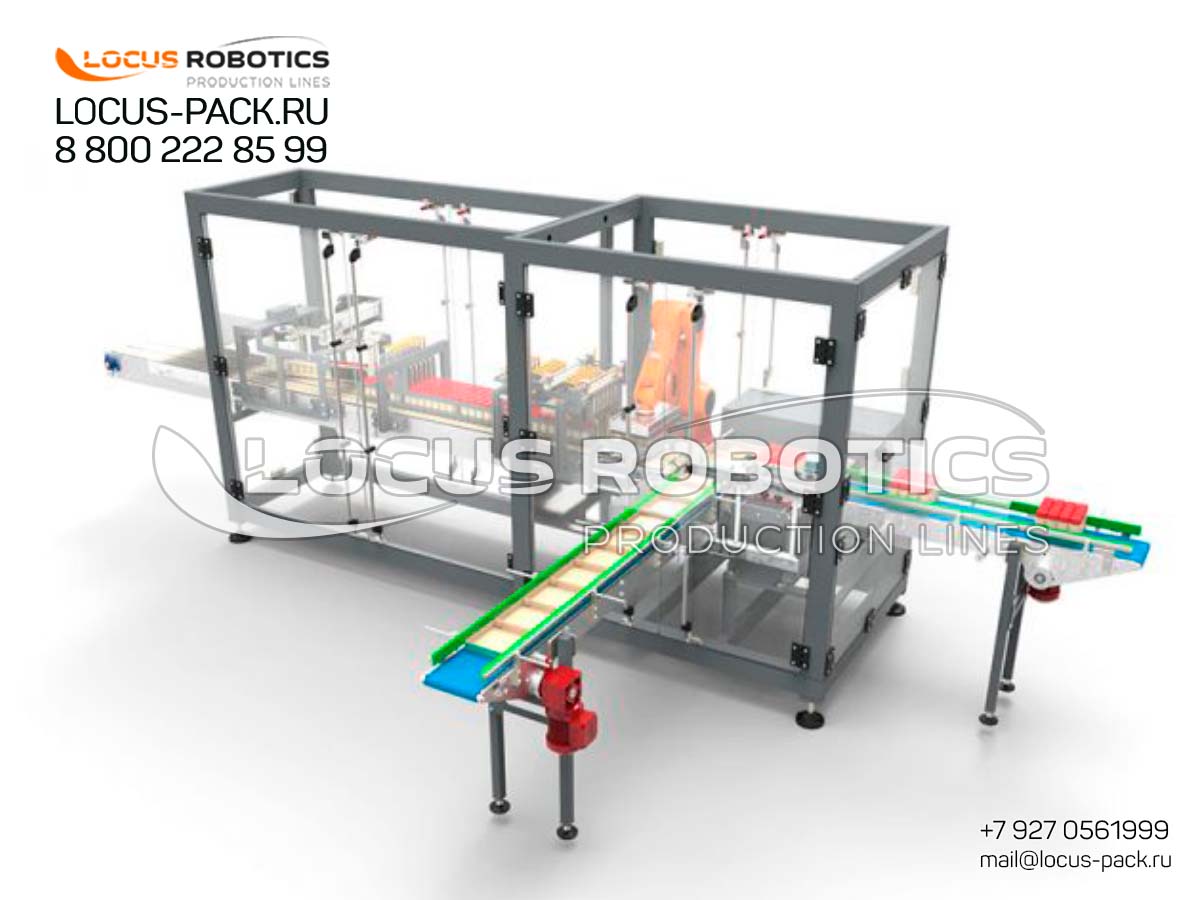

The LRCP-100 Automatic Robotic Case Packer represents advanced packaging automation technology specifically engineered for food, beverage, and pharmaceutical packaging environments requiring precision handling of glass jars and cardboard tray formation. This system combines German engineering precision with international safety standards to deliver exceptional performance in packaging applications where product protection and presentation are paramount.

This robotic case packer specializes in handling fragile glass containers and forming cardboard trays with gentle product handling and precision placement. The machine’s stainless steel construction and quick-change capabilities make it ideal for packaging environments requiring frequent format changes and high hygiene standards.

Advanced Robotic Packaging Technology for Glass Containers and Tray Formation

The LRCP-100 Automatic Robotic Case Packer incorporates state-of-the-art automation technology specifically designed for glass jar packaging and cardboard tray forming applications. Engineered to meet international regulatory standards including FDA, CE, and ISO requirements, this system offers unparalleled packaging precision while maintaining flexible operation for various container types and sizes.

Key Technological Advantages:

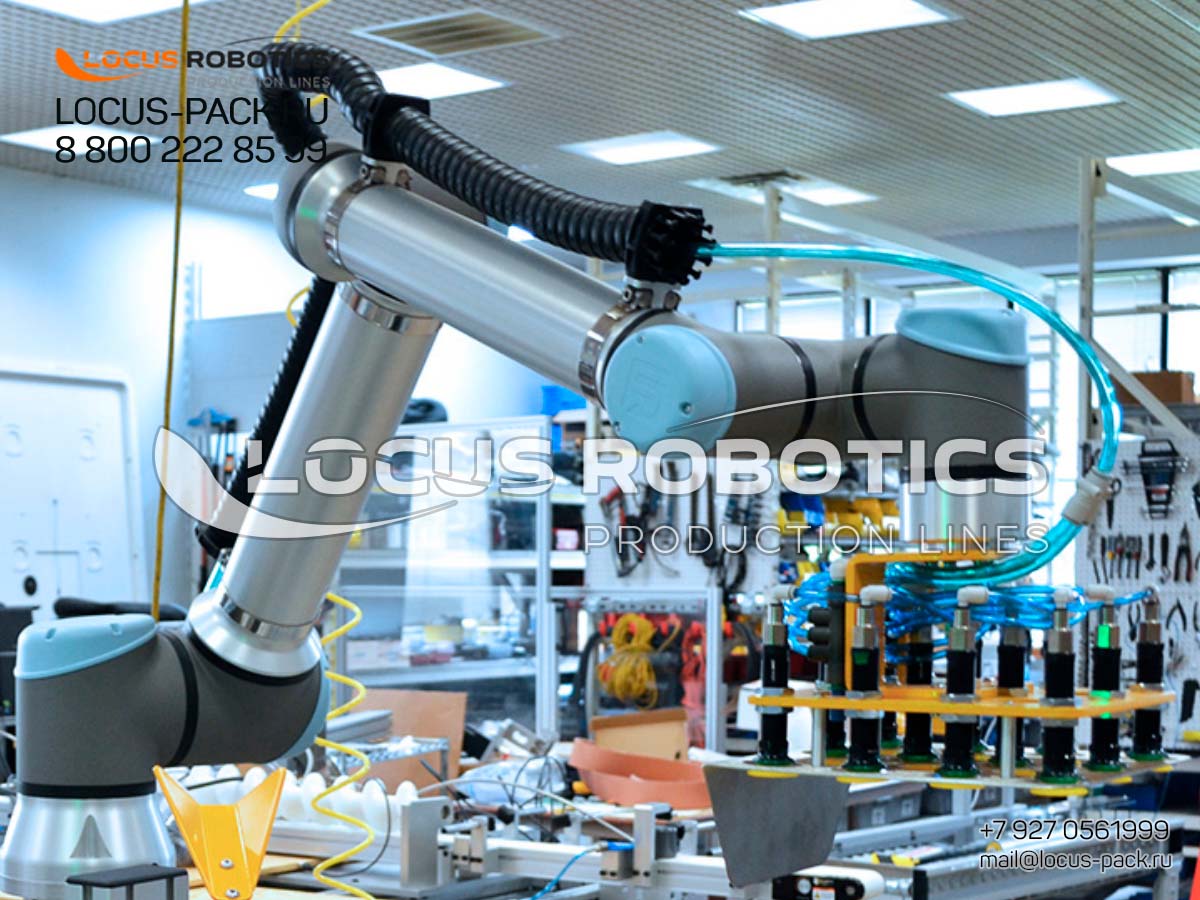

• Six-Axis Robotic Arm System: Provides 3D spatial flexibility for handling complex packaging patterns and delicate glass containers without product damage

• Vision Guidance Technology: High-resolution cameras with AI-based pattern recognition ensure accurate product placement and real-time quality control

• Cardboard Tray Forming System: Precision folding and forming mechanisms create sturdy cardboard trays for product presentation and protection

• GMP-Compliant Design: Stainless steel construction (304/316 grade), rounded corners, and sanitary fittings prevent contamination and facilitate cleaning

• Quick-Change Tooling: Tool-less changeover system reduces format change time to under 15 minutes, maximizing production efficiency

• HMI Control Interface: 15-inch touchscreen with recipe storage, production reporting, and multi-language support (English, Spanish, Arabic, Mandarin)

Glass Jar Packaging Applications:
Specifically designed for glass container packaging, the LRCP-100 handles:

• Glass jars for food products, sauces, and preserves

• Glass bottles for beverages, spirits, and premium products

• Pharmaceutical containers and medical glassware

• Cosmetic jars and personal care containers

• Specialty glass containers with unique shapes and sizes

The system maintains product integrity through gentle handling mechanisms and precise placement, ensuring presentation-quality packaging for retail environments.

Cardboard Tray Forming Capabilities:
The LRCP-100 excels in cardboard tray formation with:

• Automatic blank feeding from magazine stacks

• Precision folding and tray forming operations

• Secure product placement within formed trays

• Tray sealing and closure systems for product protection

• Quality verification of formed trays and product placement

Global Export Configuration:
We specifically engineer our LRCP-100 systems for international clients with:

• Voltage Flexibility: 110V-480V operation with 50/60Hz capability

• Climate Adaptations: Tropicalized components for high humidity environments

• Dust Protection: Enhanced sealing for arid regions with sand/dust concerns

• Multi-Language Support: Interface languages tailored to target regions

• Regional Compliance: Documentation and certifications specific to each market

Technical Specifications Table

Comprehensive Technical Specifications of LRCP-100 Robotic Case Packer

Industry-Specific Applications

Food Packaging:

The LRCP-100 ensures gentle handling for food products in glass containers through precision robotics, reduced breakage, and quick changeover capabilities meeting production requirements. The system handles various glass container sizes and provides secure tray formation for product protection during transportation.

Beverage Packaging:

For beverage applications, the machine offers high-speed operation for glass bottle packaging and tray formation, ensuring efficient production flow and product presentation quality. The quick-change capabilities allow beverage manufacturers to efficiently switch between product lines and packaging formats without significant downtime.

Pharmaceutical Packaging:

The system accommodates pharmaceutical products in glass containers with precision handling and clean-room compatible design, ensuring product safety and integrity throughout the packaging process. The tray forming capabilities provide secure packaging for medical products.

Advanced Hydraulic Robotic Packaging System
The Automatic Case Packer leverages industrial hydraulic robotics to automate complex packaging tasks with precision and reliability. This system is engineered for seamless integration into production lines, operating between labeling/cartoning machines and palletizers.

Key Operations:

1. Carton Forming: Automatically erects flat corrugated blanks into ready-to-use boxes.

2. Bottle Loading: Hydraulic robots with adaptive grippers place bottles into boxes with gentle handling.

3. Case Sealing: Applies hot melt adhesive or tape to securely seal boxes for transport.

Technical Features:

• Hydraulic Robot Arms: Provide high payload capacity (up to 10kg) and ±0.5mm positioning accuracy.

• Vision Guidance System: AI-powered cameras ensure precise bottle placement and detect defects.

• Quick Changeover: Tool-less adjustments enable format changes in under 15 minutes.

• HMI Control: 15-inch touchscreen with recipe storage and multi-language support (English, Spanish, Arabic, Mandarin).

• Durable Construction: Stainless steel (304/316 grade) and IP65-rated components for harsh environments.

Technical Specifications:

• Speed: Up to 30 cases per minute.

• Box Size Range: 200x100x100mm to 600x400x400mm.

• Bottle Compatibility: Diameters from 50mm to 120mm.

• Power Supply: 380V/50Hz/3PH (configurable for 110V-480V).

• Air Consumption: 6-8 bar, 500 L/min.

Applications:

• Beverage: Water, soda, juice, and beer bottles.

• Pharmaceutical: Medicine bottles, vials, and clinical packaging.

• Food: Sauce bottles, dairy containers, and edible oil packaging.

Global Adaptations:

• Voltage Flexibility: Compatible with 50/60Hz power systems.

• Climate Resilience: Tropicalized components for high humidity/dust environments.

• Certifications: CE, ISO 9001, and FDA-compliant designs.

Why Choose This System?

• Labor Reduction: Replaces 2-3 operators per shift.

• High Efficiency: Processes up to 30 cases/minute with minimal downtime.

• Versatility: Handles diverse box and bottle formats.

• Global Compliance: Meets international standards for export markets.

Our Automatic Case Packer integrates industrial hydraulic robots to streamline end-of-line packaging processes. This system performs three core functions: automatic carton erecting, precision bottle loading, and secure case sealing. Designed for high-speed production environments, it handles diverse container types (glass, PET, plastic) and box sizes with ±0.5mm accuracy. Ideal for beverage, pharmaceutical, and food industries seeking to optimize packaging efficiency and reduce labor costs.

Global Export Configuration and Regional Adaptations.

GMP Compliance and Sanitary Design Features.

Quick-Change Tooling and Format Flexibility.
