Description

Automatic Case Packer LRCP-100 — Complete Packaging Automation

Robotic Gripper Technology & Gentle Handling.

Production Line Integration & Compatibility.

Operational Benefits & ROI Analysis.

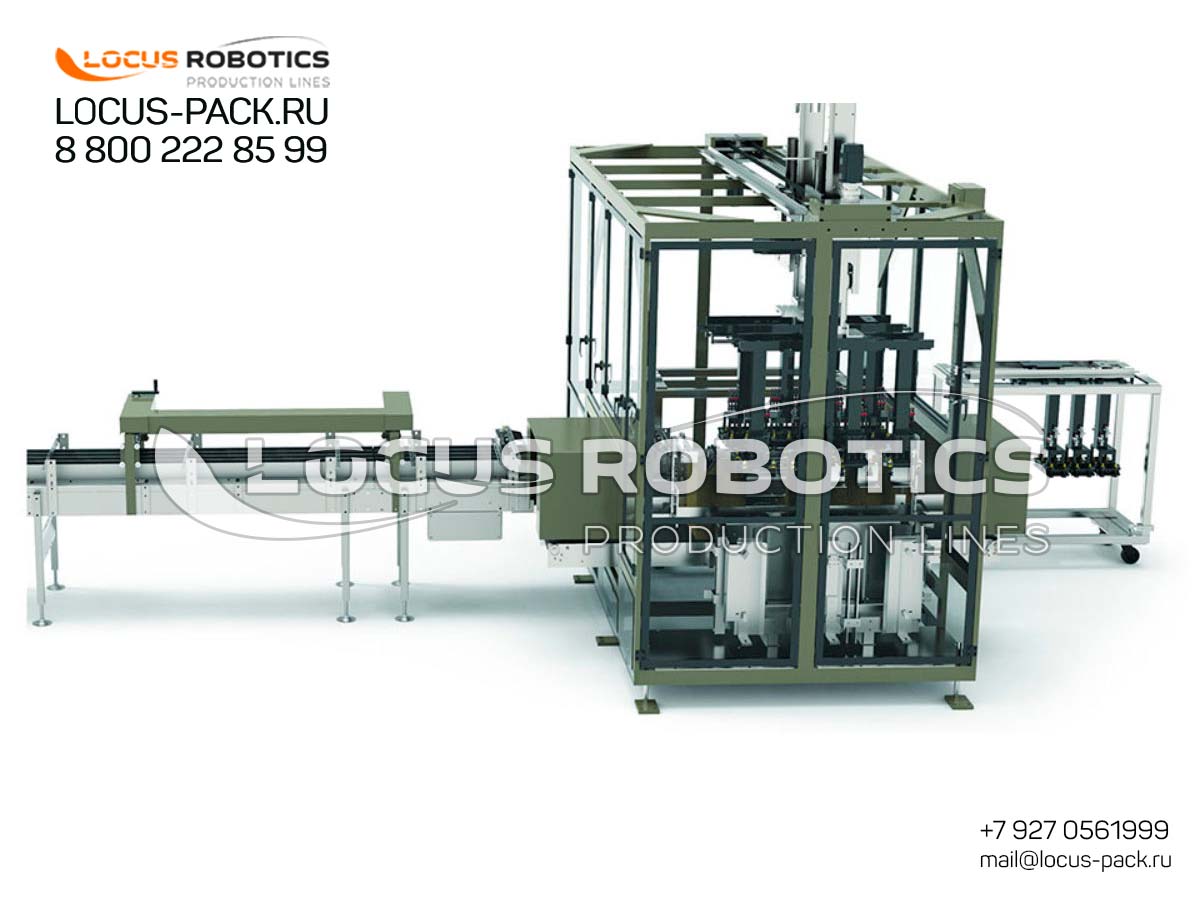

The LRCP-100 case packer represents an advanced automated packaging solution designed specifically for handling cans and vodka bottles within cardboard cartons. This machine embodies modern packaging technology with its ability to form cases, accurately position products, and ensure secure packaging for distribution. This system incorporates robotic precision, high-speed operation, and flexible configuration capabilities that align with current industry standards for secondary packaging automation.

Product Overview & Technical Specifications

System Overview

The LRCP-100 to be a fully automated case packing system specifically engineered for handling alcoholic beverage bottles and canned products. This system combines case erecting, product loading, and case sealing functions in a single integrated system. The machine is constructed with food-grade materials (stainless steel) to meet hygiene standards required for beverage and food packaging applications.

The system lemploys servo motor technology for precise movement control and PLC-based automation for operational management. Based on comparable systems, the LRCP-100 features quick-change capabilities allowing for rapid format adjustments between different container sizes and package configurations.

Technical Specifications

Core Features & Technological Advantages

Automated Case Handling System

The LRCP-100 incorporates an advanced case erecting system that automatically forms flat cardboard blanks into ready-to-fill cases. This system includes:

• Automatic case magazine that can hold significant quantities of flat blanks

• Suction cup extraction system for precise case handling

• Bottom folding mechanisms for case formation

• Automatic bottom sealing with hot melt adhesive

The machine handles various case styles including Regular Slotted Containers (RSC) and wrap-around cases, providing flexibility for different packaging requirements 15. The indicate that such systems can typically handle case sizes ranging from small formats (50×25×15mm) to larger cases (800×600×400mm) depending on specific configuration.

Precision Product Loading System

The LRCP-100 incorporates advanced product handling technology for accurate placement of cans and bottles into cases:

• Robotic picking systems with vision guidance

• Gentle product handling to prevent damage

• Pattern formation capabilities for optimized case packing

• Product orientation systems for precise placement

The system achieves high positioning accuracy (typically ±0.1mm to ±0.5mm) as seen in comparable equipment. The machine handles various pack patterns including row patterns, tiered patterns, and mixed configurations, allowing for efficient case utilization.

Integration and Control Systems

The LRCP-100 features comprehensive integration capabilities including:

• PLC control system with touchscreen interface

• Multiple communication protocols (EtherCAT, Modbus TCP/IP, CAN, RS232/485)

• Recipe management system for different products

• Production monitoring and data collection

• Remote diagnostics and maintenance capabilities

The machine offers quick changeover capabilities, allowing operators to switch between different products and case configurations with minimal downtime. Changeover times might range from minutes to seconds depending on the level of automation.

Applications & Industry Solutions

Beverage Industry Applications

The LRCP-100 is specifically designed for vodka bottle packaging and beverage can packaging, making it ideal for:

• Distilleries and breweries: Handling glass and plastic bottles

• Beverage canning lines: Packaging aluminum and steel cans

• Spirits industry: Premium packaging for vodka and other spirits

• Non-alcoholic beverages: Packaging ready-to-drink products

The system handles various container types including:

• Glass bottles: Various shapes and sizes for spirits

• Aluminum cans: Standard beverage cans

• PET bottles: Plastic containers for beverages

• Specialty containers: Unique shapes and sizes

Quality Assurance & Compliance

The LRCP-100 incorporates several quality assurance features:

• Vision inspection systems for product verification

• Missing product detection to ensure complete cases

• Leak detection systems for liquid products

• Weight verification for content validation

The machine complies with international standards including:

• CE certification for European markets

• FDA regulations for food contact materials

• ISO standards for quality management

• Safety standards (AS/NZS 4024) for machinery design

Comparison with Similar Case Packing Systems

Operational Benefits and ROI Considerations

Production Efficiency

The LRCP-100 offers significant operational benefits:

• Labor reduction: Automation reduces manual packing requirements

• Increased throughput: High-speed operation boosts production capacity

• Consistent quality: Automated systems ensure uniform packaging

• Space optimization: Compact design maximizes floor space

Economic Considerations

The machine offers favorable return on investment through:

• Reduced product damage: Gentle handling minimizes losses

• Lower labor costs: Automation reduces manual labor requirements

• Material optimization: Efficient packing reduces material usage

• Improved uptime: Reliable operation reduces downtime

The payback period for such systems typically ranges from 12-24 months depending on production volume and labor costs.

Implementation and Support Considerations

Integration Requirements

Implementing the LRCP-100 would require:

• Factory space assessment: Ensuring adequate space and utilities

• Existing line integration: Connecting with upstream and downstream equipment

• Operator training: Ensuring staff competency with the new system

• Maintenance planning: Establishing preventive maintenance routines

Support and Service

The LRCP-100 comes with:

• Comprehensive warranty: Typically 12 months

• Technical support: Remote and on-site assistance

• Spare parts availability: Ensuring minimal downtime

• Training programs: For operators and maintenance staff

Technical Configuration

• Automatic Case Erector: Forms flat corrugated blanks into ready-to-fill boxes

• Robotic Loading System: Mobile gripper heads for gentle product handling

• Automatic Sealing Station: Hot melt adhesive or tape sealing options

• PLC Control System: Integrated automation with touchscreen interface

• Conveyor Integration: Compatible with upstream and downstream equipment

Key Specifications

Premium Features

• Full Automation: Eliminates manual labor requirements

• Mobile Gripper Technology: Adapts to various container shapes and sizes

• Quick Changeover: Rapid adjustment between different package formats

• Vision Systems: Optional quality control and verification

• Data Integration: Production monitoring and OEE tracking

• Gentle Handling: Prevents product damage during packaging

Integration & Compatibility

• Upstream Equipment: Integrates with labeling machines and cartoners

• Downstream Connectivity: Feeds directly to palletizers and wrapping systems

• Line Synchronization: Maintains consistent flow with bottling lines

• Flexible Layout: Adaptable to existing production line configurations

The LRCP-100 case packer represents a specialized solution for vodka bottle and can packaging operations, offering advanced automation capabilities that align with current industry standards. This machine incorporates precision handling, flexible configuration, and high-speed operation that can significantly enhance packaging efficiency for beverage producers.

The system’s robust construction, automation capabilities, and focus on beverage packaging make it particularly suitable for distilleries, breweries, and beverage companies looking to optimize their secondary packaging operations. By implementing this technology, producers can achieve higher throughput, improved package quality, and reduced operational costs while meeting the specific requirements of alcohol beverage packaging.
