Description

Vertical Labeling for Top, Bottom & Complex Surfaces

Precision Vertical Applicator Technology.

Versatile Handling for Diverse Products.

Your Solution for Multi-Surface Labeling.

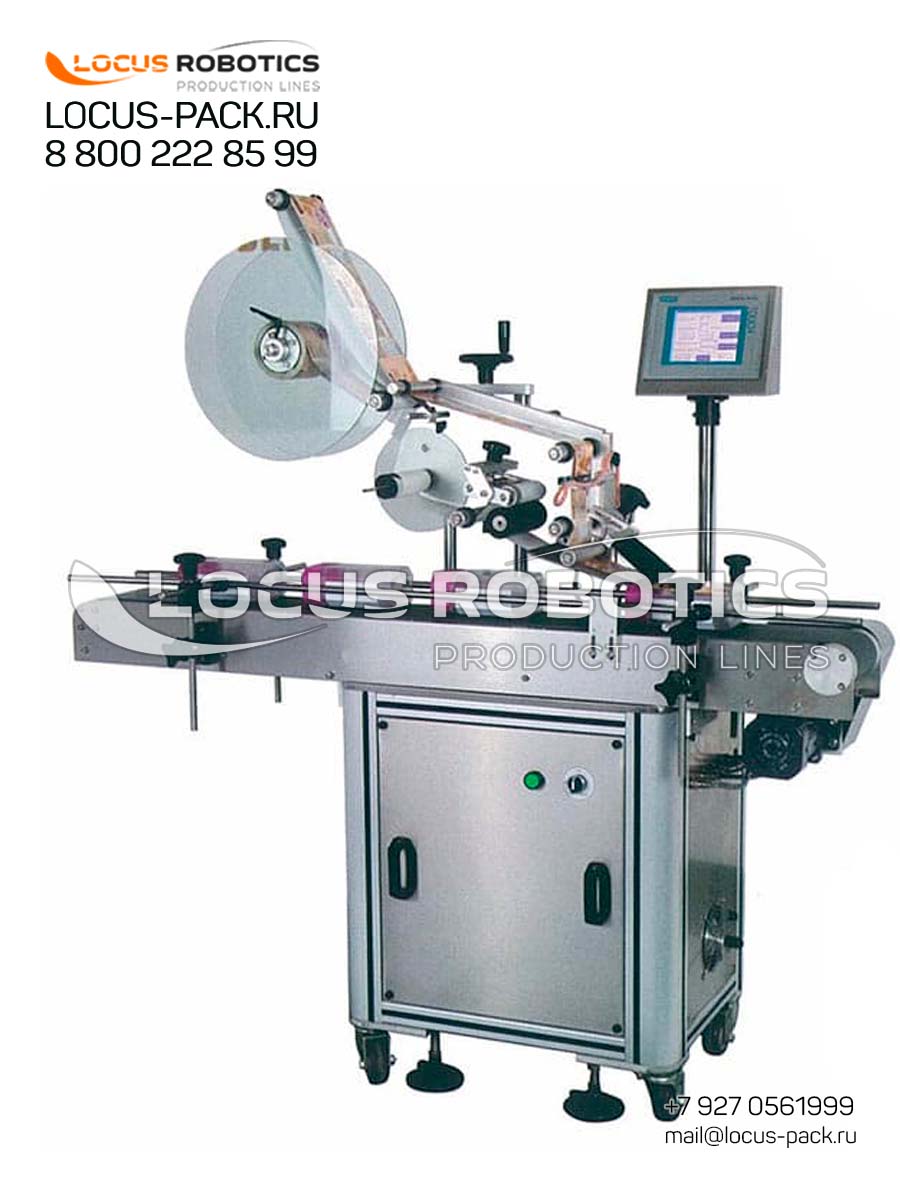

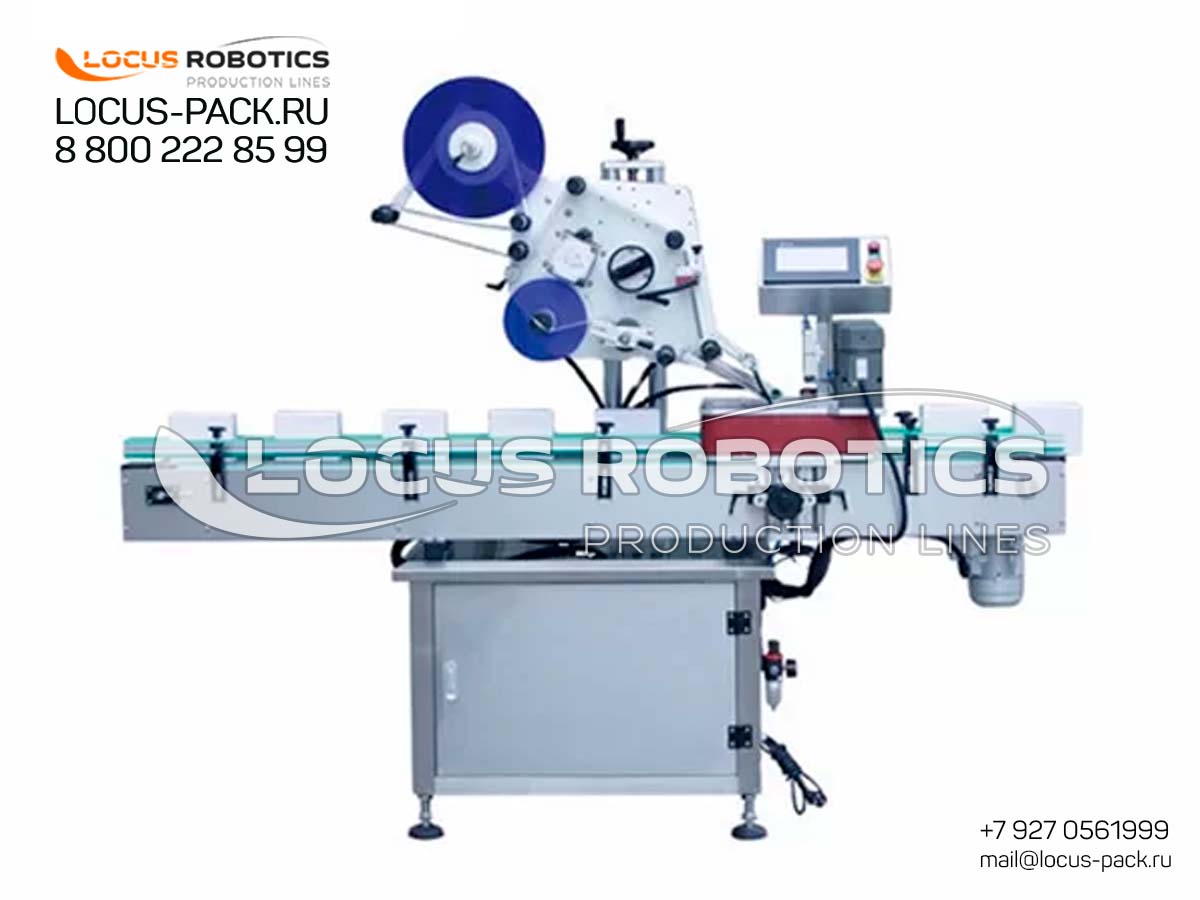

Many labeling challenges require applying a label to a surface that is not accessible to a standard side-mounted applicator. This LL-200 configuration solves this by utilizing a true vertical application head, allowing for precise placement on the top of a lid, the bottom of a box, or a specific side panel. This capability is crucial for tamper-evidence seals, bottom barcodes, instructional labels on lids, or branding on box tops.

Precision Vertical Applicator Technology

• Direct Vertical Application: The machine is equipped with a vertical label applicator that peels and applies the self-adhesive label from above or below (depending on configuration) directly onto the target surface with high accuracy.

• Stable Product Handling: Products are conveyed and positioned under the applicator using guides, nests, or a specialized conveyor system to ensure they remain stable during the vertical label application process.

• Accurate Sensing & Triggering: An optical sensor detects the presence and position of each item, sending a signal to the applicator for perfectly timed label discharge.

Versatile Handling for Diverse Products

This line is designed for flexibility and can be configured to handle a wide array of products:

• Container Components: Lids, caps, and closures for bottles and jars.

• Secondary Packaging: Folding cartons, boxes, and case trays.

• Finished Products: Small consumer goods, electronic device housings, or industrial parts that require a top/bottom label.

• Integration: Can be configured as a standalone station or integrated into a packaging line after a cartoner, filler, or capper.

Technical Specifications & Configuration

Your Solution for Multi-Surface Labeling

• Solve Unique Application Challenges: This machine addresses specific tasks where label placement on a horizontal surface is required, filling a gap in standard labeling solutions.

• Enhance Product Presentation & Compliance: Apply tamper-evident seals, expiration dates on lids, or tracking barcodes on box bottoms with precision and reliability.

• Global Support & Adaptability: For manufacturers in Southeast Asia, Africa, the Middle East, Latin America, and Eastern Europe, we provide localized support, voltage customization (110V-480V), and engineering expertise to adapt the system to your specific products and production environment.

Need to apply labels to lids, boxes, or other horizontal surfaces? Contact our engineering team to discuss your vertical labeling requirements and receive a tailored system proposal.
