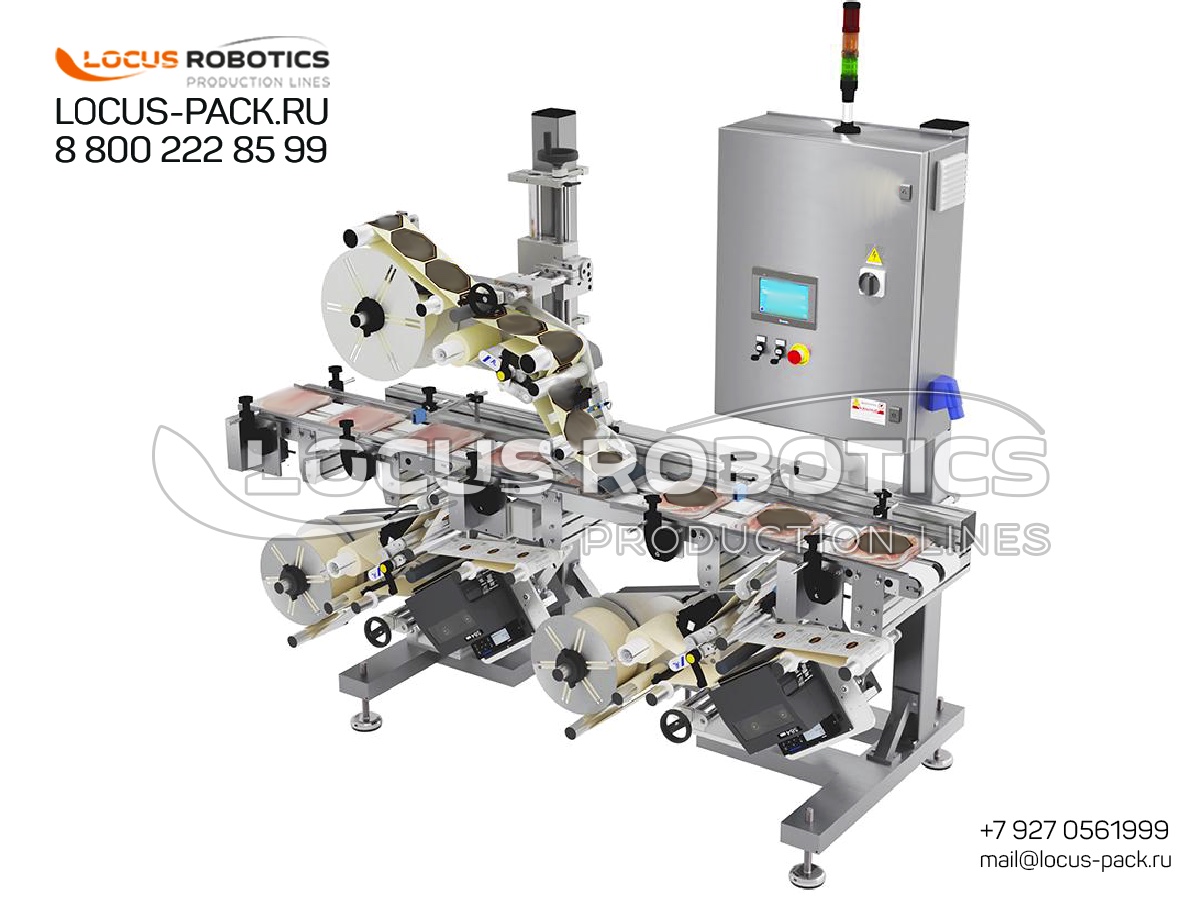

LL-200 Labeling Machine with Three Applicators | 1-Top & 2-Bottom Labeling for Bags & Packs

Complex Multi-Label Application: One on Top, Two on Bottom.

This advanced LL-200 configuration is engineered for packaging lines where a single package requires multiple, precisely placed labels on opposite sides. By utilizing three independent applicators, it can handle tasks like applying a main product label on top while simultaneously placing two separate labels (e.g., barcode and ingredient list, or two promotional stickers) on the bottom, all in one efficient pass.

Key Features & Technical Advantages

• Three-Applicator Precision: Features a top-mounted vertical applicator and two bottom-mounted applicators (configurable as standard or printer-applicators) to apply up to three different labels onto a single flat item with exact placement.

• Designed for Flat Flexible Packaging: Excellently handles bags, Doy-Pack pouches, sachets, flat cartons, folded boxes, and packs that require labeling on specific top and bottom faces.

• Positive Item Handling & Feeding: Equipped with a dual-belt conveyor, side pressure belts for centering, and an optional sheet feeder («flipper») to automatically present stacked or nested bags/packs for consistent, hands-free feeding.

• Optional Print & Apply Capability: The bottom applicators can be specified as printer-applicators for on-demand printing and application of variable data (like serial numbers, expiry dates, or batch codes) directly onto the package.

• High-Speed Integration: Designed as a floor-standing unit that seamlessly integrates into automated bagging lines, form-fill-seal equipment, or end-of-line packaging systems.

Technical Specifications

Industries & Applications

This machine solves specific multi-label challenges in various sectors:

• Food & Beverage: Applying a top brand label and two bottom labels with barcode, price, and ingredients on snack bags or pouches.

• Pharmaceuticals & Nutraceuticals: Placing a product name on top and two separate labels with dosage instructions and regulatory info on the bottom of sachets or cartons.

• Cosmetics & Personal Care: Labeling sample sachets or flat packs with a front logo on top and two labels with instructions and promotions on the bottom.

• Chemicals & Industrials: Adding a top hazard symbol and two bottom labels with handling instructions and batch data on chemical pouches.

Configuration & Operational Workflow

• Standard Setup: Includes a dual-belt conveyor, one top applicator on a multi-stand, two bottom applicators, side pressure belts, optical sensors, and a control cabinet.

• Operation: Items are fed manually or via sheet feeder. Side belts center the item. Sensors trigger the top applicator first, then the two bottom applicators in sequence as the item passes, all in a single motion.

• Advanced Integration: Acts as a key module for adding sophisticated, multi-faceted labeling to automated flexible packaging lines.

The LOCUS Advantage:

Engineering for Complex Tasks

• Solving Unique Labeling Challenges: We provide tailored engineering solutions for applications requiring multiple, precisely oriented labels on a single item.

• Global Support Network: 24/7 multilingual technical support and rapid spare parts service from hubs in Dubai (MENA), Hanoi (SEA), and Lagos (Africa) ensure global reliability.

• Performance & Compliance: Built to deliver consistent accuracy, with GMP-ready options and support for validation protocols where required.
