Description

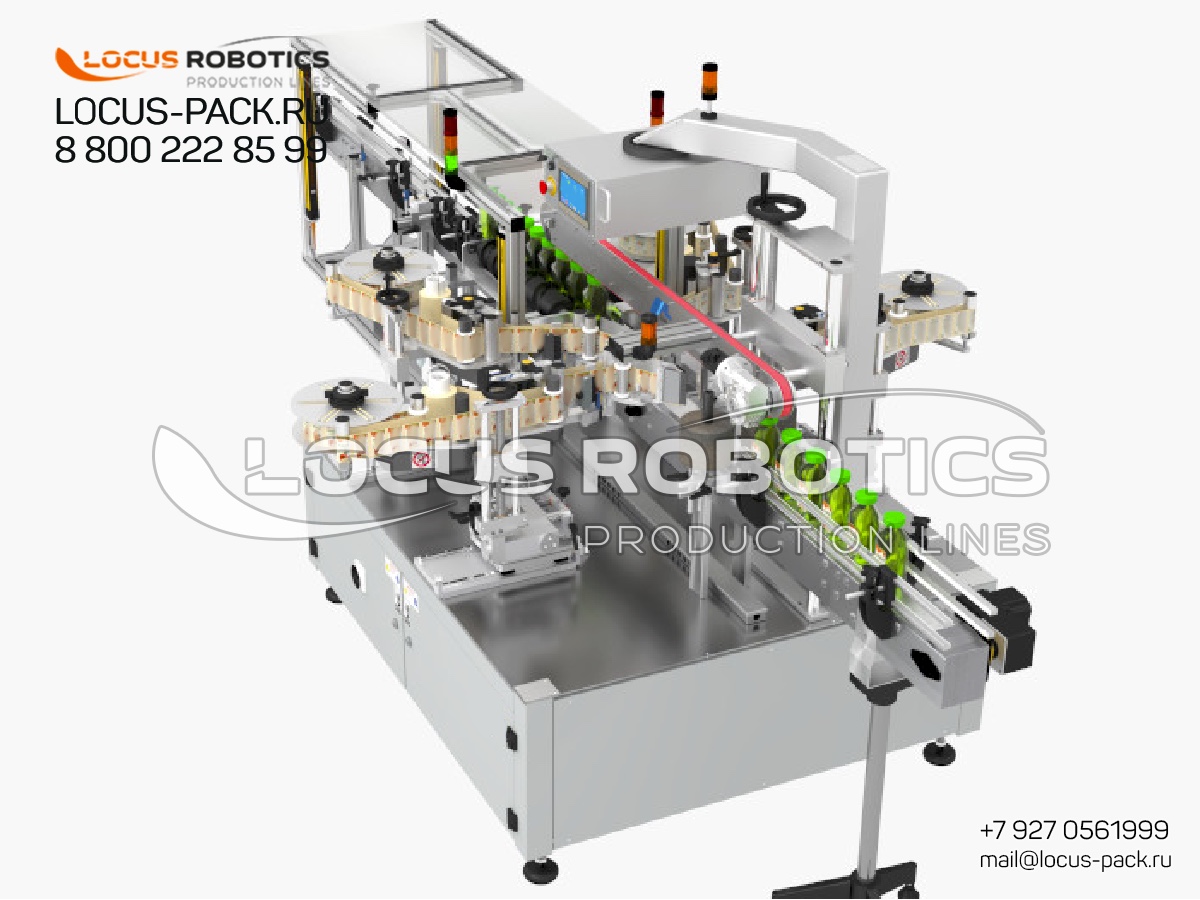

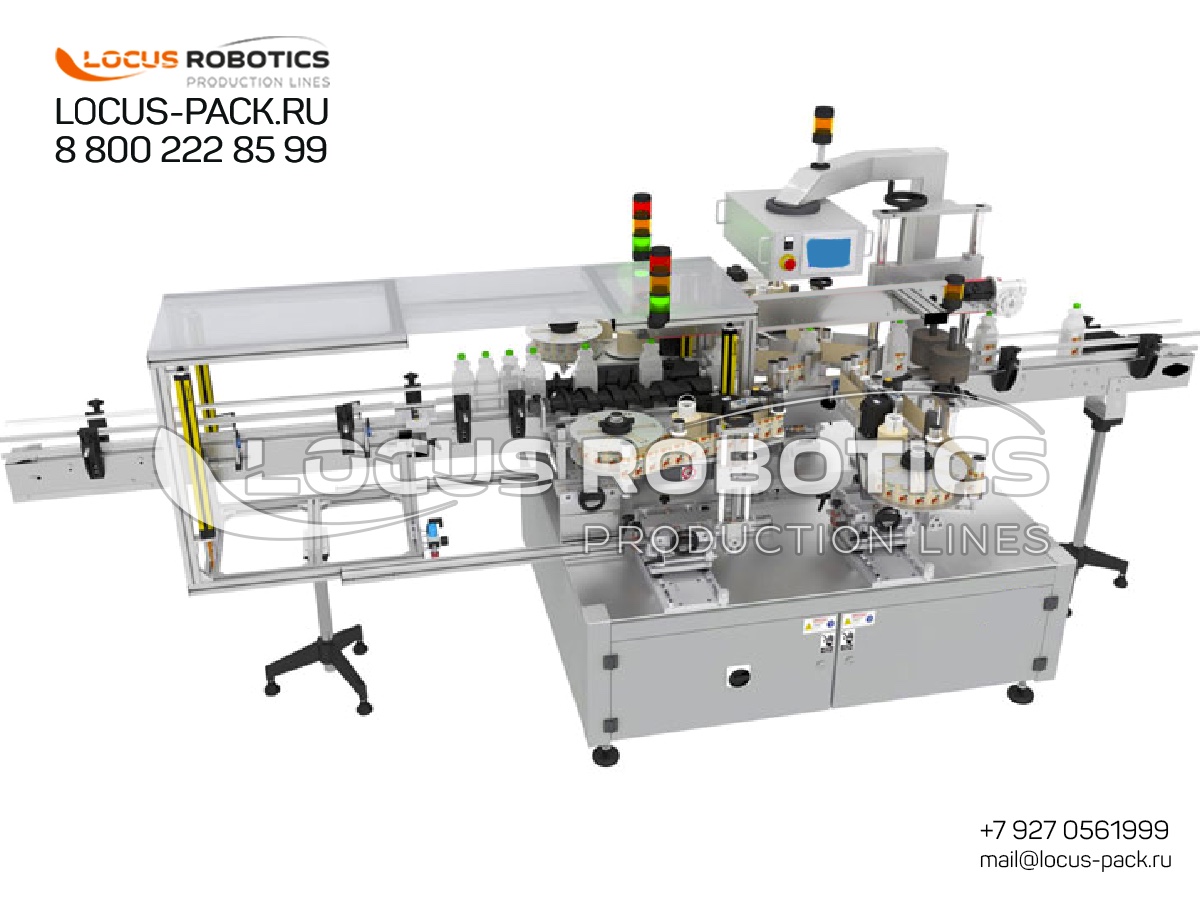

LL-200 Labeling Line with Dual Backup Applicators | Uninterrupted Operation & Zero Downtime Labeling

Eliminate Downtime: Automatic Label Roll Change for 24/7 Production.

Eliminate Downtime: Automatic Label Roll Change for 24/7 Production

This specialized LL-200 configuration is the ultimate solution for manufacturers who cannot afford production stoppages. By integrating redundant label applicators, it solves the critical bottleneck of manual roll changes, ensuring your labeling process continues seamlessly for days, boosting overall equipment effectiveness (OEE) and securing your output.

Key Features & Technical Advantages

• Zero-Downtime Operation: The system is equipped with four applicators in total: two primary and two backup. When a primary label roll runs out, the backup applicator automatically engages, allowing the machine to run continuously while the operator replaces the empty spool.

• Extended Uninterrupted Runtime: This design enables true non-stop operation, capable of running through multiple work shifts without interruption, ideal for 24/7 production schedules.

• Precision Dual-Side Labeling: Utilizes left and right LOCUS LABEL series applicators for simultaneous, accurate application of front and back labels on square, rectangular, or oval containers.

• Superior Finish on Complex Shapes: Incorporates a top-pressure conveyor, side guide belts (orienters), and foam polyurethane drive rollers or brushes to ensure wrinkle-free smoothing on flat, convex, or concave surfaces.

• High Integration Ready: A floor-standing linear labeler that can operate as a standalone station or be fully integrated into automated filling, capping, rinsing monoblocks, or triblock lines.

Technical Specifications

Industries & Applications

This high-availability labeler is critical for continuous production environments in:

• Pharmaceuticals & Biotechnology: Labeling critical vaccine vials, medicine bottles, and IV bags where batch integrity and continuous processing are paramount.

• Cosmetics & Personal Care: High-speed labeling of premium lotion bottles, serum vials, and cream jars in 24/5 production facilities.

• Food & Beverage: Labeling bottles, jars, and elliptical containers for sauces, oils, and beverages where line stoppages equate to significant product loss.

• Chemicals & Home Care: Labeling detergent bottles, chemical canisters, and refill pouches in large-scale, automated packaging halls.

Configuration & Line Integration

• Redundant Core System: Built around the dual-pair applicator setup, plus standard conveyor, orienting belts, smoothing system, and control cabinet.

• Seamless Integration: Designed to be a plug-and-play module within larger LOCUS packaging ecosystems, connecting directly to filling, capping, and rinsing machines.

• Operational Workflow: Containers are fed onto the conveyor; sensors trigger labeling. The machine manages applicator redundancy automatically, requiring manual intervention only for spent roll replacement without stopping the line.

The LOCUS Advantage: Built for Maximum Uptime

• Engineered for Reliability: This configuration reflects deep engineering expertise in solving real-world production bottlenecks, specifically the costly problem of labeling downtime.

• Global Support Network: 24/7 multilingual technical support and strategically located spare parts hubs in Dubai (MENA), Hanoi (SEA), and Lagos (Africa) ensure quick response globally.

• Compliance & Validation Ready: Built with GMP in mind, featuring 316L stainless steel contact parts and offering full support for validation protocols (IQ/OQ/PQ), crucial for regulated industries.
