Description
LL-200 Automatic Labeling Line for Simultaneous Application on Top and Bottom Surfaces Specialized Automation for Dual-Surface Labeling. Move beyond the limitations of standard horizontal label applicators. The LL-200 Top & Bottom Line is a purpose-built automation solution that addresses unique packaging requirements. Its intelligent design allows for seamless integration into cartoning machines, filling lines, or pouch packaging systems, applying critical identification, instructional, or promotional labels precisely where they are needed—on both the top and bottom of your product.
Precision Engineering for Flawless Dual Application
-

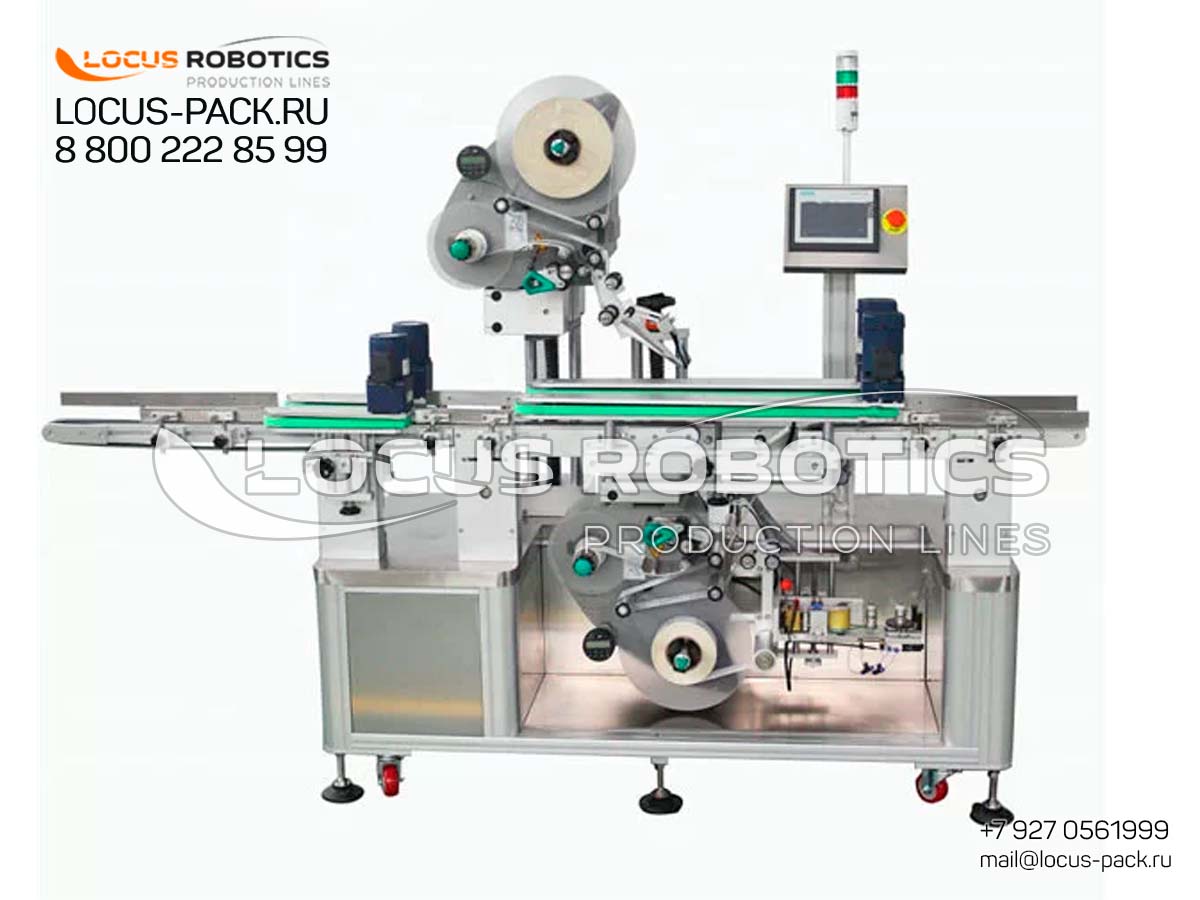

Synchronized Dual-Head System: The core of the machine features perfectly timed upper and lower label applicators, working in unison to place labels with millimeter accuracy on both surfaces as the item passes through.
-

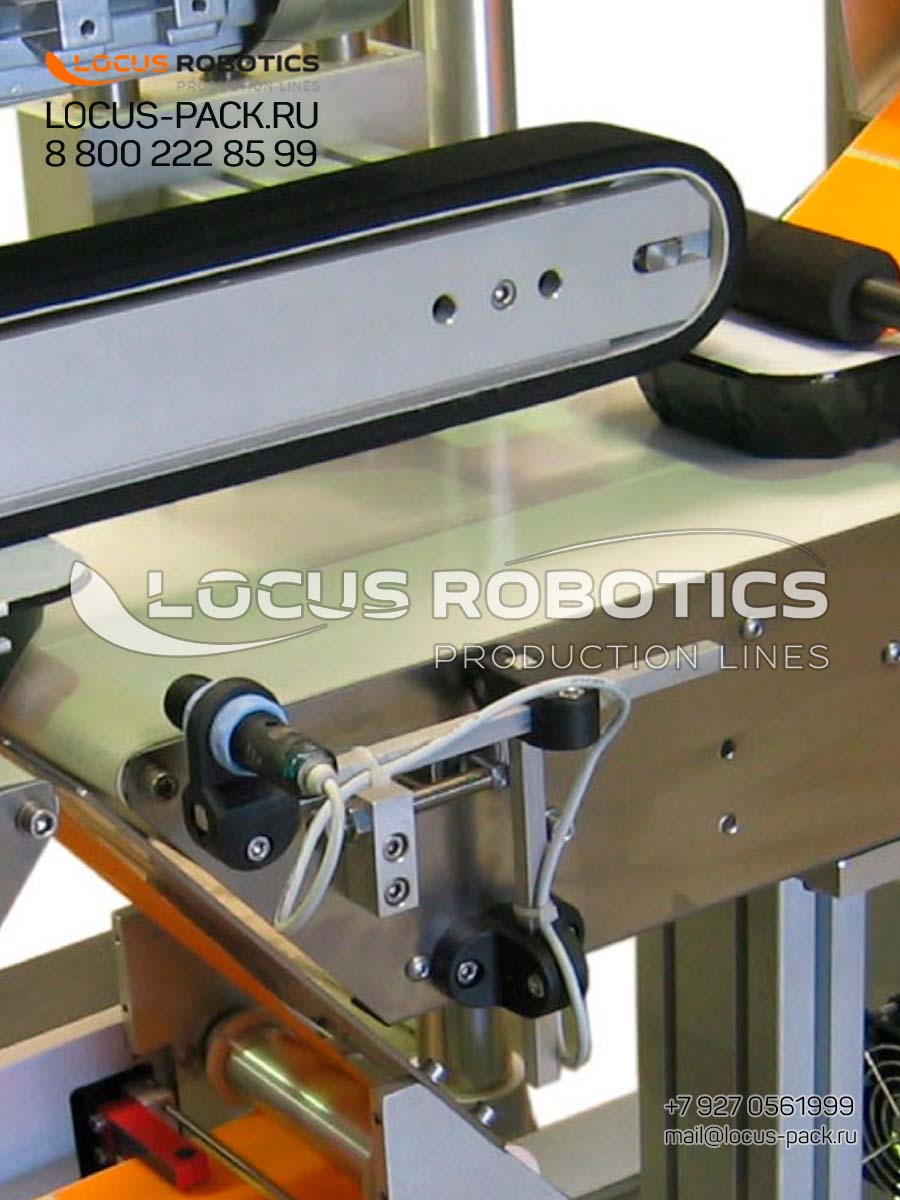

Advanced Item Handling & Control: An adjustable belt conveyor, combined with side pressure belts and guides, ensures each box, pack, or pouch is perfectly centered and stabilized at high speeds. An optical sensor provides precise trigger signals.
-
Versatile Processing Capability: Handles a wide range of items from filled boxes and rigid containers to folded cartons and flexible pouches. An optional sheet feeder (turner) can be added to automatically feed and orient stacked/flat packs or bags into the labeling stream.
Technical Specifications & Modular Design
| Feature | Specification / Description |
|---|---|
| Primary Function | Simultaneous top and bottom pressure-sensitive label application |
| Target Items | Boxes, cartons, packs, containers, Doypack/sachet pouches, folded boxes |
| Core System | Dual (upper & lower) heavy-duty label applicators; Optical sensor |
| Conveyance | Belt conveyor with side pressure guides and top pressure belt |

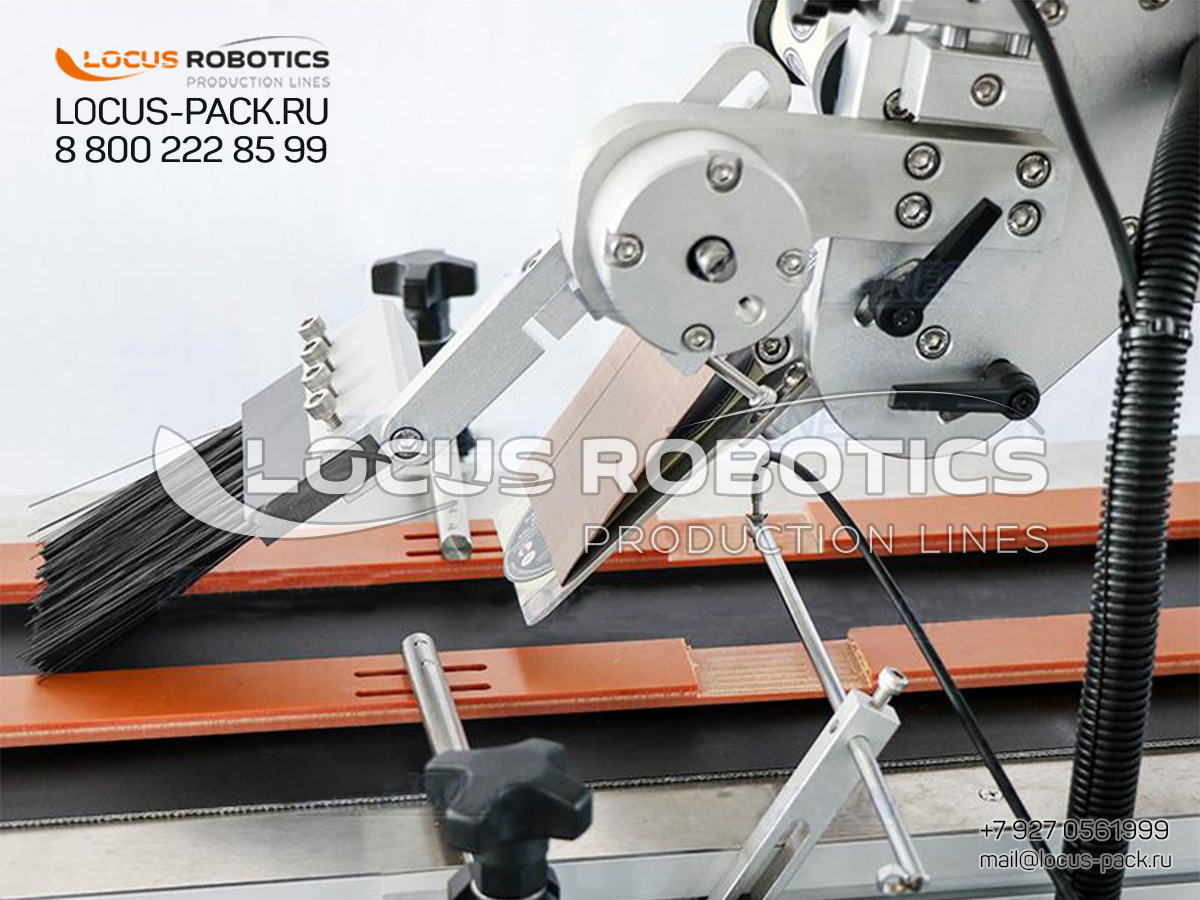

| Finishing | Pressure brushes or rollers for smooth adhesion on both surfaces |
| Control & Integration | Centralized control panel, designed for in-line integration |
| Key Options | Third (side) label applicator, automatic sheet feeder for pouches/packs |
Key Benefits of the Top & Bottom LL-200 Line
-
Eliminate a Secondary Process: Applying labels to two sides in one operation removes the need for a second machine or manual handling step, doubling your labeling efficiency and reducing labor costs.
-
Unmatched Accuracy & Consistency: Automated, sensor-driven application ensures every label is placed in the exact required position on both surfaces, eliminating human error and product waste.
-
Maximize Line Flexibility: Quick adjustments and modular options (like a third applicator) allow you to adapt to new packaging formats or labeling requirements swiftly, future-proofing your investment.
-
Seamless Production Integration: Designed to be the perfect addition after a cartoner, filler, or pouch machine, creating a continuous, high-speed packaging line for maximum throughput.
