Description

Automatic Linear Case Packer with Side Loading

Product Overview & Technical Specifications

System Overview

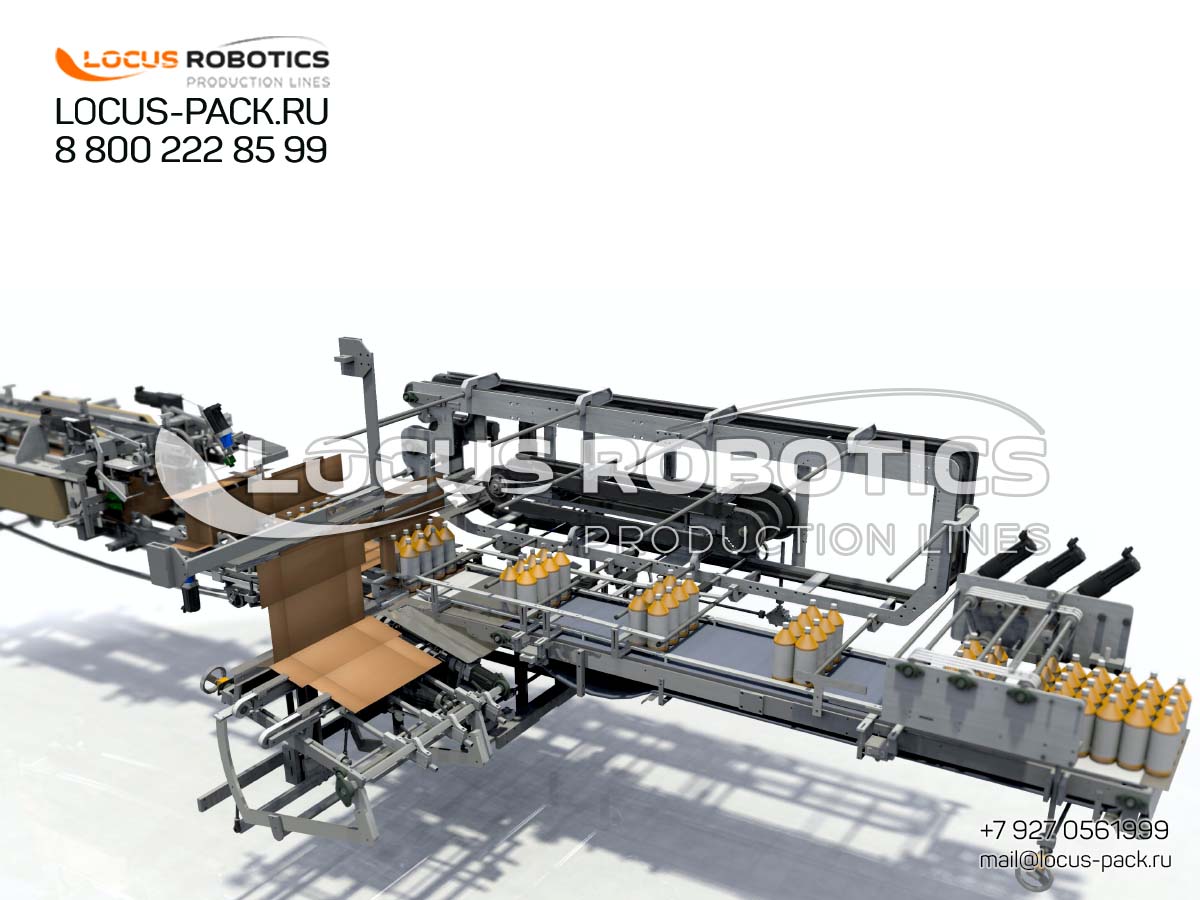

The LRCP-100 appears to be a fully automated case packing system specifically engineered for handling various bottle types and sizes with side-loading functionality. This system combines case erecting, bottle grouping, side-loading, and case sealing functions in a single integrated system. The machine is constructed with stainless steel materials to meet hygiene standards required for beverage and food packaging applications.

The system employs servo motor technology for precise movement control and PLC-based automation for operational management. The LRCP-100 features quick-change capabilities allowing for rapid format adjustments between different container sizes and package configurations.

Technical Specifications

Technical Specifications for LRCP-100 Automatic Case Packer

Core Features & Technological Advantages

Side-Loading Technology

The LRCP-100 incorporates specialized side-loading technology that enables unique bottle handling capabilities:

• Gentle product handling: Side-loading minimizes bottle stress during transfer

• Space efficiency: Compact design optimizes production line layout

• Pattern flexibility: Accommodates various packing configurations

• Quick changeover: Rapid adjustments between different bottle formats

This side-loading approach is particularly valuable for fragile containers or products requiring special handling considerations during the packaging process.

Automated Case Handling System

The LRCP-100 incorporates an advanced case erecting system that automatically forms flat corrugated blanks into ready-to-fill cases. This system includes:

• Automatic case magazine that can hold significant quantities of flat blanks

• Suction cup extraction system for precise case handling

• Bottom folding mechanisms for case formation

• Automatic bottom sealing with hot melt adhesive or tape

The machine handles various case styles including Regular Slotted Containers (RSC), Half-Slotted Containers (HSC), and wrap-around cases, providing flexibility for different packaging requirements.

Precision Bottle Handling System

The LRCP-100 incorporates advanced bottle handling technology for accurate grouping and placement of bottles into cases through the side-loading configuration. This may include:

• Gentle handling systems: Preventing bottle damage during transfer

• Pattern formation capabilities: Creating optimal packing configurations

• Vision systems: Ensuring correct bottle orientation and placement

• Quick-change grippers: Adapting to different bottle sizes and shapes

The system achieves high positioning accuracy (typically ±0.5mm to ±1.0mm) as seen in comparable equipment.

Applications & Industry Solutions

Beverage Industry Applications

The LRCP-100 is particularly suited for beverage packaging applications with its side-loading capability and ability to handle various bottle types including:

• Alcoholic beverages: Beer, wine, and spirits in glass bottles

• Non-alcoholic beverages: Water, juices, and soft drinks in plastic bottles

• Premium products: Specialty beverages requiring careful handling

The system’s gentle handling ensures bottle integrity while the precise placement maintains package appearance throughout the distribution chain.

3.2 Food and Consumer Goods Applications

Beyond beverages, the LRCP-100 handles various food and consumer products:

• Edible oils: Glass and plastic bottles of various sizes

• Sauces and condiments: Bottled products requiring careful handling

• Personal care products: Liquids in plastic containers

• Household chemicals: Cleaning products in durable packaging

The machine’s versatile design and quick changeover capabilities make it suitable for producers with diverse product portfolios.

4 Comparative Analysis with Similar Machines

Comparison with Similar Case Packing Systems

Operational Benefits and ROI Considerations

Production Efficiency

The LRCP-100 offers significant operational benefits:

• Labor reduction: Automation reduces manual packing requirements

• Increased throughput: High-speed operation boosts production capacity

• Consistent quality: Automated systems ensure uniform packaging

• Space optimization: Compact design maximizes floor space utilization

Economic Considerations

The machine offers favorable return on investment through:

• Reduced product damage: Gentle handling minimizes losses

• Lower labor costs: Automation reduces manual labor requirements

• Material optimization: Efficient packing reduces material usage

• Improved uptime: Reliable operation reduces downtime

Implementation and Support Considerations

Integration Requirements

Implementing the LRCP-100 would require:

• Factory space assessment: Ensuring adequate space and utilities

• Existing line integration: Connecting with upstream and downstream equipment

• Operator training: Ensuring staff competency with the new system

• Maintenance planning: Establishing preventive maintenance routines

Support and Service

The LRCP-100 comes with:

• Comprehensive warranty: Typically 12 months or more

• Technical support: Remote and on-site assistance

• Spare parts availability: Ensuring minimal downtime

• Training programs: For operators and maintenance staff

By implementing this technology, producers can achieve higher throughput, improved package quality, and reduced operational costs while maintaining flexibility in their packaging operations. The side-loading configuration adds significant value by addressing specific bottle handling needs that may not be adequately met by traditional top-loading systems.
