RC-100 Isobaric Monoblock for Mineral Water and Carbonated Beverages in PET Bottles

Built for Speed and Reliability in High-Volume Bottling.

The Ideal Solution for Mineral Water and CSD Producers.

• Zero Carbonation Loss: Isobaric filling technology maintains pressure throughout the process, preserving CO2 content and preventing foaming.

• Extremely High Output: Engineered for speeds exceeding 6,000 bottles per hour to meet the demands of large-scale production.

• Exceptional Accuracy: Achieves fill level accuracy of ±1.5mm, ensuring consistent volume and reducing product giveaway.

• Durable Construction: Built with corrosion-resistant materials to withstand the demanding environment of a beverage plant.

Preserve Every Bubble: Precision Filling for Carbonated Beverages
For producers of carbonated drinks, preserving carbonation (CO2) is the single most important factor in filling technology. The RC-100 Isobaric Monoblock is engineered to master this challenge. It creates a perfectly sealed, pressure-controlled environment that matches the pressure inside the beverage tank, allowing for a smooth, turbulence-free fill without any loss of carbonation. This results in a superior product with consistent fizz, longer shelf life, and eliminates the waste and mess associated with foaming.

Isobaric Technology: How It Prevents Carbonation Loss
The RC-100 operates on a proven isobaric principle:

1. Pressurization: The empty PET bottle is entered into the filling valve and sealed. The system then injects CO2 or air to create a pressure inside the bottle that is equal to the pressure in the product tank.

2. Filling: Once pressure is equalized (isobaric state), the product valve opens. Because there is no pressure difference, the liquid flows into the bottle calmly and without foaming.

3. Decompression: After filling, the pressure is gently released from the bottle’s headspace through a separate channel, preventing any sudden eruption of foam.

4. Discharge: The perfectly filled, fully carbonated bottle is released to the capping station.

Technical Specifications & Performance Data

• Model: RC-100

• Type: Rotary Isobaric Monoblock

• Process: Isobaric (Pressure-Gravity) Filling

• Applications: Carbonated Mineral Water, Sparkling Water, Soft Drinks, Soda, Carbonated Beverages.

• Bottle Sizes: 0.5L, 1.0L, 1.5L, 2.0L (most standard PET sizes)

• Output: Up to 6,000+ bottles per hour (e.g., 100+ bpm on a 100-valve block)

• Filling System: Isobaric Valves with Stainless Steel Liquid Path

  • Filling Accuracy: ±1.5mm (fill height)

  • CO2 Loss: < 0.1 volumes (industry-leading retention)

• Capping System: Integrated rotary screw capper for plastic caps.

• Power Supply: 380V/50Hz/3Ph (standard, configurable for other markets)

• Construction Material: 304 Stainless Steel (316L SS for all product contact parts)

• Control System: Modern PLC with Touchscreen HMI for easy operation and production data tracking

Built for Speed and Reliability in High-Volume Bottling
This machine is built for the relentless pace of a modern beverage plant. Its rotary design ensures continuous operation, while its robust construction and high-quality components minimize downtime. The machine is designed for quick changeover between different bottle sizes and products, maximizing your production flexibility.

The Ideal Solution for Mineral Water and CSD Producers

• Natural Mineral Water Brands: Preserve the natural carbonation of your source water without alteration.

• CSD (Carbonated Soft Drink) Manufacturers: Ensure every bottle of soda, tonic, or mixer has the consistent, expected level of carbonation.

• Large-Scale Bottling Plants: The high-speed capability makes it ideal for national and international brands with massive production volumes.

• Global Export: The machine is built to international standards, making it ideal for producers in emerging markets looking to compete on a global scale.

Key Features Description:
This advanced rotary monoblock is specifically engineered for high-speed packaging of carbonated beverages including mineral water and sweetened soft drinks into PET bottles. The system handles popular container sizes from 0.33L to 2.0L with precision and efficiency. The equipment features a comprehensive processing system including bottle rinsing module, rotary dosing system with vacuum tank and isobaric nozzles, PET cap orienter, and rotary capping mechanism with precise torque control for consistent seal application.

Technical Specifications:

• Container Capacity: 0.33L, 0.5L, 1.0L, 1.5L, 2.0L PET bottles

• Product Compatibility:

  • Mineral water

  • Carbonated soft drinks

  • Sweetened beverages

  • Sparkling drinks

• Key Components:

  • Rotary bottle rinsing module

  • Rotary dosing system with vacuum tank

  • Isobaric filling nozzles

  • PET cap orienting system

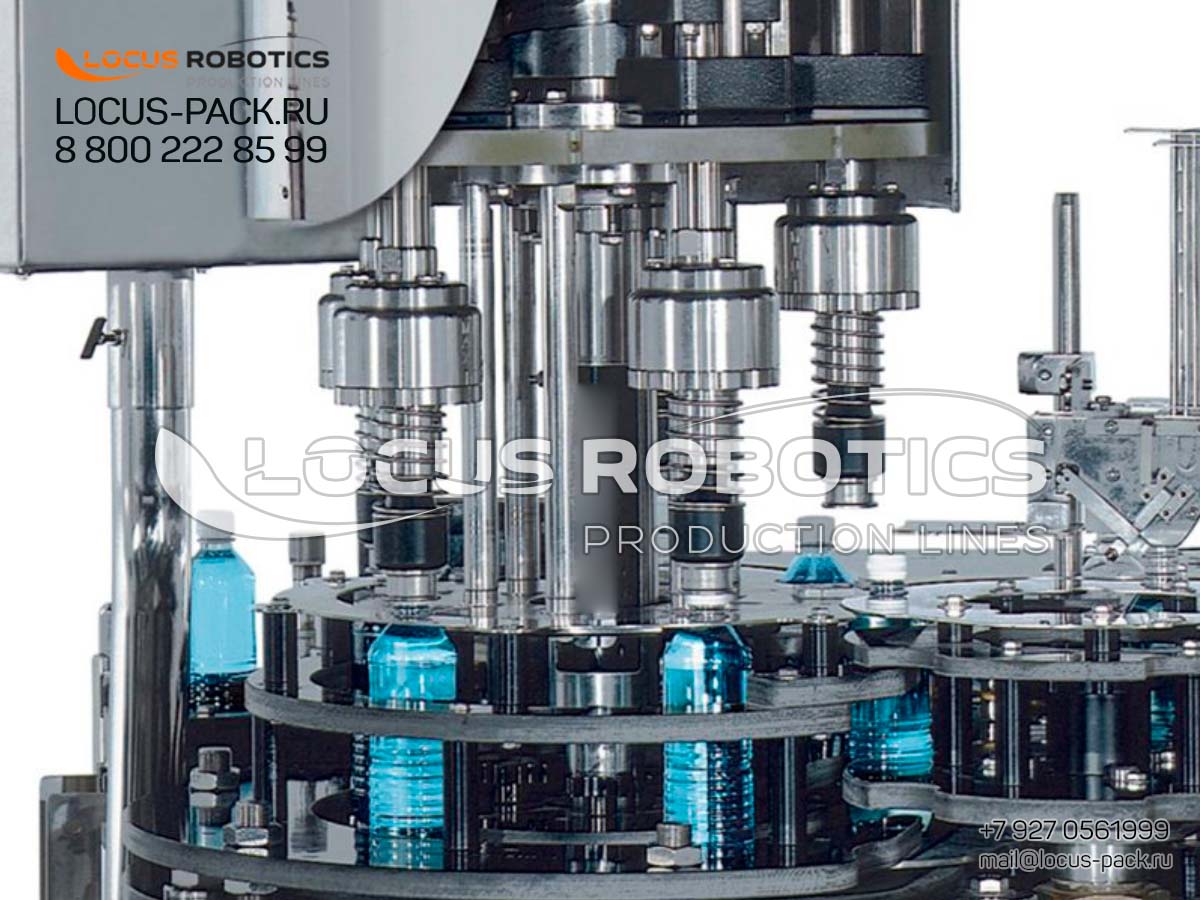

  • Rotary capping mechanism

• Filling Technology: Isobaric pressure filling system

• Capping System: Precision torque control for consistent seal

• Production Capacity: High-speed operation suitable for large-scale beverage production

• Control System: Automated operation with precision parameter adjustment

Technical Advantages:

• Precision Filling: Isobaric nozzles ensure accurate fill levels with minimal product loss

• Carbonation Preservation: Specialized filling technology maintains beverage carbonation

• High Efficiency: Rotary design enables continuous high-speed operation

• Consistent Sealing: Torque-controlled capping ensures uniform seal integrity

• Quick Changeover: Easy adjustment for different bottle sizes and cap types

• Hygienic Design: Easy-clean surfaces and sanitary construction

• Reliable Performance: Robust construction for continuous operation

Applications:

• Natural and flavored mineral water

• Carbonated soft drinks

• Sweetened sparkling beverages

• Energy drinks

• Club soda and tonic water

• Flavored carbonated waters

Operation Features:

• Automatic Bottle Handling: Smooth bottle transfer between stations

• Precision Filling: ±0.5% volume accuracy

• Cap Orientation: Automatic cap sorting and orientation

• Quality Control: Consistent torque application for proper sealing

• User-Friendly Interface: Easy operation and parameter adjustment

• Low Maintenance: Durable components and accessible design

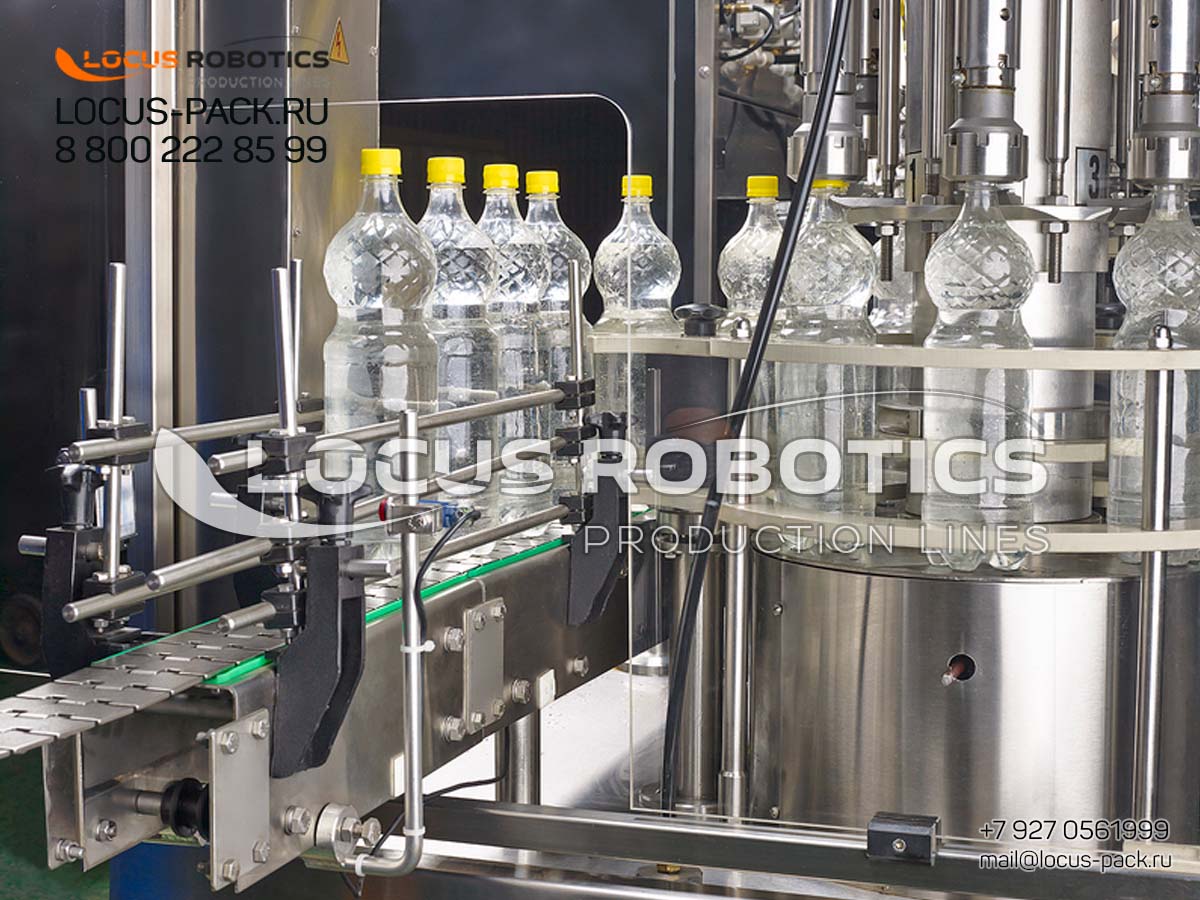

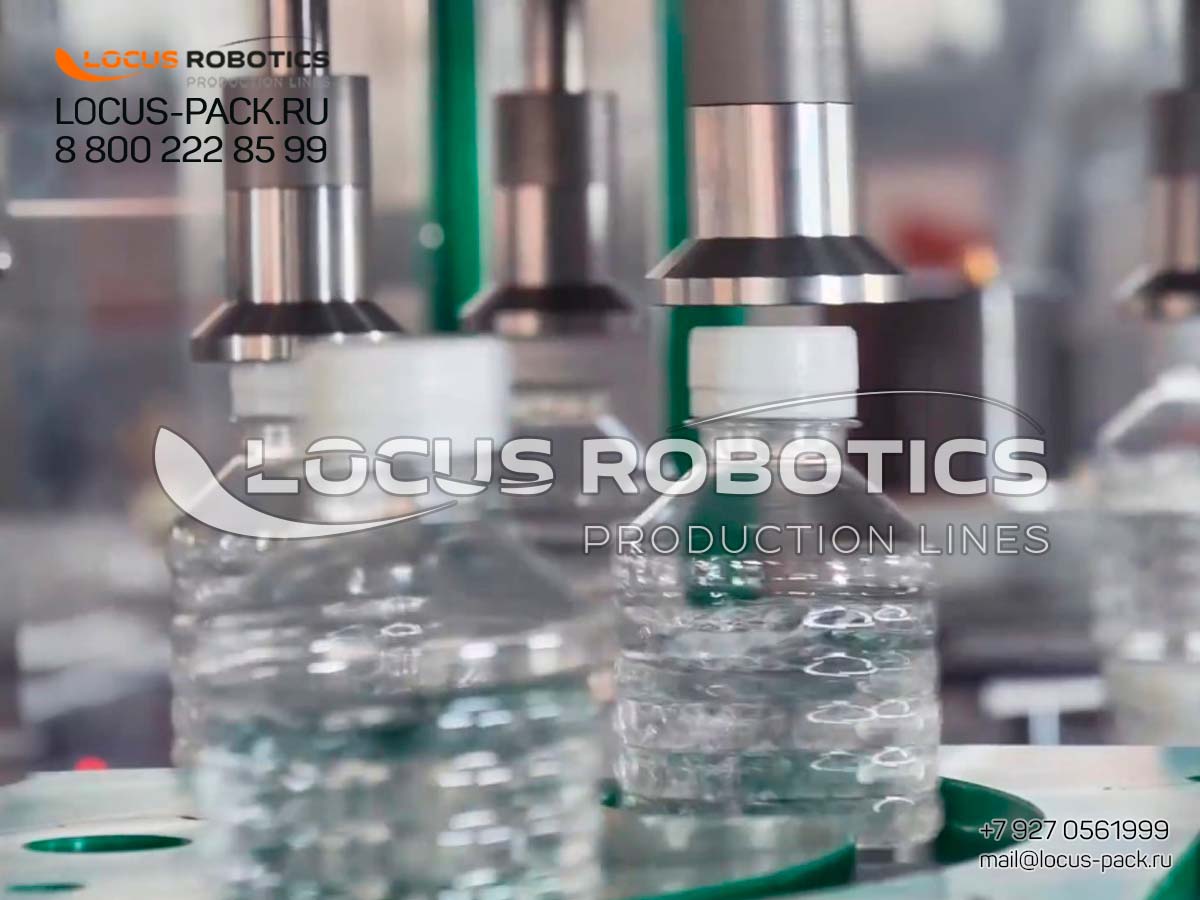

RC-100 Rotary Isobaric Monoblock filling carbonated mineral water into 1.5L PET bottles at a high-speed beverage production facility.

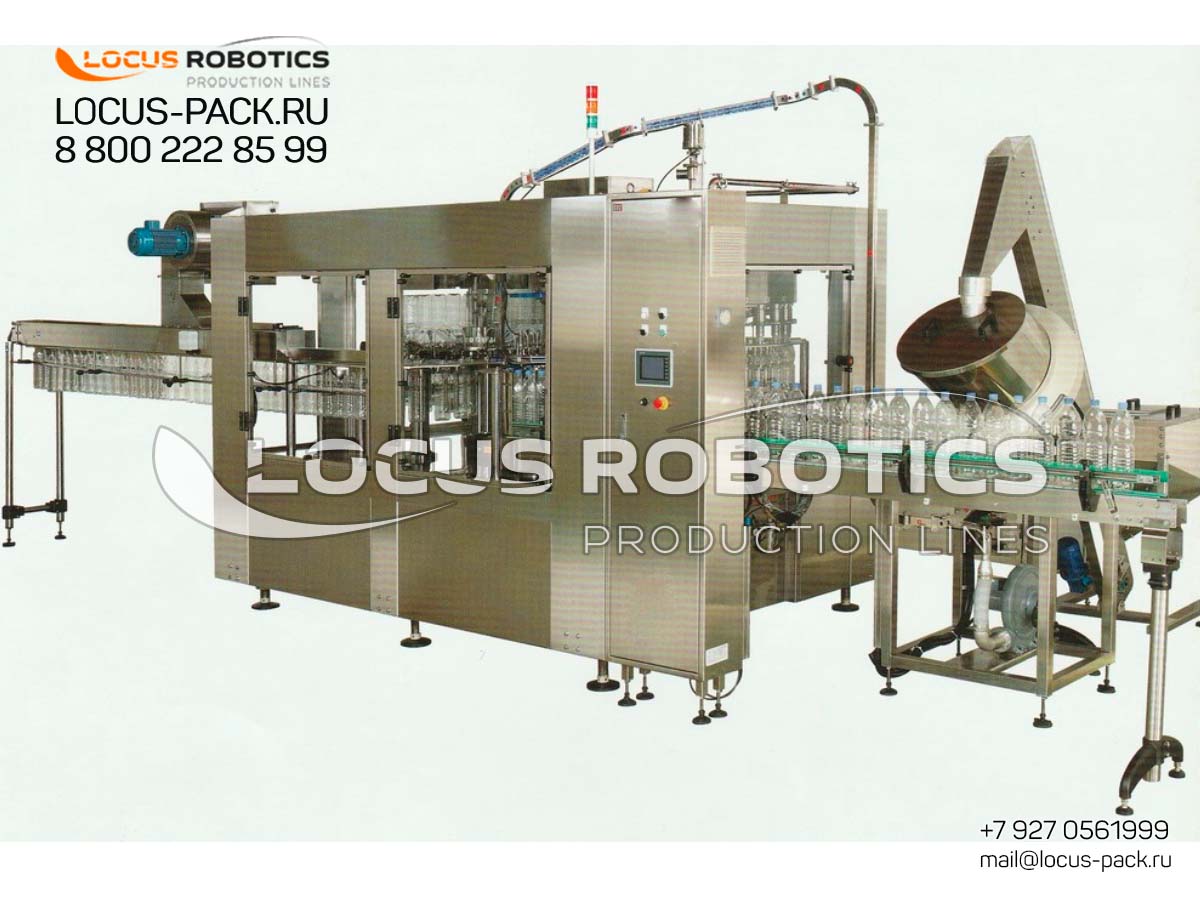

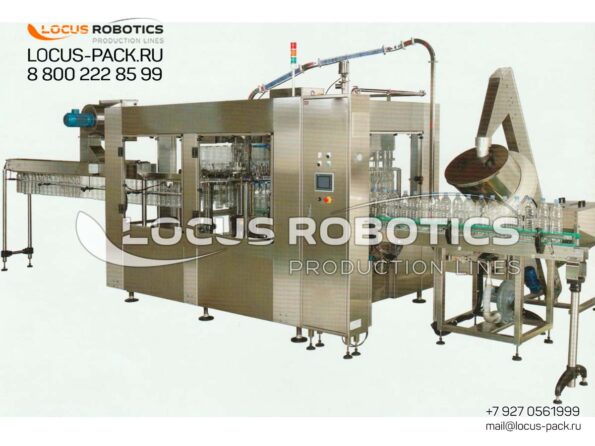

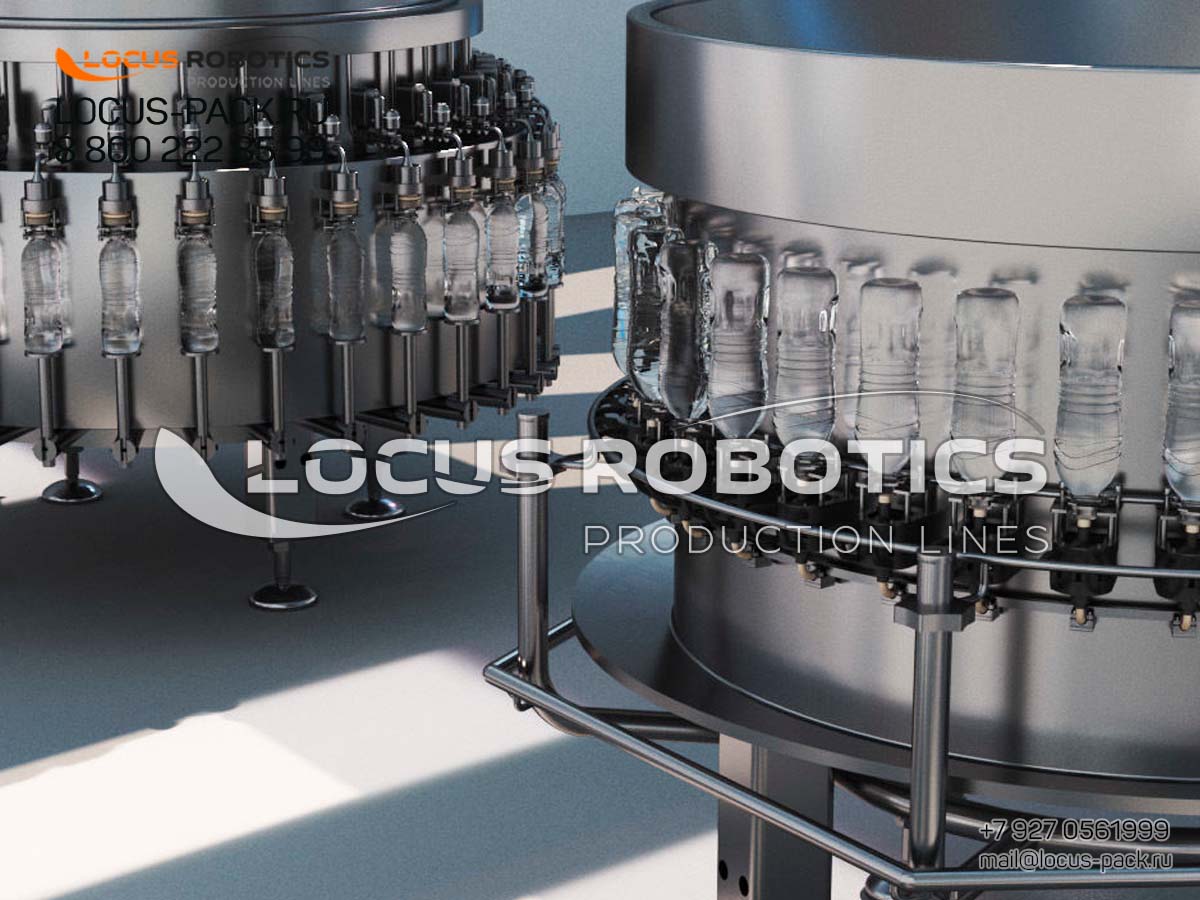

Rotary Rinsing-Filling-Capping Monoblock for Carbonated Beverages — Mineral Water & Soft Drinks Filling Machine.

Preserve Every Bubble: Precision Filling for Carbonated Beverages.

Isobaric Technology: How It Prevents Carbonation Loss.
