Description

Compact, Space-Saving Labeling for Flat Surfaces and Lids

Precision Vertical Application System.

Universal Solution for Pharma, Food, Cosmetics & Chemical Industries.

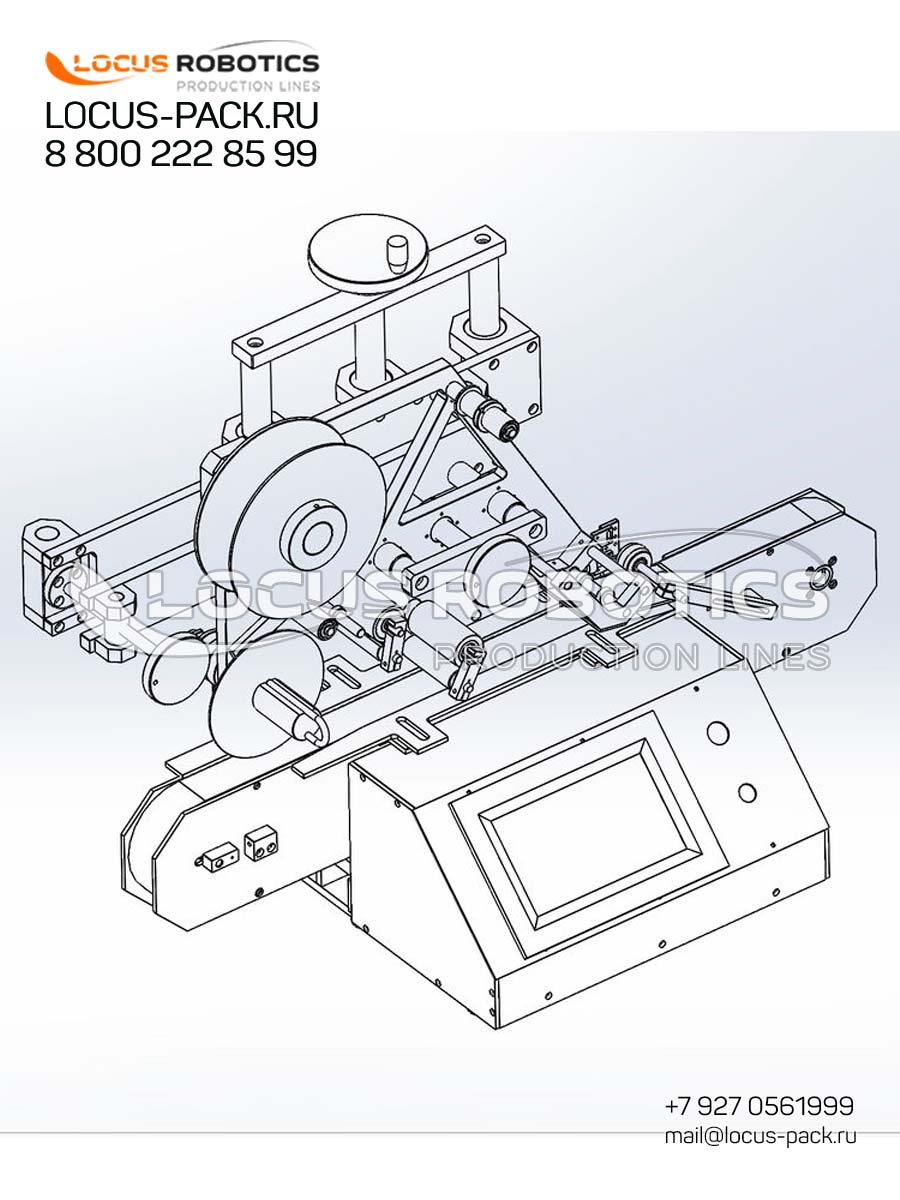

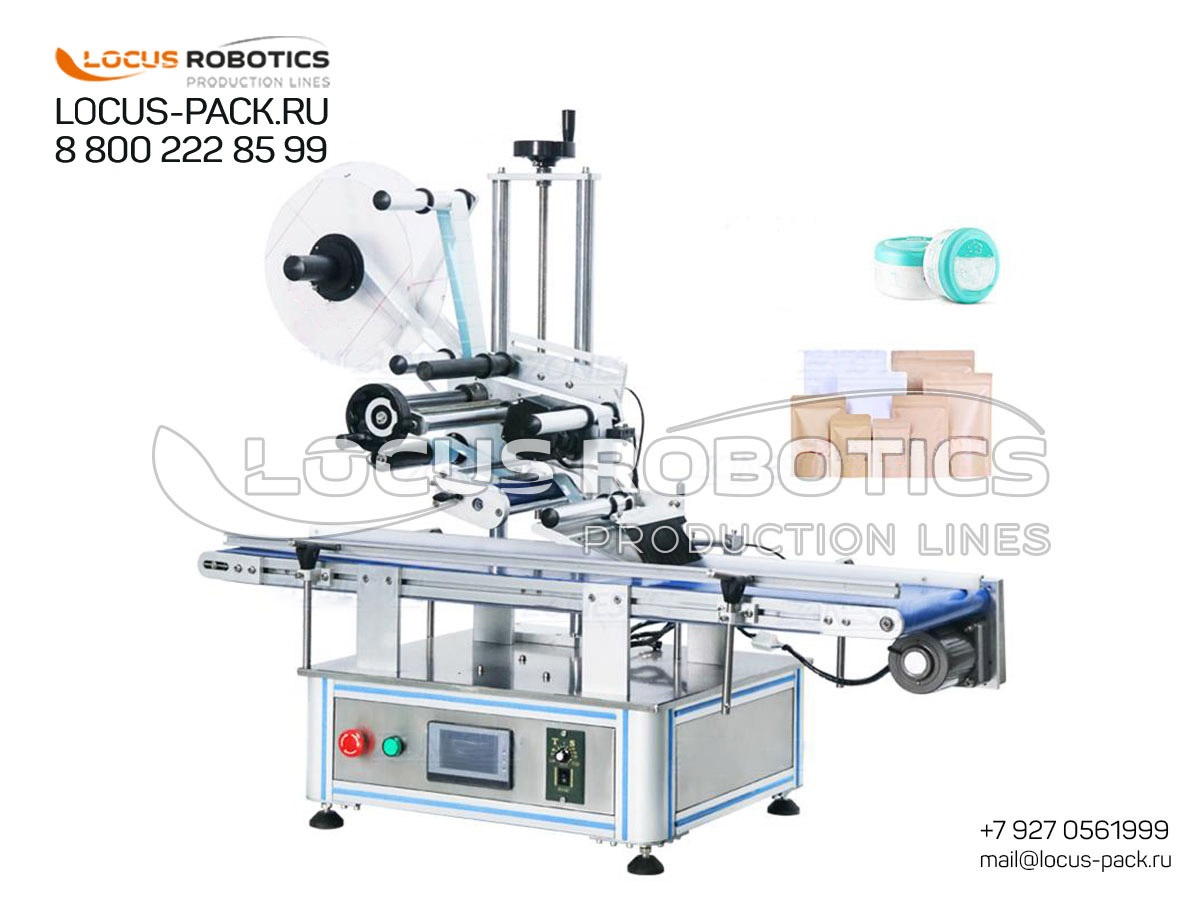

The LL-50 addresses the need for a dedicated, high-precision labeling station for horizontal surfaces. Unlike wrap-around labelers, it applies labels directly from above, making it ideal for labeling the tops of containers, lids of jars, or flat panels of boxes and pouches where a classic horizontal applicator is ineffective or impossible to use.

Precision Vertical Application System

This machine is built for accuracy and flexibility in a compact footprint:

• Vertical Applicator: A top-mounted label head applies pressure-sensitive labels with precision onto the target surface below.

• Stable Conveyor System: A belt conveyor with adjustable guide rails ensures products are transported and correctly positioned under the applicator.

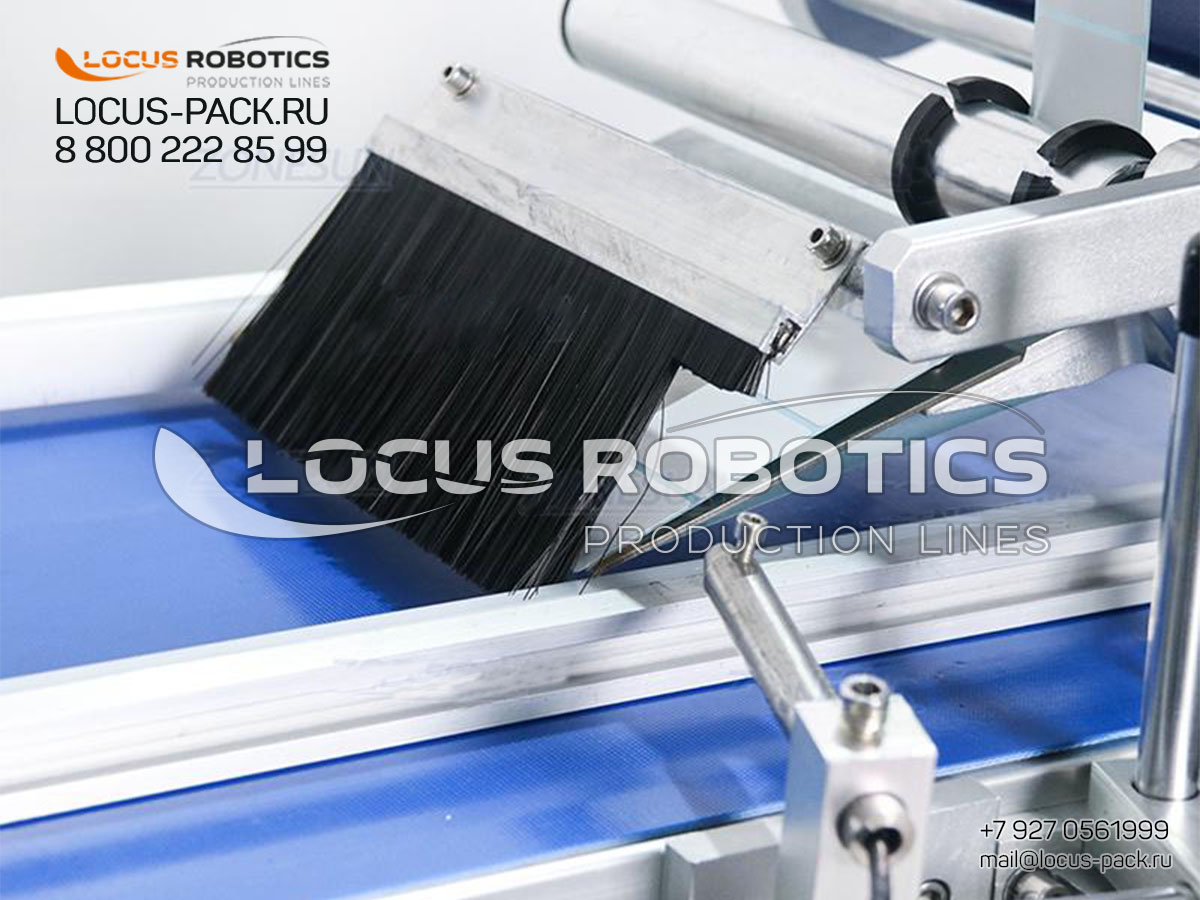

• Automatic Sensing & Smoothing: An optical sensor triggers label application. A pressure brush or roller immediately smoothens the label for perfect adhesion.

• Modular Options: Can be equipped with side pressure belts for better product centering or an automatic feeder (paginator) for stacks of flat cartons or packs.

Technical Specifications & Modular Configuration

Universal Solution for Pharma, Food, Cosmetics & Chemical Industries

• Pharmaceuticals & Nutraceuticals: Labeling the lids of supplement jars, ointment containers, or flat sides of cartons.

• Food & Beverage: Applying labels to the top of pouches, sauce lids, or flat-packed boxes.

• Cosmetics & Personal Care: Labeling luxury gift box tops, lid stickers on cream jars, or flat cosmetic packaging.

• Chemical Industry: Applying hazard labels, barcodes, or instructional labels on the flat surfaces of chemical containers.

Simple, Automated Operation & Easy Integration

Operation is straightforward and efficient:

1. Loading: The operator places items on the conveyor or loads a stack into the optional automatic feeder.

2. Transport & Sensing: The conveyor moves the item. An optical sensor detects its position.

3. Application & Smoothing: The sensor triggers the vertical applicator to dispense and apply the label. A pressure brush or roller immediately smoothens it.

4. Discharge: The labeled item exits, ready for the next packaging step. The line can be configured with one, two, or even three applicators for applying multiple labels in sequence.

The Specialized Solution for Horizontal Labeling Tasks

This machine fills a specific niche in labeling automation. It is the optimal choice when labels must be applied to horizontal surfaces—a task that standard wrap-around or front/back labelers are not designed to perform. Its compact, desktop design makes it an affordable and space-efficient solution for adding this specialized capability to any production line.

Built for Global Compliance and Supported Locally

Engineered for international deployment with a focus on your operational success:

• Certifications & Standards: CE, EAC, ISO 9001. GMP-ready design with 316L Stainless Steel contact parts and cleanability.

• Global Support Network: 24/7 multilingual support (EN/RU/AR/ES). Rapid on-site commissioning (<72 hours) and spare parts delivery from hubs in Dubai (MENA), Hanoi (Southeast Asia), and Lagos (Africa).

• Customization & Validation: Free product compatibility testing and line configuration analysis. Voltage customization (110V-480V) is standard, backed by a 24-month performance guarantee.

Simple, Automated Operation & Easy Integration.

The Specialized Solution for Horizontal Labeling Tasks.
