Reliable Linear Motion for Industrial Automation
Pneumatic cylinders are workhorse actuators in factory automation, used for tasks such as pushing, pulling, lifting, clamping, and pressing. They are characterized by their simple design, high speed, and durability, making them a cost-effective choice for many applications.
Types of Pneumatic Cylinders
Pneumatic cylinders are primarily classified into two main types based on their operation:
-
Single-Acting Cylinders: Compressed air moves the piston in one direction, and a spring returns it to the original position. They are simpler and use less air but provide force in only one direction.
-

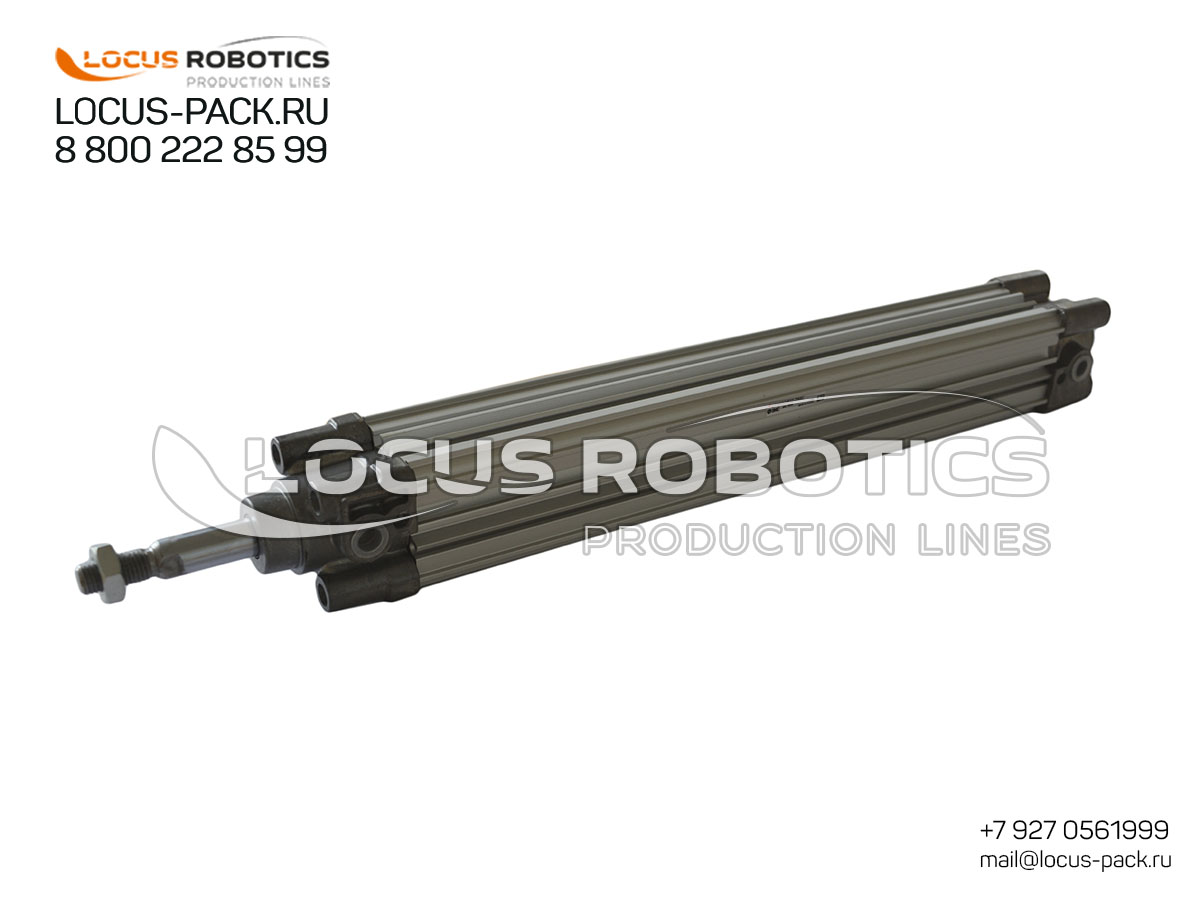

Double-Acting Cylinders: Compressed air is used to both extend and retract the piston, providing controlled force in both directions of movement.
Key Features & Direct Benefits
-
High Force Output: Despite their compact size, these cylinders can generate significant force. The output force is directly related to the bore diameter and air pressure.
-
Robust Construction: Many quality cylinders are manufactured from honed aluminum or stainless-steel bar stock, which ensures a long service life and reliable performance over many cycles.
-

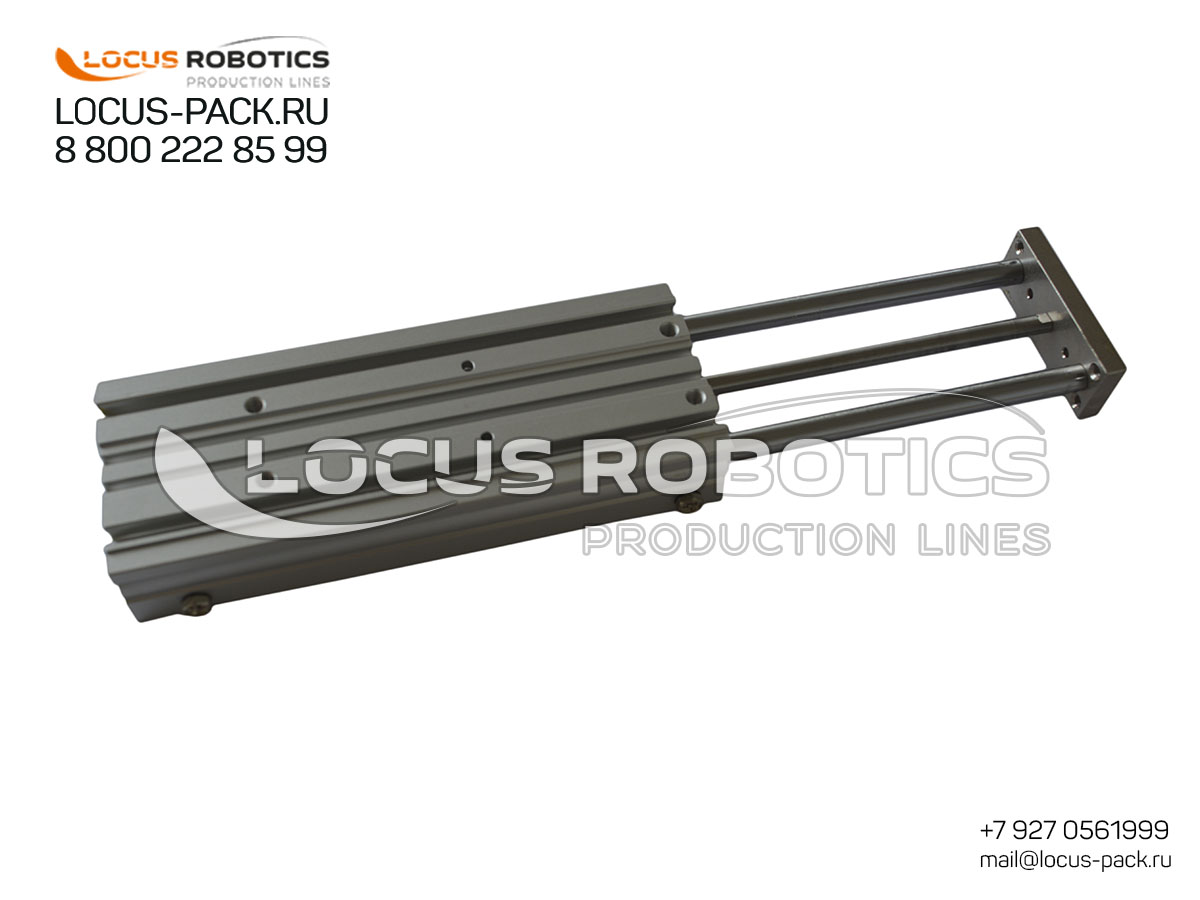

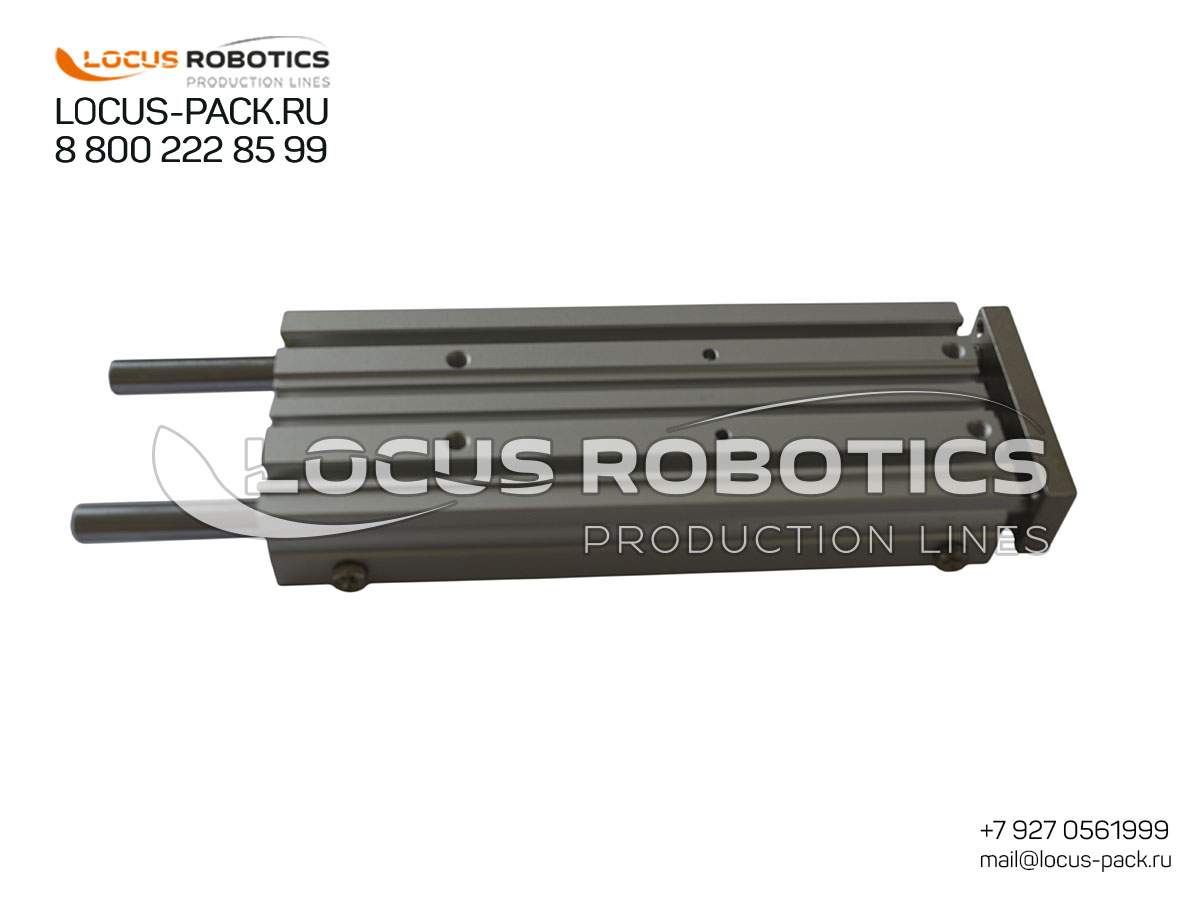

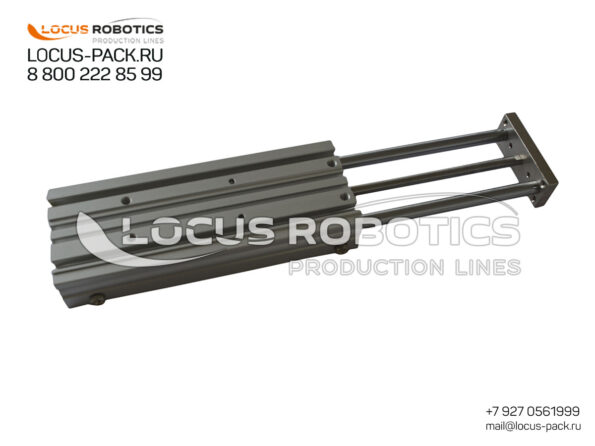

Compact Design: Ideal for machinery and automated systems where space is limited, allowing for powerful actuation in a small footprint.
-
Multiple Mounting Options: Available in various mounting styles (foot, flange, rear clevis) to facilitate easy integration into your existing systems.
📋 Technical Specifications and Selection

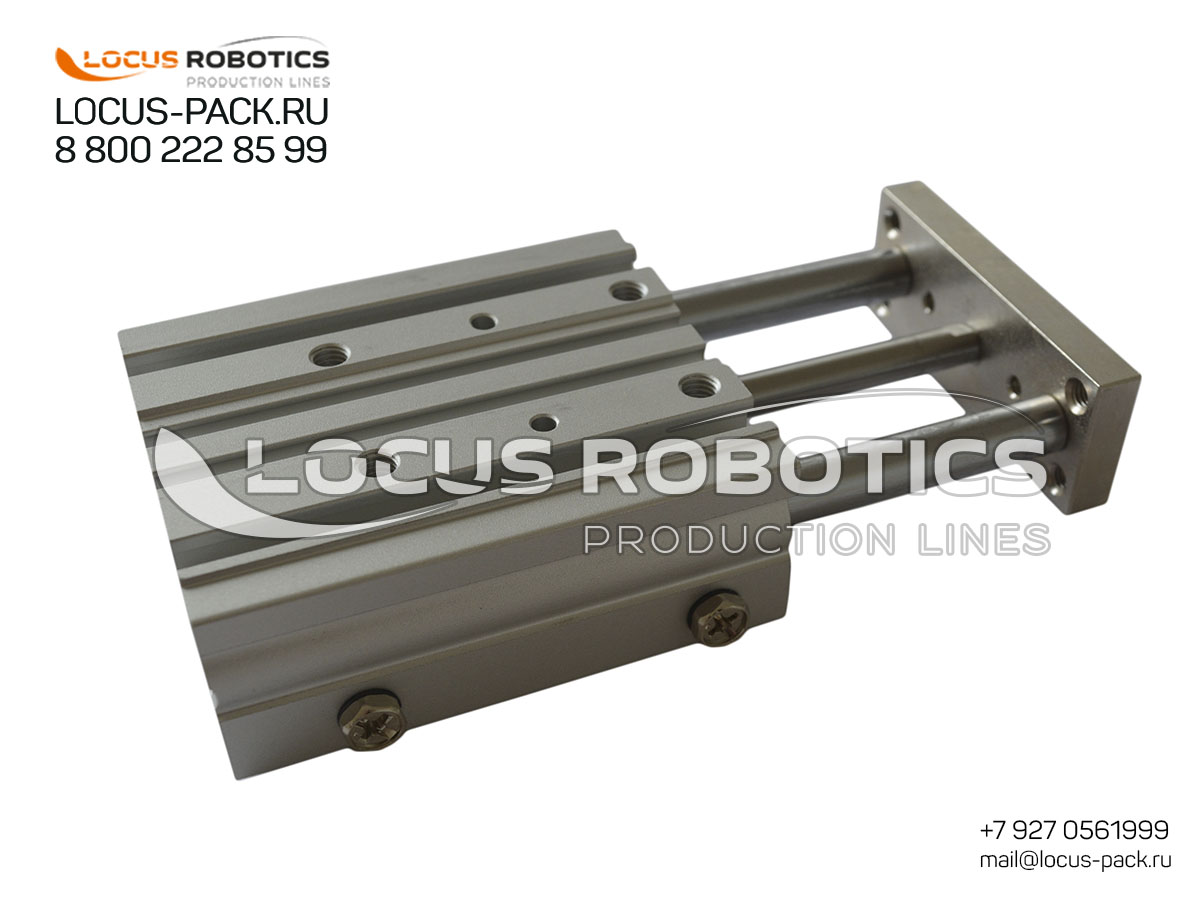

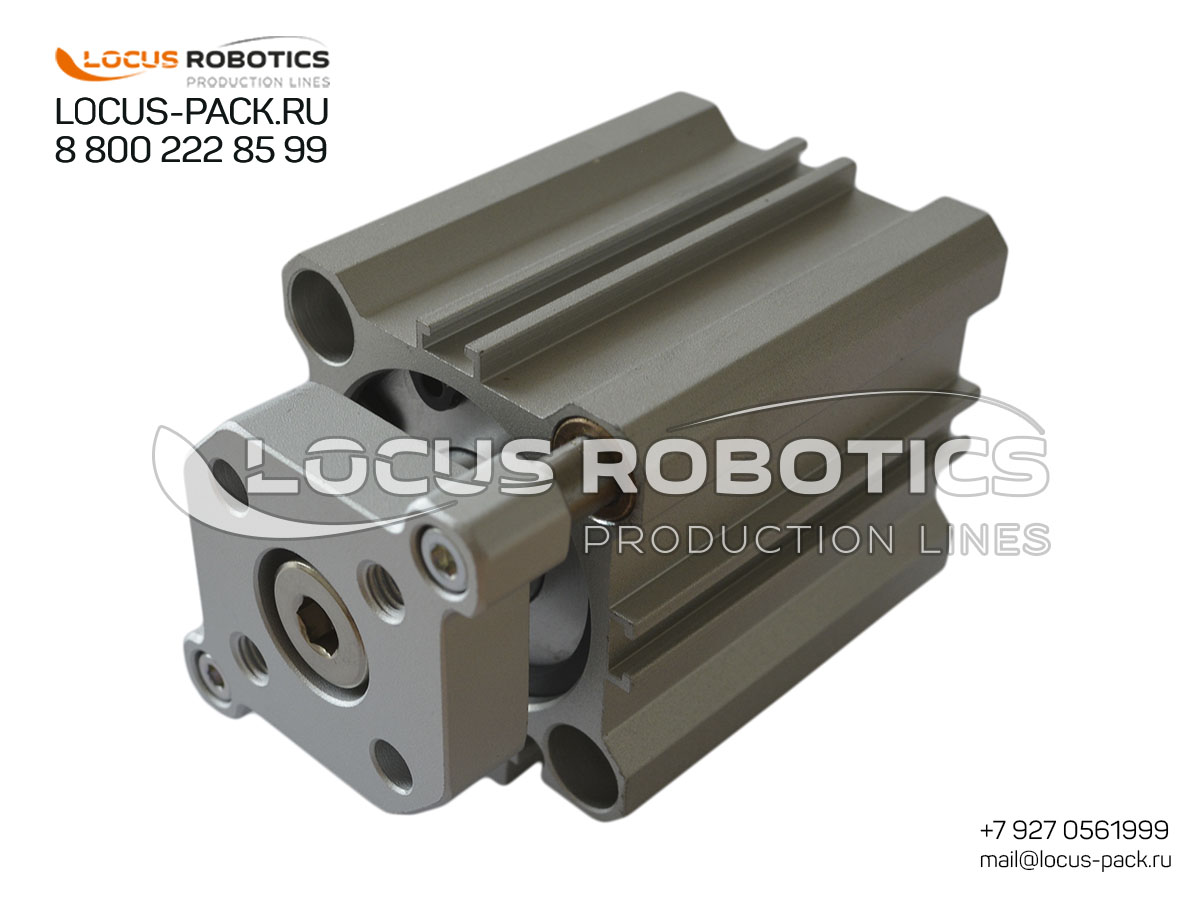

| Specification | Compact Cylinder | Flat Cylinder |
|---|---|---|
| Design | Single/Double-Acting | Single/Double-Acting |
| Bore Size (Piston Diameter) | 6 — 125 mm | 3 — 63 mm |
| Stroke Length | 5 — 80 mm | 10 — 500 mm |
| Typical Max. Force (at ~6-8 bar) | 9 — 6881 N (Extend) | 51 — 1682 N (Extend) |
How to Calculate Force Output
The force a cylinder can exert is calculated as: Force = Pressure × Area.
-
Pressure is the operating air pressure (in bar or Pascals).
-
Area is the cross-sectional area of the cylinder bore (in m²).
