Description

Simultaneous Top and Bottom Labeling in a Single Pass

Modular, Dual-Conveyor Design for Precision and Stability.

Universal Application Across Regulated and Fast-Paced Industries.

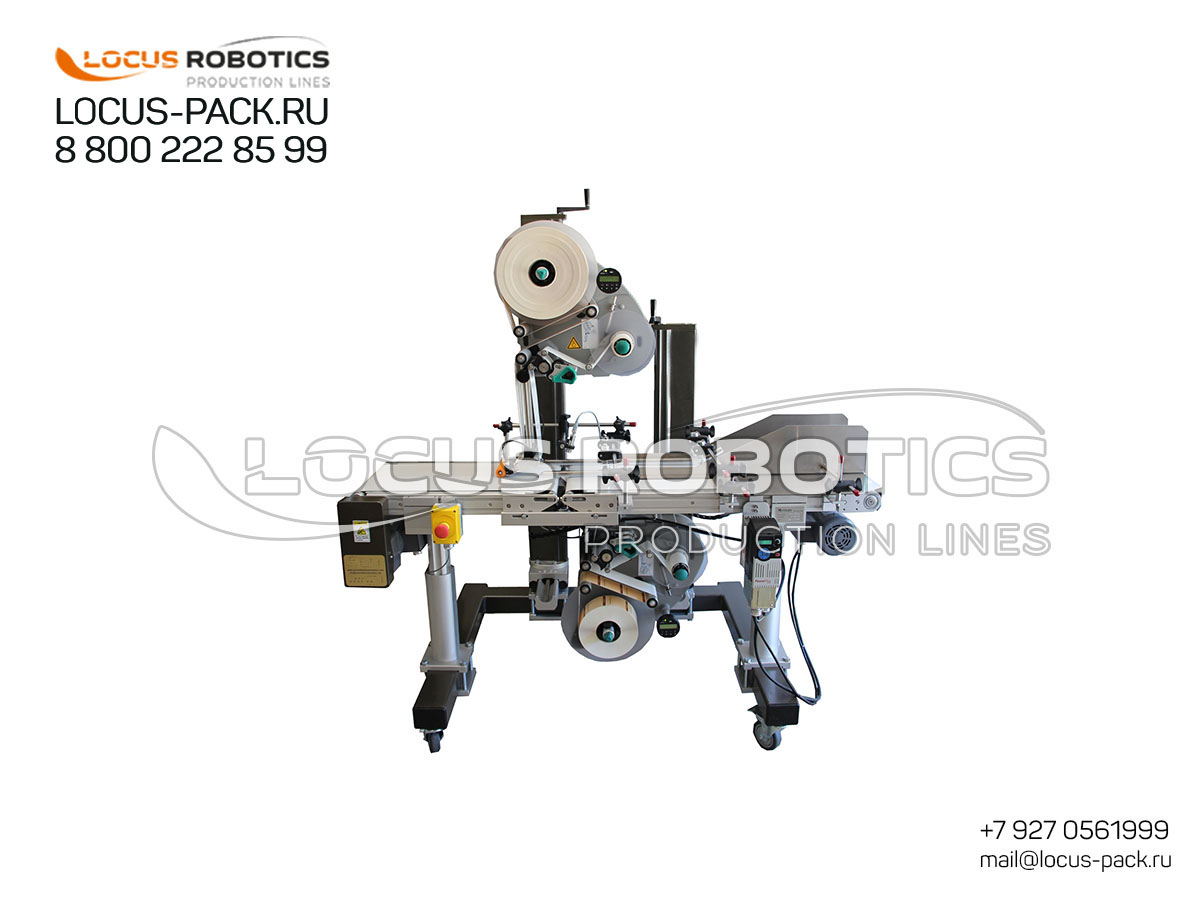

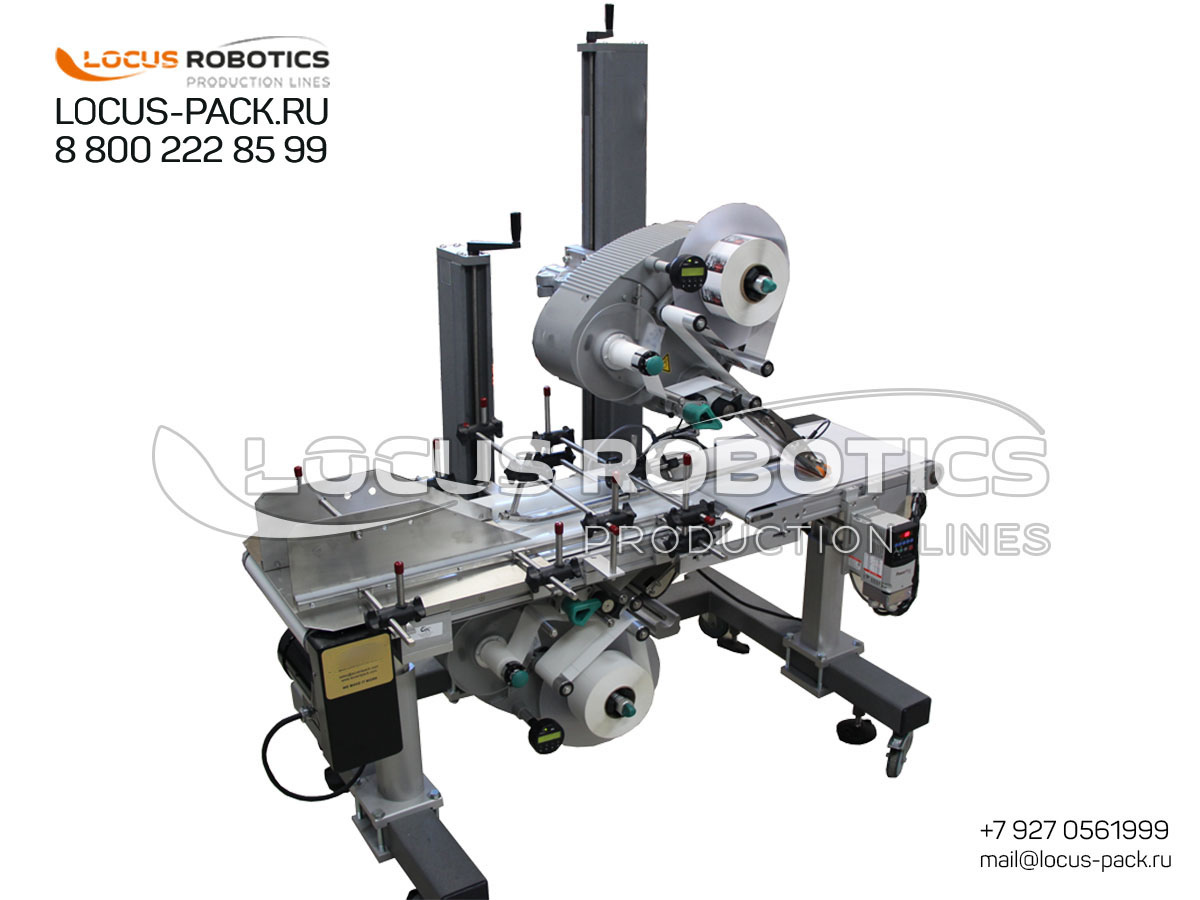

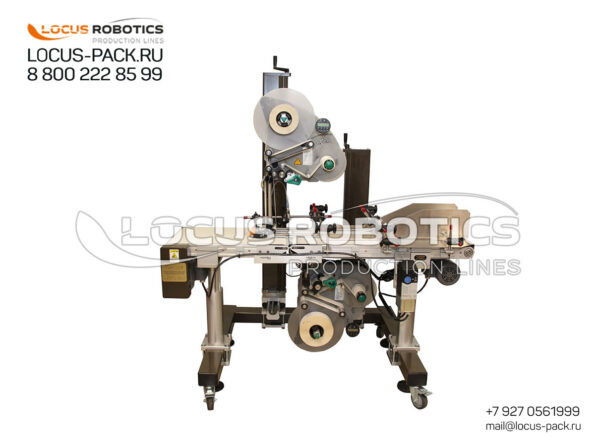

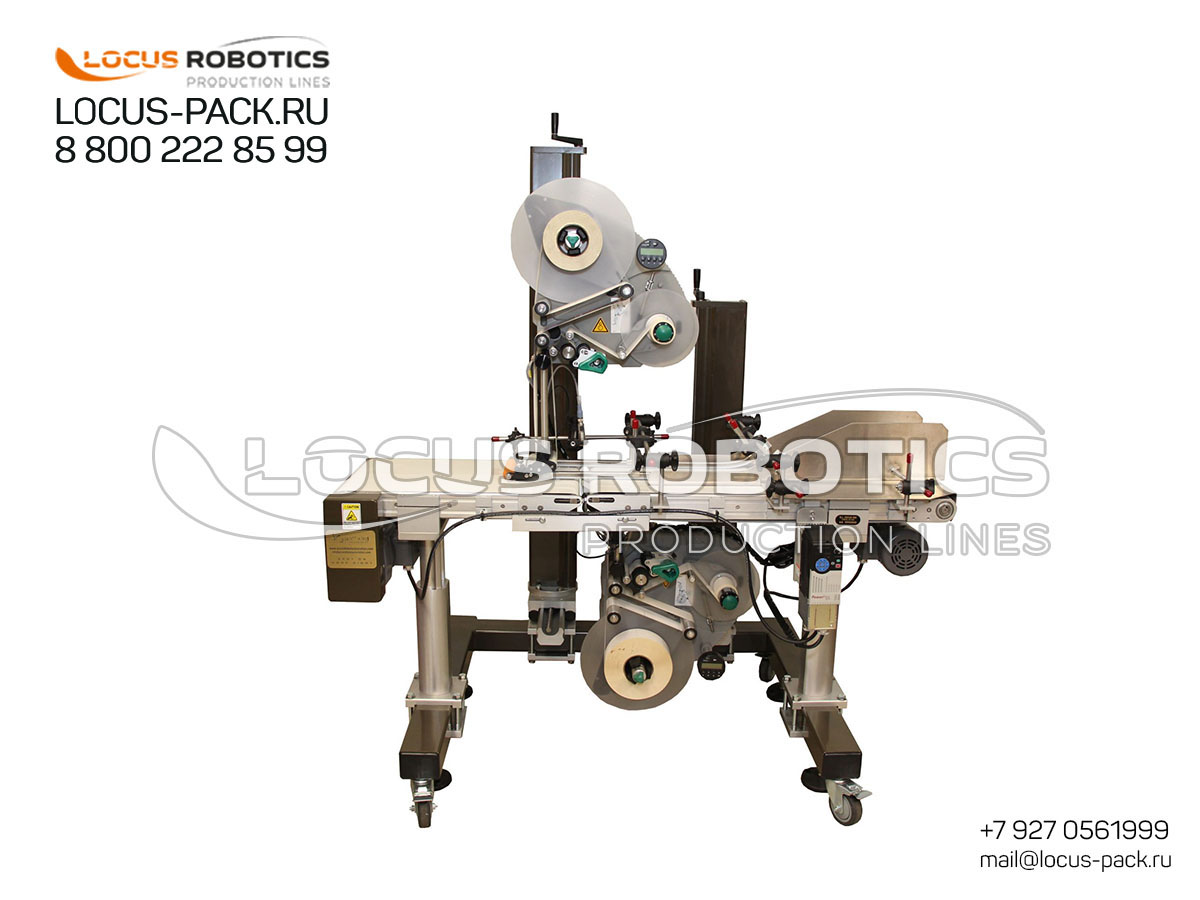

The LL-50 addresses complex labeling requirements that standard single-head machines cannot fulfill. By applying labels to opposite sides simultaneously, it eliminates a production bottleneck, reduces handling, and ensures perfect alignment of complementary labels (product info on top, barcode and ingredients on bottom). This is critical for traceability, retail compliance, and enhanced product presentation.

Modular, Dual-Conveyor Design for Precision and Stability

This system is engineered around stability and accuracy:

• Dual Belt Conveyors: Two independent conveyor belts provide secure support from above and below, preventing item tilt or vibration during high-speed transport and label application.

• Dual Vertical Applicators: Independently adjustable upper and lower label heads mounted on multi-post stands.

• Precision Guidance: Adjustable side guide rails and optional side pressure belts (orienter belts) ensure each item is perfectly centered.

• Sensing & Smoothing: An optical sensor triggers both applicators simultaneously. Separate pressure brushes or rollers smooth each applied label.

• Advanced Optional Configurations: Can be equipped with a third, side-mounted applicator for 3-side labeling (top, bottom, side) of containers or briquettes. An automatic feeder (paginator) for flat cartons or stacks can be integrated.

Technical Specifications & Advanced Configuration Options

Universal Application Across Regulated and Fast-Paced Industries

• Pharmaceuticals: Labeling folded carton packaging with product information on top and legal/scanning details on the bottom. Ideal for clinical trial samples.

• Food & Beverage: Applying premium top labels and nutritional/barcode labels on the bottom of pouches or cartons simultaneously.

• Cosmetics & Personal Care: Adding promotional stickers on top and ingredient lists/batch codes on the bottom of gift boxes or outer cartons.

• Chemicals: Applying hazard symbols and handling instructions on both the top and bottom of chemical containers for safety compliance.

Fully Automated Operation for Maximum Throughput

Operation is designed for efficiency:

1. Loading: The operator places items on the infeed or uses the optional automatic feeder.

2. Transport & Alignment: The dual conveyor grips the item. Side guides and pressure belts center it.

3. Dual Application: The optical sensor triggers both the upper and lower applicators at the precise moment.

4. Smoothing & Discharge: Pressure elements immediately smooth both labels. The finished, dual-labeled item exits the system.

Engineered for Global Compliance and Local Support

Built to perform reliably in your facility, wherever it is located:

• Certifications & Standards: CE, EAC, ISO 9001. GMP-ready design with cleanable 316L SS surfaces and CIP/SIP capabilities.

• Global Support Network: 24/7 multilingual support (EN/RU/AR/ES). Rapid on-site commissioning (<72 hours) and spare parts delivery from regional hubs in Dubai (MENA), Hanoi (SE Asia), and Lagos (Africa).

• Customization & Validation: We offer free product compatibility testing with your specific items and labels. Our engineers provide free line configuration to ensure the LL-50 integrates perfectly, all backed by a 24-month performance guarantee.

Fully Automated Operation for Maximum Throughput.

Engineered for Global Compliance and Local Support.
