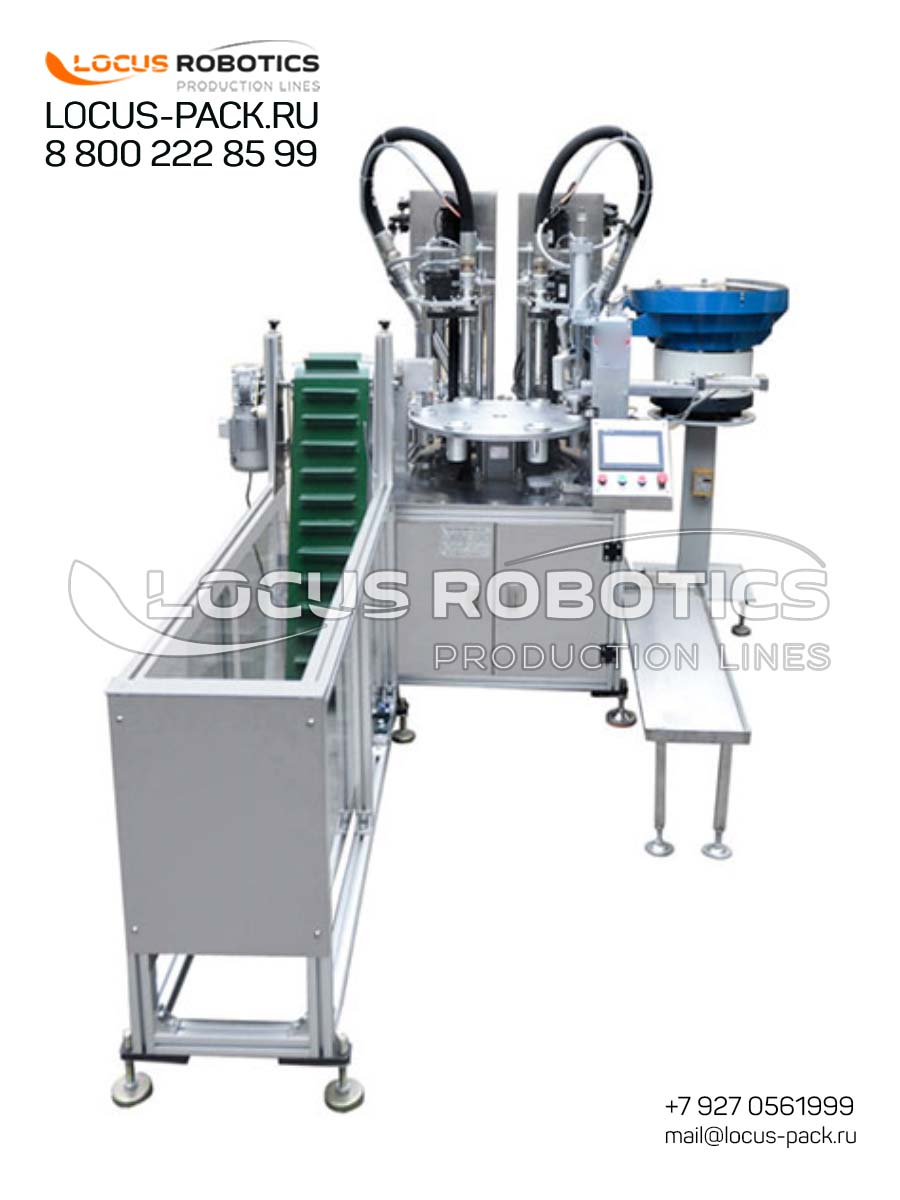

TBC-30 Automatic Rotary Monoblock with Dual Nozzles

High-Efficiency Packaging for Construction Chemicals

The TBC-30 automatic rotary monoblock combines a rotary indexing table with dual nozzles to streamline the packaging of high-viscosity construction chemicals into cartridges. Designed for sealants, adhesives, industrial lubricants, and other construction compounds, this machine ensures consistent results with minimal operator intervention. Its robust construction and advanced features make it an ideal choice for manufacturers in the construction, automotive, and chemical industries seeking to enhance their packaging processes in regions like Southeast Asia, Africa, and Latin America, where reliability and efficiency are critical.

Key Features:

• ✅ Dual Nozzle Dispensing: Simultaneous filling of two cartridges for doubled productivity.

• ✅ Rotary Indexing Table: Enables continuous operation with multiple stations for filling and capping.

• ✅ Automatic Orientation Systems: Ensures correct positioning of cartridges and caps for error-free operation.

• ✅ High-Speed Operation: Capable of processing up to 30 cartridges per minute.

• ✅ Hygienic Design: SS304/316 stainless steel contact parts, easy to clean and maintain.

• ✅ User-Friendly Controls: PLC interface with touchscreen for easy operation and quick changeovers.

Advanced Features for Enhanced Performance

• Dual Nozzle Dispensing System: Two independent dispensing units enable simultaneous filling of two cartridges, doubling output without compromising accuracy (±1%). This is particularly beneficial for high-volume production lines .

• Rotary Indexing Table: Allows continuous operation with multiple stations handling orientation, filling, and capping simultaneously, reducing cycle times and increasing productivity.

• Automatic Cartridge and Cap Orientation: Ensures correct positioning of cartridges and caps, minimizing errors and maximizing efficiency.

• Precision Dispensing Technology: Utilizes servo-driven pistons for precise volumetric control, minimizing product waste and ensuring consistency across fill volumes from 50 ml to 500 ml.

• High-Viscosity Compatibility: Handles products with viscosities up to 500,000 cP, making it suitable for thick pastes, gels, and compounds.

• Robust Construction: SS304/316 stainless steel contact parts resist corrosion and meet industry hygiene standards, ensuring long-term reliability in harsh environments .

Technical Specifications

Applications & Industries

• Construction Chemicals: Sealants, adhesives, caulks, and mortars.

• Industrial Lubricants: Greases, lubricating compounds (e.g., lithol, solidol), and technical gels.

• Automotive Products: Anti-seize compounds, brake lubricants, and assembly pastes.

• General Industrial Use: Specialty chemicals, maintenance products, and waterproofing materials .

Why Choose the TBC-30 Automatic Rotary Monoblock?

• High Productivity: Dual-nozzle design and rotary indexing table enable continuous operation, reducing downtime and maximizing output.

• Precision and Consistency: Ensures accurate fills and secure seals, reducing waste and enhancing product quality.

• Versatility: Suitable for a wide range of high-viscosity products and cartridge sizes.

• Durability: Built to withstand harsh industrial environments with minimal maintenance.

• Global Compliance: Designed to meet international safety and hygiene standards for export markets
