Description
Engineered for Precision and Reliability in Liquid Packaging

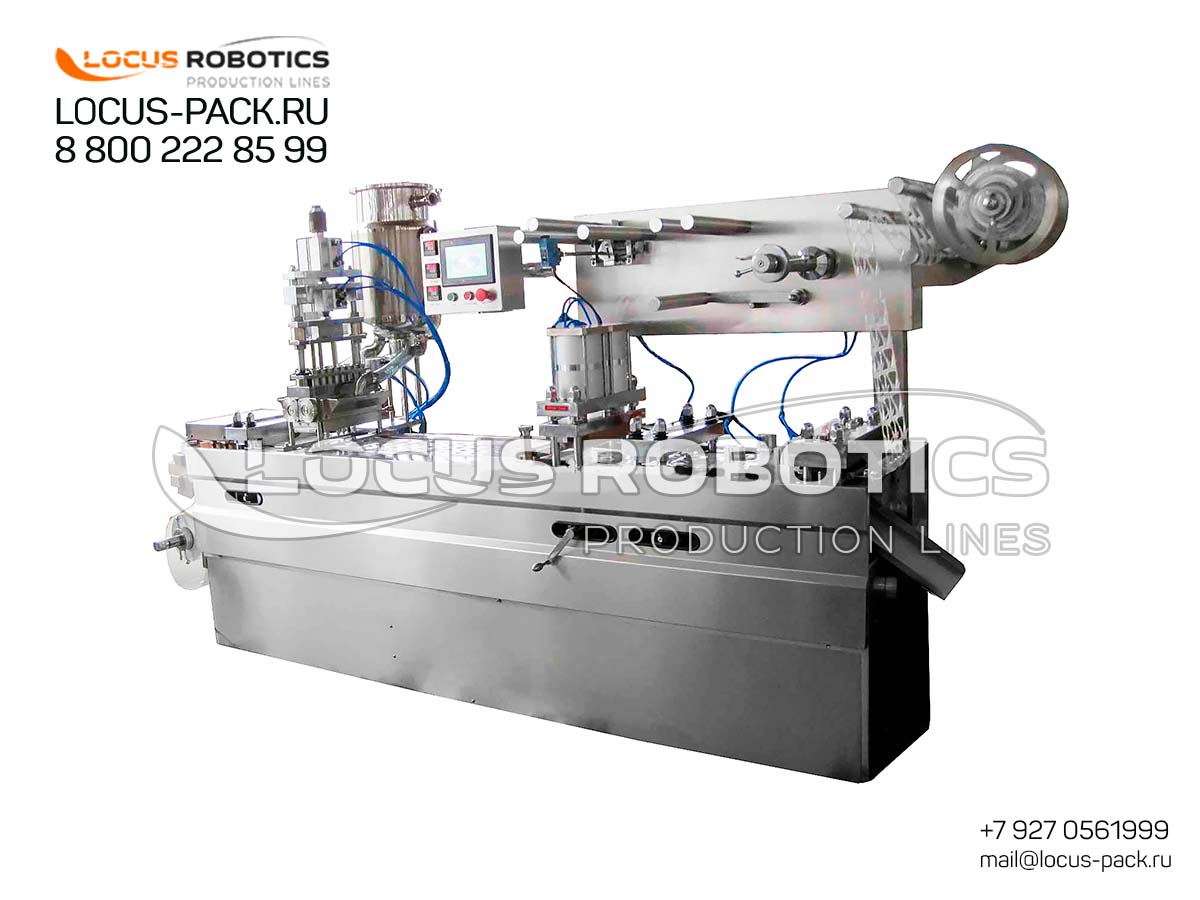

The LBLM-200 is designed to be the cornerstone of your liquid packaging line, automating the entire process from forming blister cavities and filling them with precise liquid doses to hermetic sealing and cutting . This machine is a complete solution for businesses in the food, nutraceutical, and cosmetic sectors looking to ensure their liquid products are packaged securely, attractively, and in compliance with industry standards. Its robust construction guarantees long-term stability and consistent performance, which is crucial for manufacturers supplying global markets.
Key Highlights:
-
Integrated Filling & Sealing: Combines precise liquid dosing and hermetic blister sealing in a single, automated machine .
-
Versatile Application: Ideal for honey, jams, sauces, cosmetics, creams, and pharmaceutical liquids .
-
High-Efficiency Production: Achieve reliable output to meet modern manufacturing demands .
-
Hygienic & Compliant Design: Constructed with food-grade and pharmaceutical-grade materials, supporting GMP standards and easy cleaning .
Advanced Technical Features for Superior Performance
-
Precision Liquid Filling System: Equipped with a piston filler manufactured from 316 stainless steel, this system ensures accurate and consistent dosing of various liquid viscosities. The piston is easily removable for thorough cleaning, maintaining hygiene and preventing cross-contamination .
-
Automated Thermoforming & Sealing: The machine uses an internal heating system to ensure PVC film is heated evenly, forming firm and consistent blister cavities. This is followed by a precision sealing station that hermetically seals the blister with aluminum lidding foil (PTP), ensuring product protection and extended shelf life .
-
Intelligent Control System: Utilizes a Mitsubishi PLC and servo-control system for all machine functions, ensuring operational convenience, high precision, and low failure rates. The human-machine interface allows for easy parameter setting and monitoring .
-
Robust GMP-Compliant Construction: All external panels are made from food-grade 304 stainless steel and aluminum alloy, ensuring durability, corrosion resistance, and easy cleaning. The use of quality components like Airtac solenoid valves contributes to the machine’s reliability and long service life .
Technical Specifications
| Specification Category | Details |
|---|---|
| Machine Type | Automatic Liquid Filling & Blister Sealing Machine |
| Production Capacity | ~1,200 — 4,200 blisters/hour (depending on blister size and design) |
| Max. Forming Area & Depth | Up to 130 x 100 mm (Standard, depth ≤15 mm); Maximum depth can reach 26mm |
| Suitable Materials | PVC hard film, PTP Aluminum foil, Dialysis paper |
| Power Supply | 380V, 50Hz, 3.8 kW (Total), 1.5 kW (Main) |
| Air Consumption | ≥0.3 m³/min at 0.4-0.6 MPa |
| Machine Dimensions (L*W*H) | Approximately 2315 x 635 x 1405 mm |
| Net Weight | Approximately 820 kg |
Why Choose This Solution for Your Liquid Packaging?
This machine transforms a complex, multi-step packaging process into a clean, efficient, and reliable operation. By integrating filling and sealing, it minimizes manual handling, reduces labor costs, and ensures a consistent, high-quality package that protects your product and enhances its market appeal .
